Engine Controls Component Views. GMC Truck GMC C Pickup

For 1990-2009 cars only

Makes 🢒 GMC_Truck 🢒 1997 🢒 GMC C Pickup - 2WD (CNG) 🢒 Engine 🢒 Engine Controls - 5.0L and 5.7L 🢒 Engine Controls Component Views

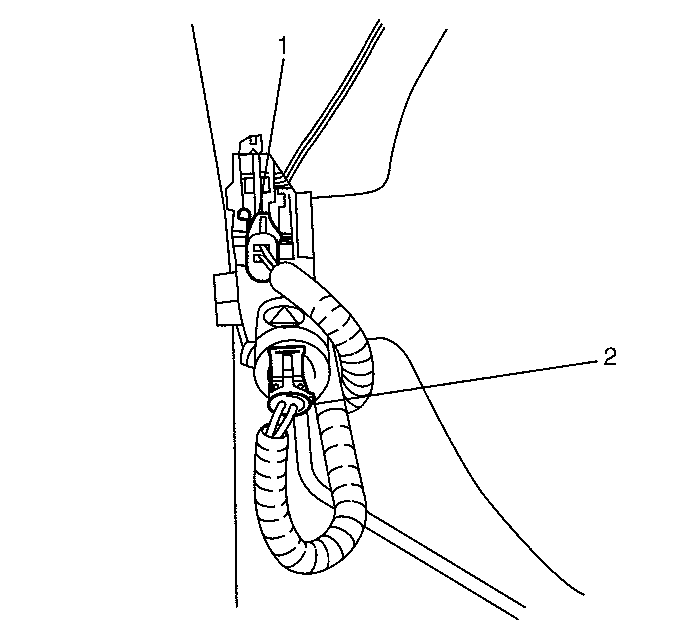

Figure 1:

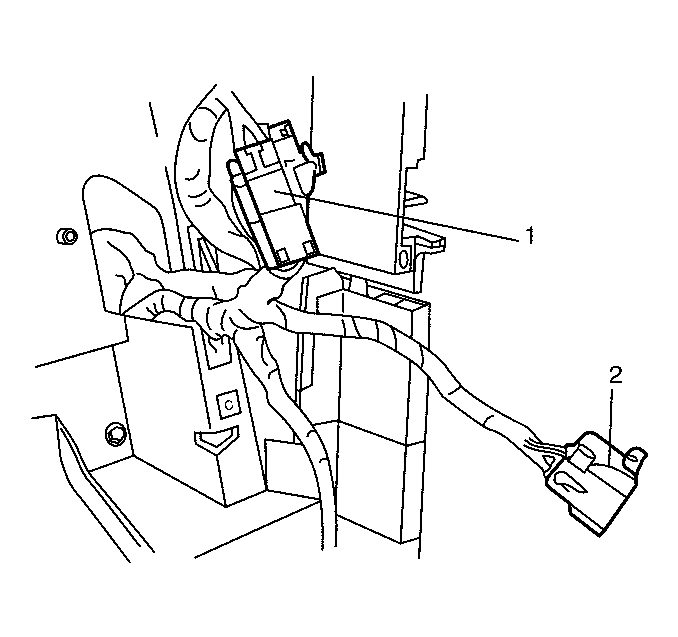

Figure 2:

Figure 3:

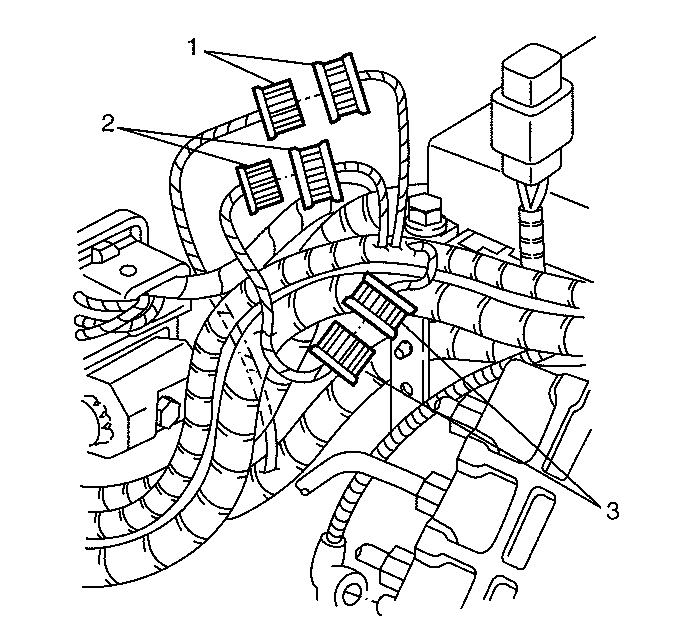

(1)	High Pressure Lock-off (HPL) Connector - C313
(2)	Fuel Sending Unit (FSU) Connector - C315

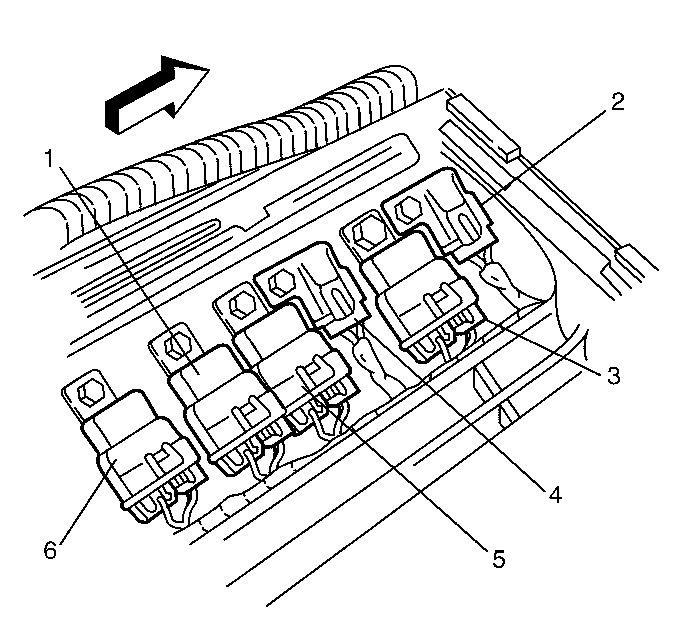

Figure 4:

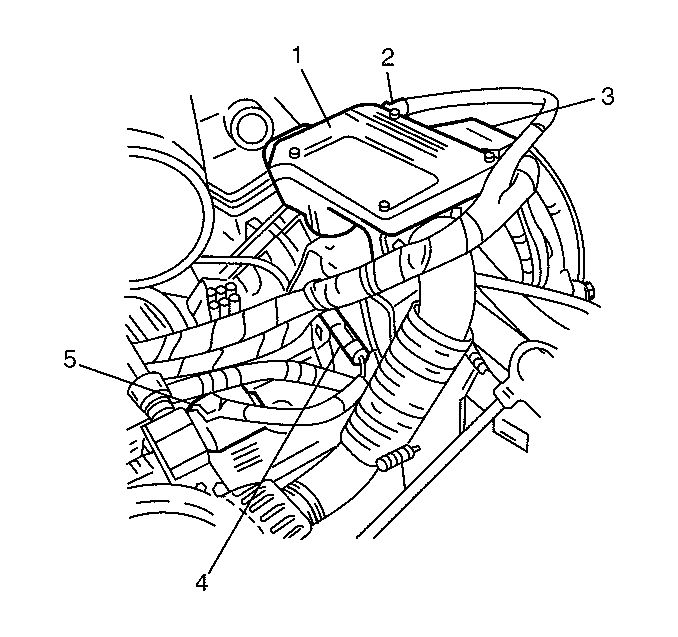

Figure 5:

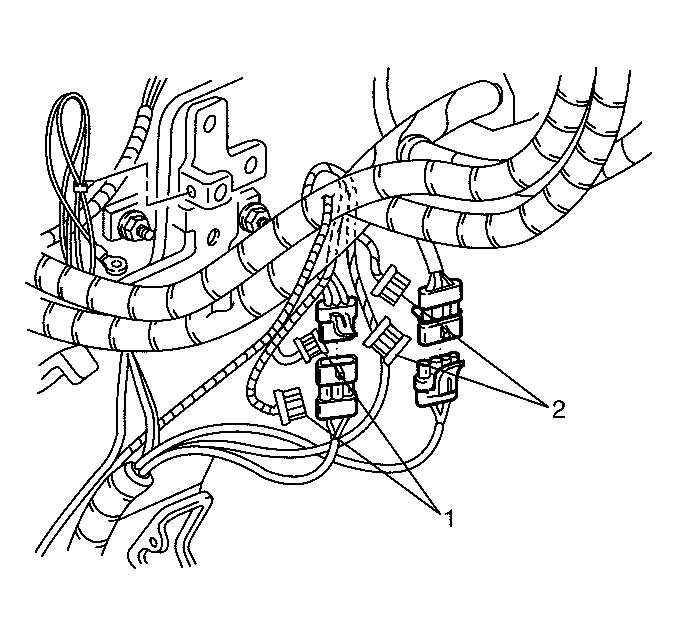

Figure 6:


(1)	Cargo Lamp Switch Connector -- C212 Black
(2)	Fuel Gauge Selector Switch/Fuel Indicator Lamp Connector -- C239 Gray

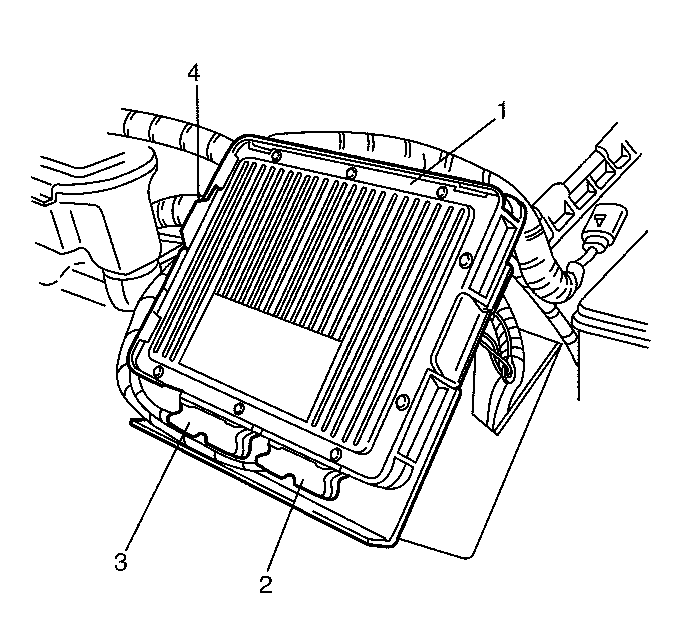

Figure 7:


(1)	In-Line Engine Harness Connector - C103 Gray
(2)	In-Line IP Harness Connector - C104 Gray

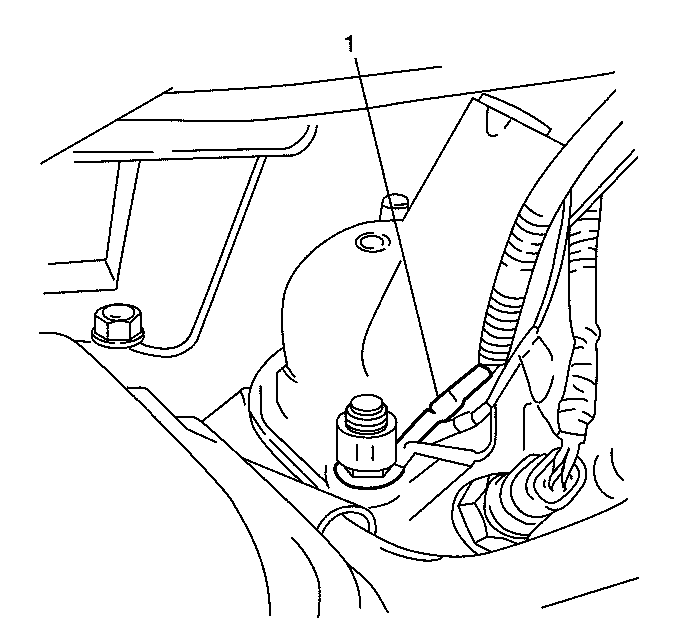

Figure 8:


(1)	Engine Ground -- G103
