Interior Lights Dimming Schematics. GMC Truck GMC C Sierra - 2WD 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 GMC_Truck 🢒 2005 🢒 GMC C Sierra - 2WD 🢒 Body 🢒 Lighting Systems 🢒 Interior Lights Dimming Schematics

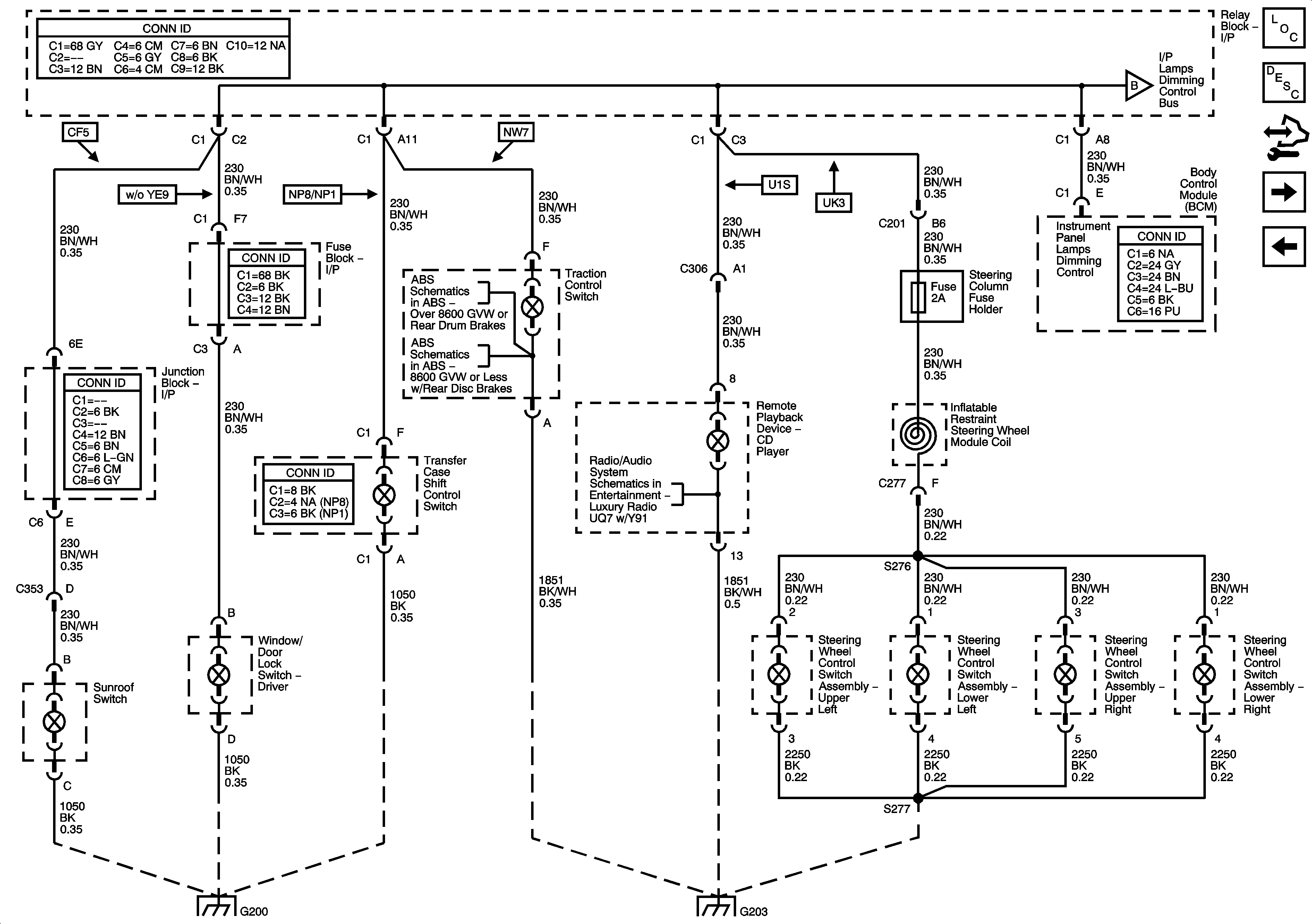

Figure 1:	Interior Lights Dimming Control and LED Dimming Supply - 1 of 2 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References LED Dimming Supply - 2 of 2 Power, Ground, Serial Data, Steering Wheel/Speed Sensor, and Brake Pedal Position Sensor Steering Wheel Speed/Position BLWR, FLASH, HVAC/ECAS, LBEC 1, RR DEFOG, RR HVAC, TBC 2A, TBC 2B, and TBC 2C Fuses and LT DOOR Circuit Breaker LED Dimming Supply - 2 of 2 G115 and G200 - 1 of 2

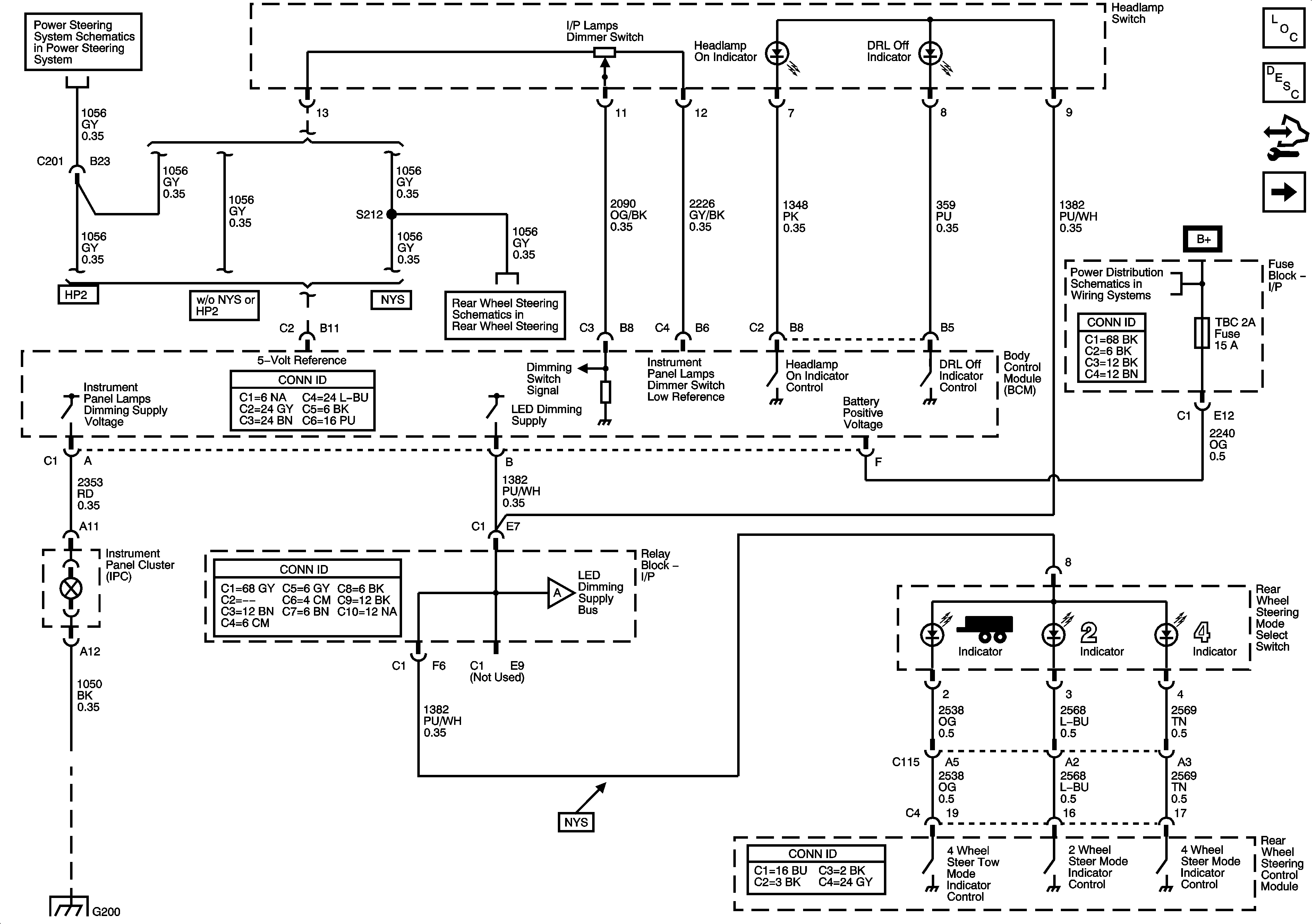

Figure 2:	LED Dimming Supply - 2 of 2 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References I/P Lamps Dimming Control Supply - 1 of 3 Interior Lights Dimming Control and LED Dimming Supply - 1 of 2 Interior Lights Dimming Control and LED Dimming Supply - 1 of 2 Fog Lights Schematics Selectable Ride Roof Beacon Lighting (564/TRW) G115 and G200 - 1 of 2

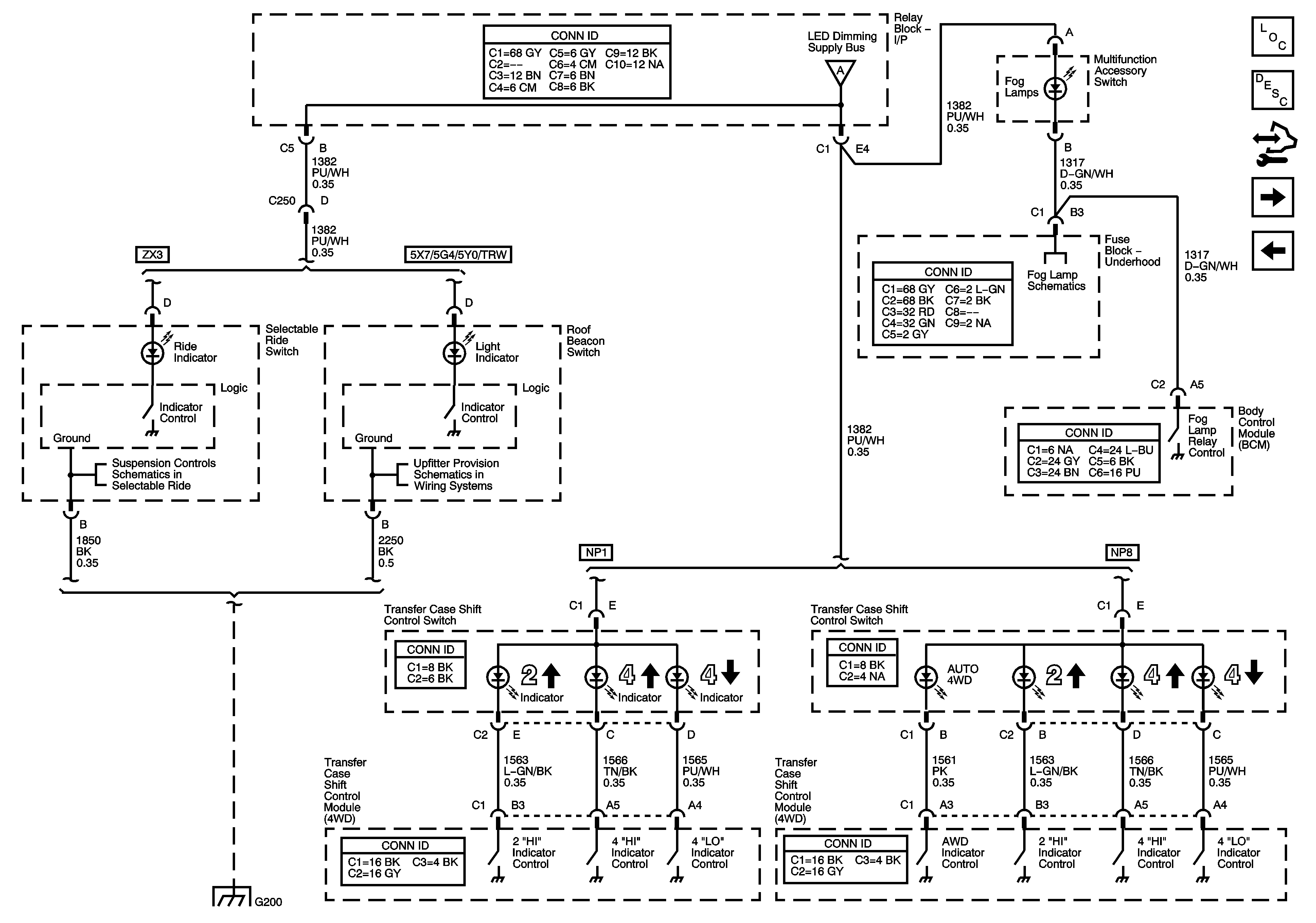

Figure 3:	I/P Lamps Dimming Control Supply - 1 of 3 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References I/P Lamps Dimming Control Supply - 2 of 3 LED Dimming Supply - 2 of 2 I/P Lamps Dimming Control Supply - 2 of 3 Traction Control Switch and Wheel Speed Sensor - 8600 GVW or Less w/Rear Disc Brakes G203 - 1 of 2 G115 and G200 - 1 of 2 G115 and G200 - 1 of 2 G203 - 1 of 2 G203 - 1 of 2 G203 - 2 of 2 G203 - 1 of 2 G115 and G200 - 1 of 2 G115 and G200 - 1 of 2 G203 - 1 of 2

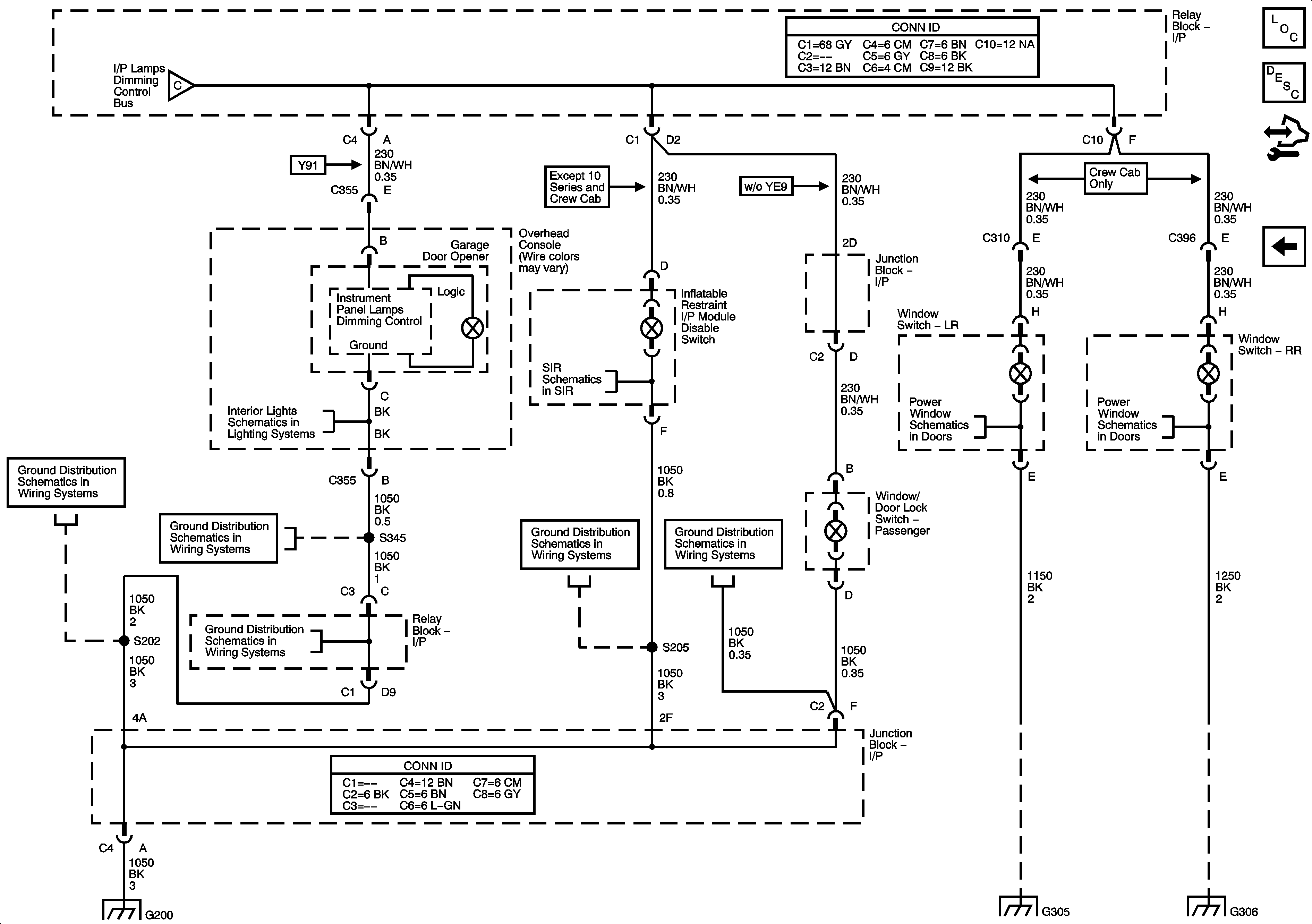

Figure 4:	I/P Lamps Dimming Control Supply - 2 of 3 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References I/P Lamps Dimming Control Supply - 3 of 3 I/P Lamps Dimming Control Supply - 1 of 3 I/P Lamps Dimming Control Supply - 1 of 3 I/P Lamps Dimming Control Supply - 3 of 3 Fog Lights Schematics Selectable Ride Roof Beacon Lighting (564/TRW) Power Takeoff G200 - 2 of 2 G200 - 2 of 2 G115 and G200 - 1 of 2 G200 - 2 of 2 G203 - 1 of 2 G115 and G200 - 1 of 2

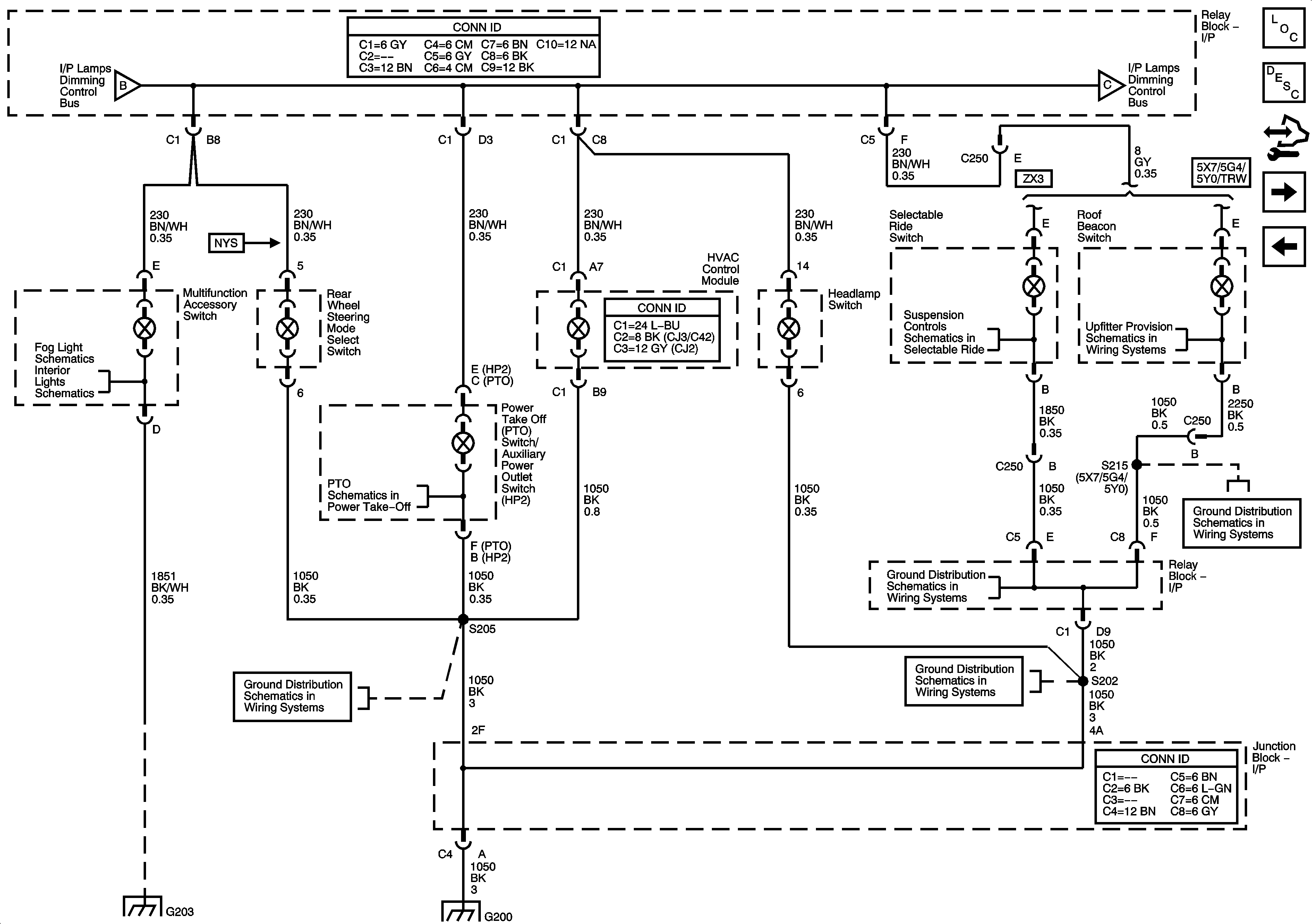

Figure 5:	I/P Dimming Control Supply - 3 of 3 Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References I/P Lamps Dimming Control Supply - 2 of 3 I/P Lamps Dimming Control Supply - 2 of 3 Interior Lamps - 2 of 2 Power, Ground, Serial Data and Disable Switch Left Doors Right Doors G115 and G200 - 1 of 2 G200 - 2 of 2 G115 and G200 - 1 of 2 G115 and G200 - 1 of 2 G200 - 2 of 2 G115 and G200 - 1 of 2 G304, G305, G306 and G390 G304, G305, G306 and G390
