Automatic Transmission Controls Schematics. GMC Truck Savana 1997

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 GMC_Truck 🢒 1997 🢒 Savana 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L80-E 🢒 Automatic Transmission Controls Schematics

Automatic Transmission Controls Schematics Gas Engines

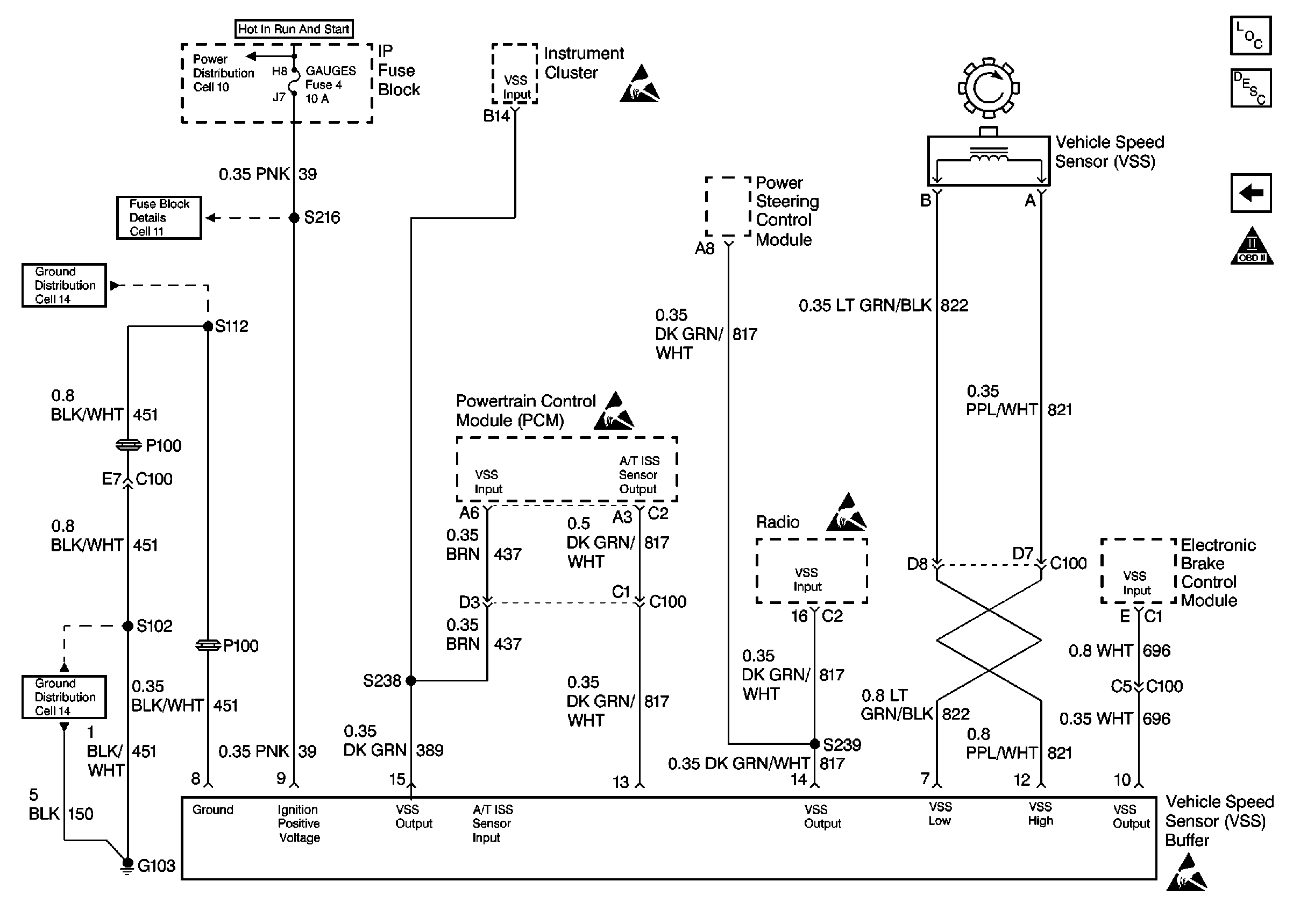

Figure 1:	PWR and VSS Controls Automatic Transmission Components Gas Engines Solenoid, TCC and Stoplamp Controls OBD II Symbol Description Notice Information Sensors 5.7L, 7.4L

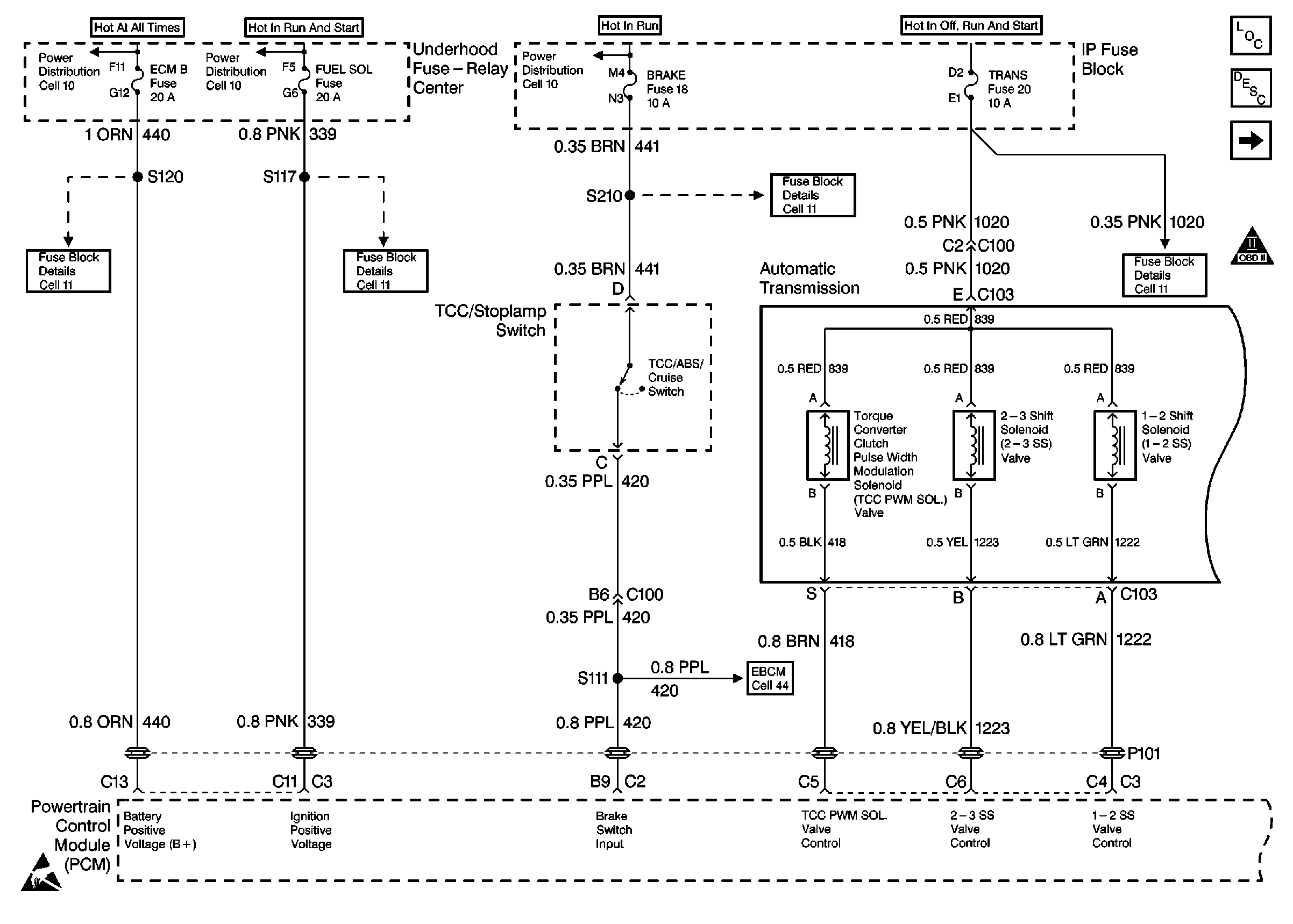

Figure 2:	Solenoid, TCC and Stoplamp Controls Automatic Transmission Components Gas Engines Sensor, Solenoid and GND Controls OBD II Symbol Description Notice Information Sensors 5.7L, 7.4L PWR and VSS Controls

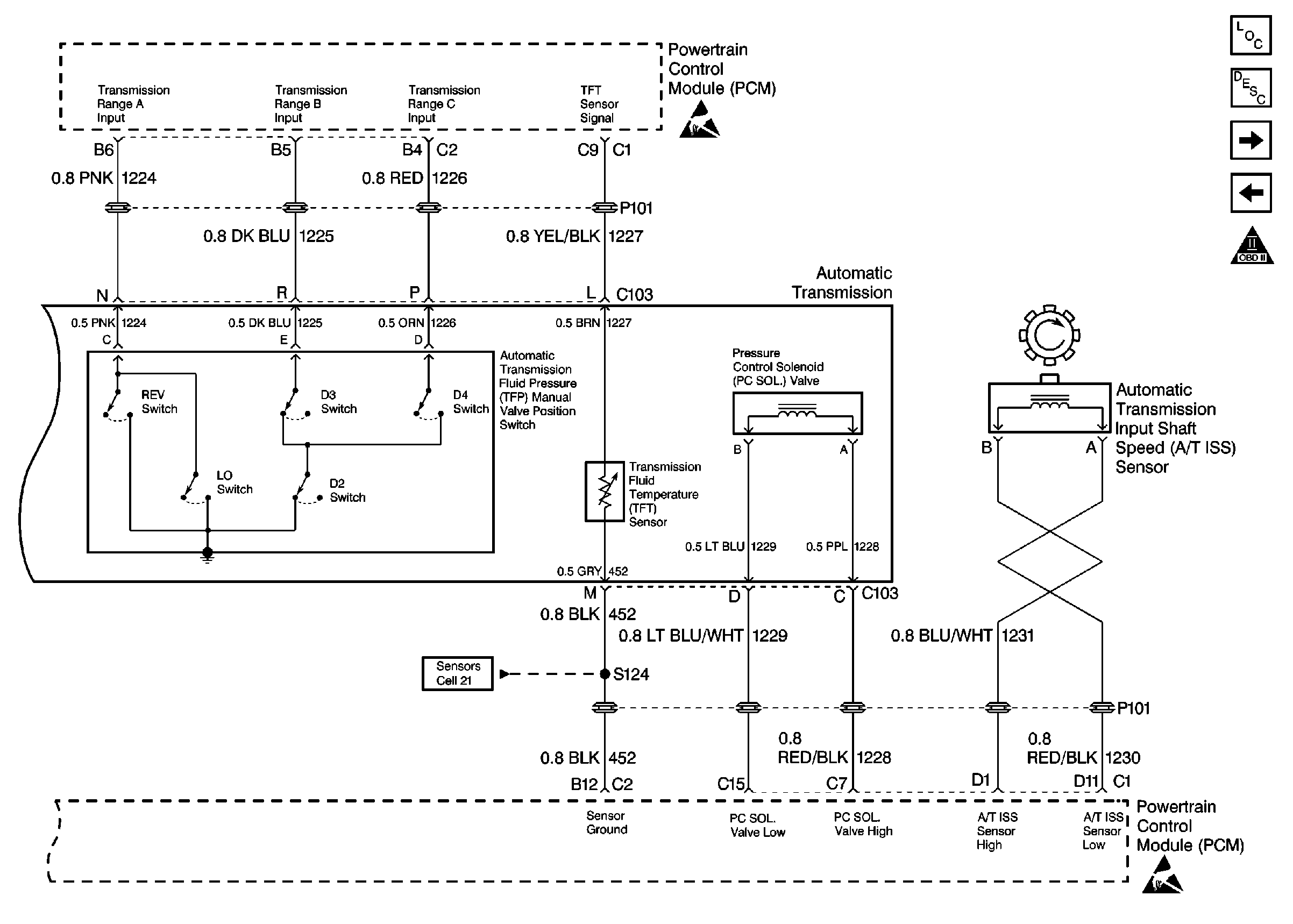

Figure 3:	Sensor, Solenoid and GND Controls Automatic Transmission Components Gas Engines OBD II Symbol Description Notice Information Sensors 5.7L, 7.4L Solenoid, TCC and Stoplamp Controls Sensor Controls 7.4L Sensor Controls 5.0L/5.7L

Automatic Transmission Controls Schematics Diesel Engines

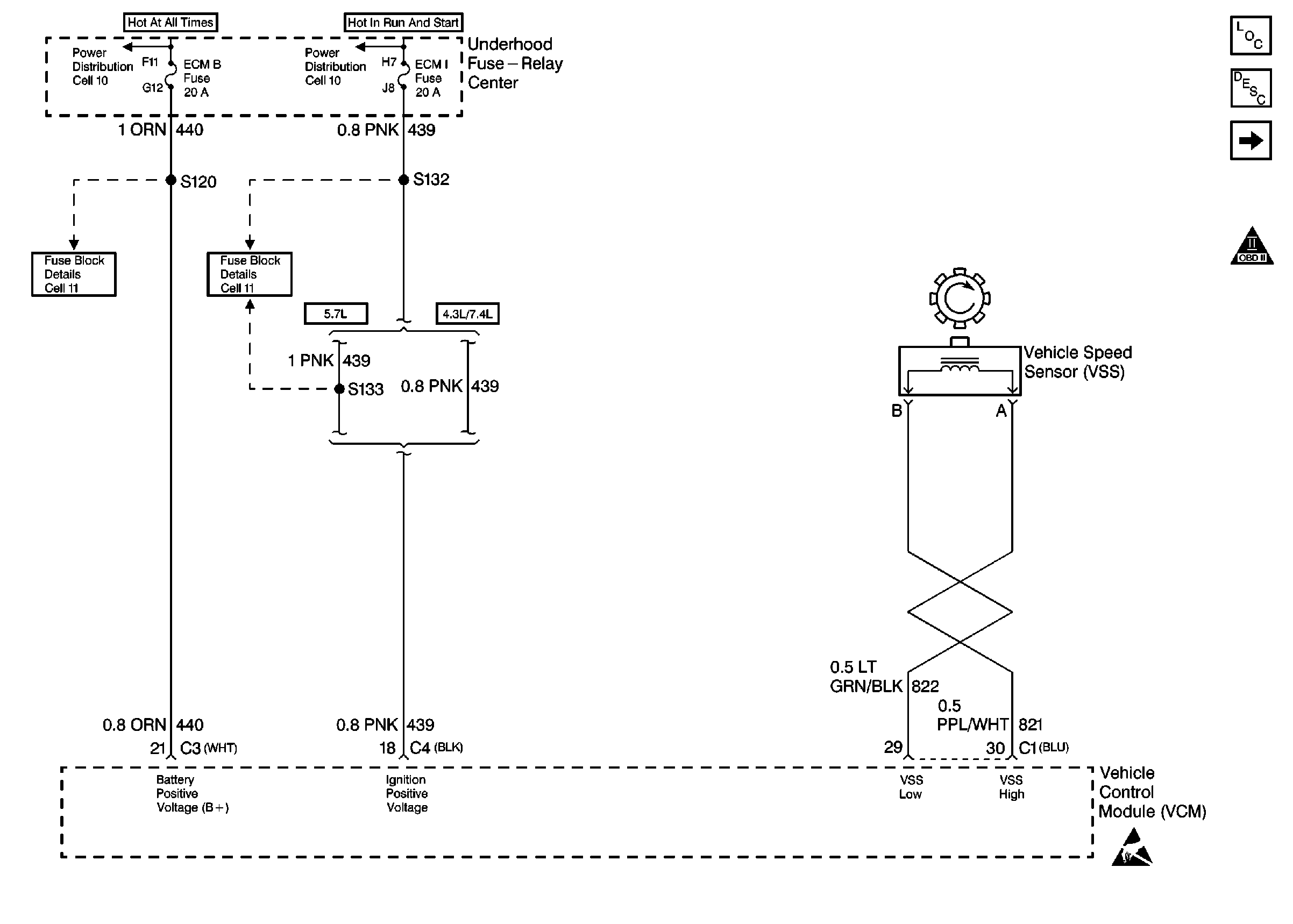

Figure 1:	PWR, Solenoids, TCC and Stoplamp Controls Automatic Transmission Components Diesel Engines Sensor, Solenoid and GND Controls OBD II Symbol Description Notice Information Sensors 5.7L, 7.4L
Figure 2:	Sensor, Solenoid and GND Controls Automatic Transmission Components Diesel Engines OBD II Symbol Description Notice Information Sensors 5.7L, 7.4L PWR, Solenoids, TCC and Stoplamp Controls VSS and Sensor Controls Sensor Controls
Figure 3:	VSS and Sensor Controls Automatic Transmission Components Diesel Engines OBD II Symbol Description Notice Information Sensors 5.7L, 7.4L Sensor, Solenoid and GND Controls
