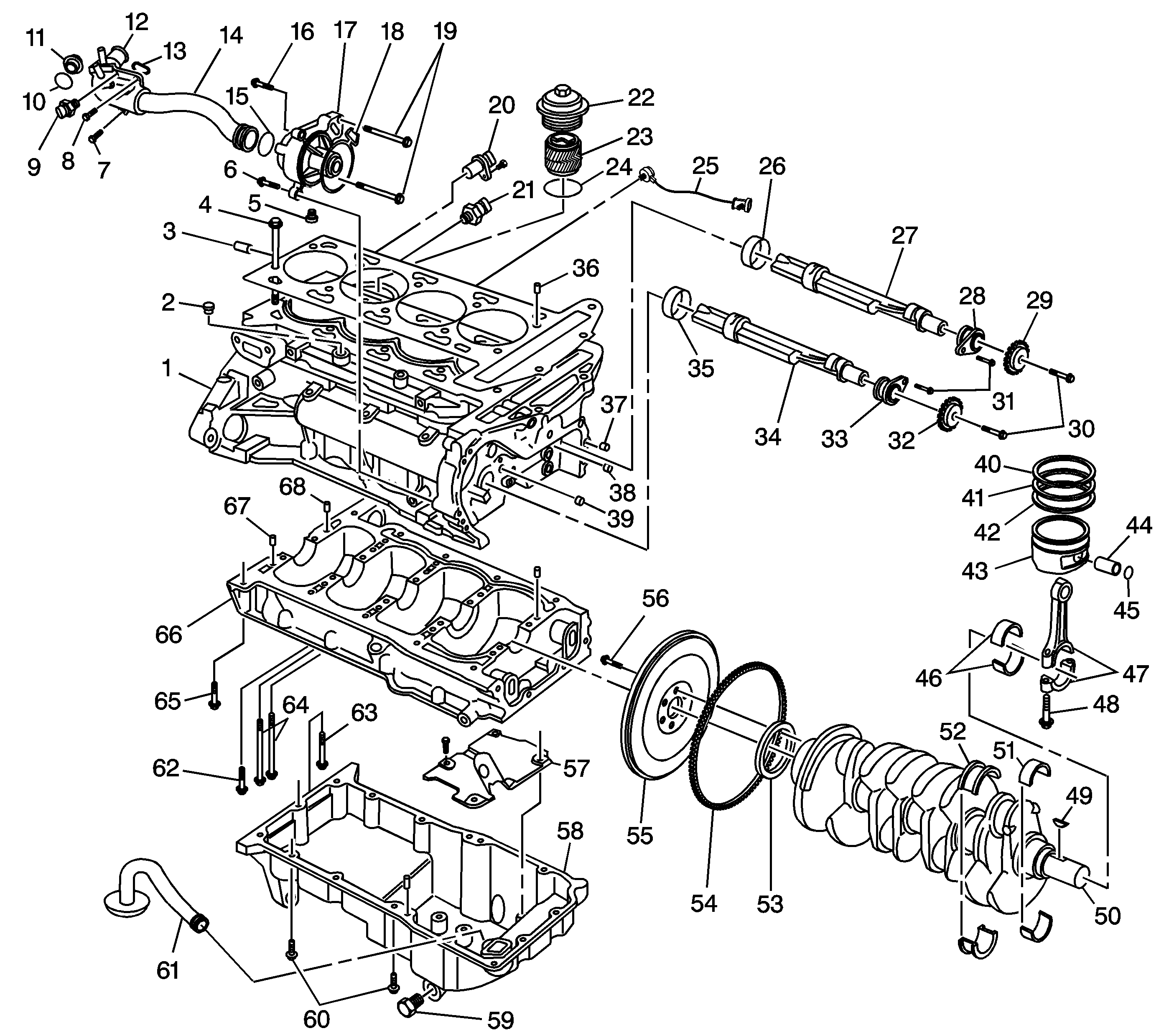

| (1) | Oil Filter Cap |
| (2) | Oil Filter |
| (3) | Oil Filter to Engine Block Seal |
| (4) | Cylinder
Head Alignment Pin |
| (5) | Knock Sensor |
| (6) | Intake Balance Shaft Rear Bearing |
| (7) | Intake Balance Shaft |
| (8) | Intake Balance Shaft Bearing Carrier |
| (9) | Intake Balance
Shaft Drive Sprocket |
| (10) | Balance Shaft Drive Sprocket Bolts |
| (11) | Exhaust Balance
Shaft Drive Sprocket |
| (12) | Balance Shaft Bearing Carrier Bolts |
| (13) | Exhaust Balance
Shaft Bearing Carrier |
| (14) | Exhaust Balance Shaft |
| (15) | Exhaust Balance Shaft Rear Bearing |
| (16) | Engine Front Cover Alignment Pin |
| (17) | Engine Oil Passage Plug |
| (18) | Engine
Oil Passage Plug |
| (19) | Top Compression Piston Ring |
| (20) | Second Compression Piston Ring |
| (21) | Piston Oil Ring Assembly |
| (22) | Piston |
| (23) | Piston Pin |
| (24) | Piston Pin Retainer |
| (25) | Connecting
Rod |
| (26) | Connecting Rod Cap Bolt |
| (27) | Connecting Rod Bearing |
| (28) | Crankshaft Thrust Bearing |
| (29) | Crankshaft Bearing |
| (30) | Crankshaft Damper Alignment Key |
| (31) | Crankshaft |
| (32) | Crankshaft Rear Seal |
| (33) | Starter Ring Gear |
| (34) | Flywheel |
| (35) | Flywheel to Crankshaft Bolt |
| (36) | Engine Oil Pan Baffle |
| (37) | Engine Oil Pan |
| (38) | Engine Oil
Pan Drain Plug |
| (39) | Engine Oil Pan Nuts |
| (40) | Engine Oil Pickup |
| (41) | Lower Crankcase
to Engine Block Bolt |
| (42) | Lower Crankcase to Engine Block Bolt |
| (43) | Crankshaft
Bearing Bolt |
| (44) | Lower Crankcase to Engine Block Bolt |
| (45) | Lower Crankcase |
| (46) | Lower Crankcase Alignment Pin |
| (47) | Lower Crankcase Alignment Pin |
| (48) | Engine Block |
| (49) | Engine Oil Passage Plug |
| (50) | Engine Block to Transmission Alignment Pin |
| (51) | Cylinder
Head to Engine Block Bolt |
| (52) | Water Jacket Drain Plug |
| (53) | Water Pump Bolt |
| (54) | Thermostat
Housing to Engine Block Bolt |
| (55) | Thermostat Housing to Engine Block Bolt |
| (56) | Thermostat
Gasket |
| (57) | Thermostat |
| (58) | Thermostat Housing |
| (59) | Thermostat Housing to Engine Block Seal |
| (60) | Coolant Temperature Sensor |
| (61) | Water Transfer Pipe |
| (62) | Water Transfer Pipe to Water Pump Seal |
| (63) | Water Pump Bolt |
| (64) | Water Pump |
| (65) | Water Pump to Engine Block Seal |
| (66) | Water Pump Bolt |
| (67) | Crankshaft Position Sensor |
| (68) | Oil Pressure Switch |
