For 1990-2009 cars only
| ||||||
|---|---|---|---|---|---|---|

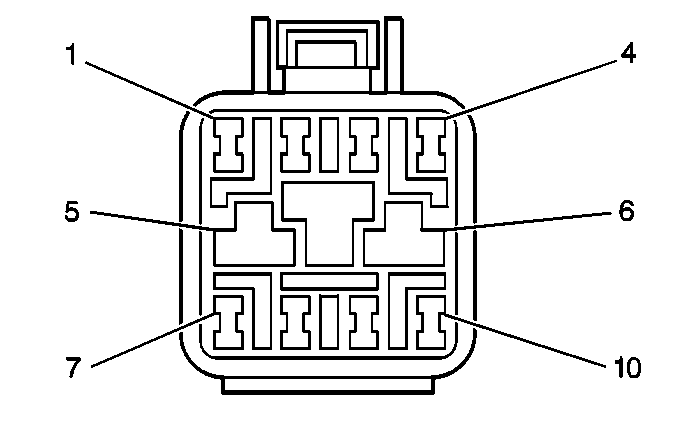

Connector Part Information |
| |||||
Pin | Wire Color | Function | ||||
1 | RED | R Position Signal | ||||
2 | GRN/RED | D Position Signal | ||||
3 | GRN | 2 Position Signal | ||||
4 | GRN/BLU | L Position Signal | ||||
5-7 | -- | Not Used | ||||
8 | YEL | BACK Fuse | ||||
9 | ORN/BLK | P Position Signal | ||||
10 | ORN/YEL | N Position Signal | ||||
