Entertainment Component Views. HUMMER H2 2003

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2003 🢒 H2 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Entertainment Component Views

Figure 1:

Figure 2:


(1)	Garage Door Opener
(2)	Noise Cancellation Microphone
(3)	Overhead Console

Figure 3:

Figure 4:

Figure 5:

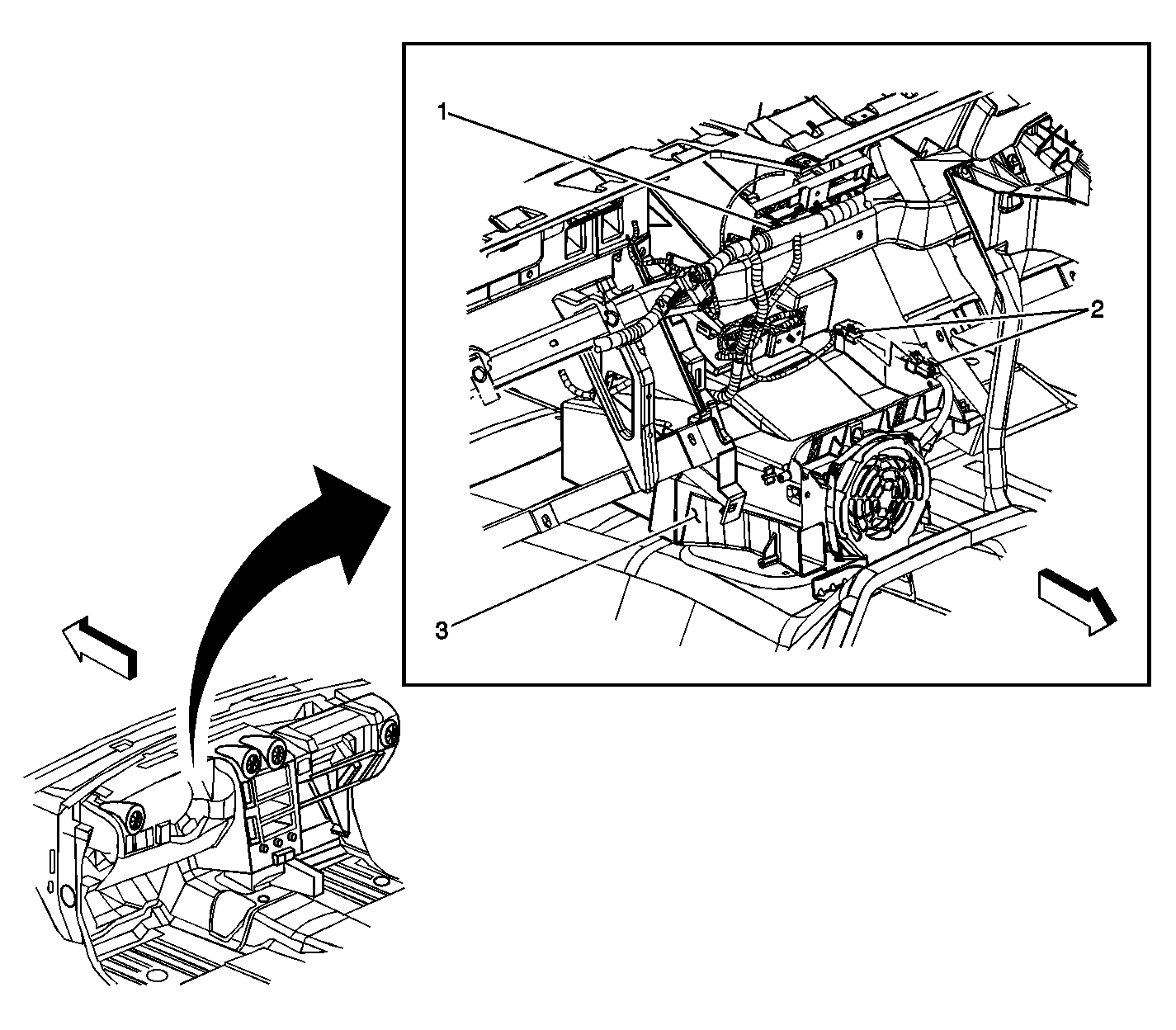

Figure 6:


(1)	I/P Harness
(2)	Speaker-Front Subwoofer Connector
(3)	Speaker-Front Subwoofer

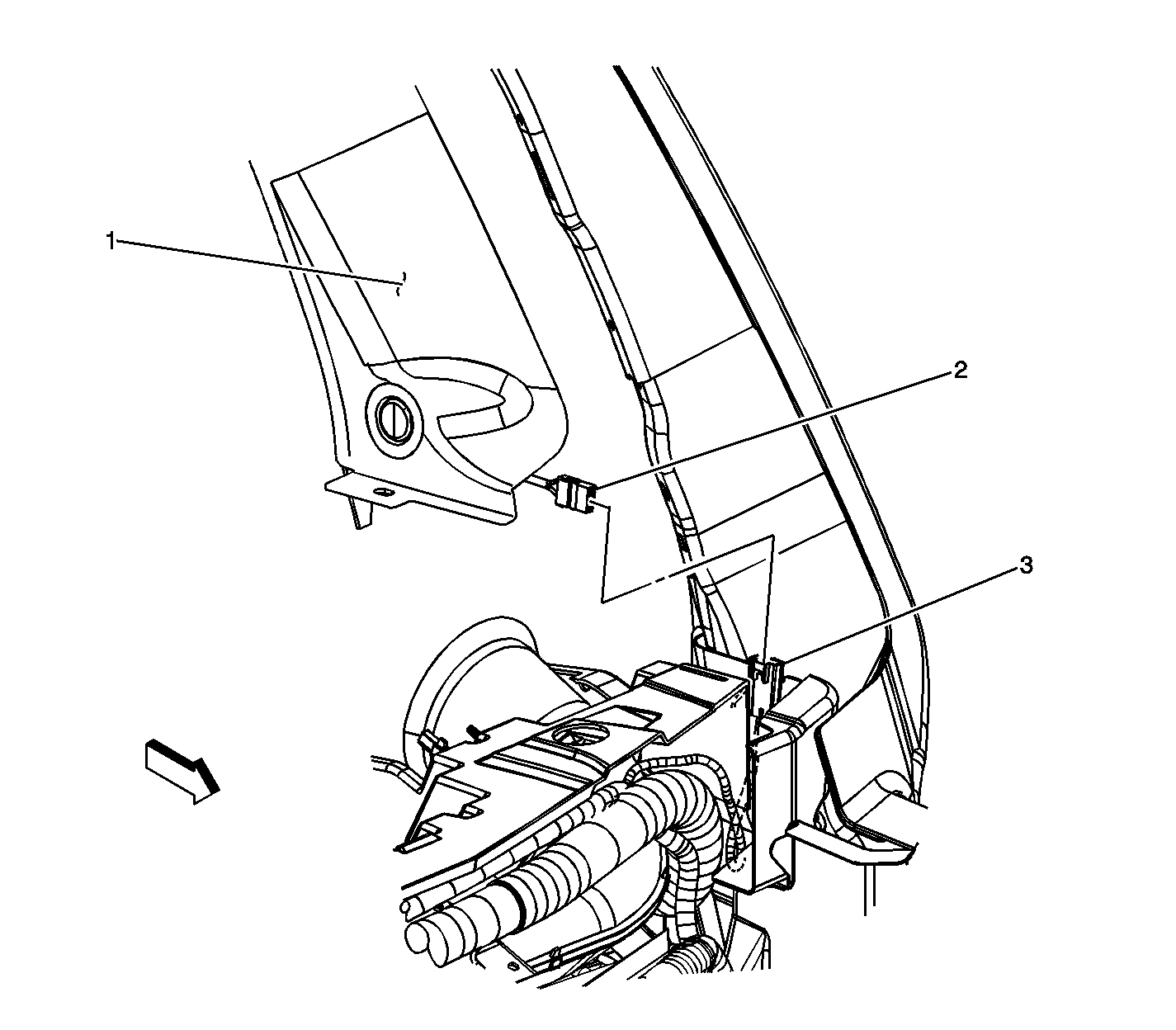

Figure 7:


(1)	Windshield Side Garnish Molding
(2)	Speaker-Left A Pillar Tweeter Connector
(3)	Speaker-Left A Pillar Tweeter Connector-I/P Harness Side

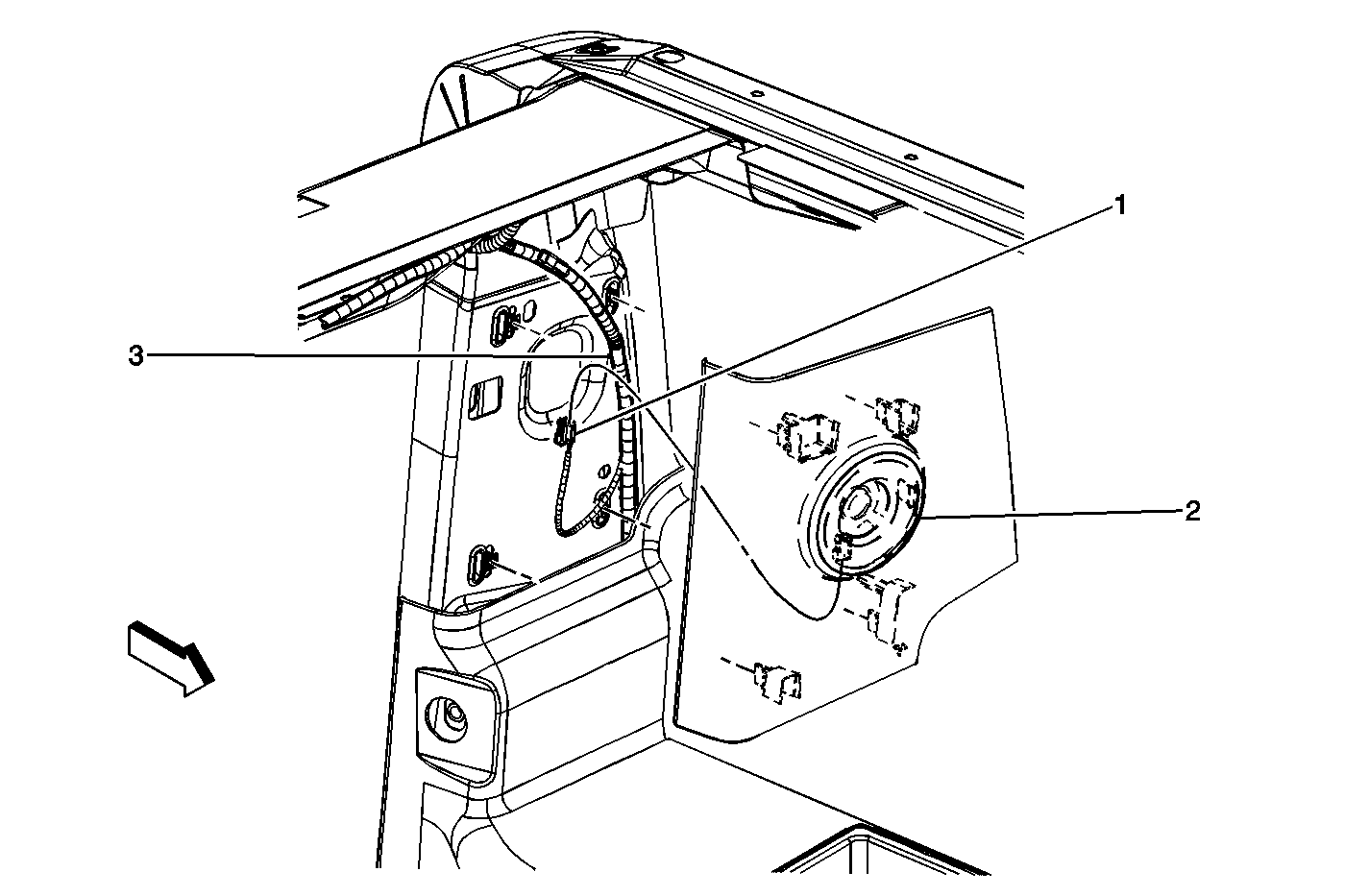

Figure 8:


(1)	Speaker-Left D Pillar Twiddler Connector
(2)	Speaker-Left D Pillar Twiddler
(3)	Body Harness

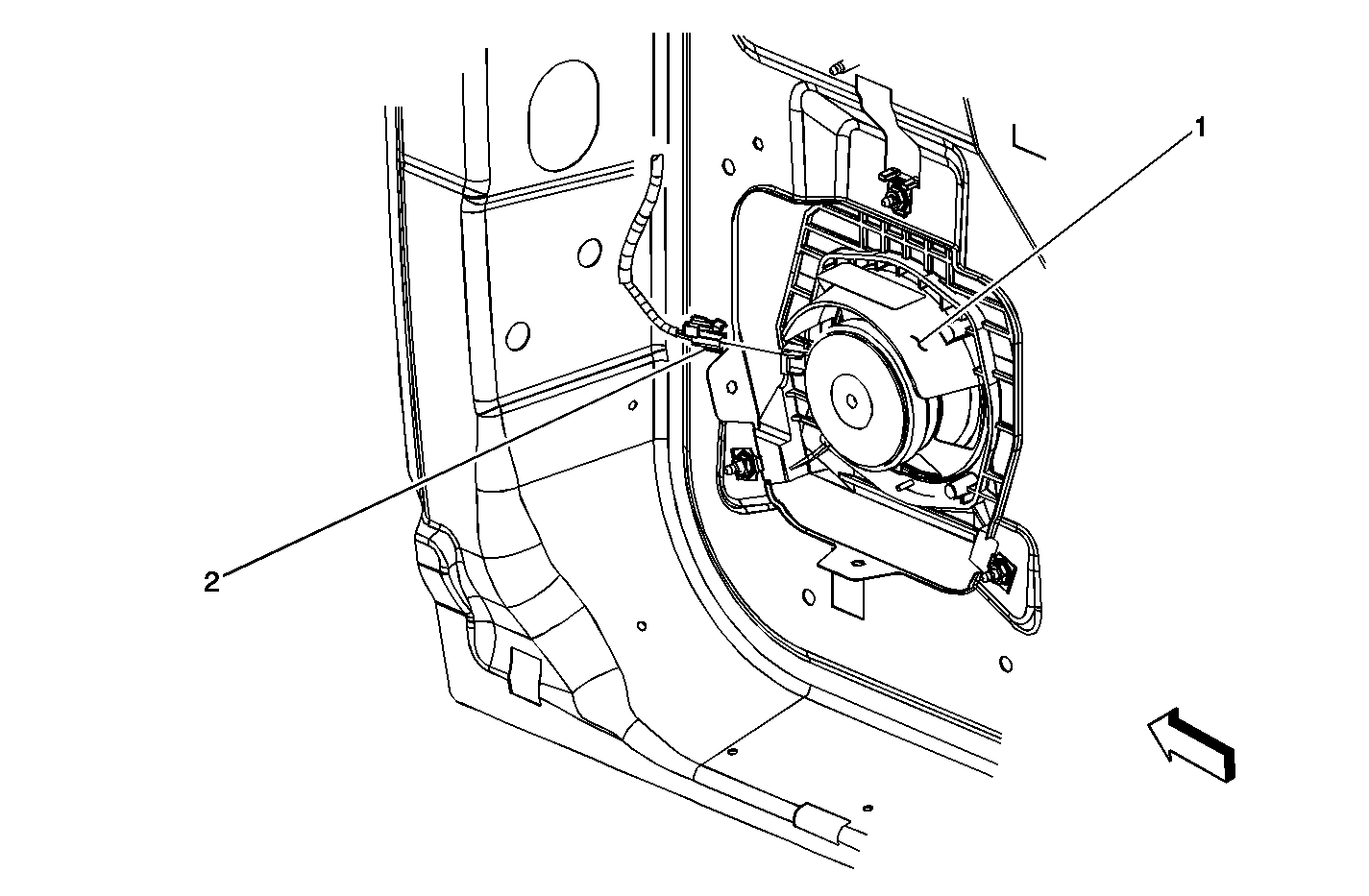

Figure 9:


(1)	Speaker-LR Door
(2)	Speaker-LR Door Connector

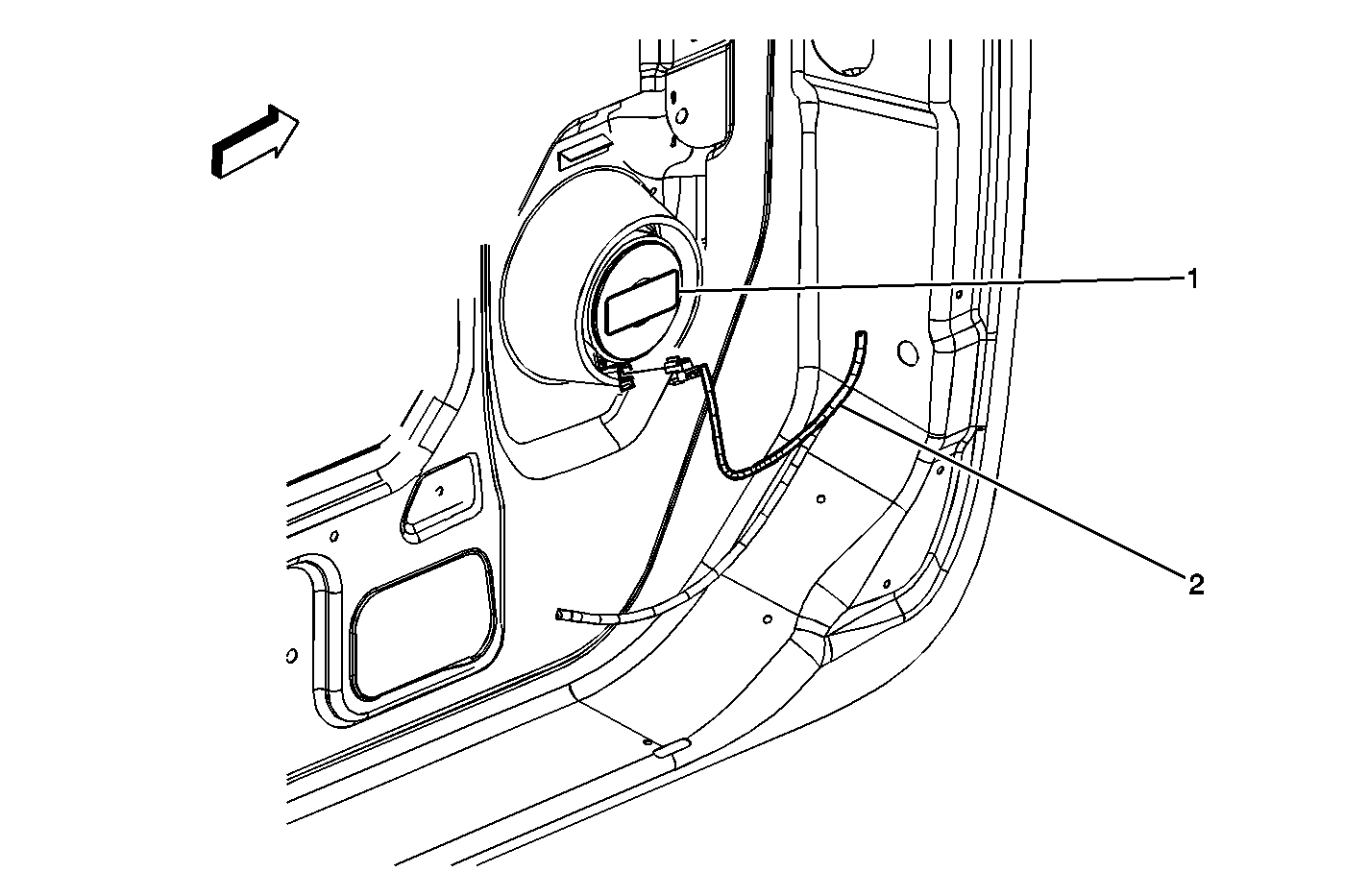

Figure 10:


(1)	Speaker-RF Door
(2)	RF Door Harness

Figure 11:


(1)	Horn Switch
(2)	Steering Wheel Controls
(3)	Turn Signal/MultiFunction Switch
