Stationary Windows Component Views. HUMMER H2 2003

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2003 🢒 H2 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E/4L65-E 🢒 Stationary Windows Component Views

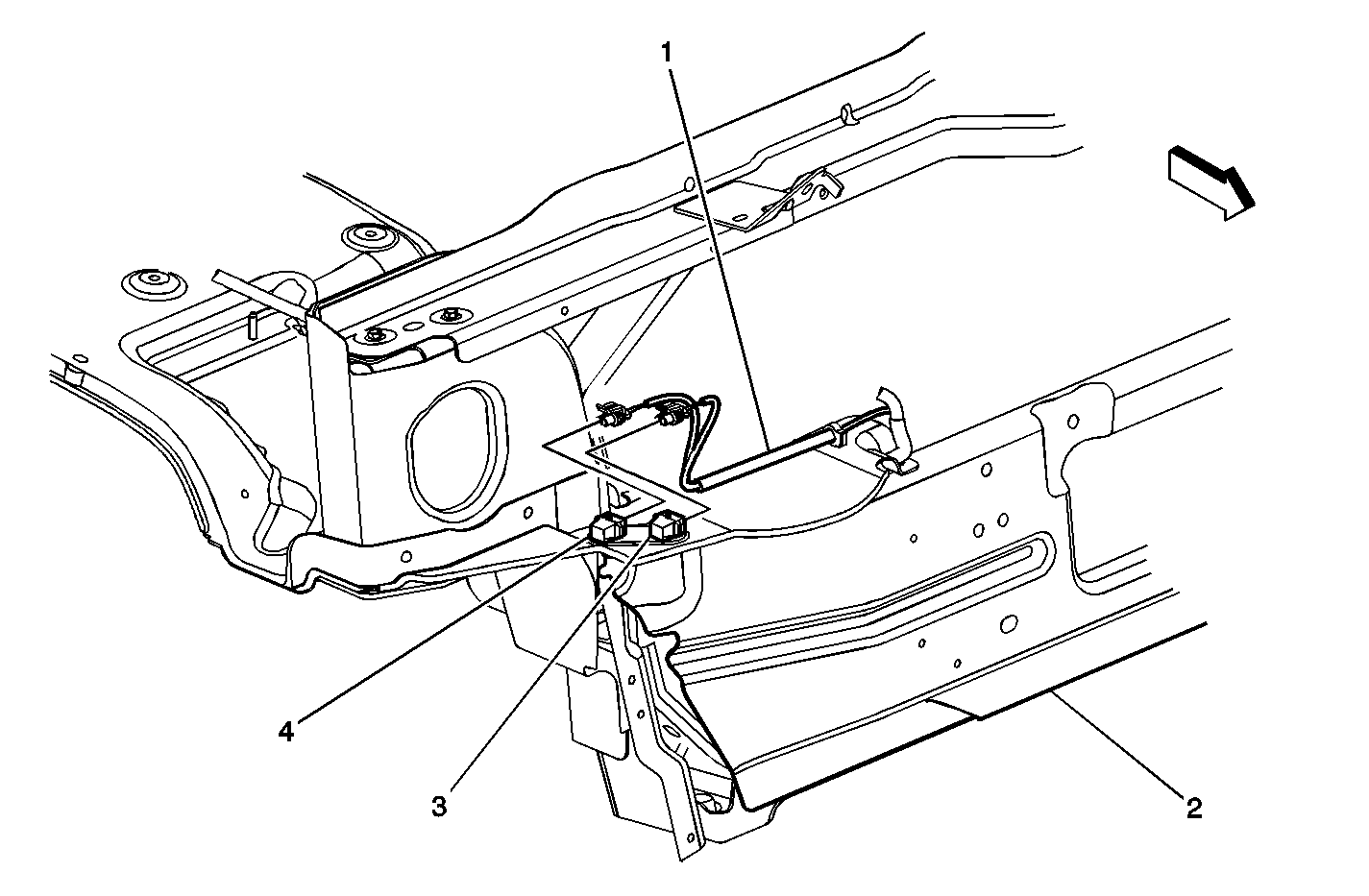

Figure 1:


(1)	Forward Lamp Harness
(2)	Radiator Support
(3)	Ambient Air Temperature Sensor-HVAC
(4)	Ambient Air Temperature Sensor-Mirror

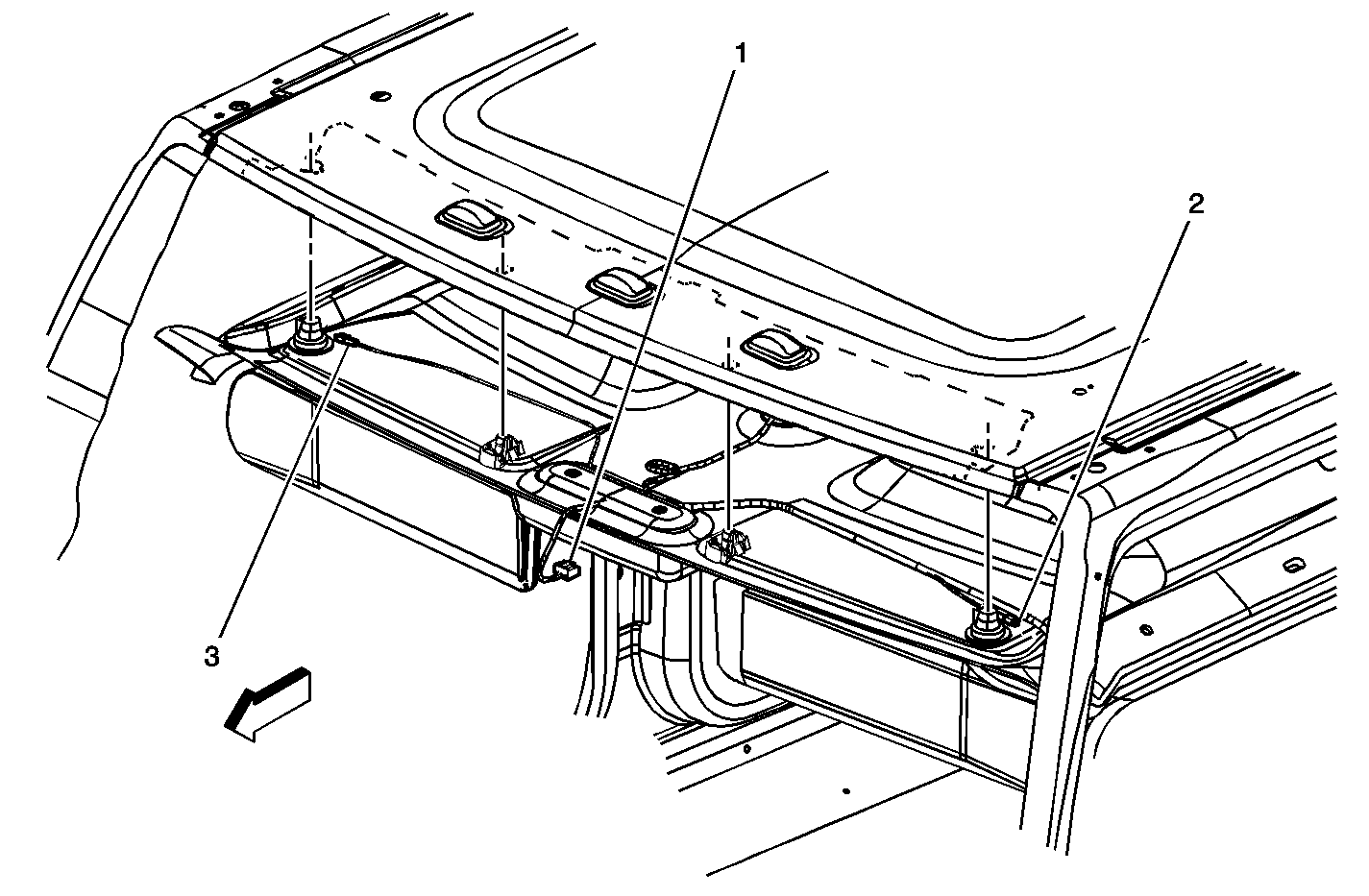

Figure 2:


(1)	Inside Rearview Mirror Connector
(2)	Vanity Mirror Lamp Connector-Left
(3)	Vanity Mirror Lamp Connector-Right

Figure 3:


(1)	Center High Mounted Stop Lamp (CHMSL) Connector
(2)	Rear Window Defogger Grid Connector
(3)	Rear Window Defogger Grid Connector
(4)	Splice S900
(5)	Rear Window Wiper Module - w/Motor
(6)	Door Lock Actuator-Liftgate
(7)	Liftgate Ajar Switch-Left
(8)	Liftgate Ajar Switch-Right
(9)	Splice S902
(10)	Splice S901
