Exterior Lights Schematics. HUMMER H2 2007

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2007 🢒 H2 🢒 Body Systems 🢒 Lighting 🢒 Exterior Lights Schematics

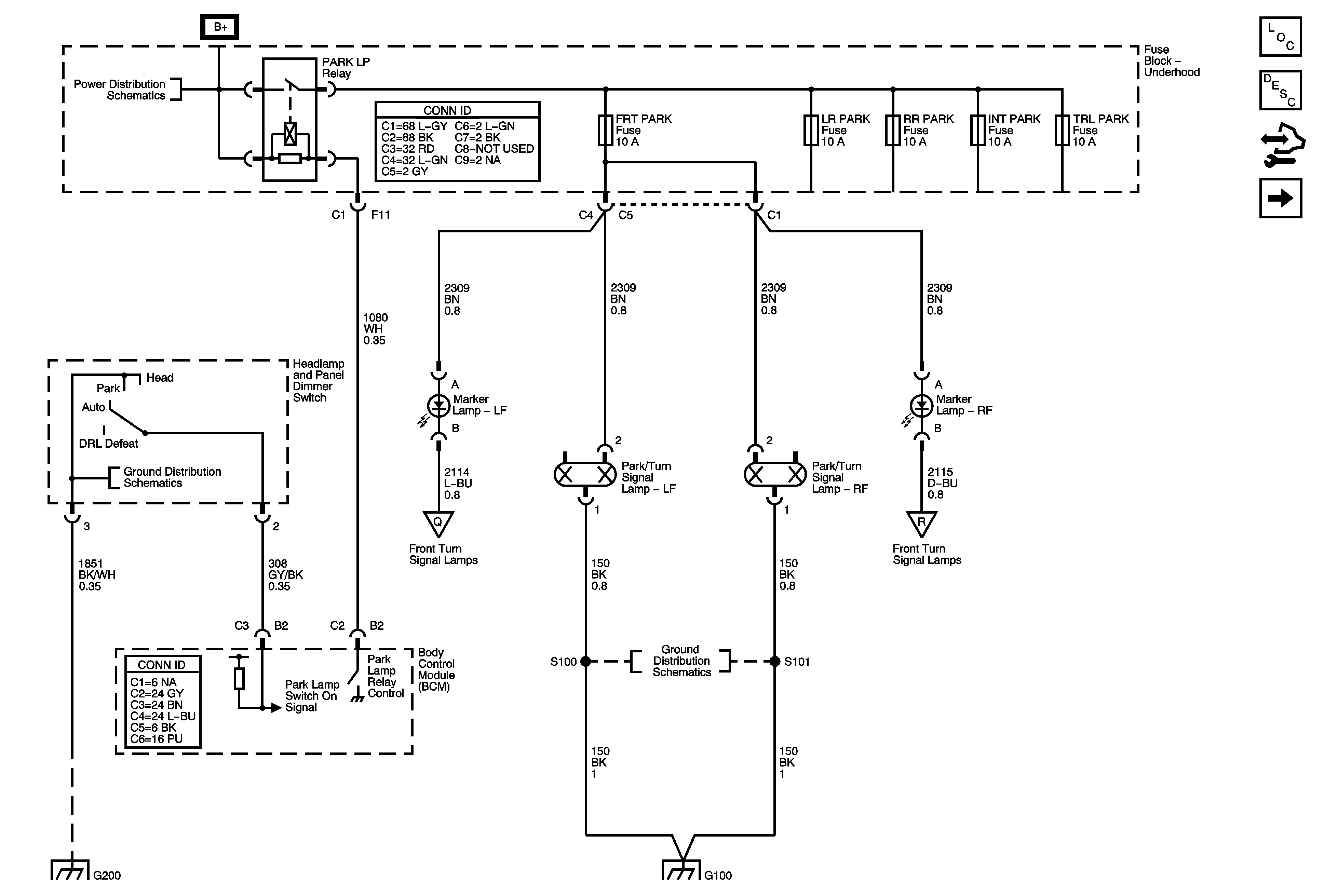

Figure 1:	Park Lamp Relay, Front Park, and Marker Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Tail Lamps, Rear Marker, and License Lamps B+ Bus 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps G100 and G105 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps G200 G200 G100 and G105

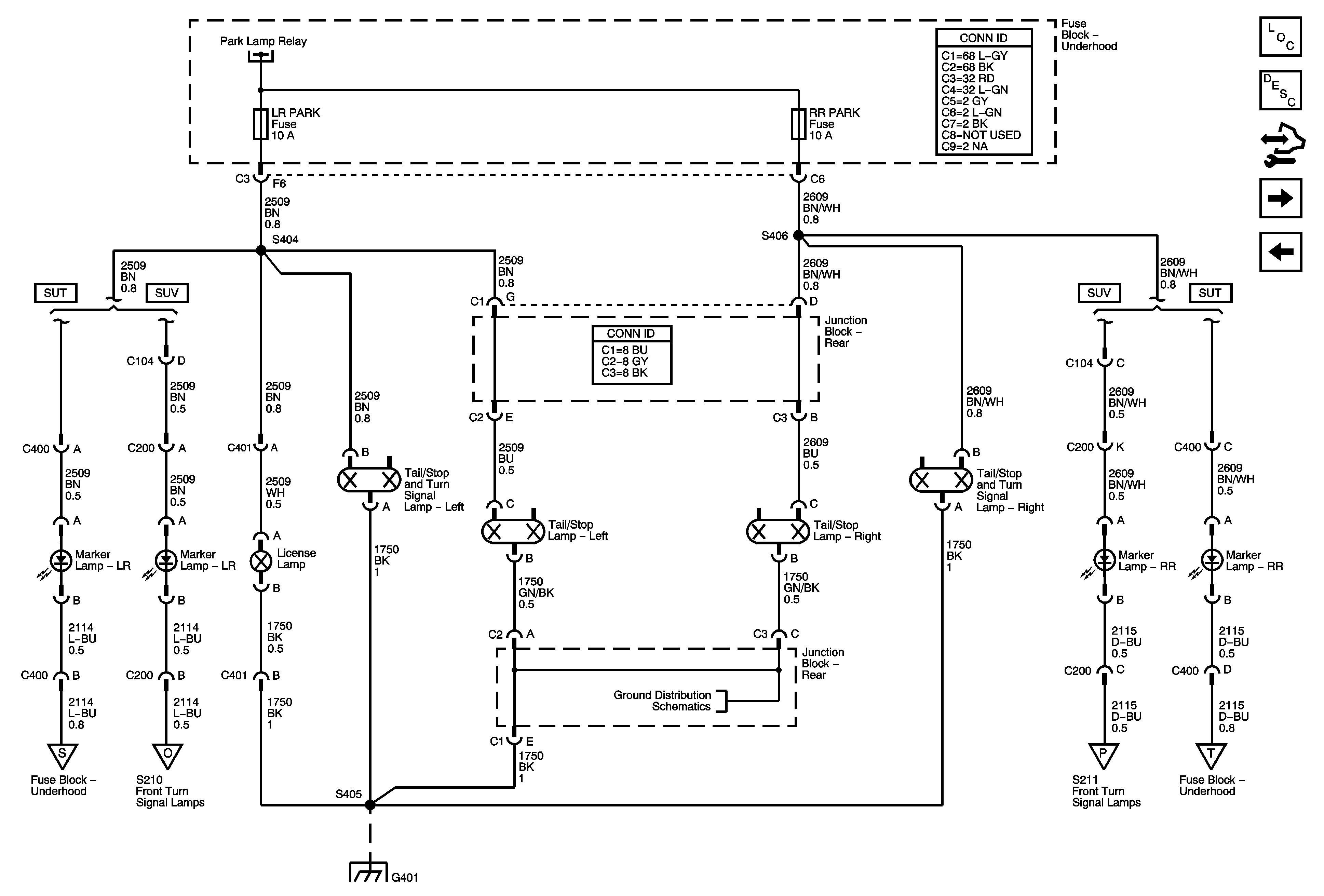

Figure 2:	Tail Lamps, Rear Marker, and License Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Roof Lamps - Front Park Lamp Relay, Front Park, and Marker Lamps FRT PARK, LR PARK, RR PARK, and TRL PARK Fuses 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps G300, G310, G401, and G403 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps

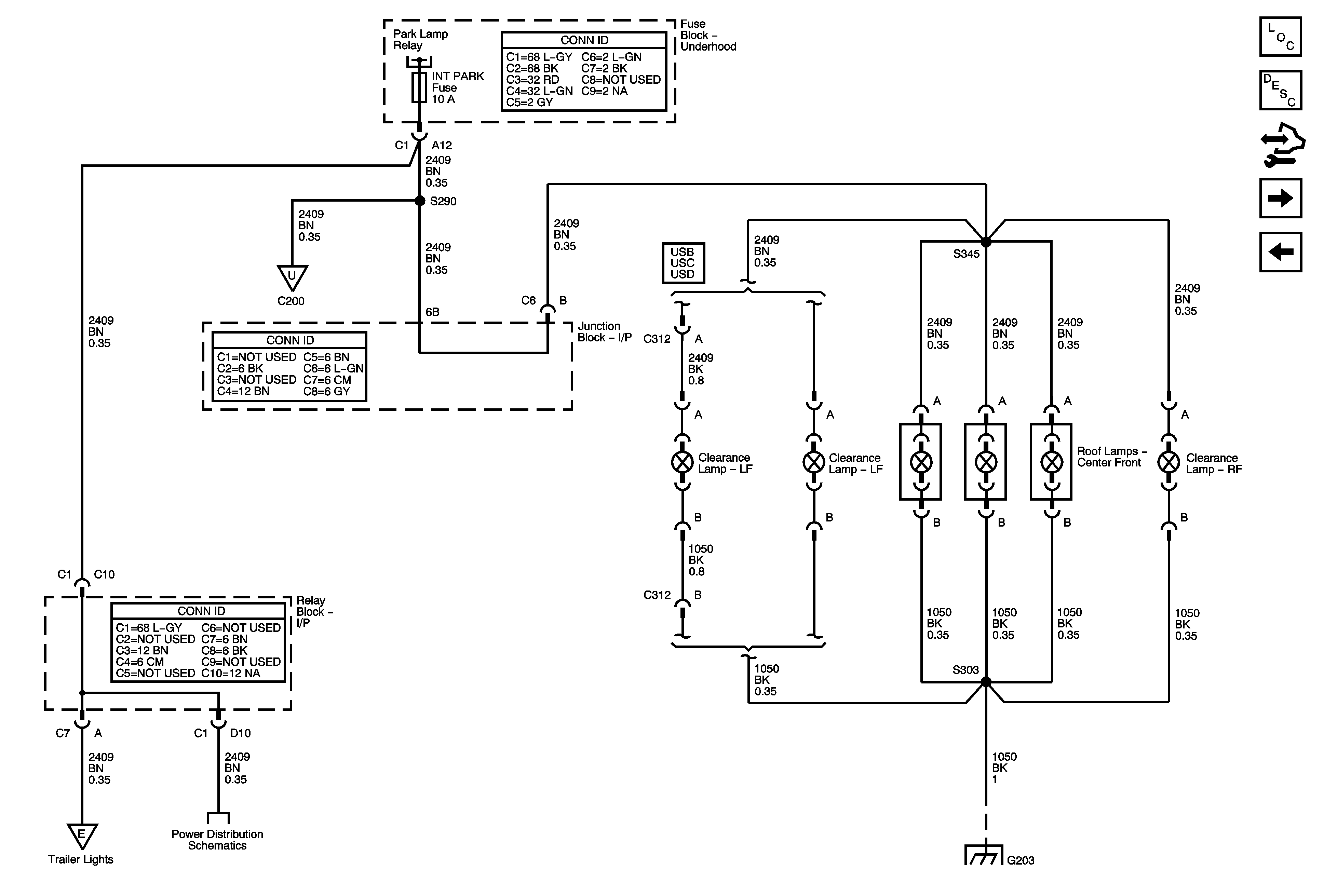

Figure 3:	Roof Lamps -- Front Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Roof Lamps - Rear Tail Lamps, Rear Marker, and License Lamps INT PARK Fuses Roof Lamps - Rear Trailer Lighting Provisions INT PARK Fuses G203 - 1 of 3

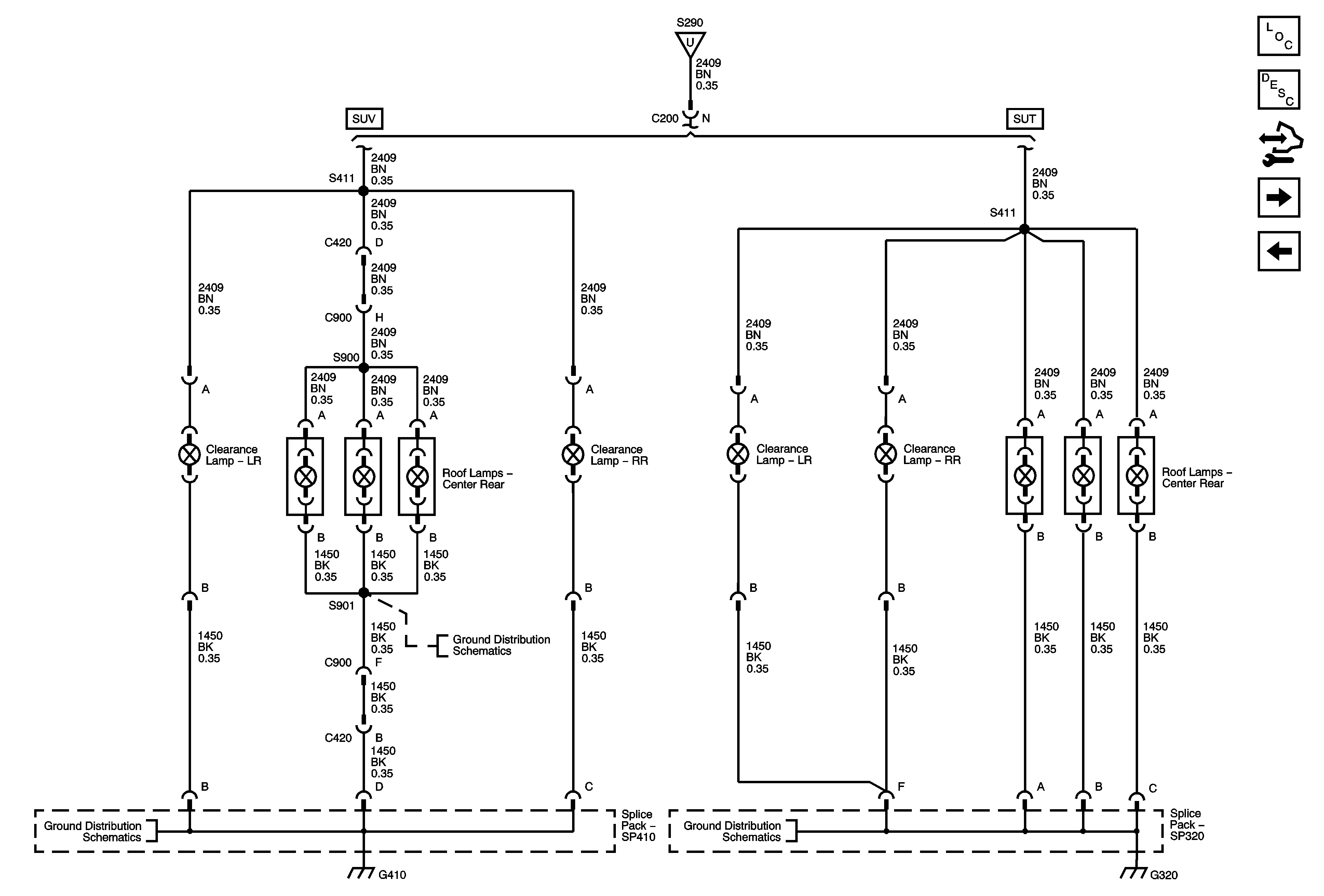

Figure 4:	Roof Lamps -- Rear Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Turn Signal/Hazard Switch and Flasher Module Roof Lamps - Front Roof Lamps - Front G402, G405, and G410 G320 - SUT

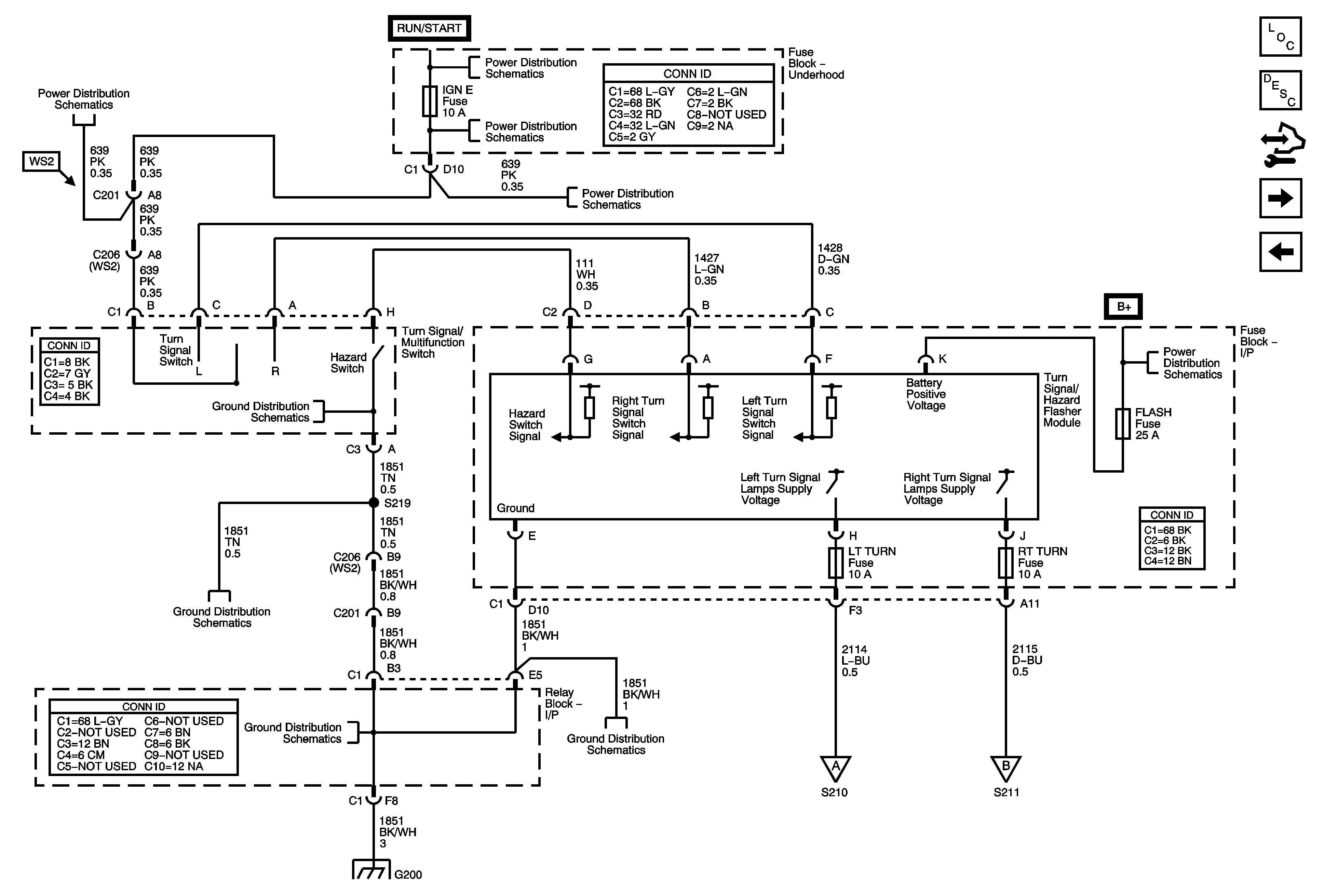

Figure 5:	Turn Signal/Hazard Switch and Flasher Module Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps Roof Lamps - Rear IGN E, SEO IGN, and SIR Fuses Ignition Switch - ACCY/RUN and RUN/START Bus Bars, and IGN B Fuse IGN E, SEO IGN, and SIR Fuses IGN E, SEO IGN, and SIR Fuses DDM, INFO, LBEC1, LBEC2, LGATE, LOCKS, PDM, TBC 2A, TBC 2B, and TBC 2C Fuses and LEFT DOOR and MIDGATE Circuit Breakers 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps G200 G200 G200 G200 G200

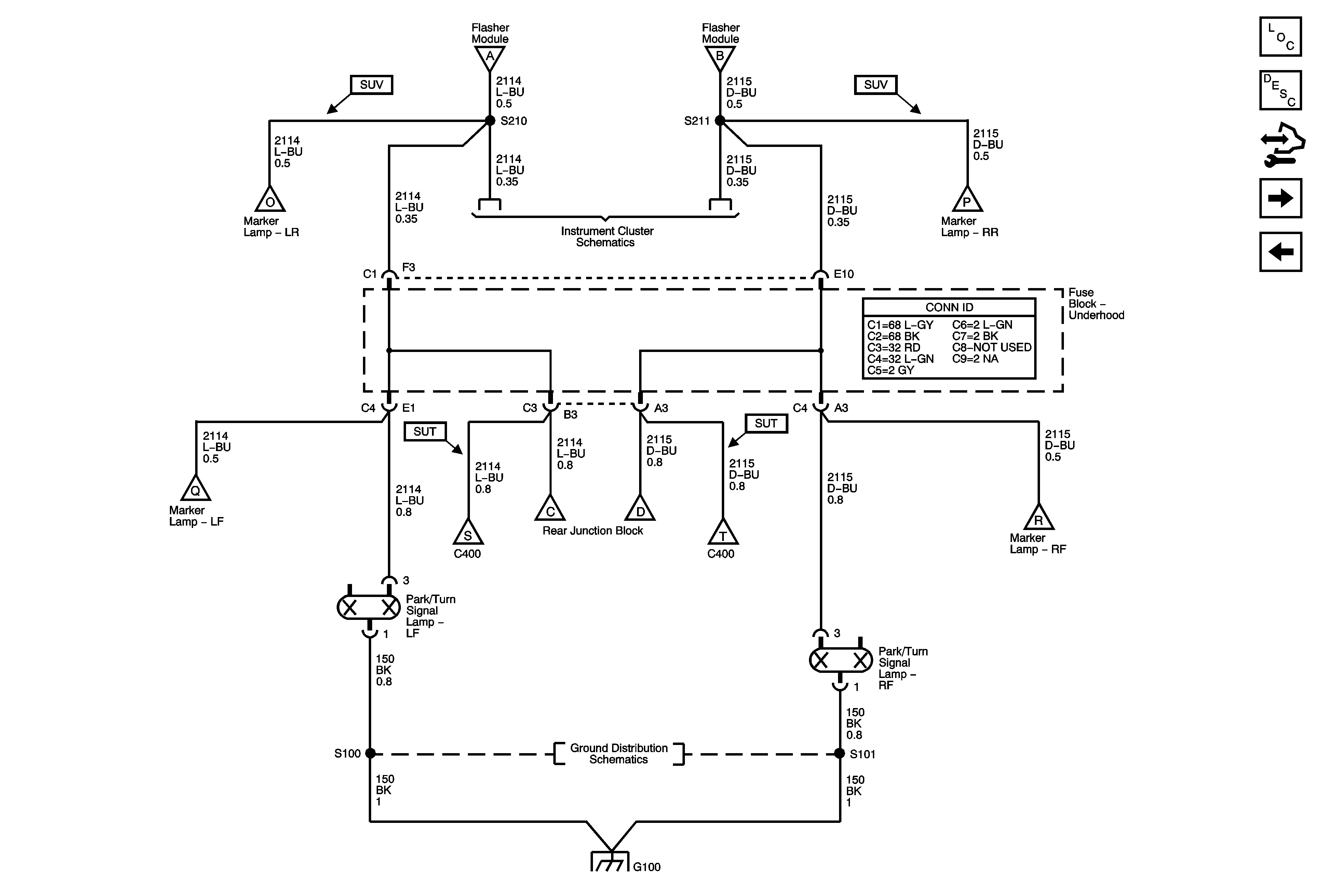

Figure 6:	Marker Lamps and Front Turn Signal Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Rear Turn Signal Lamps Turn Signal/Hazard Switch and Flasher Module Turn Signal/Hazard Switch and Flasher Module Tail Lamps, Rear Marker, and License Lamps Indicators Tail Lamps, Rear Marker, and License Lamps Park Lamp Relay, Front Park, and Marker Lamps Tail Lamps, Rear Marker, and License Lamps Rear Turn Signal Lamps Tail Lamps, Rear Marker, and License Lamps Park Lamp Relay, Front Park, and Marker Lamps G100 and G105 G100 and G105

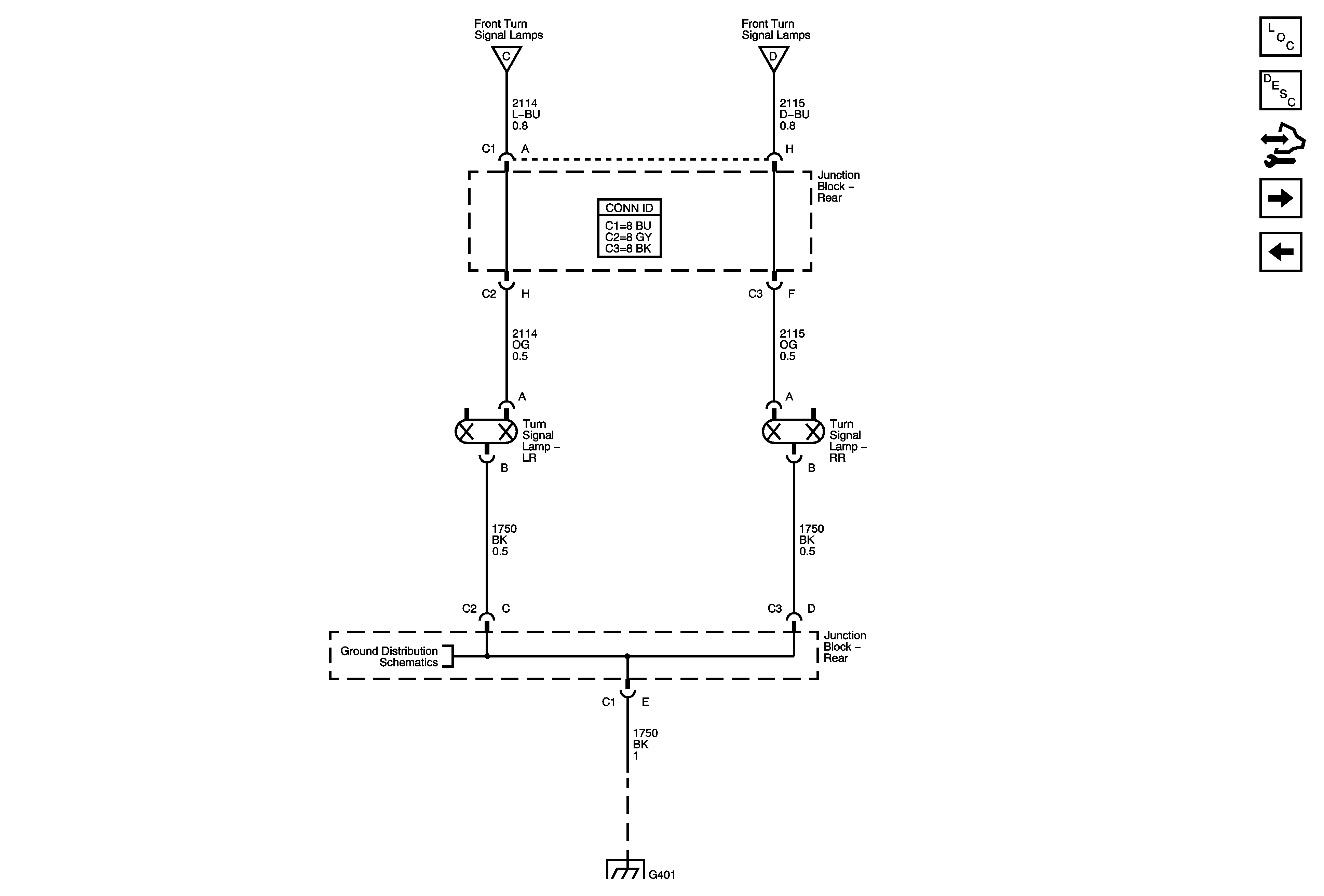

Figure 7:	Rear Turn Signal Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Stop Lamps 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps 07 H2 Exterior Lights Schematics - Marker Lamps and Front Turn Signal Lamps G300, G310, G401, and G403 G300, G310, G401, and G403

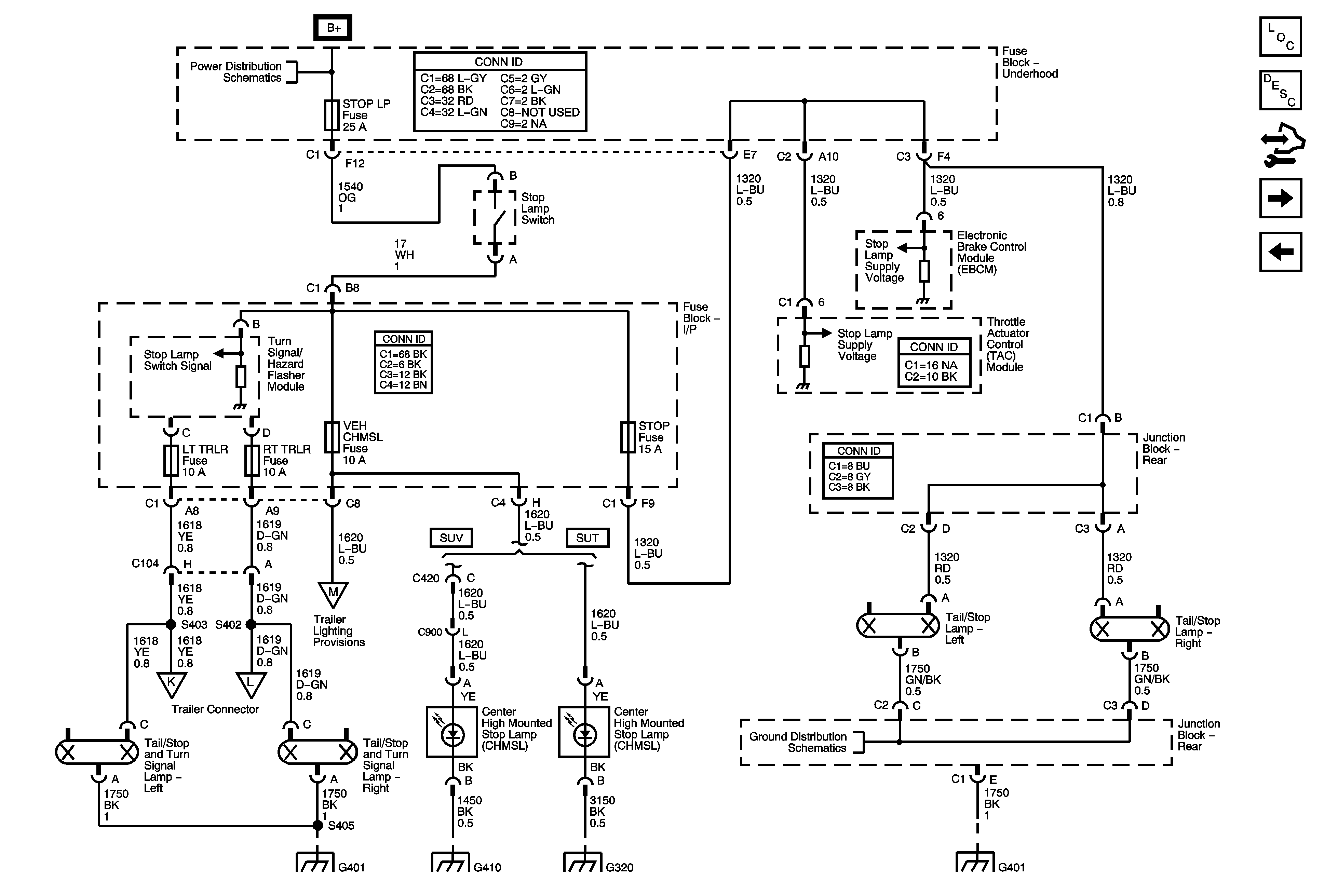

Figure 8:	Stop Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Off Road Lighting Control - USB, USC, UNR Rear Turn Signal Lamps B+ Bus G300, G310, G401, and G403 G300, G310, G401, and G403 G320 - SUT G402, G405, and G410 G300, G310, G401, and G403 Trailer Lighting Provisions Trailer Lighting Provisions

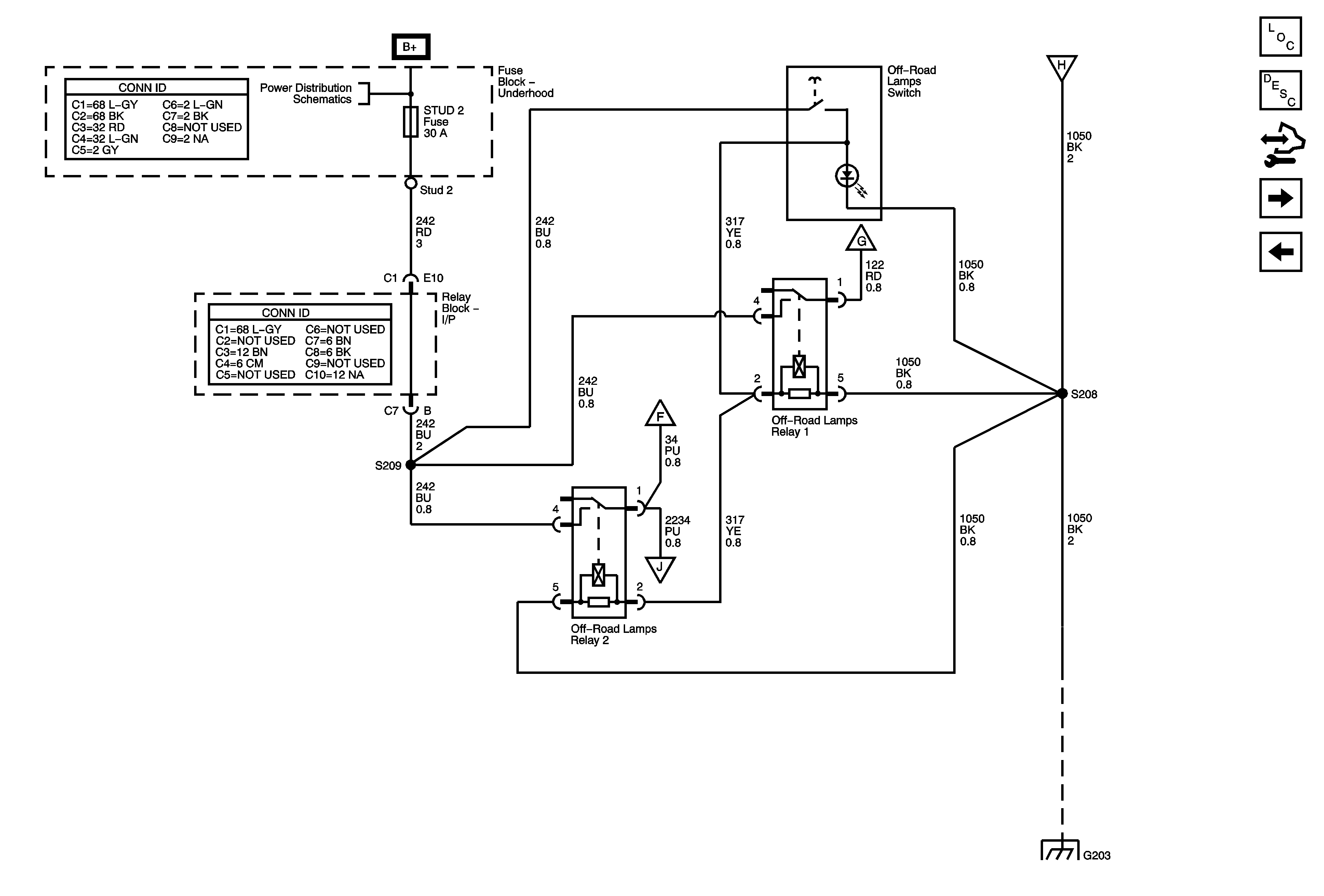

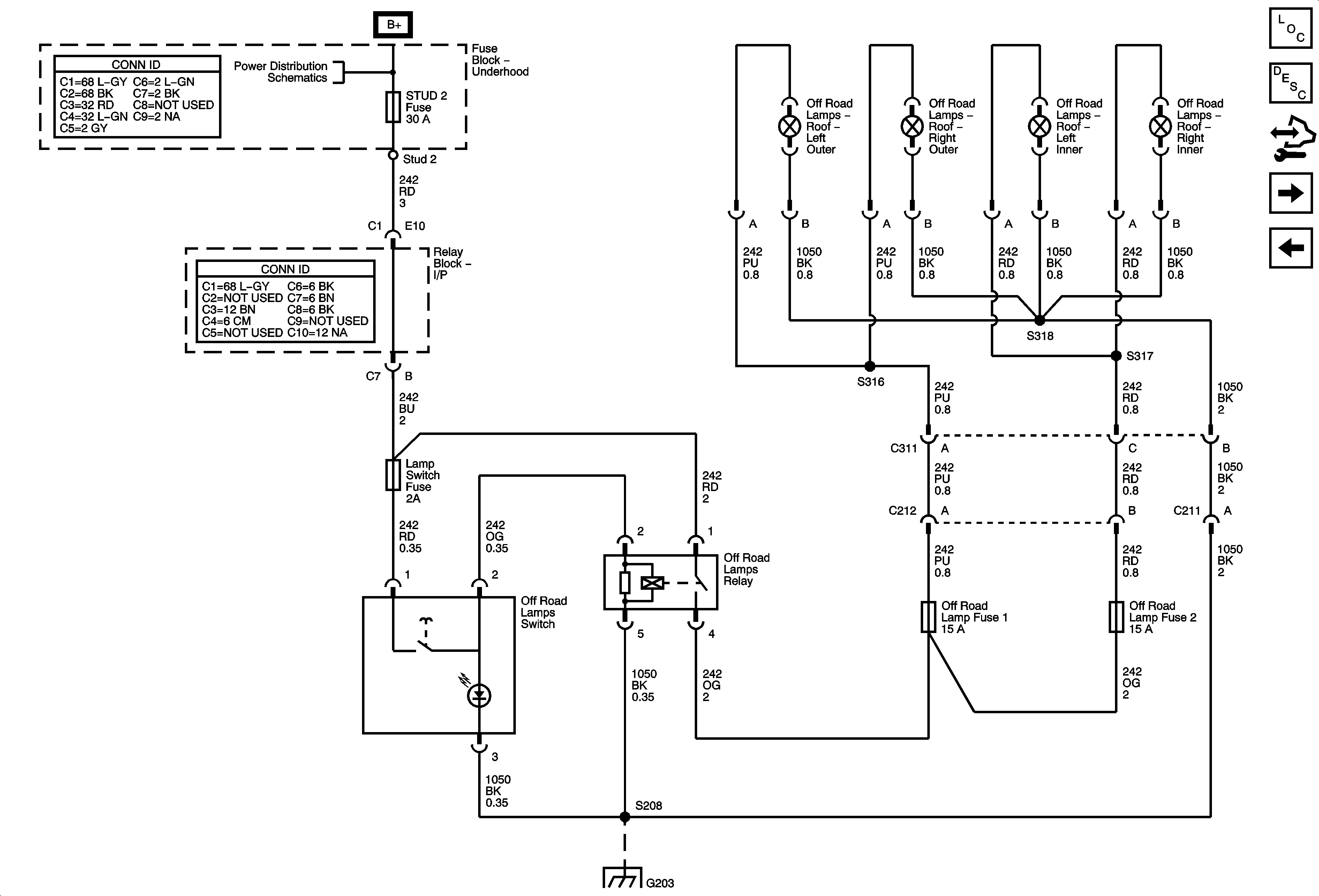

Figure 9:	Off-Road Lighting Control (USB, USC) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Off-Road Lights - USB, USC, UNR Stop Lamps B+ Bus Off-Road Lights - USB, USC, UNR Off-Road Lights - USB, USC, UNR G203 - 2 of 3 Off-Road Lights - USB, USC, UNR Off-Road Lights - USB, USC, UNR

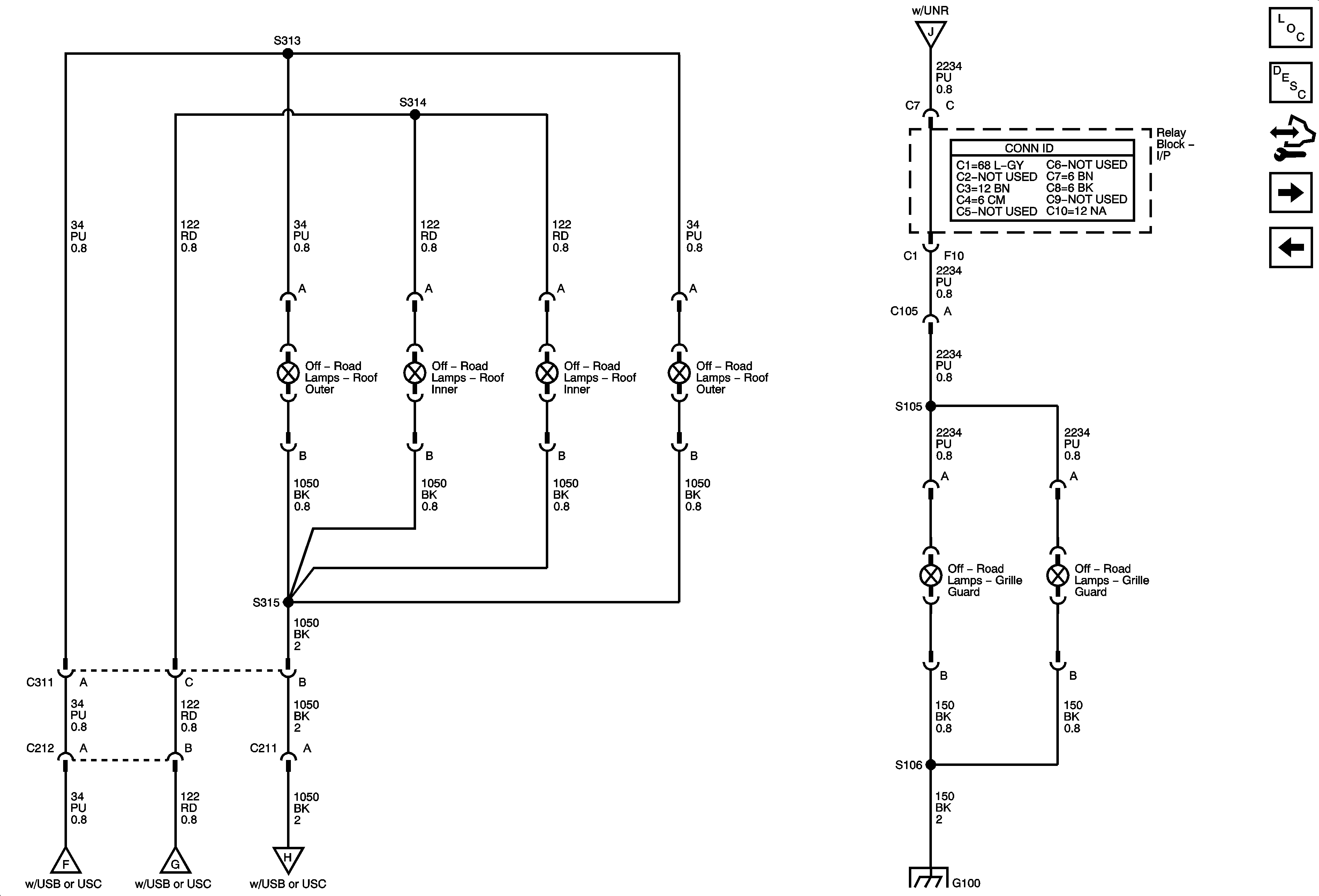

Figure 10:	Off-Road Lights (USB, USC) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Off-Road Lighting - USD Off Road Lighting Control - USB, USC, UNR Off Road Lighting Control - USB, USC, UNR G100 and G105 Off Road Lighting Control - USB, USC, UNR
Figure 11:	Off-Road Lights (USD) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps Off-Road Lights - USB, USC, UNR B+ Bus G203 - 2 of 3

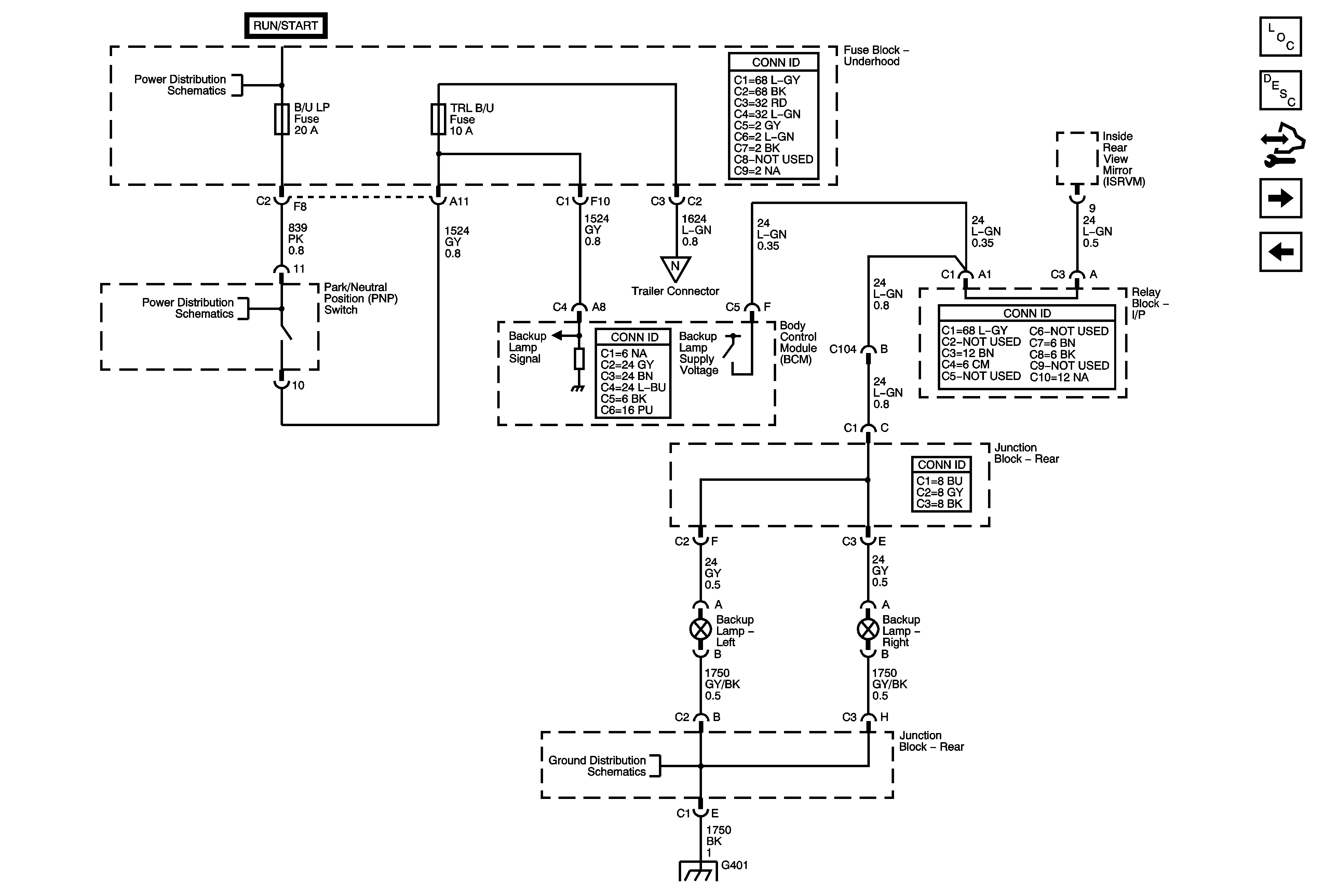

Figure 12:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Trailer Lighting Provisions Off-Road Lighting - USD Ignition Switch - ACCY/RUN and RUN/START Bus Bars, and IGN B Fuse B/U LP, BTSI, O2A, O2B, TBC IGN1, and TRL B/U Fuses Trailer Lighting Provisions G300, G310, G401, and G403 G300, G310, G401, and G403

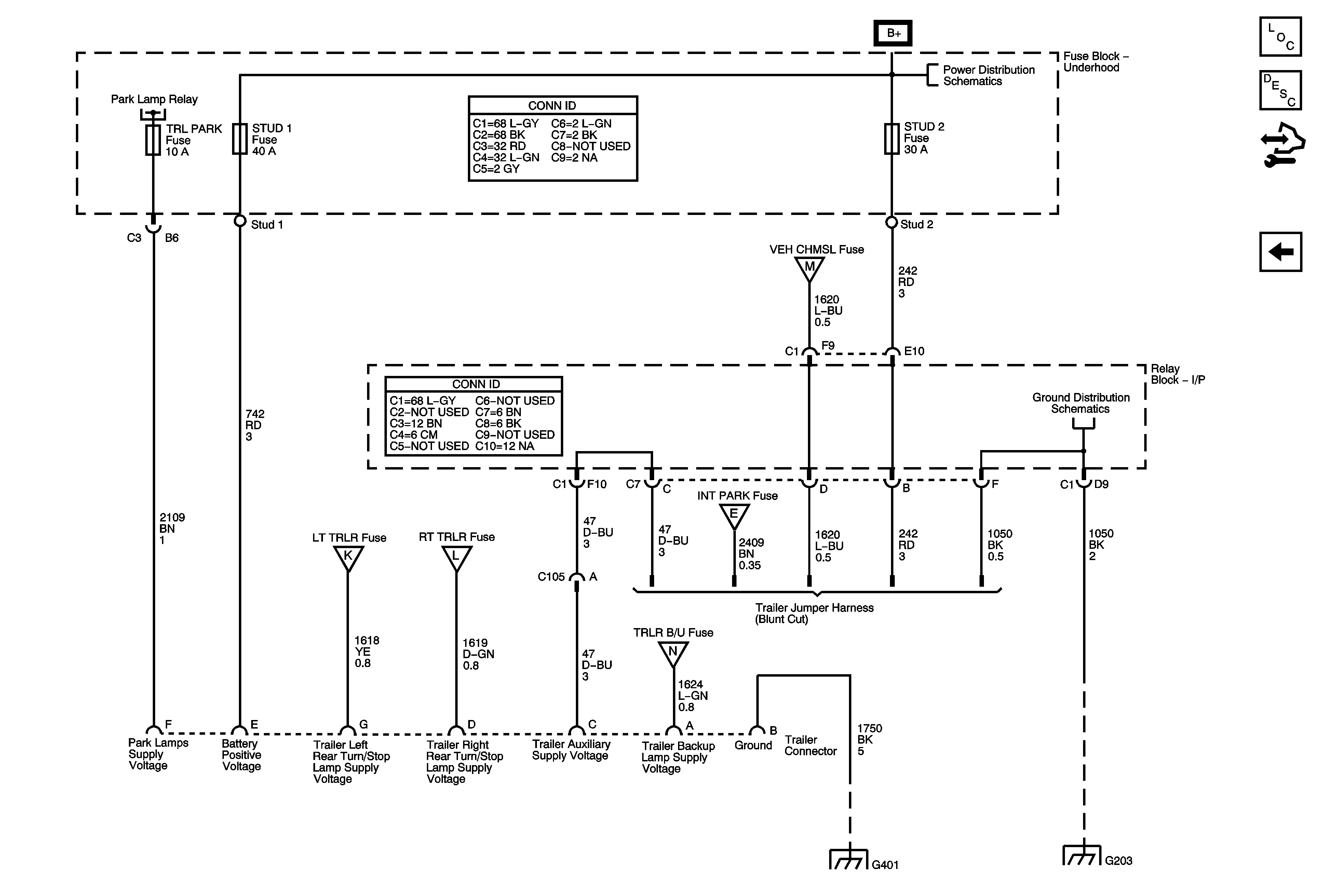

Figure 13:	Trailer Lighting Provisions Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps Park Lamp Relay, Front Park, and Marker Lamps Stop Lamps B+ Bus G203 - 2 of 3 G203 - 1 of 3 G300, G310, G401, and G403 Roof Lamps - Front Backup Lamps Stop Lamps
