Interior Lights Dimming Schematics. HUMMER H2 2007

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2007 🢒 H2 🢒 Body Systems 🢒 Lighting 🢒 Interior Lights Dimming Schematics

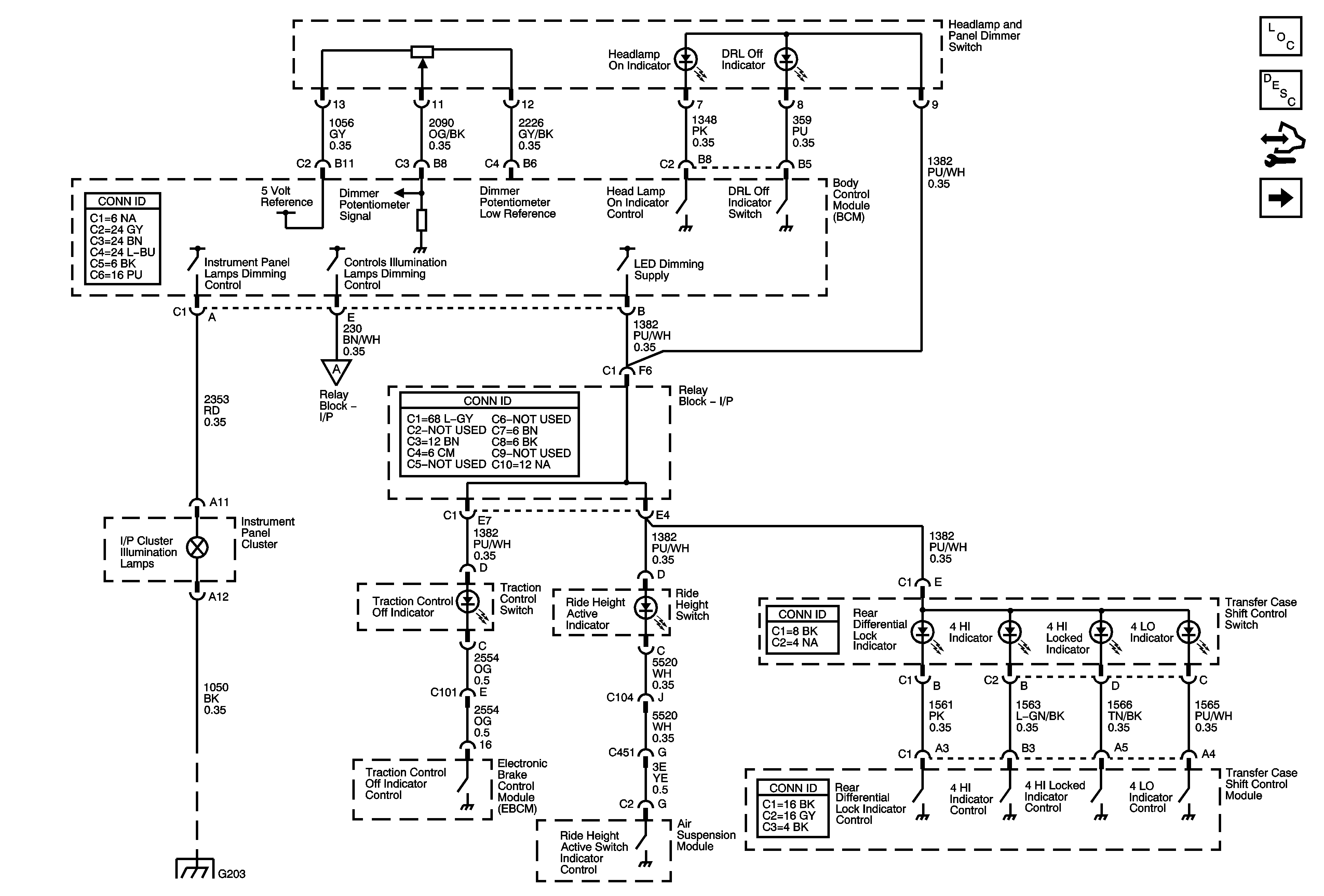

Figure 1:	Instrument Panel Dimming - 1 of 5 and LED Dimming - 1 of 2 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References 07 H2 Interior Lights Dimming Schematics - Instrument Panel Dimming - 2 of 5 07 H2 Interior Lights Dimming Schematics - Instrument Panel Dimming - 2 of 5 G203 - 2 of 3

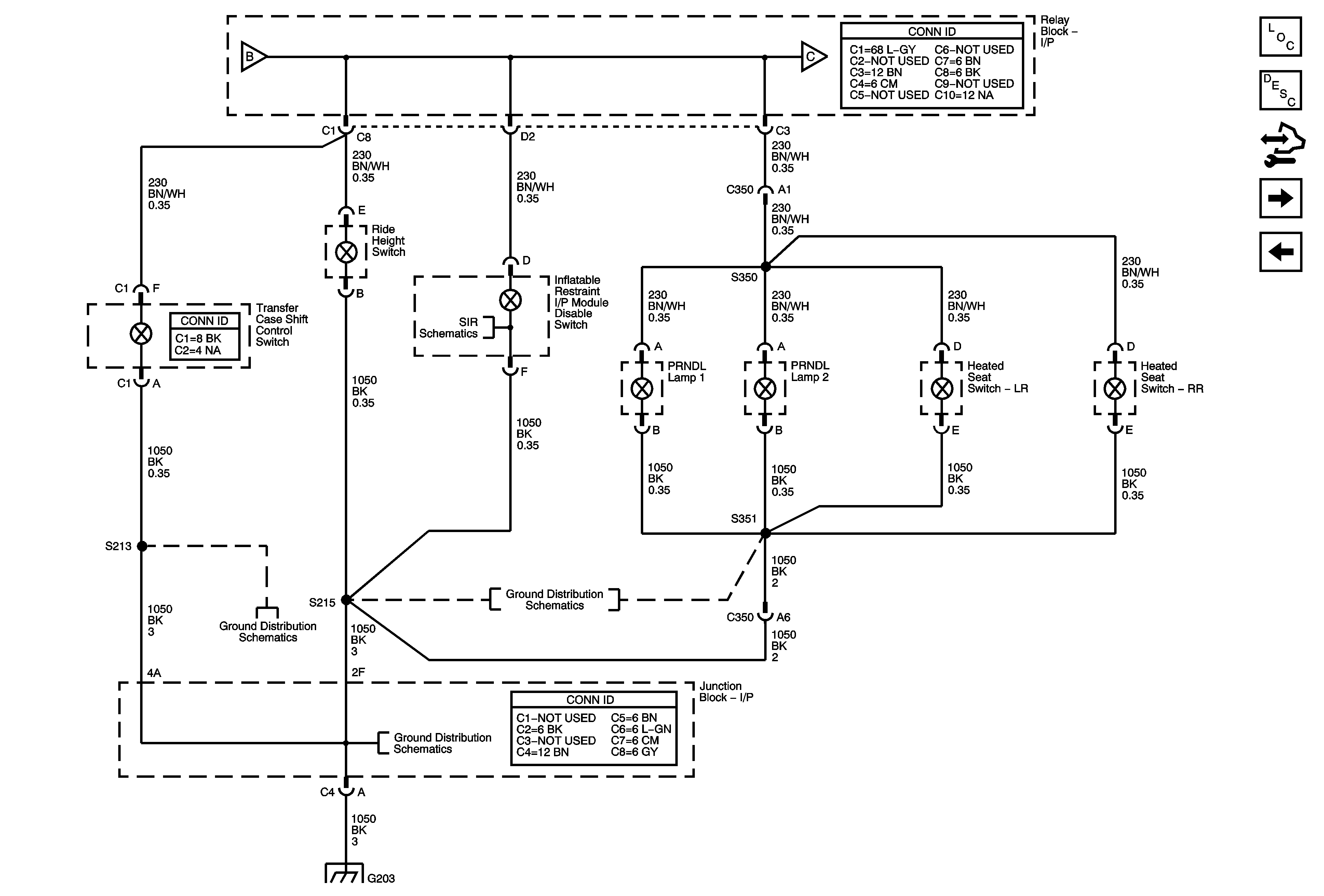

Figure 2:	Instrument Panel Dimming - 2 of 5 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Instrument Panel Dimming - 3 of 5 Instrument Panel Dimming - 1 of 5 and LED Dimming - 1 of 2 Instrument Panel Dimming - 1 of 5 and LED Dimming - 1 of 2 Instrument Panel Dimming - 3 of 5 G203 - 1 of 3 G203 - 1 of 3 G203 - 1 of 3 G203 - 2 of 3 G203 - 2 of 3 G203 - 2 of 3 PNP Switch, 4WD Signal, Serial Data, and Indicator G302, G304, and G306

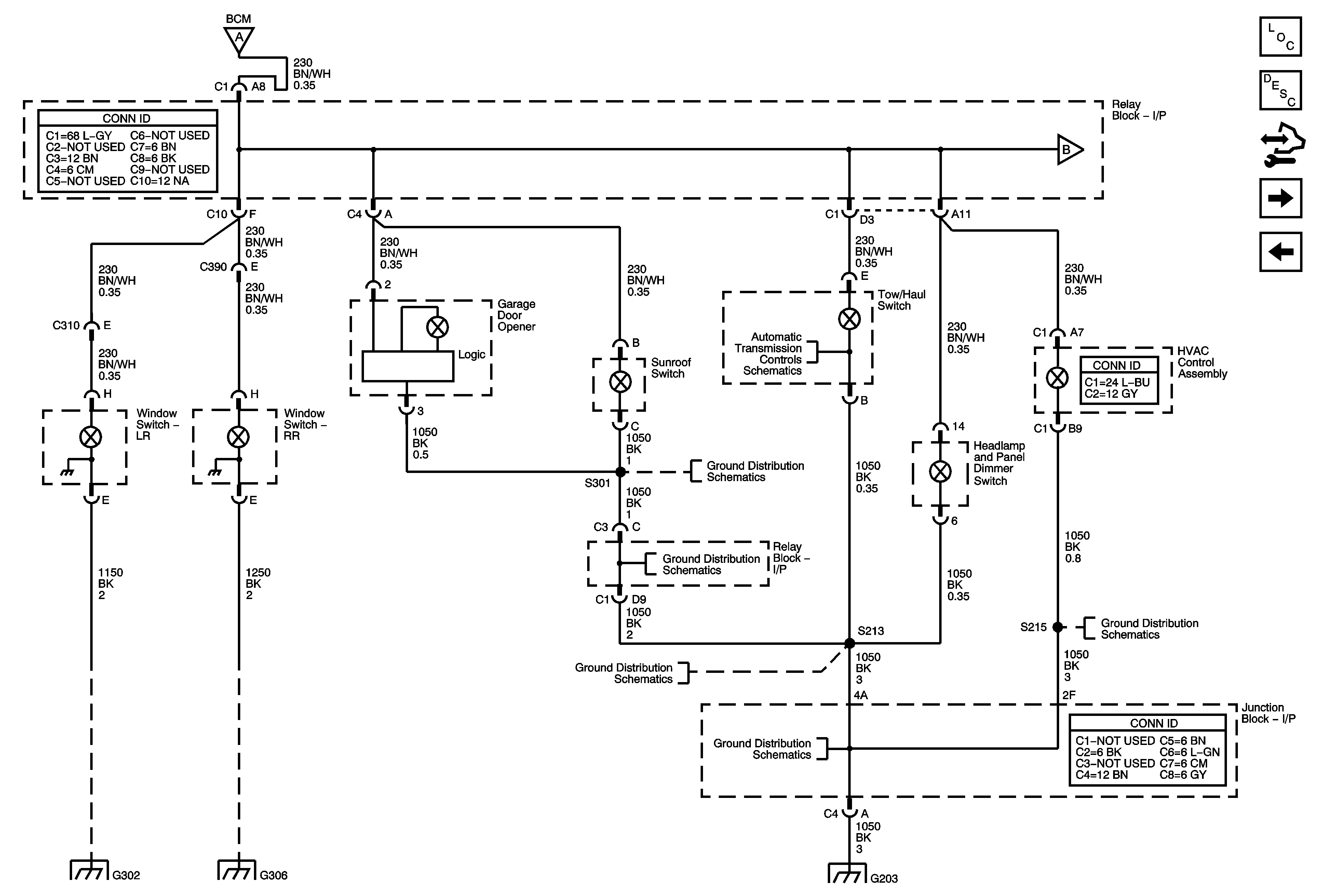

Figure 3:	Instrument Panel Dimming - 3 of 5 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Instrument Panel Dimming - 4 of 5 07 H2 Interior Lights Dimming Schematics - Instrument Panel Dimming - 2 of 5 07 H2 Interior Lights Dimming Schematics - Instrument Panel Dimming - 2 of 5 Instrument Panel Dimming - 4 of 5 G203 - 1 of 3 G203 - 1 of 3 G203 - 1 of 3 G203 - 2 of 3

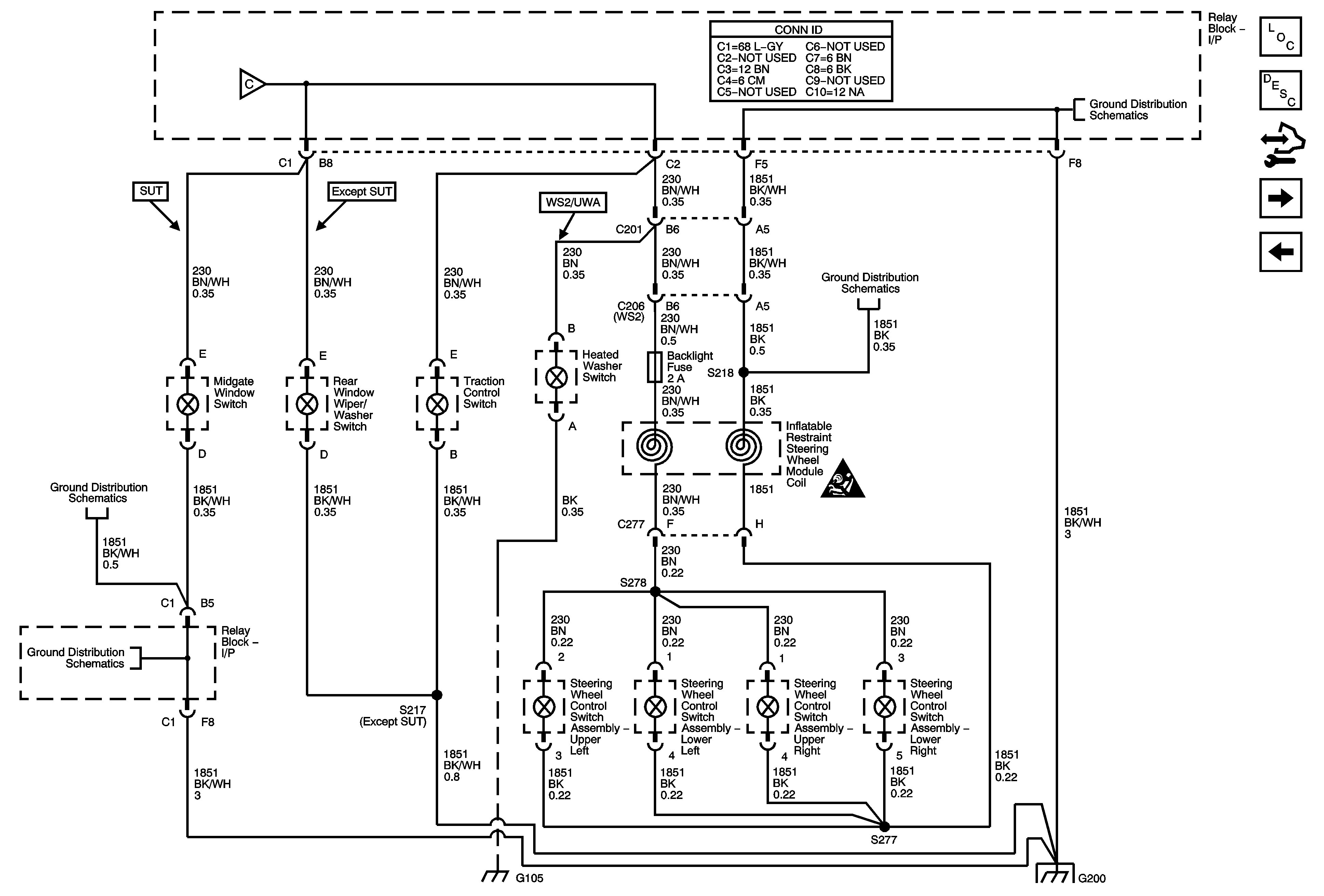

Figure 4:	Instrument Panel Dimming - 4 of 5 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Instrument Panel Dimming - 5 of 5 and LED Dimming - 2 of 2 Instrument Panel Dimming - 3 of 5 Instrument Panel Dimming - 3 of 5 G200 G200 G200 Lighting Systems Schematic Icons G200 G200

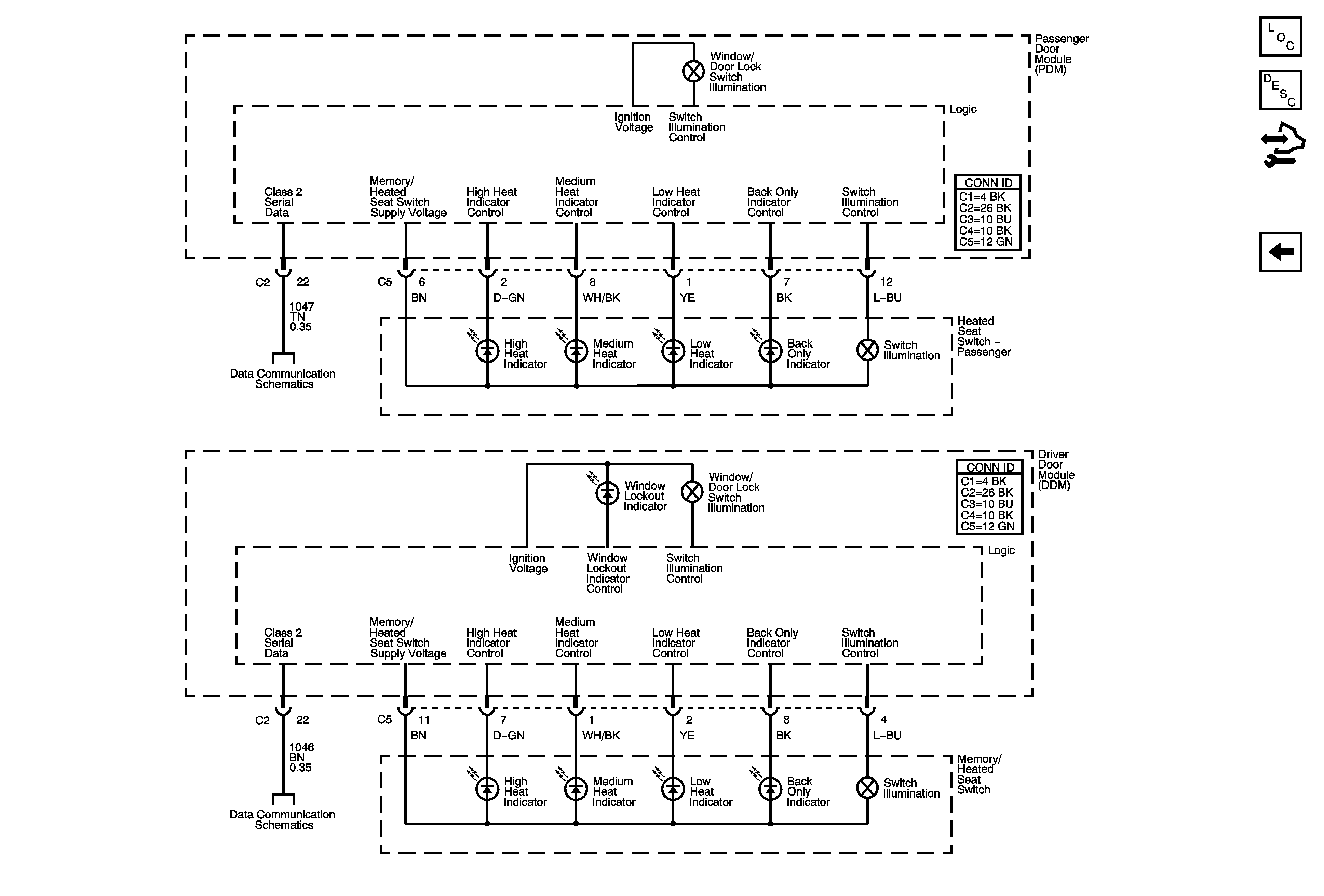

Figure 5:	Instrument Panel Dimming - 5 of 5 and LED Dimming - 2 of 2 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Instrument Panel Dimming - 4 of 5 Power, Ground, DLC and Splice Pack SP205 Power, Ground, DLC and Splice Pack SP205
