Exterior Lights Schematics. HUMMER H2 2008

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2008 🢒 H2 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Exterior Lights Schematics

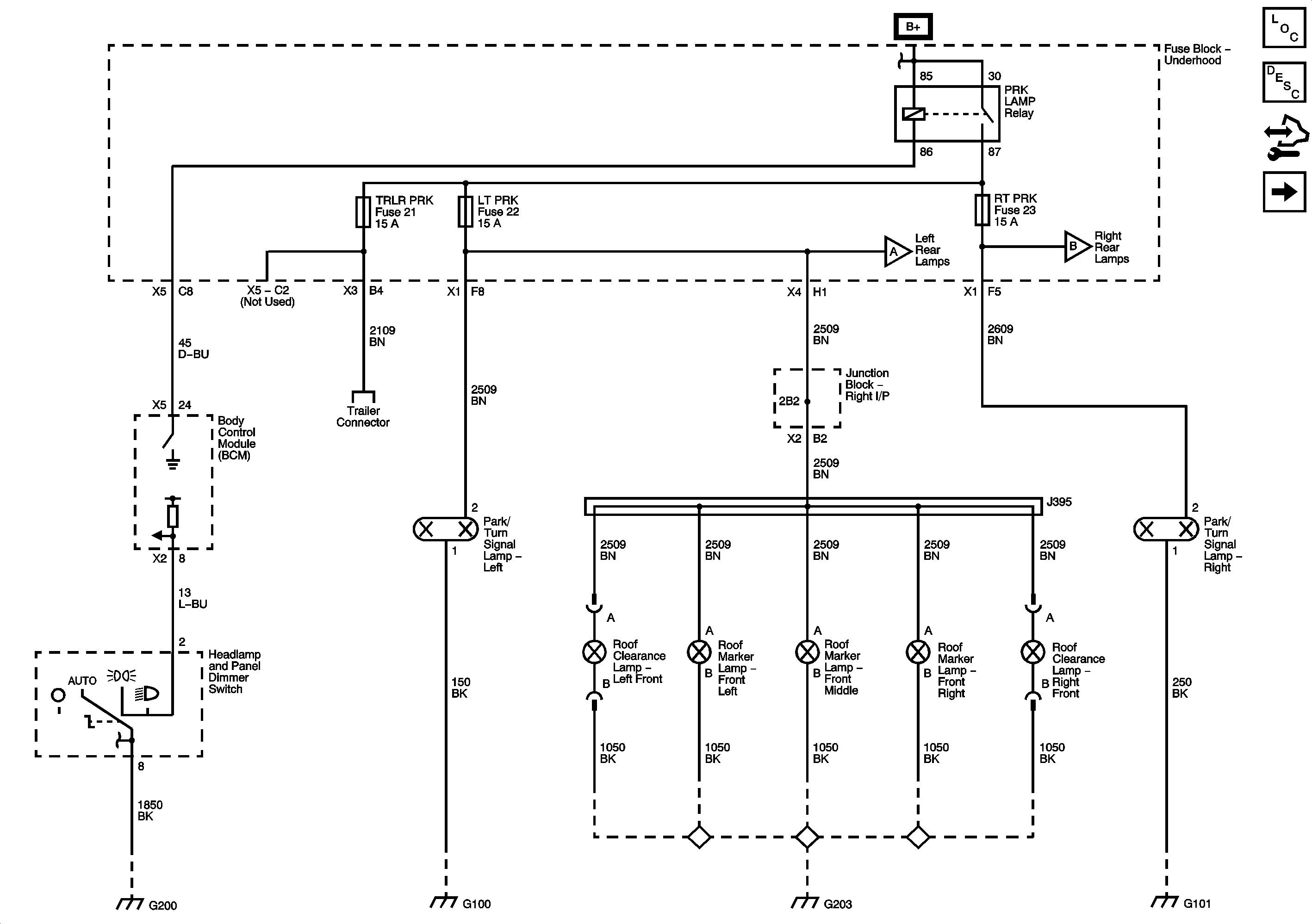

Figure 1:	Front Marker and Clearance Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Left Rear Park Lamps and Marker Lamps

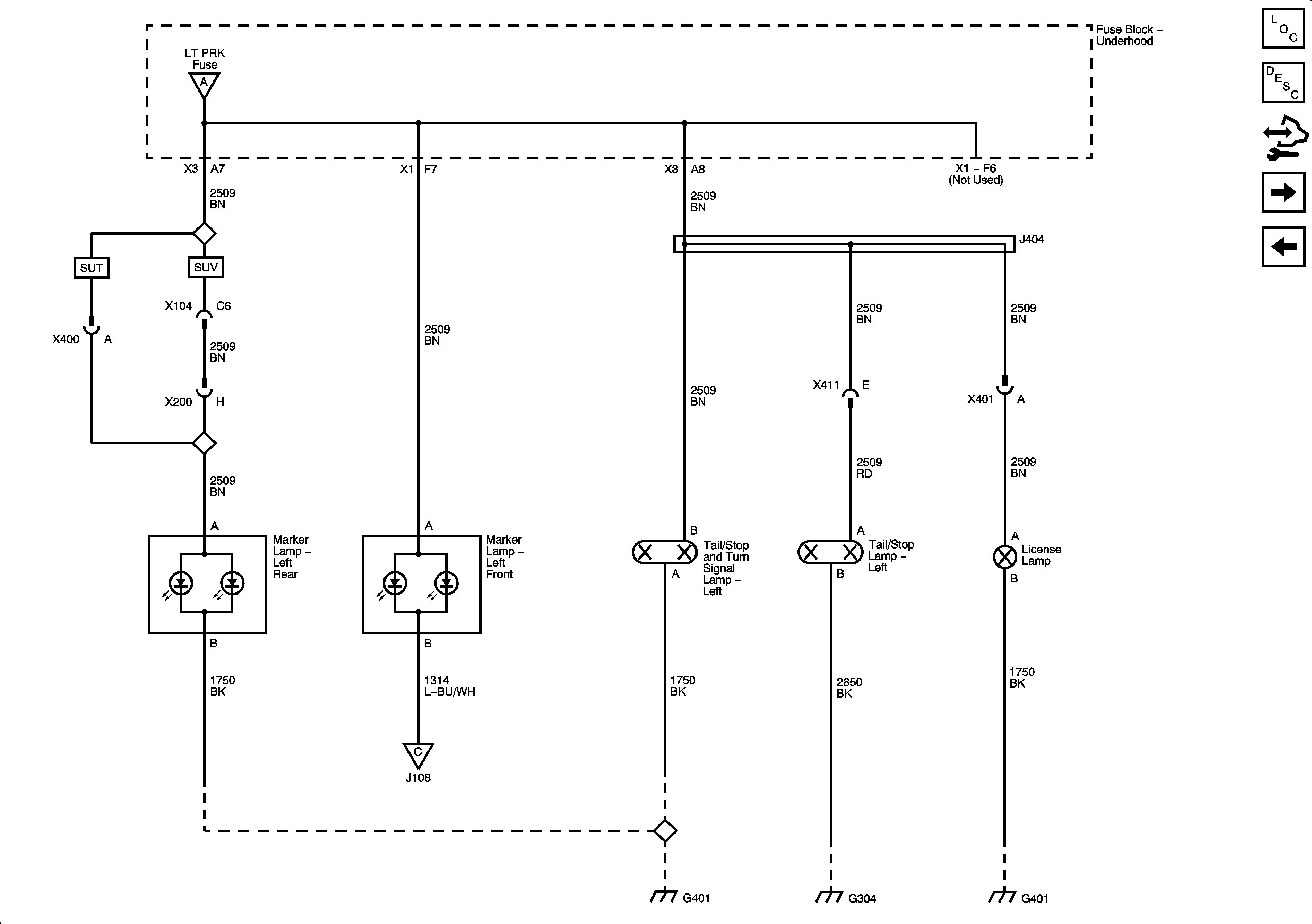

Figure 2:	Left Rear Park Lamps and Marker Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Right Rear Park Lamps and Marker Lamps Front Marker and Clearance Lamps

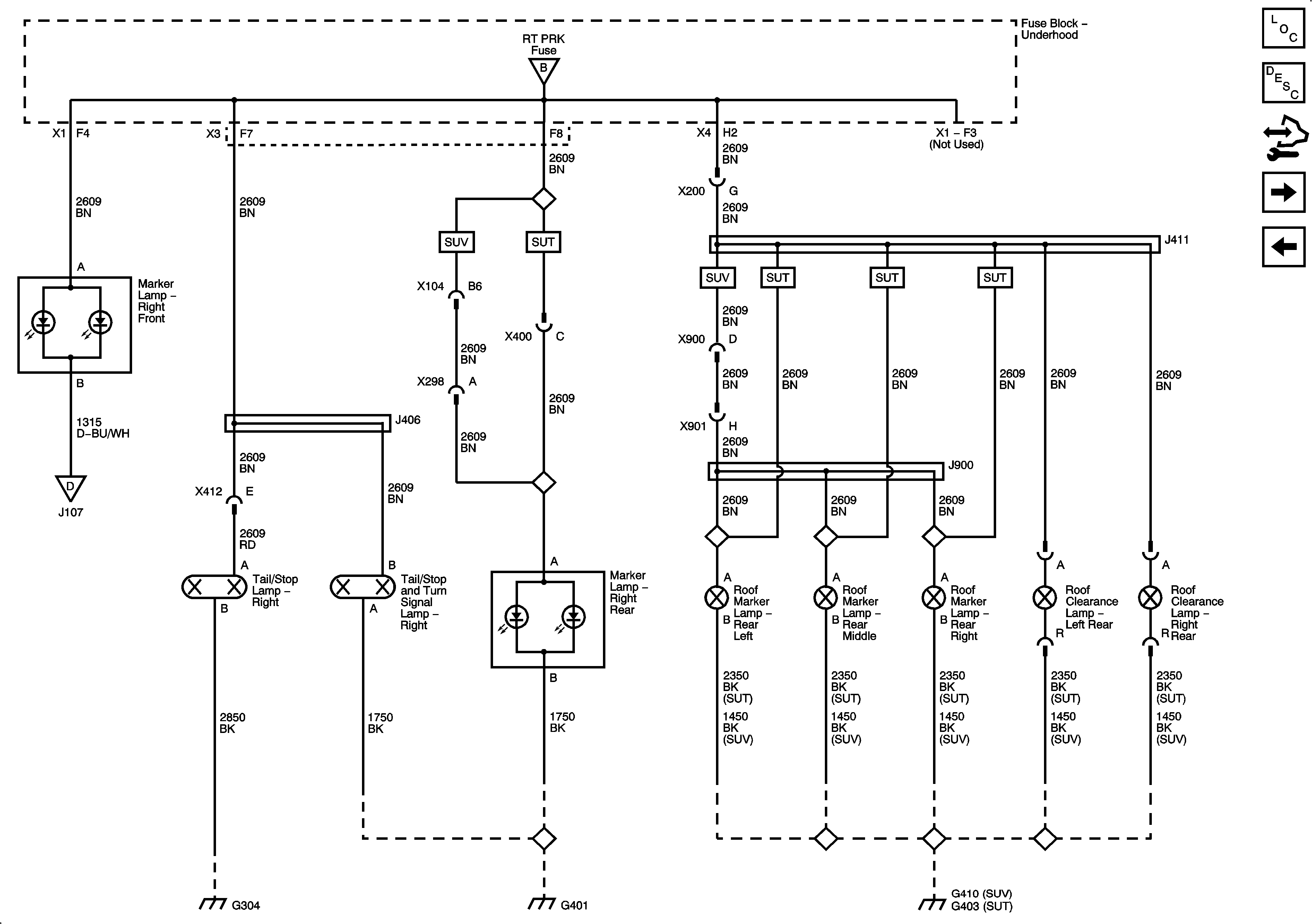

Figure 3:	Right Rear Park Lamps and Marker Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Turn Signal Controls and Front Turn Signal Lamps Left Rear Park Lamps and Marker Lamps

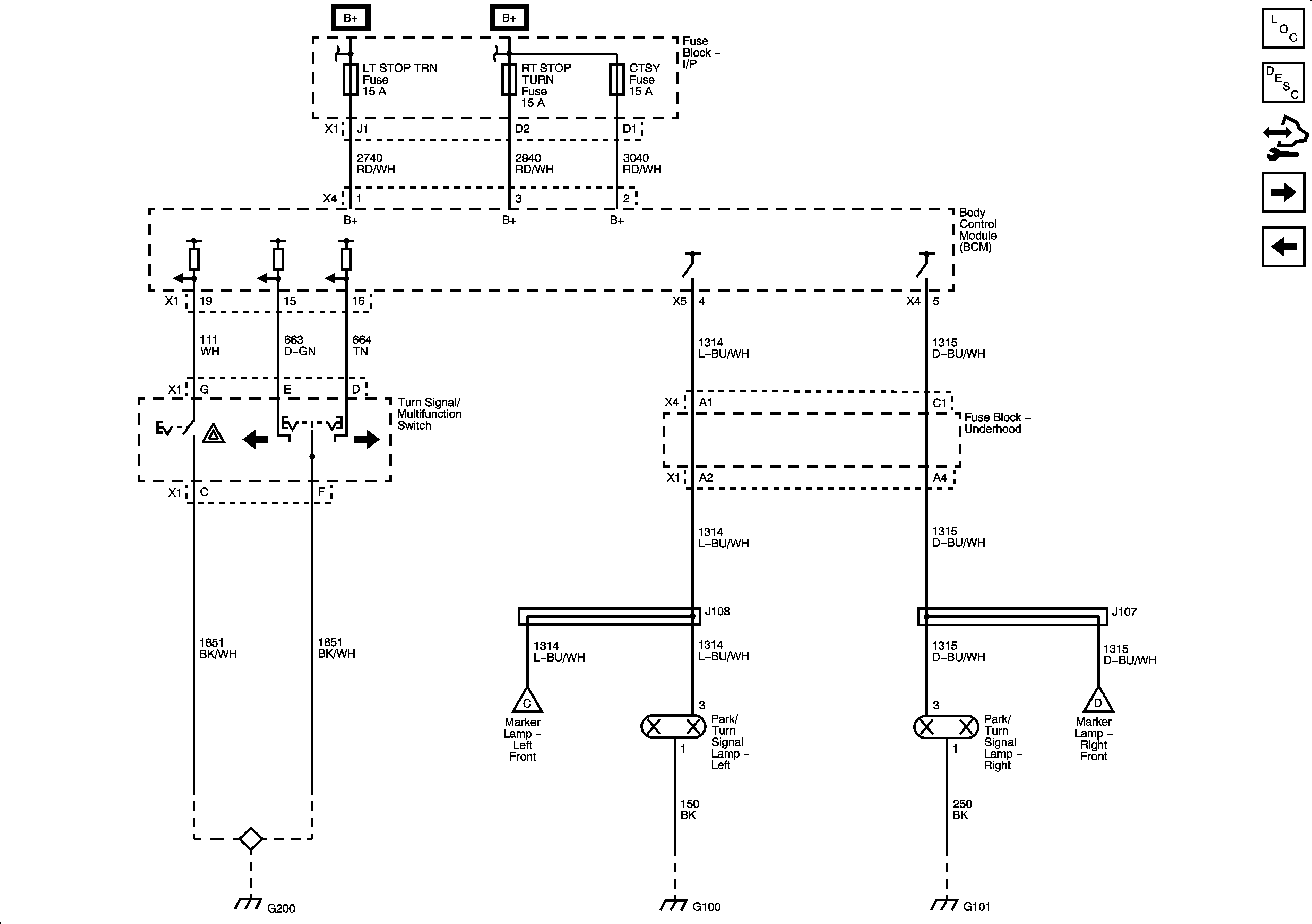

Figure 4:	Turn Signal Controls and Front Turn Signal Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Rear Stop and Turn Signal Lamps Right Rear Park Lamps and Marker Lamps

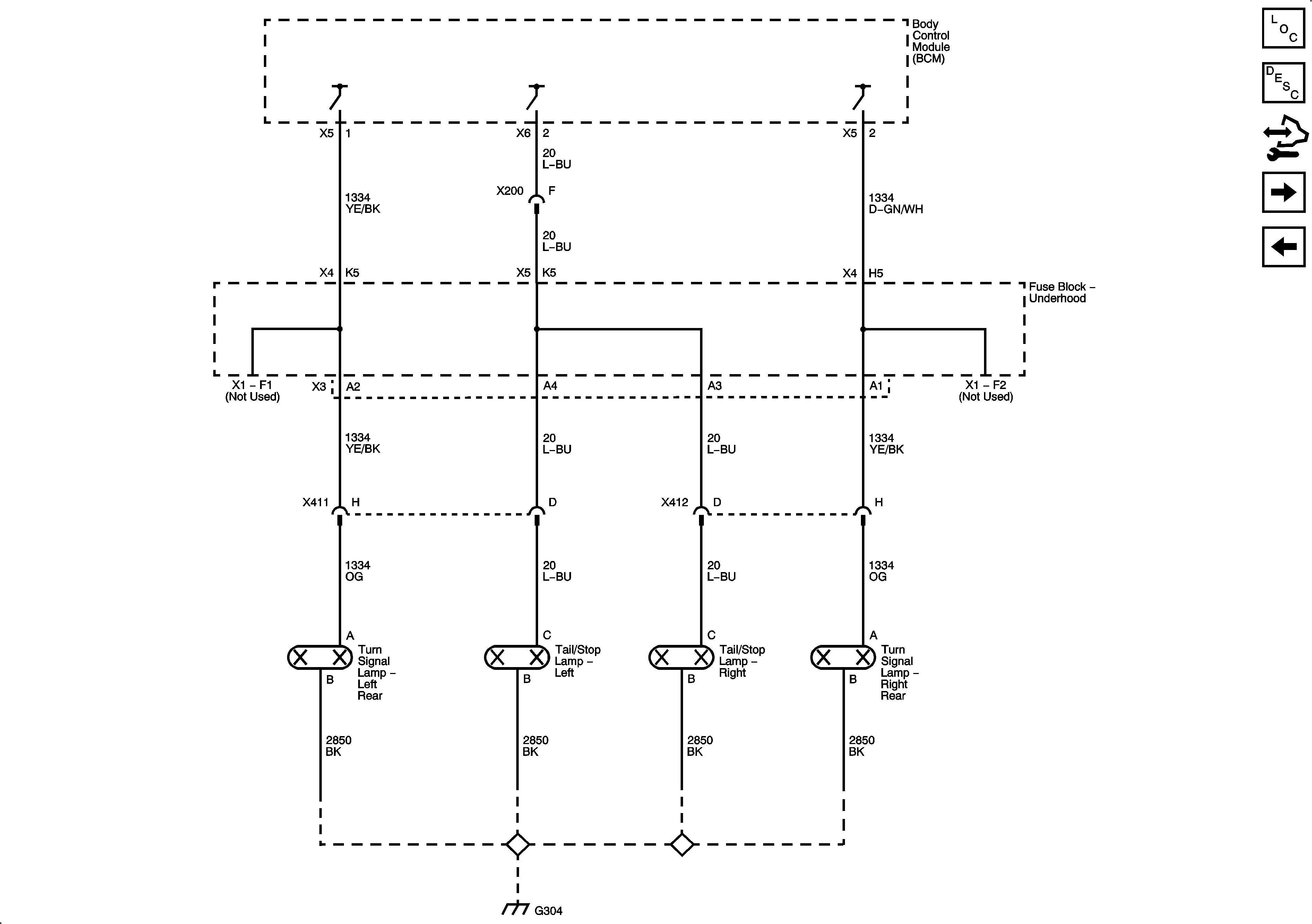

Figure 5:	Rear Stop and Turn Signal Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Stop Lamp Controls and CHMSL Turn Signal Controls and Front Turn Signal Lamps

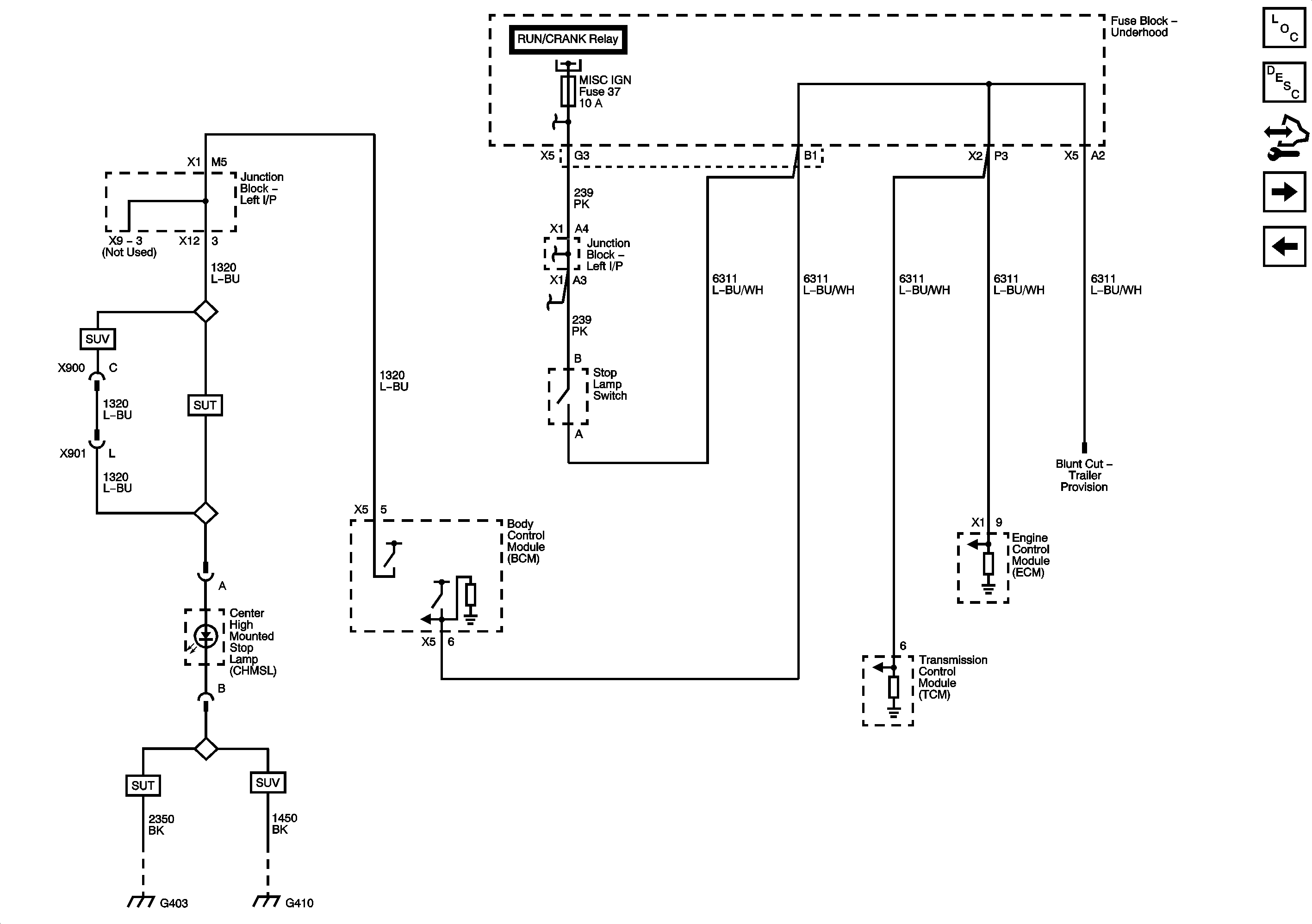

Figure 6:	Stop Lamp Controls and CHMSL Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps Rear Stop and Turn Signal Lamps

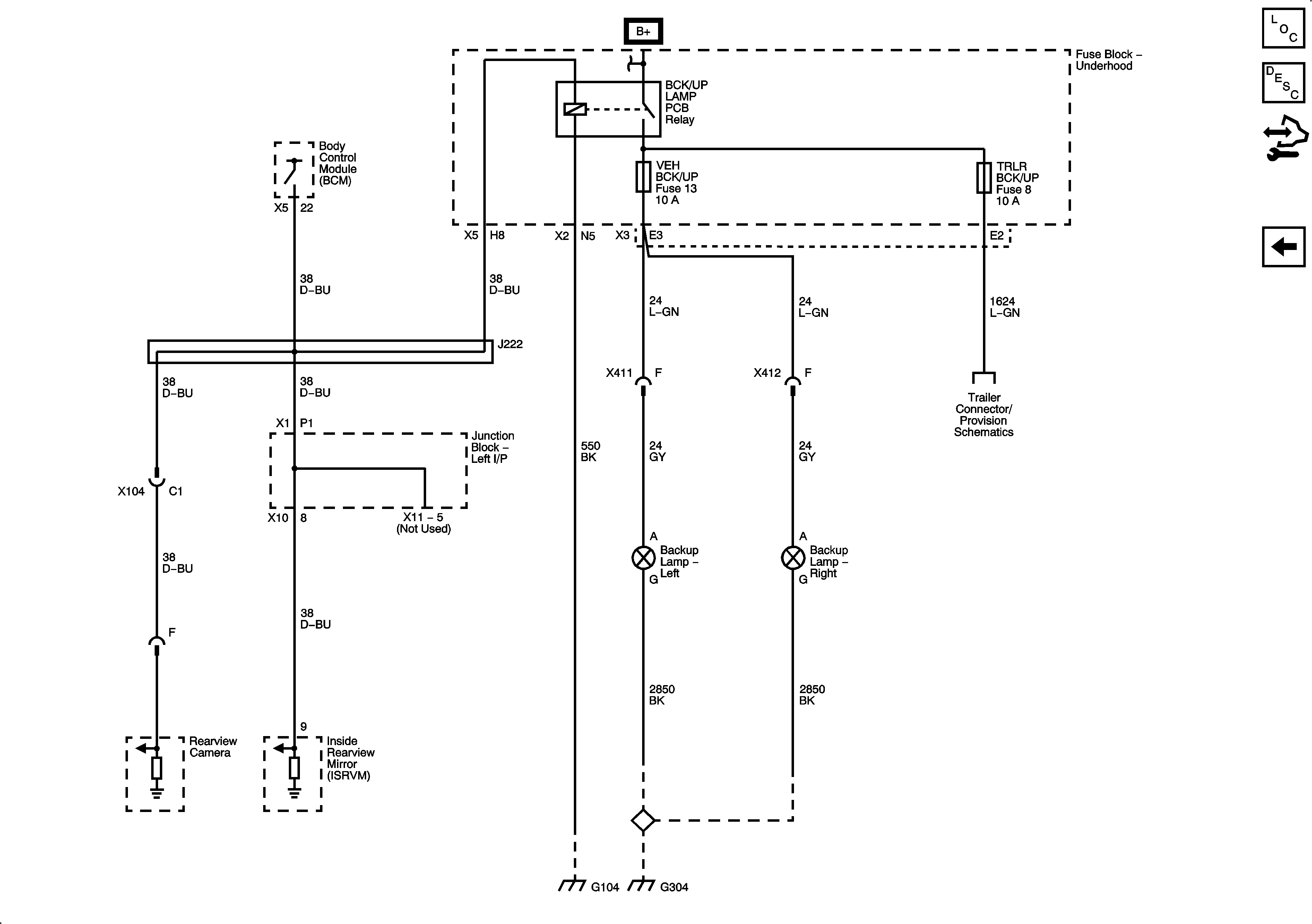

Figure 7:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Tail/Stop and Turn Signal Lamps Stop Lamp Controls and CHMSL

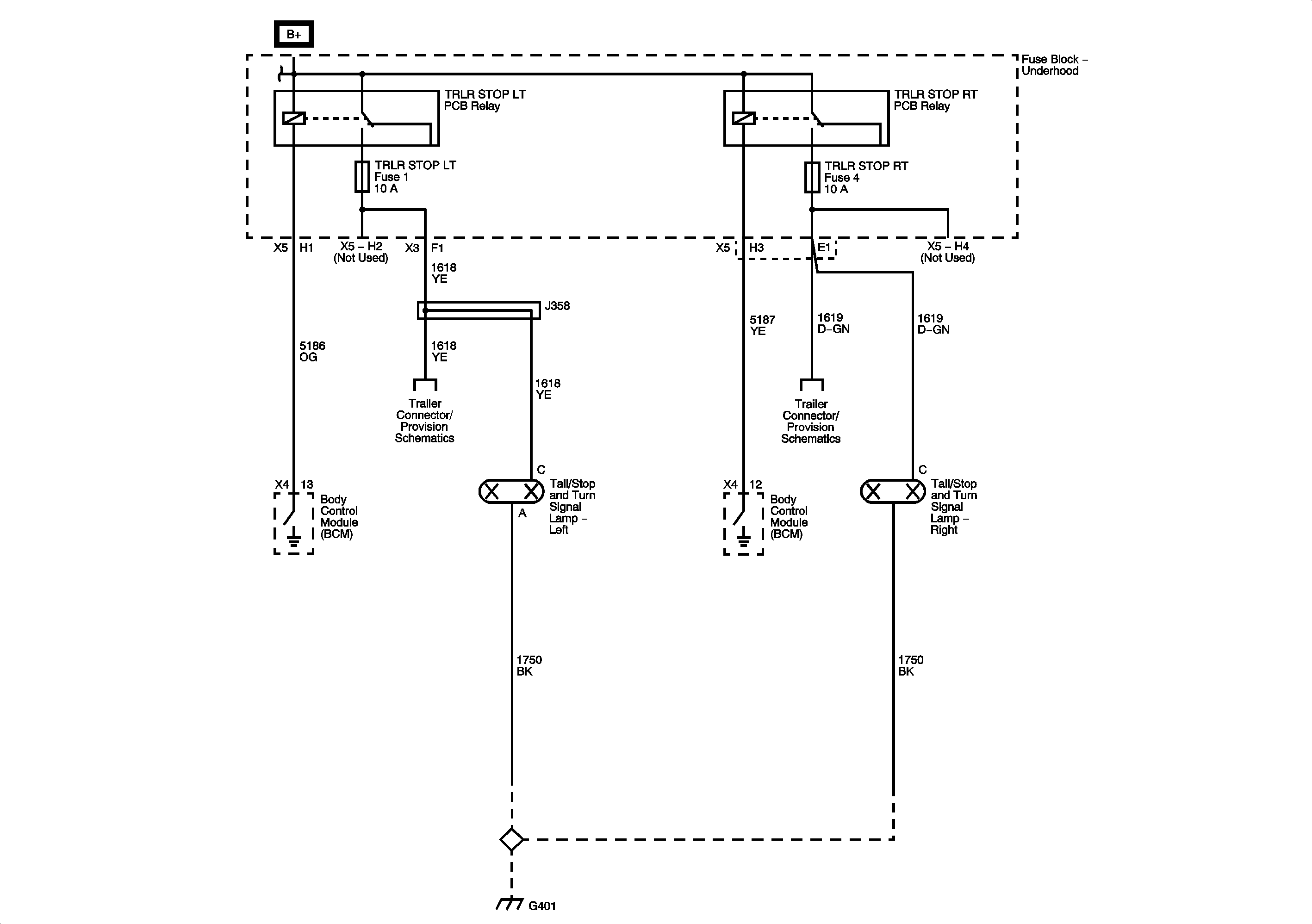

Figure 8:	Tail/Stop and Turn Signal Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps
