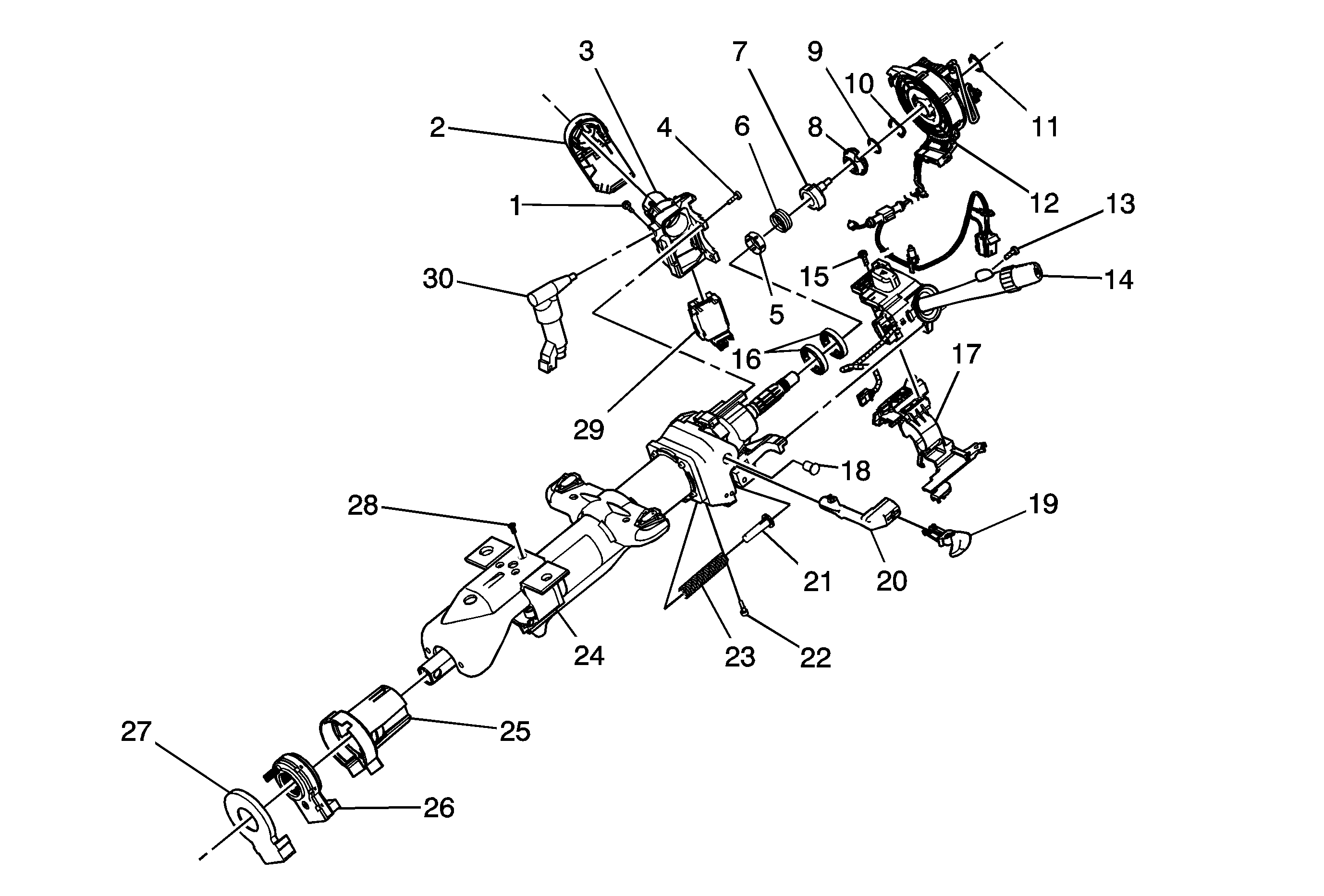

| (1) | Ignition Lock Cylinder Case Bolt |
| (2) | Theft Deterrent Module |
| (3) | Ignition Lock Cylinder Case |
| (4) | Ignition Lock Cylinder Case Bolt |
| (5) | Steering Shaft Upper Bearing Race Seat |
| (6) | Steering Shaft Upper Bearing Spring |
| (7) | Turn Signal Cancel Cam |
| (8) | Steering Shaft Lock Plate |
| (9) | Steering Shaft Lock Plate Retaining Ring |
| (10) | Inflatable Restraint Steering Wheel Module Coil Washer |
| (11) | Inflatable Restraint Steering Wheel Module Coil Retaining Ring |
| (12) | Inflatable Restraint Steering Wheel Module Coil |
| (13) | Turn Signal Multifunction Switch Bolt |
| (14) | Turn Signal Multifunction Switch |
| (15) | Turn Signal Multifunction Switch Bolt |
| (16) | Steering Shaft Upper Bearing |
| (17) | Ignition Lock Cylinder Case Bracket |
| (18) | Steering Column Pivot Pin |
| (19) | Tilt Lever |
| (20) | Steering Column Tilt Lock Release Lever |
| (21) | Steering Column Spring Guide |
| (22) | Steering Column Tilt Lock Release Lever Bolt |
| (23) | Steering Column Tilt Spring |
| (24) | Steering Column Assembly |
| (25) | Steering Shaft Lower Bearing |
| (26) | Steering Wheel Position Sensor |
| (27) | Steering Wheel Position Sensor Retaining Clip |
| (28) | Steering Column Bracket Screw |
| (29) | Ignition and Start Switch |
| (30) | Steering Wheel Theft Deterrent Lock |
