Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Body Systems 🢒 Vehicle Access 🢒 Cargo Box Stowage Box Lid Lock Cylinder Replacement

Removal Procedure
  1. Unlock the cargo box stowage lock.
  2. Remove the key from the lock cylinder.

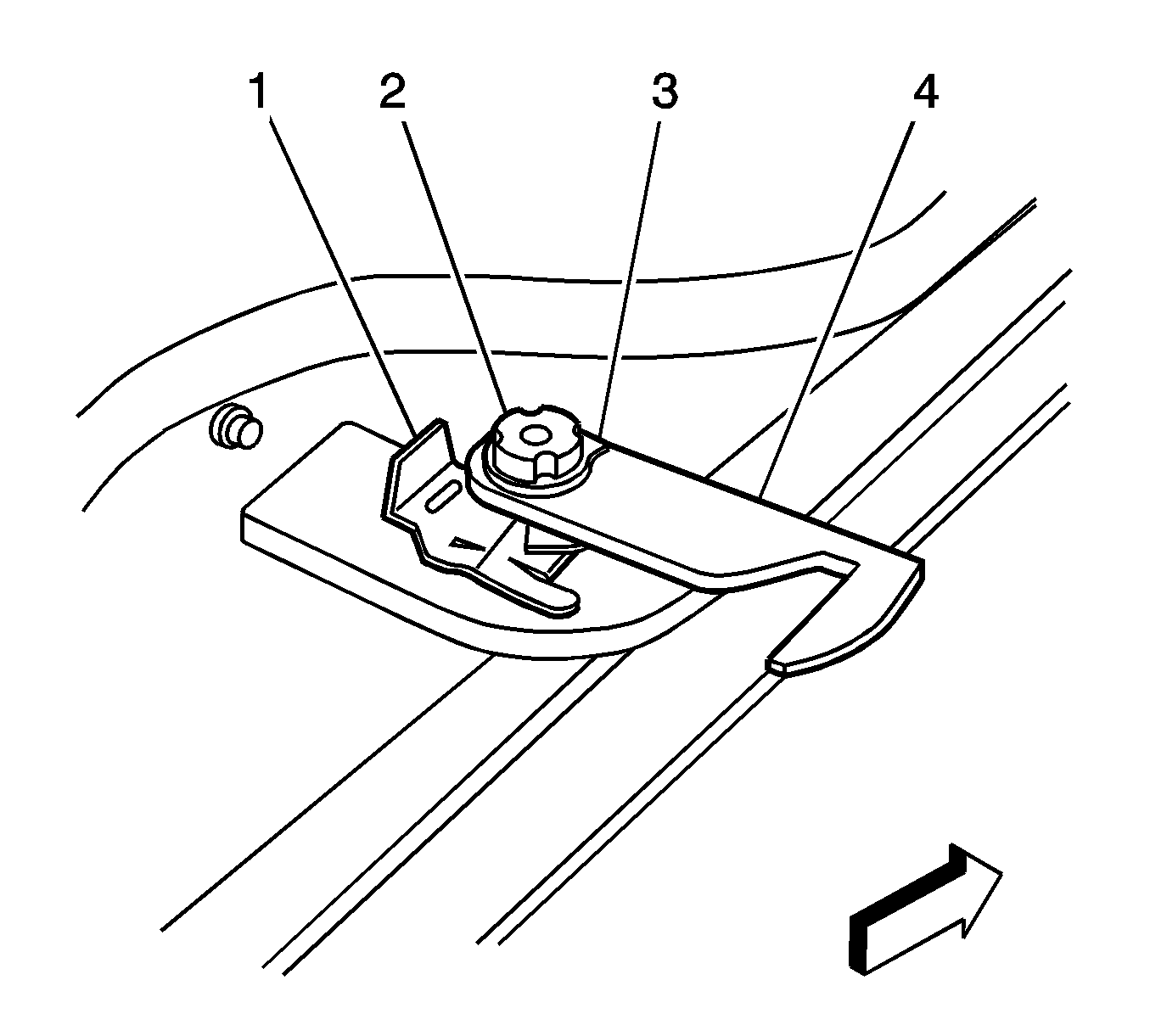

    3. Object Number: 1486516 Size: SH
  3. Open the cargo box stowage lid and remove.
  4. Remove the snap clip (3) from the cylinder (2).
  5. Remove the lock arm (4).
  6. Remove the retention clip (1) securing the lock cylinder to the lid.
  7. Remove the lock cylinder from the stowage lid.

Installation Procedure

    Object Number: 1486516 Size: SH
  1. Install the lock cylinder to the stowage lid.
  2. Secure the retention clip (1) to the lock cylinder (2).
  3. Position the lock arm to the cylinder and install the snap clip (3).
  4. Unlock the lock cylinder with the key.
  5. Position the stowage lid to the stowage compartment.
  6. Lock the lock cylinder.
  7. Remove the key.
