Removal Procedure
  1. Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement.
  2. Disconnect the lock actuator electrical connector.

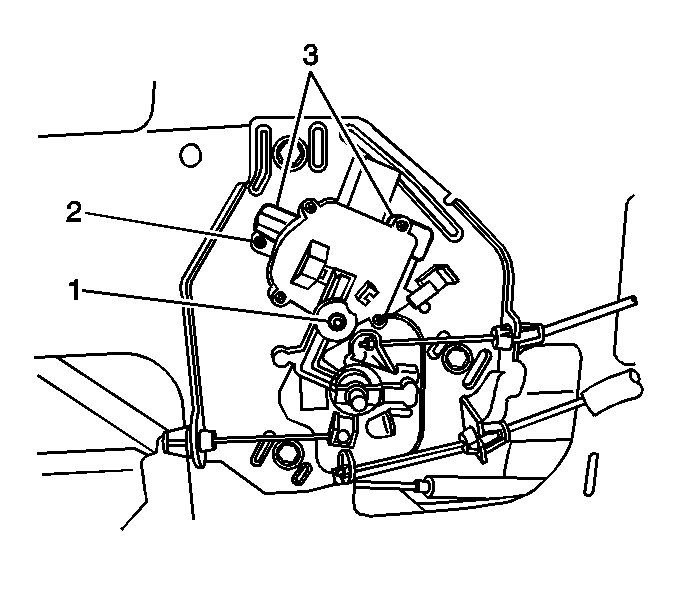

    3. Object Number: 832256 Size: SH

    Note: Note location of arm prior to removal.

  3. Remove the fastener (1) retaining the control arm to the actuator.
  4. Remove the fastener (2) retaining the actuator to control arm assembly plate,
  5. Slide the actuator upward, and remove the actuator from the plate.

Installation Procedure

    Object Number: 832256 Size: SH
  1. Align the tabs on the actuator to the grooves (3) on the control assembly plate, and slide the actuator down into position.

    2. Caution: Refer to Fastener Caution in the Preface section.

  2. Install fastener (2) retaining the actuator to the control assembly plate.

    3. Note: Install the control arm in the position noted during removal.

  3. Install fastener (1) retaining the control arm to the actuator.

    4. Tighten
    Tighten the fasteners to 2 N·m (18 lb in).

  4. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement.

    5. Tighten
    Tighten the fastener to 2 N·m (18 lb in).
