Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Body Systems 🢒 Wipers and Washers 🢒 Non-Functional Air Inlet Grille Panel Replacement

Removal Procedure

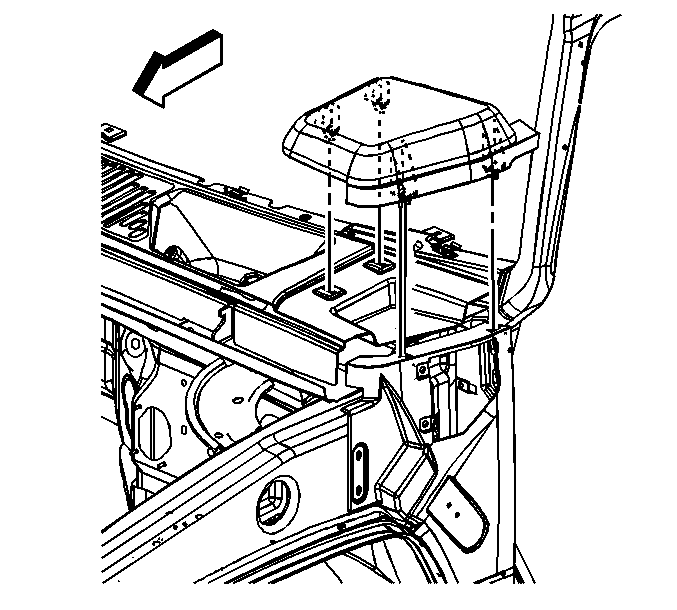

    Object Number: 825299 Size: SH
  1. Release the retainer clips on the air inlet grill panel from the vehicle by applying upward pressure to the panel.
  2. Remove the air inlet grille panel from the vehicle.

Installation Procedure

    Object Number: 825299 Size: SH
  1. Position the air inlet grille panel to the vehicle.
  2. Install the air inlet grille panel to the vehicle by applying downward pressure to the panel until fully seated.
