Communication Interface Module Replacement. HUMMER H2 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Communication Interface Module Replacement

Callout	Component Name
Preliminary Procedure Remove the radio. Refer to Radio Replacement.

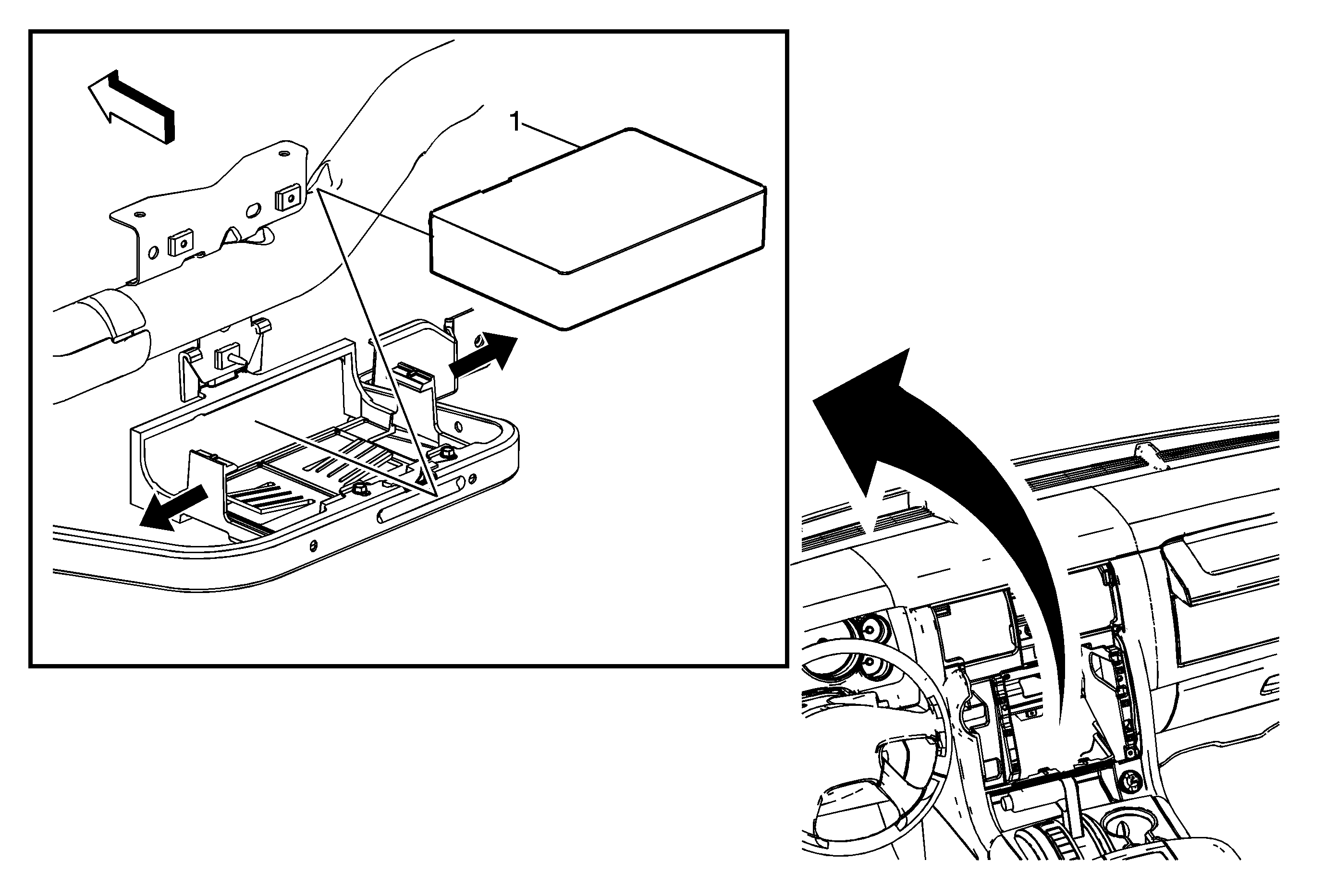

1	Communication Interface with Mobile Telephone Transceiver Module Procedure Push outward on the two tabs to release the communication interface module from the bracket. Disconnect the electrical connectors. Reprogram the communication interface module after replacement. Refer to Control Module References. When replacing the communication interface module be sure to transfer Bluetooth Antenna, if equipped.

Callout

Component Name

Preliminary Procedure

Remove the radio. Refer to Radio Replacement.

Communication Interface with Mobile Telephone Transceiver Module

Procedure

Push outward on the two tabs to release the communication interface module from the bracket.
Disconnect the electrical connectors.
Reprogram the communication interface module after replacement. Refer to Control Module References.
When replacing the communication interface module be sure to transfer Bluetooth Antenna, if equipped.
