Radio Speaker Amplifier Replacement. HUMMER H2 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Radio Speaker Amplifier Replacement

Radio Speaker Amplifier Replacement UQA

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement.
1	Radio Speaker Amplifier Screw (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Tighten 2.5 N·m (22 lb in)
2	Radio Speaker Amplifier Assembly Procedure Disconnect the electrical connectors. If installing a replacement amplifier, program the amplifier. Refer to Control Module References.

Callout

Component Name

Remove the front floor console. Refer to Front Floor Console Replacement.

Radio Speaker Amplifier Screw (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2.5 N·m (22 lb in)

Radio Speaker Amplifier Assembly

Disconnect the electrical connectors.
If installing a replacement amplifier, program the amplifier. Refer to Control Module References.

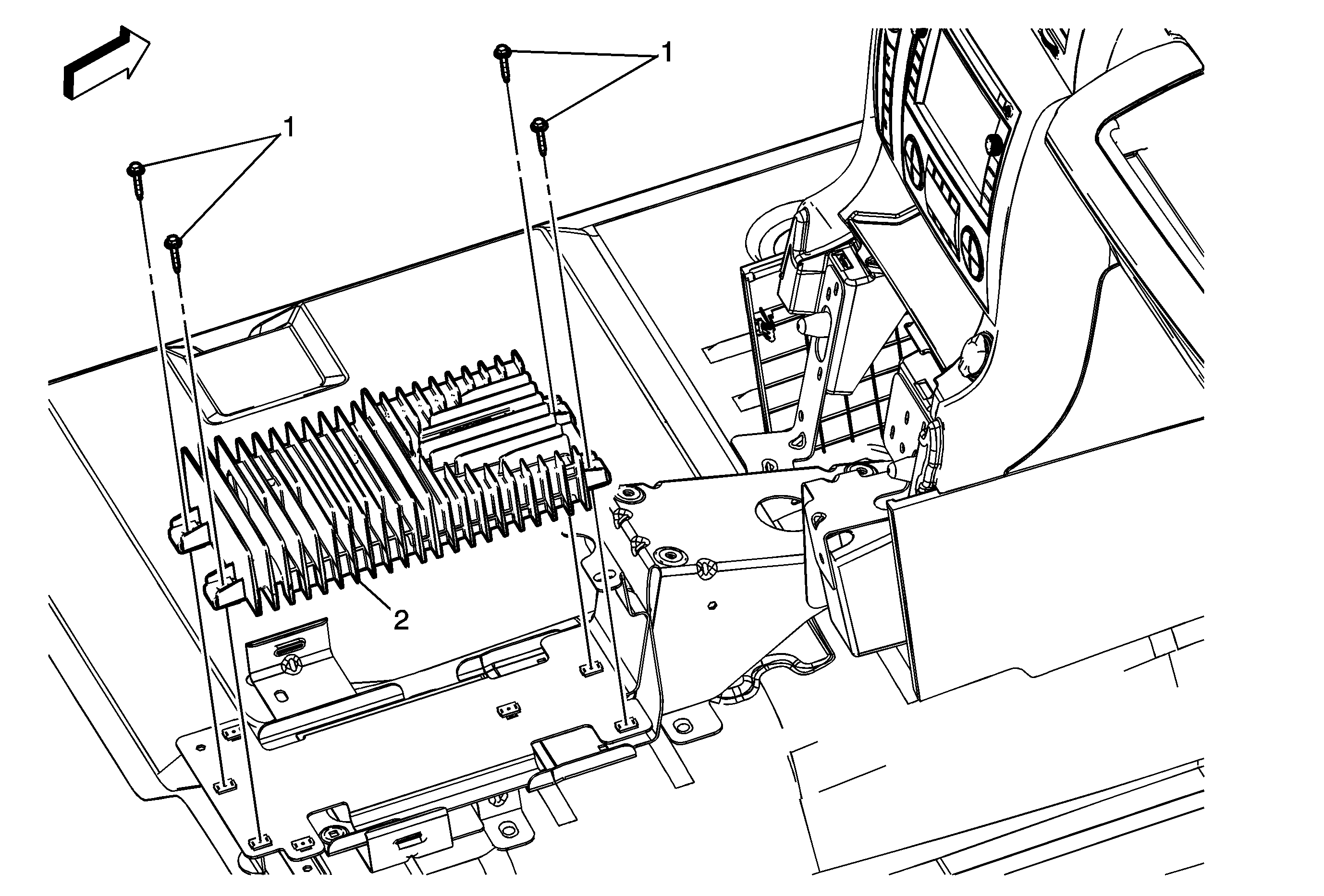

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement.
1	Radio Speaker Amplifier Screw (Qty: 4) Caution: Refer to Fastener Caution in the Preface section. Tighten 2.5 N·m (22 lb in)
2	Radio Speaker Amplifier Assembly Procedure Disconnect the electrical connectors. If installing a replacement amplifier, program the amplifier. Refer to Control Module References.
