Rear SeatAudio Control Replacement. HUMMER H2 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Rear SeatAudio Control Replacement

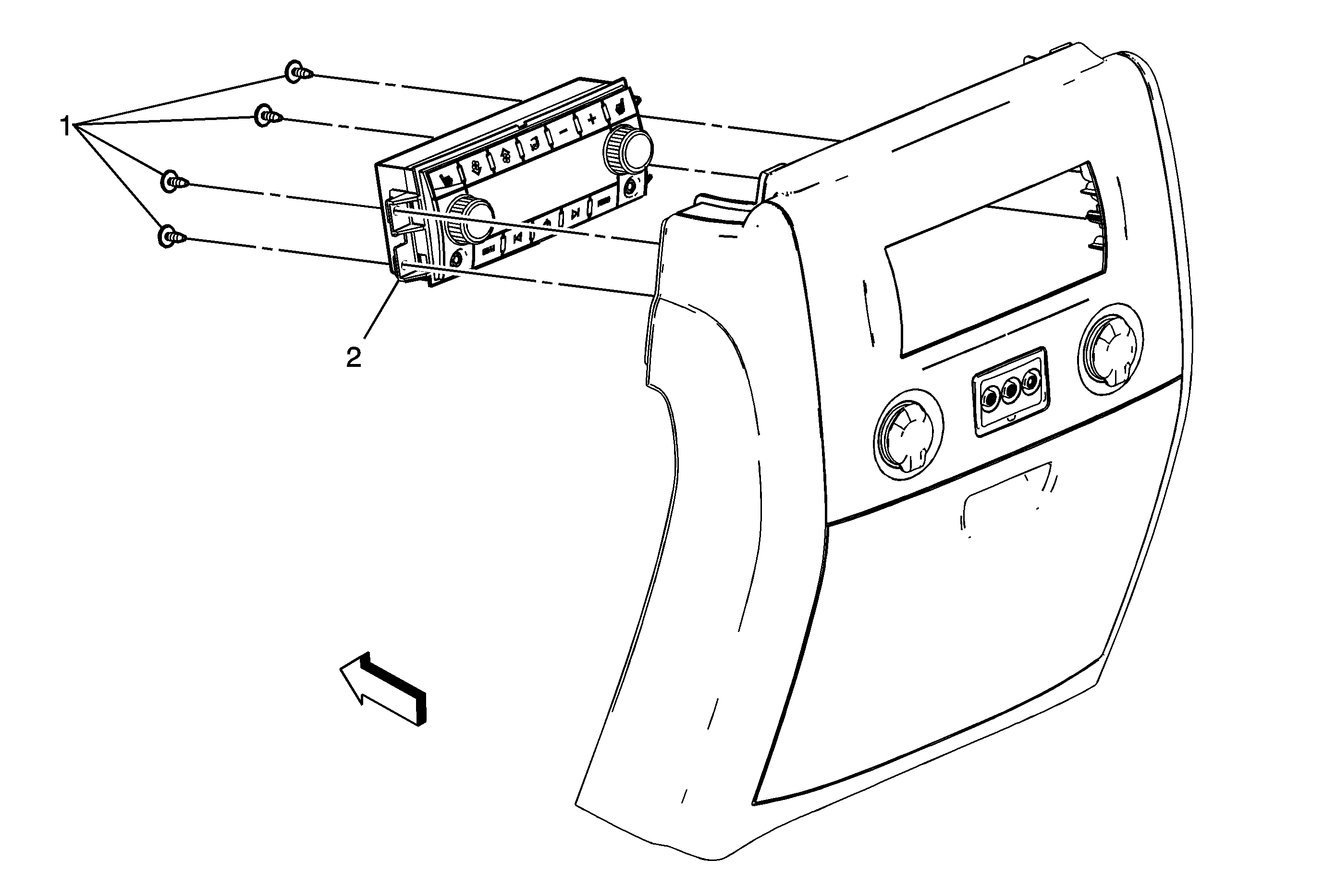

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment bezel. Refer to Front Floor Console Compartment Bezel Replacement.
1	AM/FM Stereo, Tape Player and Compact Disc Player Radio Control Screw (Qty: 4) Caution: Refer to Fastener Caution in the Preface section. Procedure Tighten the fasteners equally to ensure the control assembly seats evenly. Tighten 1.5 N·m (13 lb in)
2	AM/FM Stereo, Tape Player and Compact Disc Player Radio Control Procedure Disconnect the electrical connectors.

Callout

Component Name

Remove the front floor console compartment bezel. Refer to Front Floor Console Compartment Bezel Replacement.

AM/FM Stereo, Tape Player and Compact Disc Player Radio Control Screw (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten the fasteners equally to ensure the control assembly seats evenly.

Tighten
1.5 N·m (13 lb in)

AM/FM Stereo, Tape Player and Compact Disc Player Radio Control

Disconnect the electrical connectors.
