Preliminary Procedure

1. Remove the Instrument Panel Lower Filler -- Right Side. Refer to Instrument Panel Lower Filler Replacement - Right Side
2. Remove the Front Floor Console. Refer to Front Floor Console Replacement
3. Remove the Instrument Panel Lower Trim Panel. Refer to Instrument Panel Lower Trim Panel Replacement
4. Remove the Instrument Panel Insulator Panel. Refer to Instrument Panel Insulator Panel Replacement

1

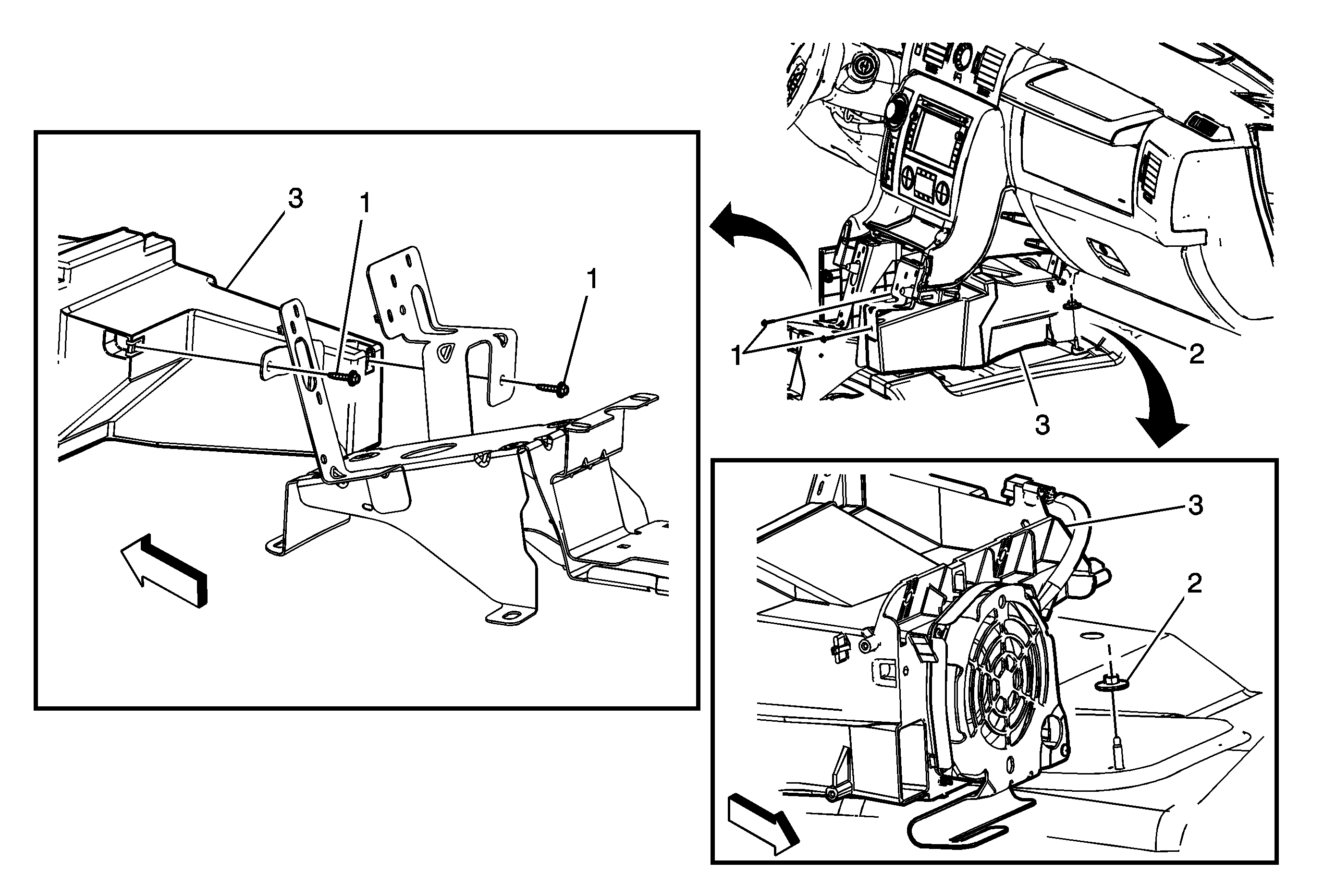

Radio Front Floor Console Speaker Bolts (Qty 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2.5 N·m (22 lb in)

2

Radio Front Floor Console Speaker Nut

Tighten
9 N·m (80 lb in)

3

Radio Front Floor Console Speaker Assembly

Procedure

1. Disconnect the electrical connection.
2. Lift up the back of the speaker assembly to clear the carpet.
3. Slide the speaker assembly out from the right hand side of the vehicle.
