Radio Volume Compensator Interior Noise Microphone Replacement. HUMMER H2 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Radio Volume Compensator Interior Noise Microphone Replacement

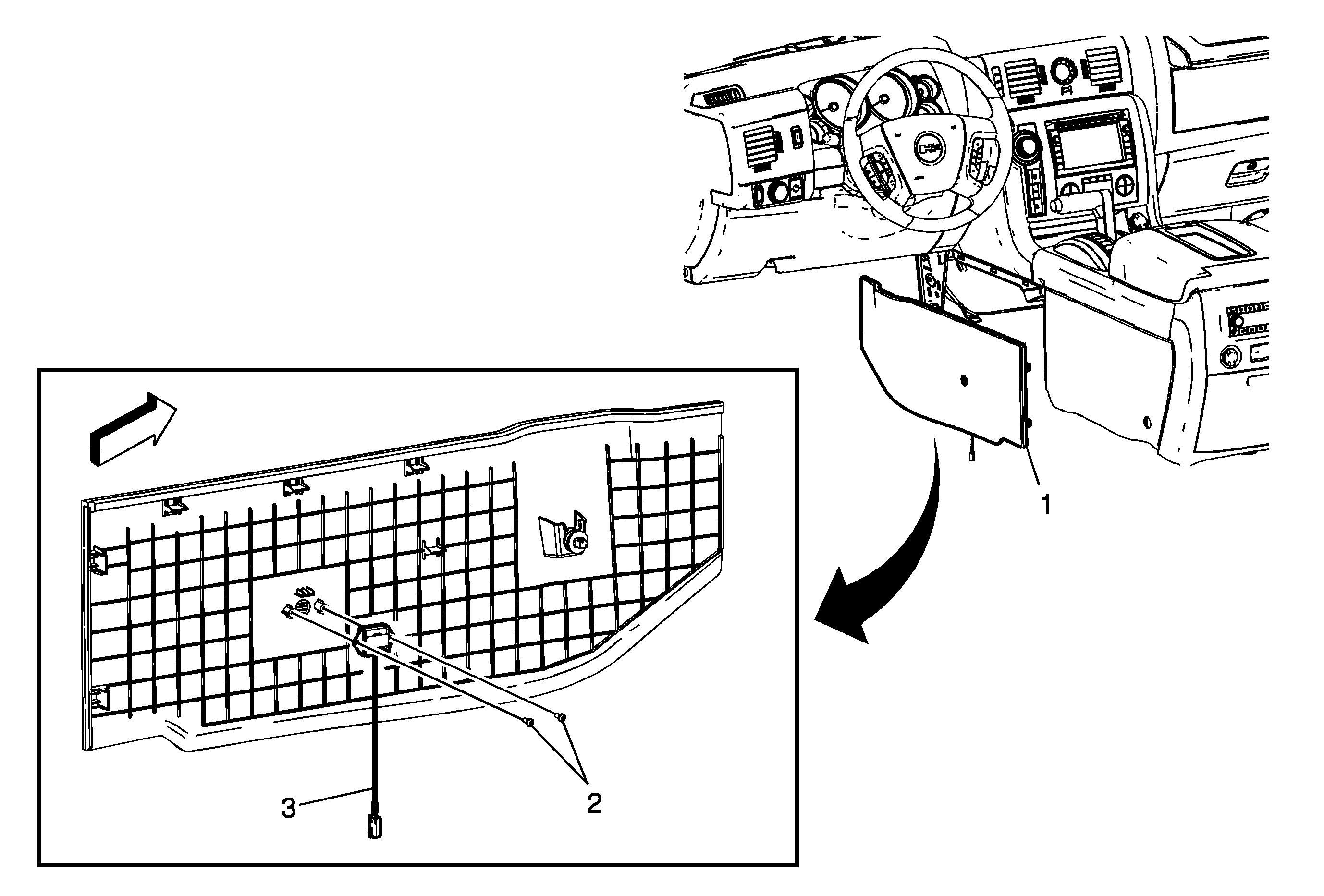

Callout	Component Name
1	Instrument Panel Lower Extension Trim Panel Refer to Instrument Panel Lower Extension Trim Panel Replacement - Left Side.
2	Radio Volume Compensator Interior Noise Microphone Screw (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Tighten 1 N·m (9 lb in)
3	Radio Volume Compensator Interior Noise Microphone Assembly Procedure Disconnect the electrical connector.

Callout

Component Name

Instrument Panel Lower Extension Trim Panel

Refer to Instrument Panel Lower Extension Trim Panel Replacement - Left Side.

Radio Volume Compensator Interior Noise Microphone Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1 N·m (9 lb in)

Radio Volume Compensator Interior Noise Microphone Assembly

Procedure

Disconnect the electrical connector.
