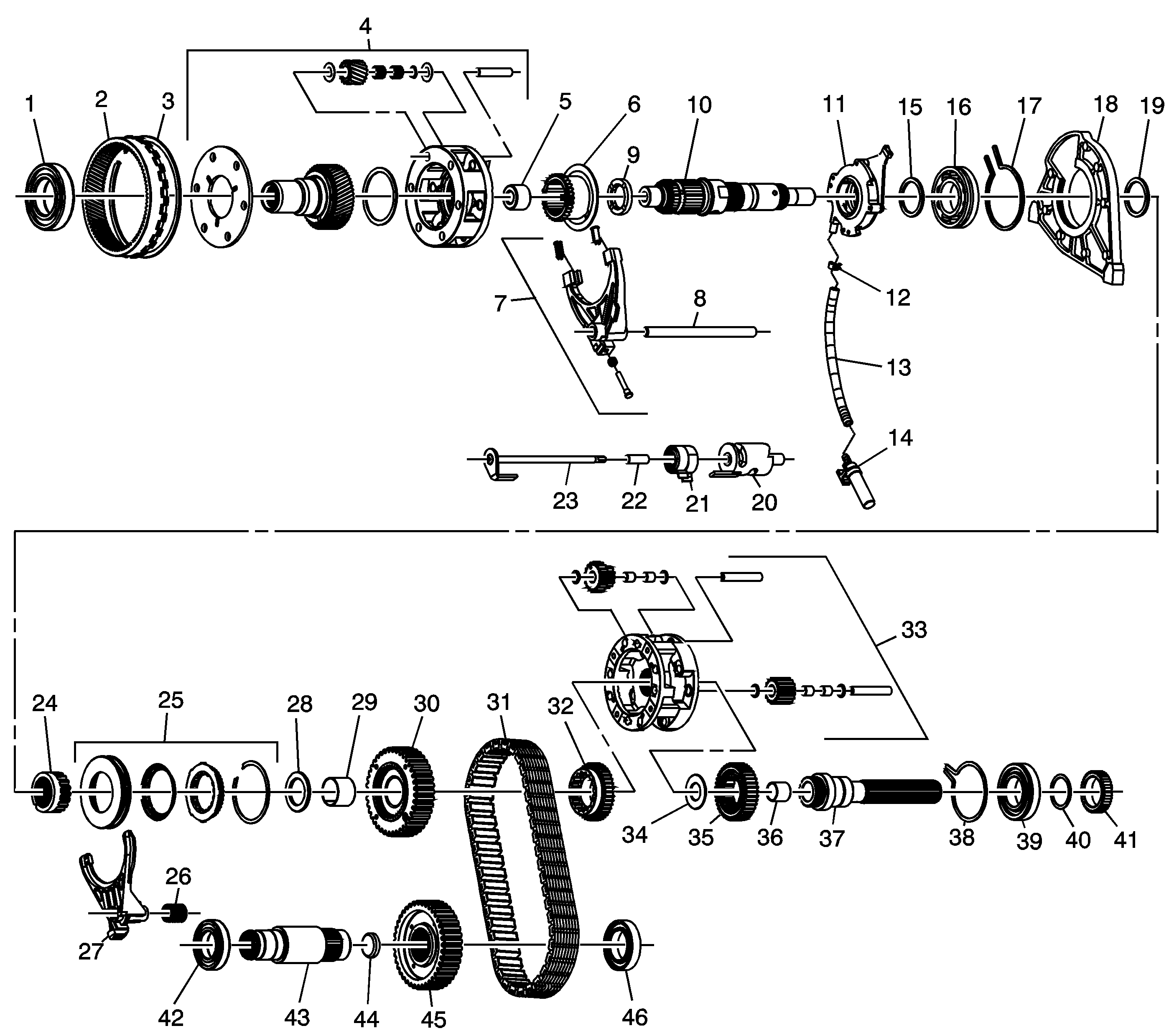

| (1) | Input Gear Bearing |
| (2) | Annulus Gear |
| (3) | Annulus Gear Retaining Ring |
| (4) | High/Low Planetary Carrier Assembly |
| (5) | Mainshaft Front Support Bearing |
| (6) | High/Low Range Sleeve |
| (7) | High/Low Range Shift Fork Assembly |
| (8) | Shift Fork Shaft |
| (9) | Input Gear Thrust Washer |
| (10) | Mainshaft |
| (11) | Oil Pump |
| (12) | Oil Pump Hose Clamp |
| (13) | Oil Pump Hose |
| (14) | Oil Pump Screen |
| (15) | Upper Center Bearing Support Thrust Washer |
| (16) | Bearing |
| (17) | Snap Ring |
| (18) | Center Bearing Support |
| (19) | Lower Center Support Bearing Thrust Washer |
| (20) | Shift Detent Lever Cam |
| (21) | Shift Detent Lever Shaft Spring |
| (22) | Shift Detent Lever Shaft Sleeve |
| (23) | Shift Detent Lever Shaft |
| (24) | Inner Lockup Hub |
| (25) | Lockup Shift Assembly |
| (26) | Shift Fork Shaft Spring |
| (27) | Lockup Shift Fork |
| (28) | Drive Sprocket Thrust Washer |
| (29) | Drive Sprocket Bushing |
| (30) | Drive Sprocket |
| (31) | Drive Chain |
| (32) | Front Sun Gear |
| (33) | Planetary Differential Assembly |
| (34) | Rear Output Shaft Thrust Washer |
| (35) | Rear Sun Gear |
| (36) | Mainshaft Rear Support Bushing |
| (37) | Rear Output Shaft |
| (38) | Rear Output Shaft Bearing Outer Retaining Ring |
| (39) | Rear Output Shaft Bearing |
| (40) | Rear Output Shaft Bearing Retaining Ring |
| (41) | Speed Reluctor Wheel |
| (42) | Front Output Shaft Front Bearing |
| (43) | Front Output Shaft |
| (44) | Front Output Shaft Cup Plug |
| (45) | Driven Gear |
| (46) | Front Output Shaft Rear Bearing |
