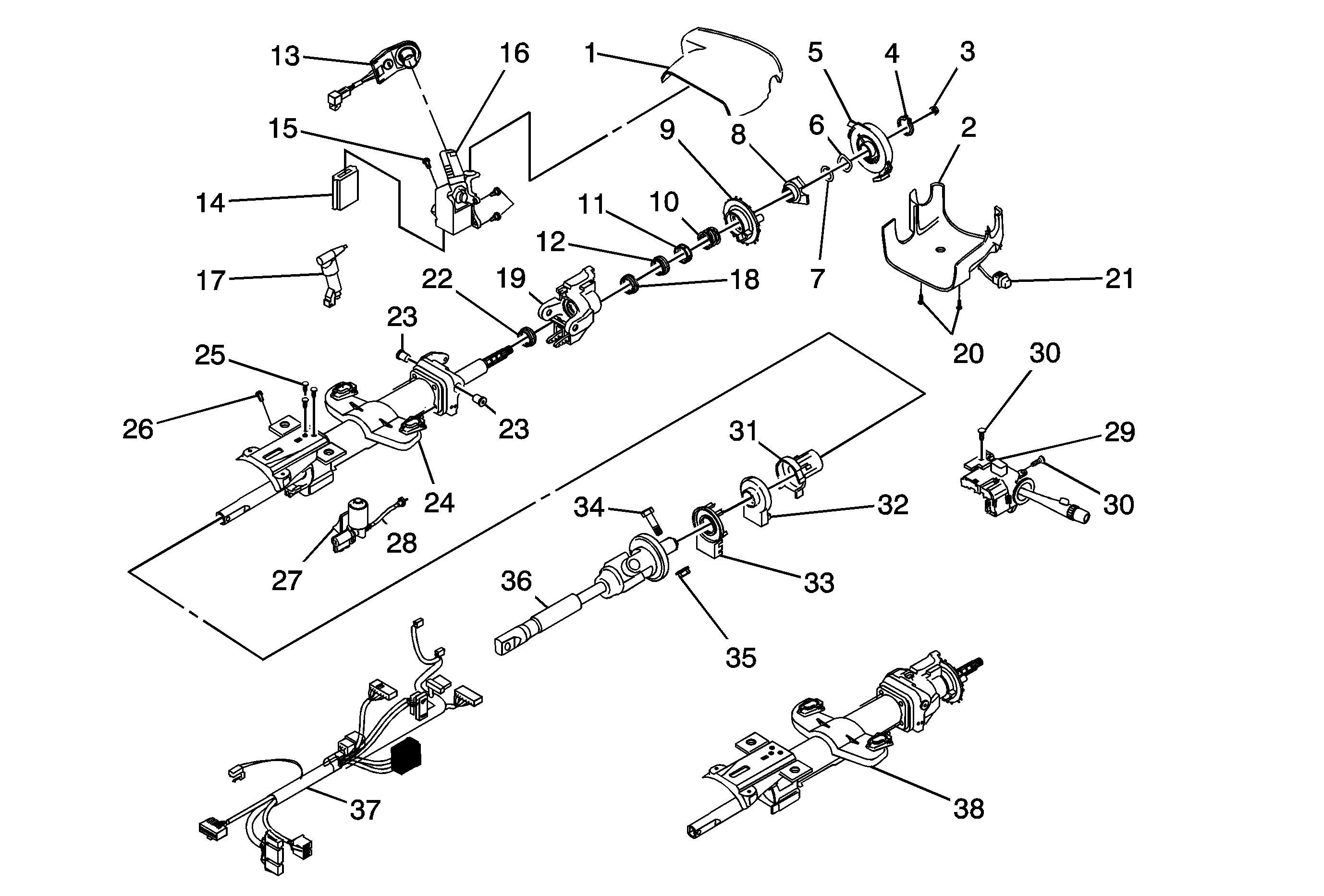

| (1) | Upper Steering Column Shroud |
| (2) | Lower Steering Column Shroud |
| (3) | Steering Wheel Nut |
| (4) | Inflatable Restraint Steering Wheel Module Coil Retaining Ring |
| (5) | Inflatable Restraint Steering Wheel Module Coil |
| (6) | Inflatable Restraint Steering Wheel Module Coil Wave Washer |
| (7) | Steering Shaft Lock Plate Retaining Ring |
| (8) | Turn Signal Switch Cancel Cam Position Plate |
| (9) | Turn Signal Switch Cancel Cam |
| (10) | Steering Shaft Upper Bearing Spring |
| (11) | Steering Shaft Upper Bearing Inner Race Seat |
| (12) | Steering Shaft Upper Bearing Inner Race |
| (13) | Theft Deterrent Module |
| (14) | Ignition and Start Switch |
| (15) | Ignition Lock Cylinder Case Bolt |
| (16) | Ignition Lock Cylinder Case |
| (17) | Steering Wheel Theft Deterrent Lock |
| (18) | Steering Shaft Upper Bearing |
| (19) | Steering Column Tilt Head Assembly |
| (20) | Lower Steering Column Shroud Bolt |
| (21) | Steering Column Tilt Wheel Switch |
| (22) | Steering Shaft Upper Bearing |
| (23) | Pivot Pin |
| (24) | Steering Column Support and Upper Jacket Assembly |
| (25) | Steering Column Bracket Screw |
| (26) | Tilt Motor Bracket Bolt |
| (27) | Tilt Motor |
| (28) | Tilt Motor Cable |
| (29) | Turn Signal Multifunction Switch |
| (30) | Turn Signal Multifunction Switch Bolt |
| (31) | Steering Shaft Lower Bearing |
| (32) | Steering Wheel Position Sensor |
| (33) | Steering Wheel Position Sensor Retaining Clip |
| (34) | Upper Intermediate Steering Shaft Bolt |
| (35) | Upper Intermediate Steering Shaft Nut |
| (36) | Upper Intermediate Steering Shaft |
| (37) | Steering Column Wiring Harness |
| (38) | Service Steering Column |
