Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Luggage Compartment/Rear of Vehicle Component Views
Figure 1:

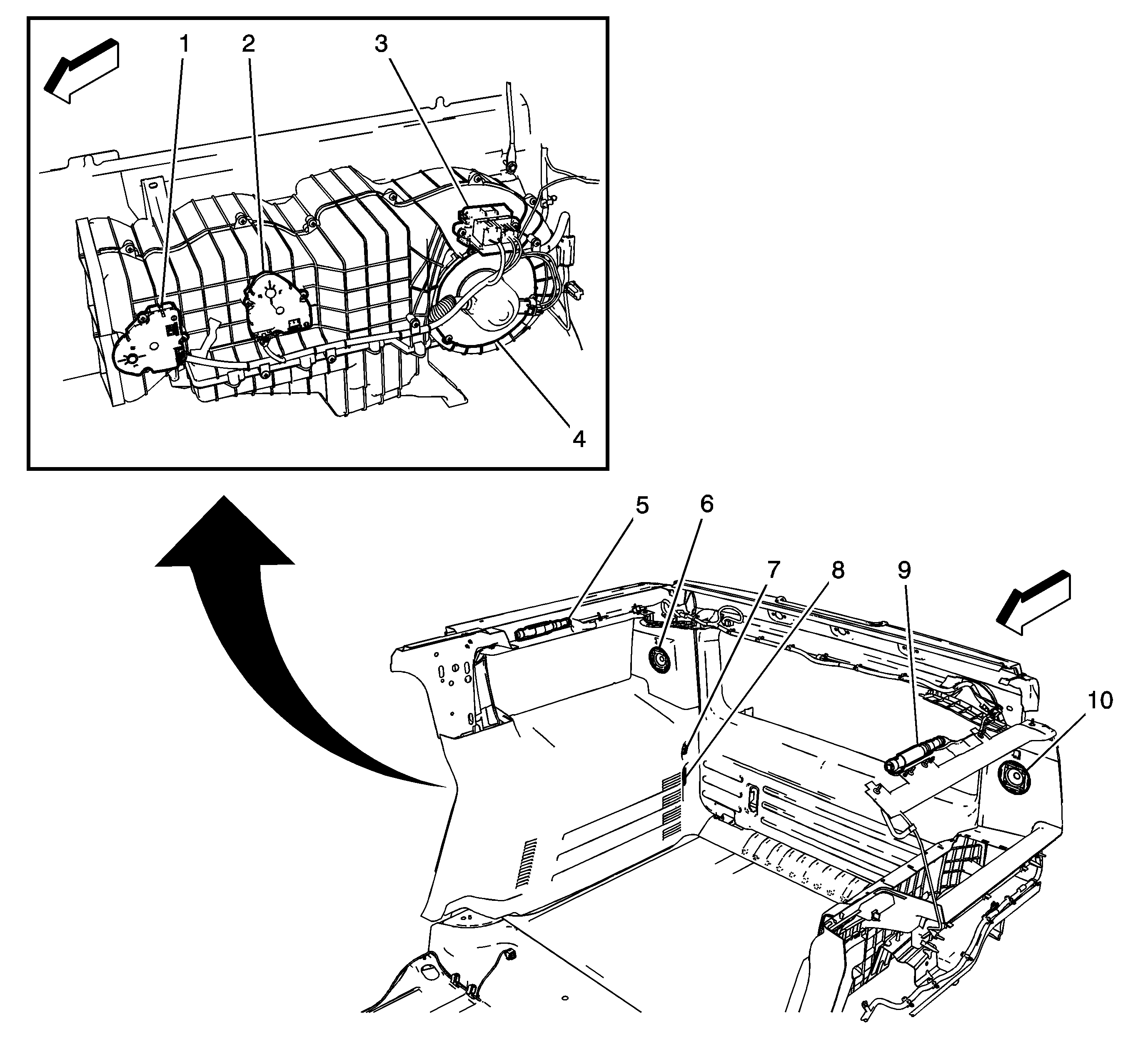

Rear Compartment Components
Object Number: 1975961 Size: LF
(1)Mode Actuator - Auxiliary
(2)Air Temperature Actuator - Auxiliary
(3)Blower Motor Control Module - Auxiliary
(4)Blower Motor - Auxiliary
(5)Inflatable Restraint Roof Rail Module - Right Rear (AS3)
(6)Speaker - Right D-Pillar
(7)Accessory Power Outlet - Rear
(8)Inflator Air Switch (ZM6)
(9)Inflatable Restraint Roof Rail Module - Left Rear (AS3)
(10)Speaker - Left D-Pillar
Figure 2:

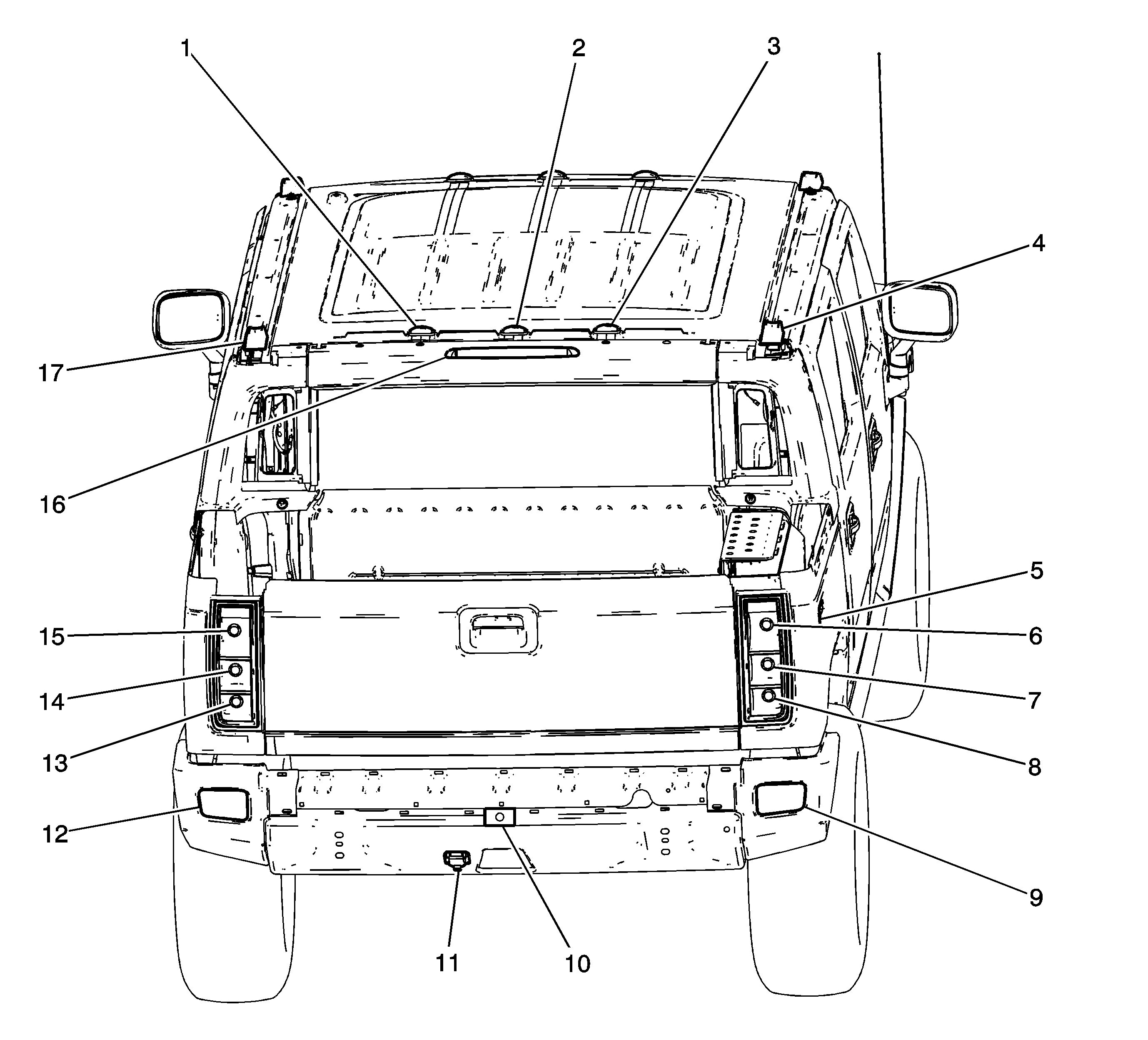

Rear Exterior Lights - SUT
Object Number: 1411339 Size: LF
(1)Roof Marker Lamp - Rear Left
(2)Roof Marker Lamp - Rear Middle
(3)Roof Marker Lamp - Rear Right
(4)Roof Clearance Lamp - Right Rear
(5)Marker Lamp - Right Rear
(6)Tail/Stop Lamp - Right
(7)Turn Signal Lamp - Right Rear
(8)Backup Lamp - Right
(9) Tail/Stop and Turn Signal Lamp - Right
(10)Rearview Camera (UVC)
(11)Trailer Connector
(12) Tail/Stop and Turn Signal Lamp - Left
(13)Backup Lamp - Left
(14)Turn Signal Lamp - Left Rear
(15)Tail/Stop Lamp - Left
(16)Center High Mounted Stop Lamp (CHMSL)
(17)Roof Clearance Lamp - Left Rear
Figure 3:

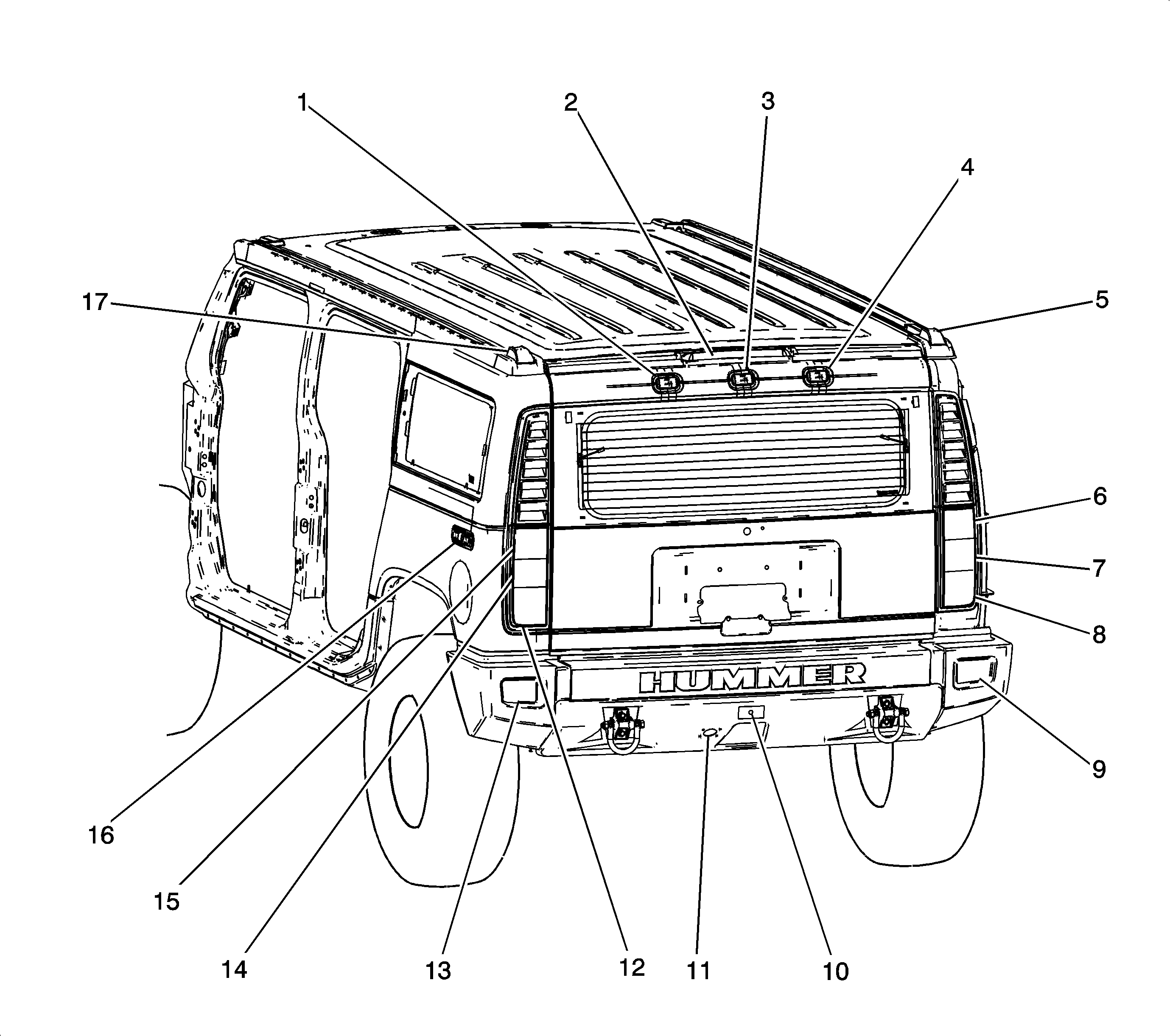

Rear Exterior Lights (SUV)
Object Number: 1754810 Size: LF
(1)Roof Marker Lamp - Rear Left
(2)Center High Mounted Stop Lamp (CHMSL)
(3)Roof Marker Lamp - Rear Middle
(4)Roof Marker Lamp - Rear Right
(5)Roof Clearance Lamp - Right Rear
(6)Tail/Stop Lamp - Right
(7)Turn Signal Lamp - Right Rear
(8)Backup Lamp - Right
(9)Tail/Stop and Turn Signal Lamp - Right
(10)Rearview Camera (UVC)
(11)Trailer Connector
(12)Backup Lamp - Left
(13)Tail/Stop and Turn Signal Lamp - Left
(14)Turn Signal Lamp - Left Rear
(15)Tail/Stop Lamp - Left
(16)Marker Lamp - Left Rear
(17)Roof Clearance Lamp - Left Rear
Figure 4:

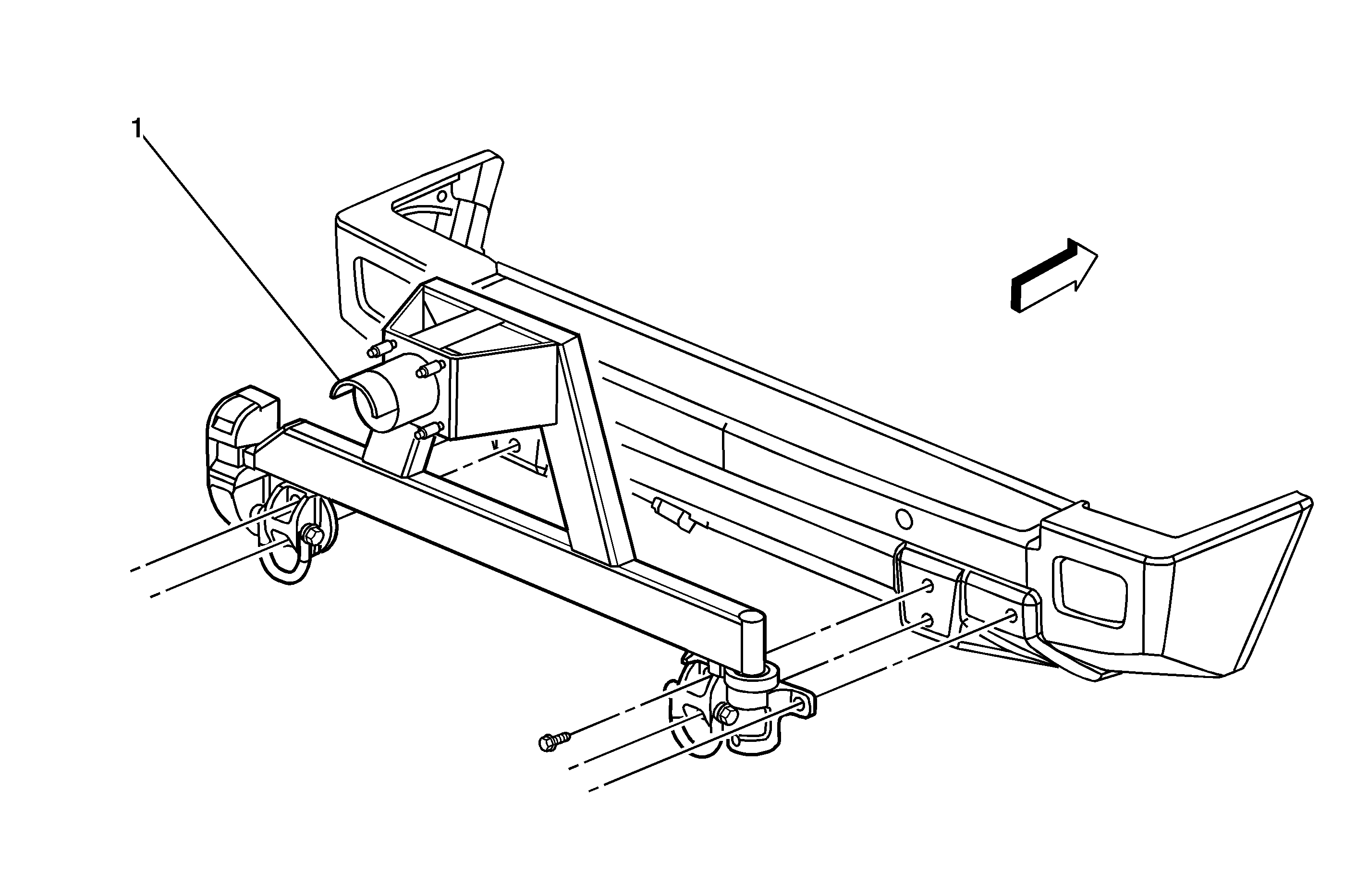

Spare Tire Carrier
Object Number: 1504219 Size: MF
(1)License Lamp
Figure 5:

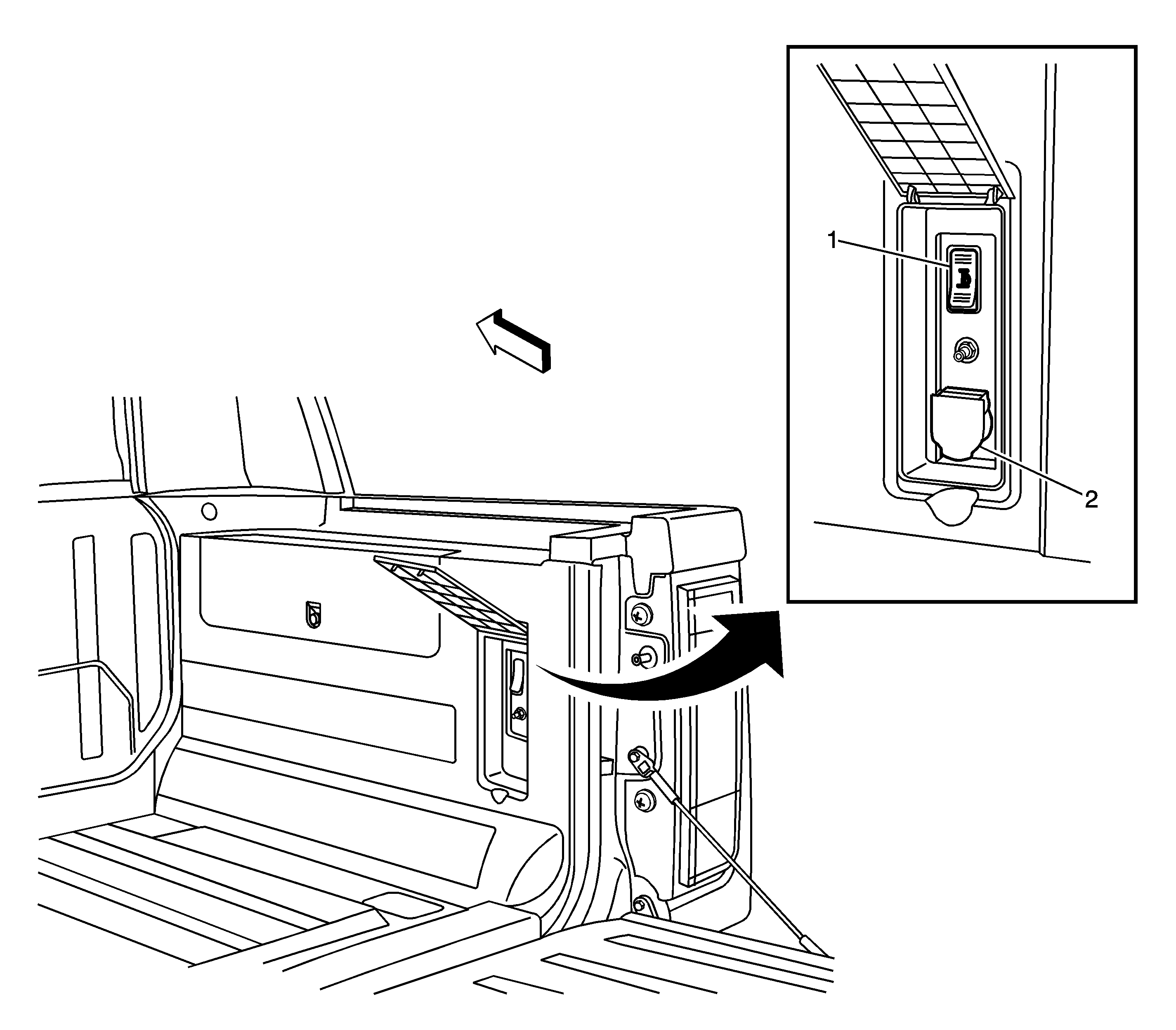

Right Rear Corner of Cargo Bed (SUT)
Object Number: 1489087 Size: LF
(1)Inflator Air Switch (ZM6)
(2)Accessory Power Outlet - Cargo (SUT)
