Auxiliary Air Conditioning Evaporator and Blower Case Replacement

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 HVAC 🢒 Heating, Ventilation, and Air Conditioning 🢒 Auxiliary Air Conditioning Evaporator and Blower Case Replacement - Inboard

Callout	Component Name
Preliminary Procedure Remove the auxiliary HVAC heater core. Refer to Auxiliary Heater Core Replacement. Disconnect any wiring connectors. Invert the auxiliary HVAC module to access components.

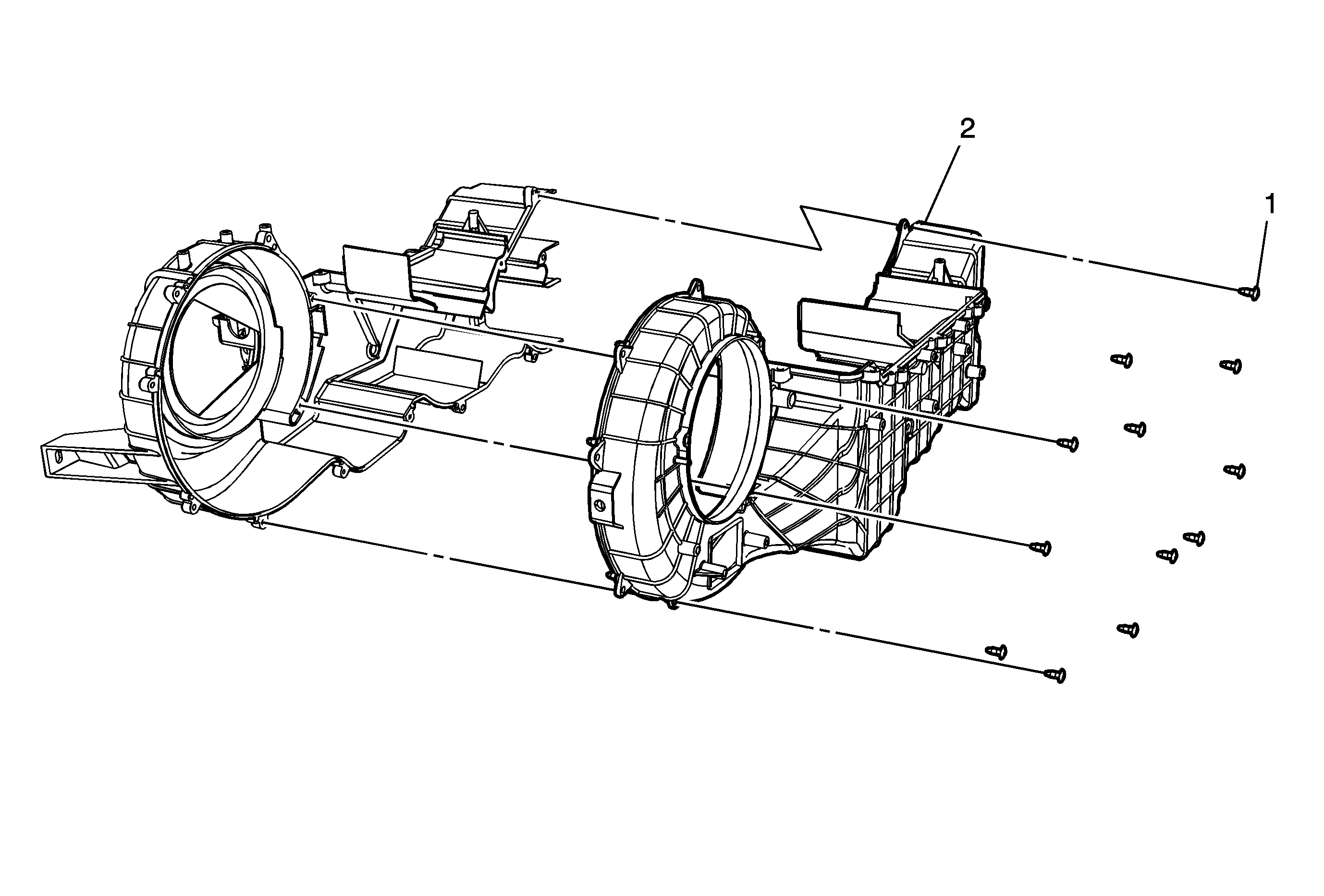

1	Auxiliary A/C Evaporator and Blower Lower Case - Inboard Screw (Qty: 12) Caution: Refer to Fastener Caution in the Preface section. Tighten 2 N·m (18 lb in)
2	Auxiliary A/C Evaporator and Blower Lower Case - Inboard Procedure Note the location and routing of the wiring harness to ensure proper reinstallation. When replacing the HVAC case, transfer all necessary components.

Callout

Component Name

Preliminary Procedure

Remove the auxiliary HVAC heater core. Refer to Auxiliary Heater Core Replacement.
Disconnect any wiring connectors.
Invert the auxiliary HVAC module to access components.

Auxiliary A/C Evaporator and Blower Lower Case - Inboard Screw (Qty: 12)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2 N·m (18 lb in)

Auxiliary A/C Evaporator and Blower Lower Case - Inboard

Procedure

Note the location and routing of the wiring harness to ensure proper reinstallation.
When replacing the HVAC case, transfer all necessary components.
