Steering Wheel Inflatable Restraint Module Coil Replacement. HUMMER H2 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H2 🢒 Safety and Security 🢒 Supplemental Inflatable Restraints 🢒 Steering Wheel Inflatable Restraint Module Coil Replacement

Callout

Component Name

Caution: The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement
Remove the steering column shroud. Refer to Steering Column Shroud Replacement.

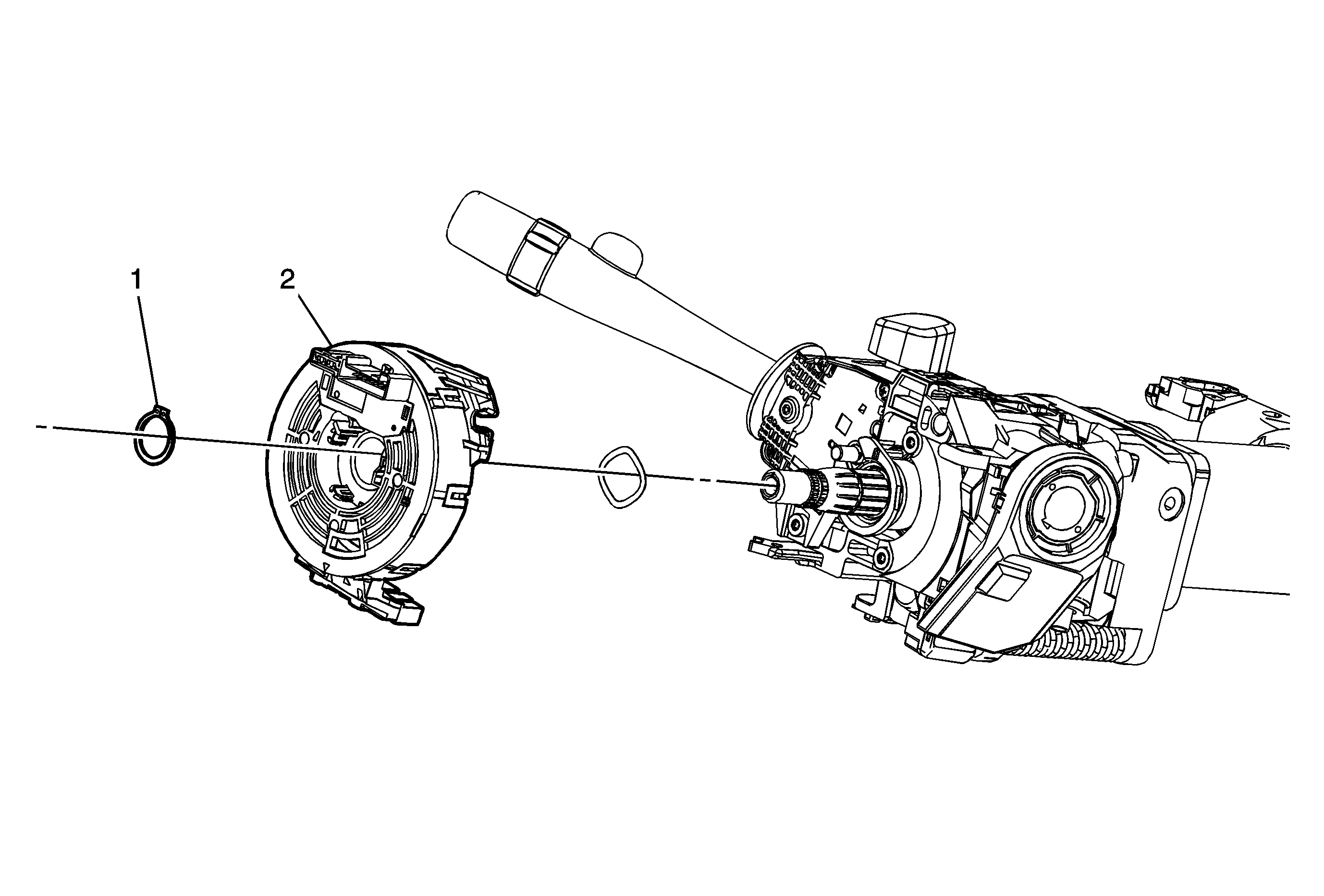

Inflatable Restraint Steering Wheel Module Coil Retaining Ring

Inflatable Restraint Steering Wheel Module Coil

Procedure

Disconnect any electrical connectors as needed.

Tip

•	Ensure the inflatable restraint steering wheel module coil washer does not need replacing and is installed correctly before reinstalling the coil.

•	If reusing the inflatable restraint steering wheel module coil it must centered before reinstalling it. Refer to Inflatable Restraint Steering Wheel Module Coil Centering.
