Caution: Refer to Bleed Procedure Caution in the Preface section.

Caution: Refer to Brake Fluid Irritant Caution in the Preface section.

Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice in the Preface section.

Preliminary Procedures

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .

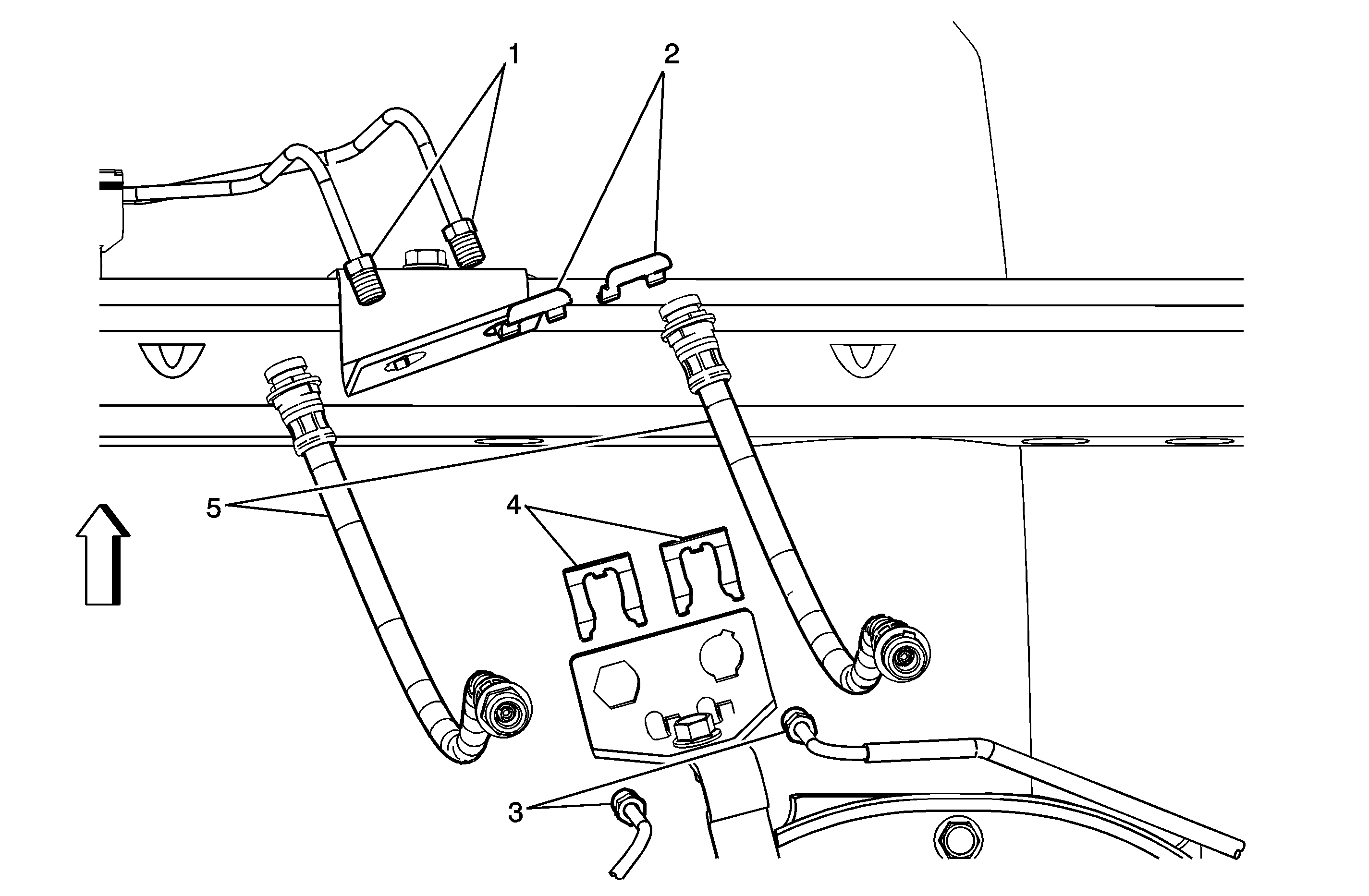

1

Brake Pipe Fitting (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Procedure

Cap the brake pipe to prevent fluid loss and contamination.

Tighten
19 N·m (14 lb ft)

2

Brake Hose Retaining Clip (Qty: 2)

3

Brake Pipe Fitting (Qty: 2)

Procedure

Cap the brake pipe to prevent fluid loss and contamination.

Tighten
19 N·m (14 lb ft)

4

Brake Hose Retaining Clip (Qty: 2)

5

Intermediate Brake Hose (Qty: 2)

Procedure

After the installation is complete, bleed the brake system. Refer to Hydraulic Brake System Bleeding .
