Makes 🢒 HUMMER 🢒 2008 🢒 H3 🢒 Driveline/Axle 🢒 Front Drive Axle 🢒 Differential Carrier Assembly Bushing and Bracket Replacement

Object Number: 1558880 Size: MF

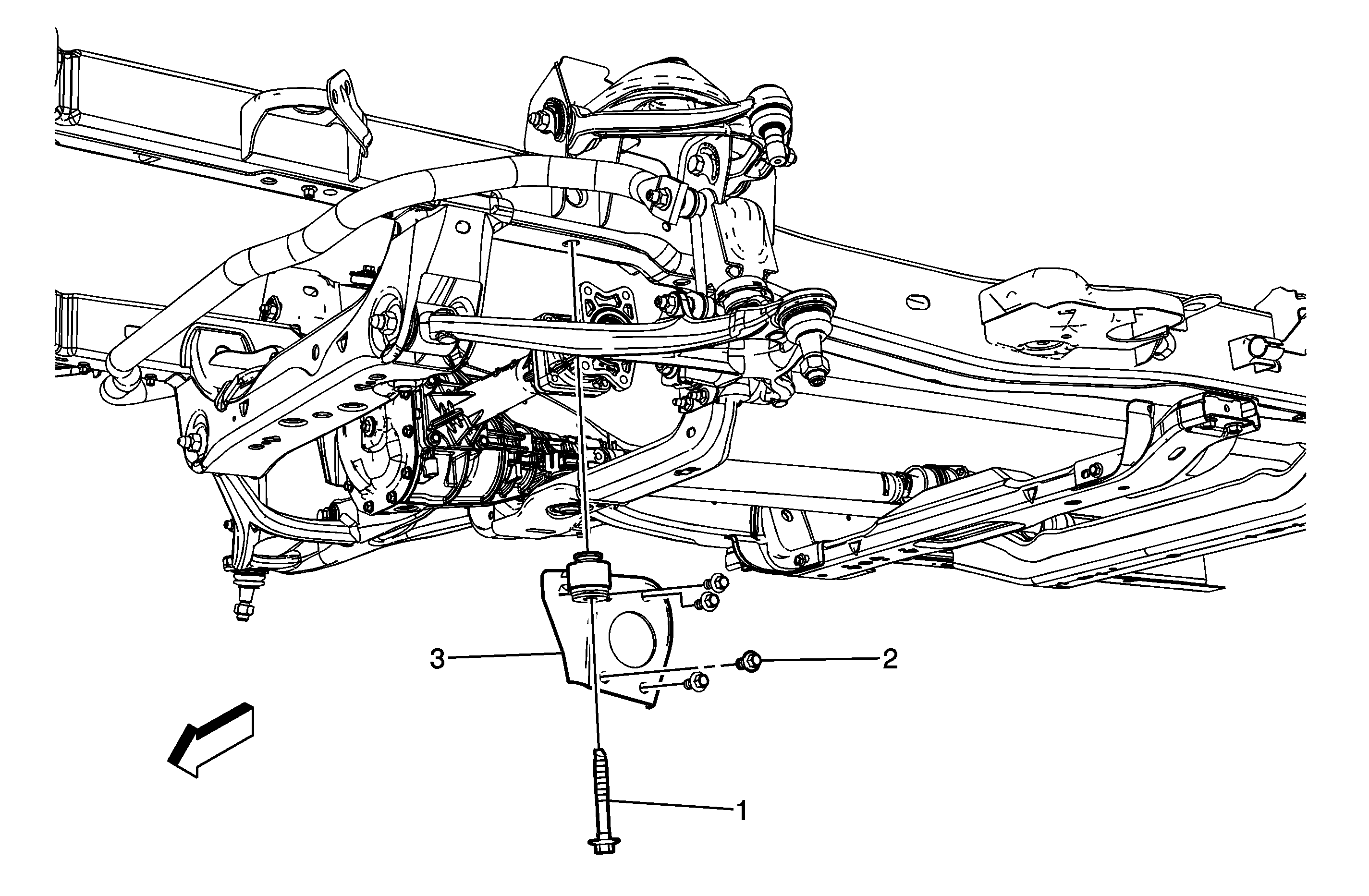

Callout

Component Name

Preliminary Procedures

  1. Remove the engine shield. Refer to Engine Shield Replacement .
  2. Remove the oil pan skid plate. Refer to Oil Pan Skid Plate Replacement .
  3. Remove the front drive axle. Refer to Wheel Drive Shaft Replacement .

1

Front Drive Axle Mounting Bolt

Tip

    • The bushings for the mounting bracket is not serviced separately. They are serviced with the mounting bracket.
    • DO NOT completely tighten the bolts from the mounting bracket to the frame. Leave the bolts loose to allow the bracket alignment to the intermediate shaft housing.

2

Mounting Bracket to the Front Drive Axle Bolt (Qty: 4)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
155 N·m (114 lb ft)

3

Mounting Front Drive Axle Bracket
