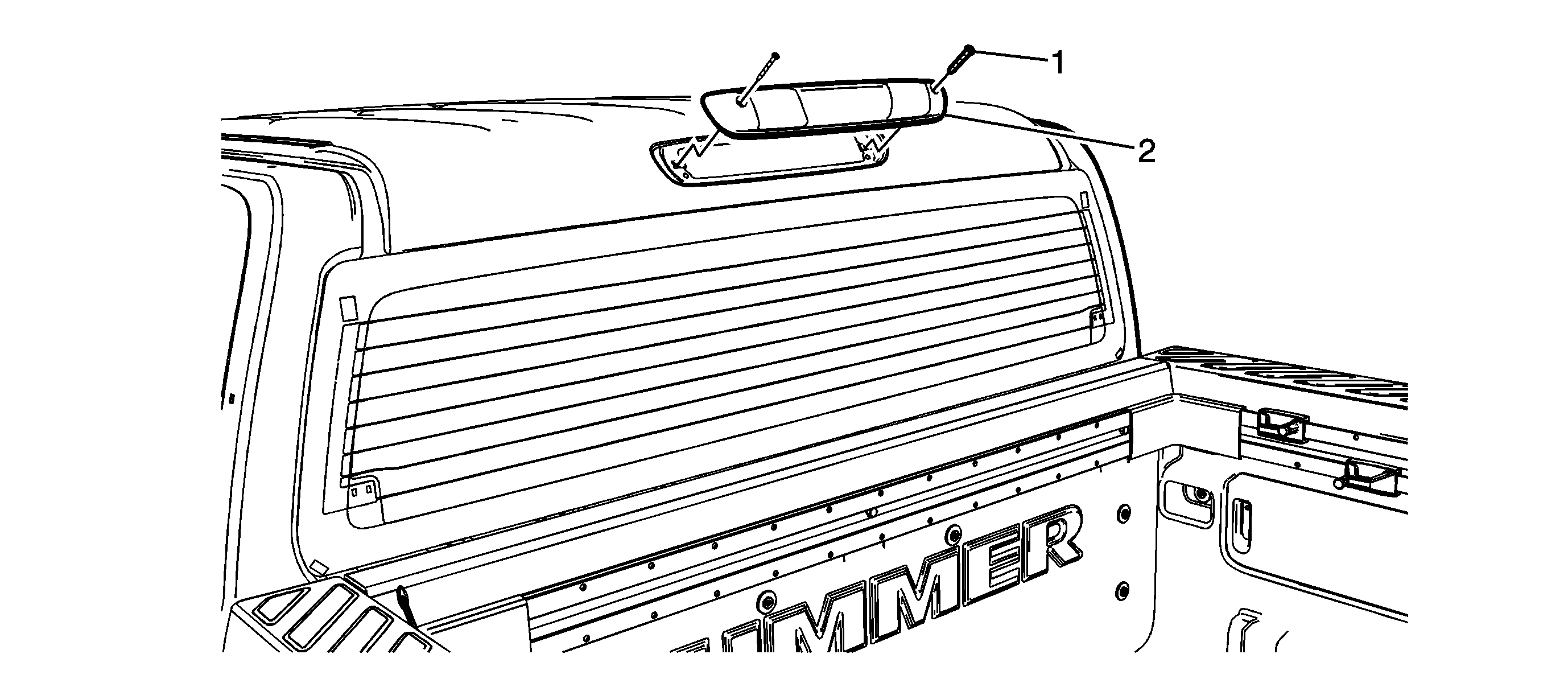

1

High Mount Stop Lamp Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2.5 N·m (22 lb in)

2

High Mount Stop and Cargo Lamp Assembly

Warning: Refer to Halogen Bulb Warning in the Preface section.

Procedure

1. Lift the stop and cargo lamp from the roof opening.
2. Disconnect the electrical connector from the backside of the lamp.
3. Transfer the bulbs as needed. Refer to Cargo Lamp Bulb Replacement and/or High Mount Stop Lamp Bulb Replacement.
