Grille Guard/Brush Guard Replacement. HUMMER H3 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 Body Hardware and Trim 🢒 Exterior Trim 🢒 Grille Guard/Brush Guard Replacement

Grille Guard/Brush Guard Replacement Base

Callout	Component Name
Preliminary Procedure Remove the front tow hooks. Refer to Front Tow Hook Replacement.
1	Bar Bolts, Front Bumper Impact (Qty: 4) Caution: Refer to Fastener Caution in the Preface section. Tip Support the radiator grille guard prior to removing the bolts. Tighten 50 N·m (37 lb ft)
2	Guard Assembly, Radiator Grille

Callout

Component Name

Remove the front tow hooks. Refer to Front Tow Hook Replacement.

Bar Bolts, Front Bumper Impact (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tip
Support the radiator grille guard prior to removing the bolts.

Tighten
50 N·m (37 lb ft)

Guard Assembly, Radiator Grille

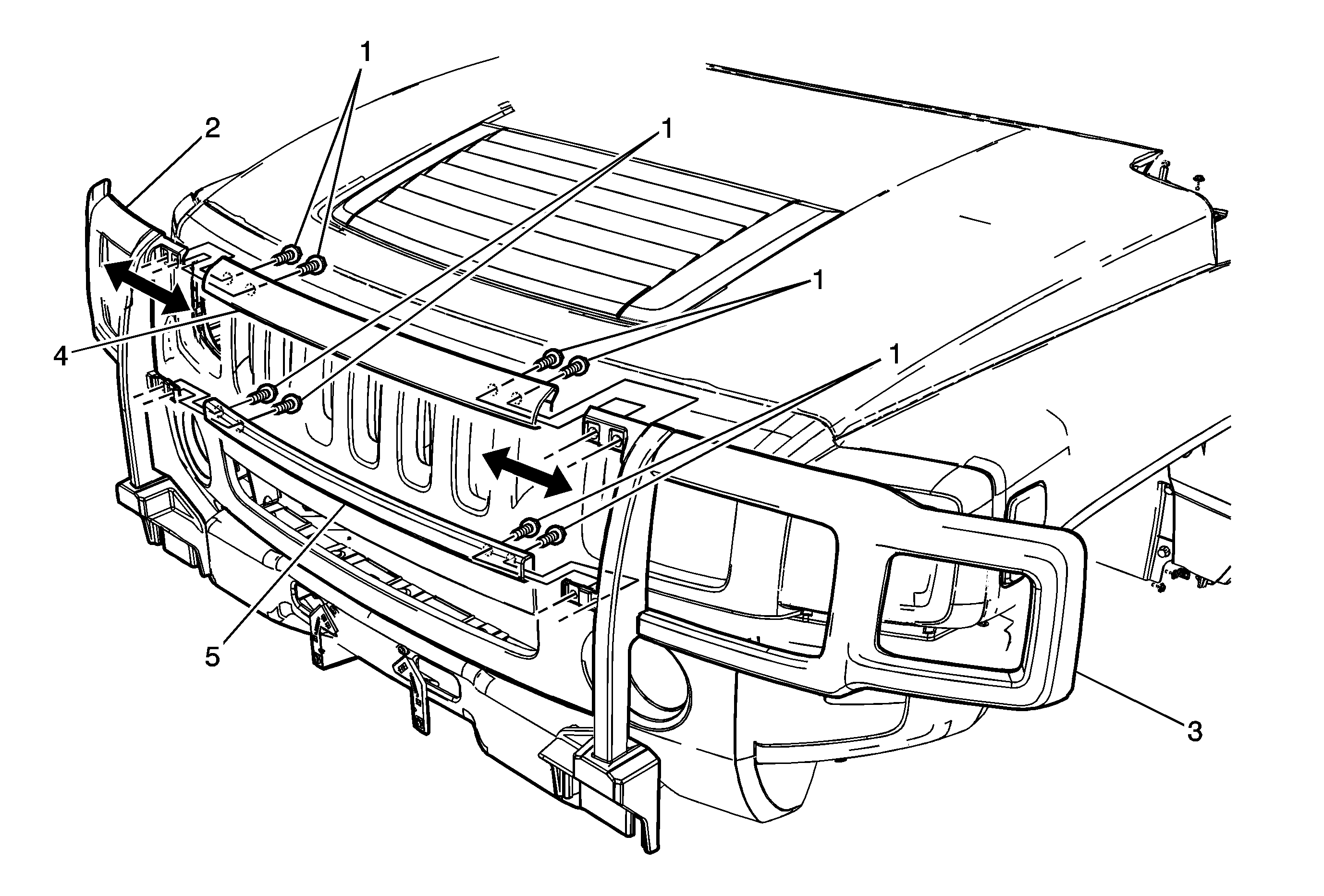

Callout	Component Name
Preliminary Procedure Remove the front tow hooks. Refer to Front Tow Hook Replacement. Tip Support the radiator grille/brush guard prior to removing the impact bar bolts.
1	Radiator Grille Guard Assembly Bolts (Qty: 8) Caution: Refer to Fastener Caution in the Preface section. Tighten Tighten the bolts to 10 N·m (89 lb in)
2	Radiator Grille Outer (RH) Guard Tip Slide the outer grille into the upper and lower grille guard prior to installing the bolts.
3	Radiator Grille Outer (LH) Guard Tip Slide the outer grille into the upper and lower grille guard prior to installing the bolts.
4	Radiator Grille Upper Guard
5	Radiator Grille Lower Guard
