Front of Vehicle/Engine Compartment Component Views. HUMMER H3 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Front of Vehicle/Engine Compartment Component Views

Figure 1:

Front of the Vehicle Components


(1)	Marker Lamp - Left Front
(2)	Park/Turn Signal Lamp - Left Front
(3)	Headlamp - Left
(4)	Fog Lamp - Left Front
(5)	Fog Lamp - Right Front
(6)	Headlamp - Right
(7)	Park/Turn Signal Lamp - Right Front
(8)	Marker Lamp - Right Front

Figure 2:

Front of the Engine Compartment Components


(1)	J185
(2)	J109
(3)	J112
(4)	J120
(5)	Horn
(6)	X117
(7)	J134
(8)	X115
(9)	X116

Figure 3:

Engine Compartment Components - 1 of 3


(1)	Engine Control Module (ECM) X1
(2)	Engine Control Module (ECM)
(3)	Heated Oxygen Sensor (HO2S) 2 (LLR)
(4)	Fuse Block - Underhood
(5)	Engine Harness
(6)	Heated Oxygen Sensor (HO2S) 1 (LLR)
(7)	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
(8)	Engine Control Module (ECM) X3
(9)	Engine Control Module (ECM) X2

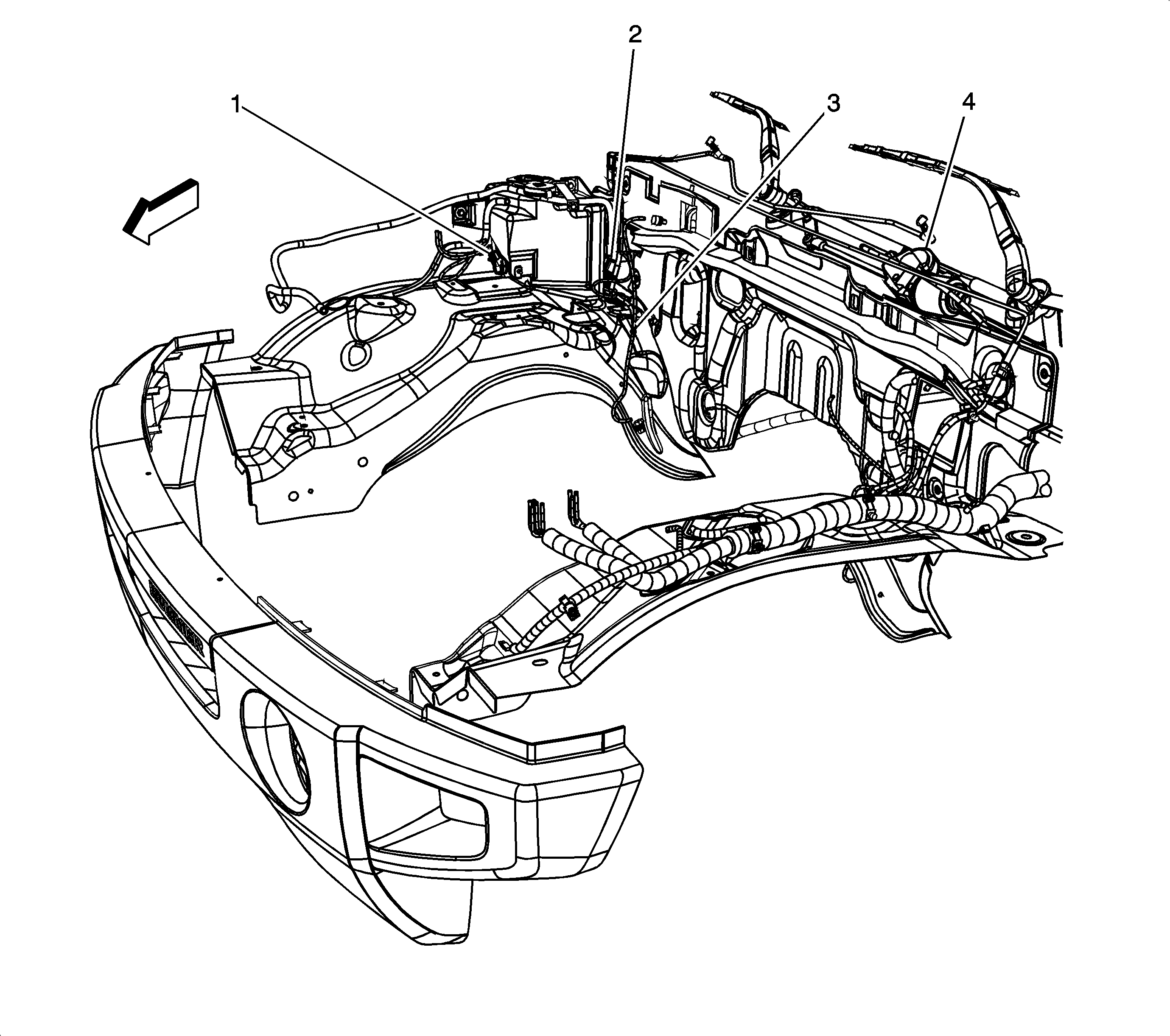

Figure 4:

Engine Compartment Components - 2 of 3


(1)	Rear Window Washer Fluid Pump
(2)	Windshield Washer Fluid Pump
(3)	Body Harness
(4)	Windshield Wiper Motor

Figure 5:

Engine Compartment Components - 3 of 3


(1)	Body Harness
(2)	A/C Refrigerant Pressure Sensor
(3)	A/C Compressor Clutch
(4)	Ambient Air Temperature Sensor
(5)	Inflatable Restraint Front End Sensor - Right
(6)	Lower Radiator Support
(7)	Inflatable Restraint Front End Sensor - Left

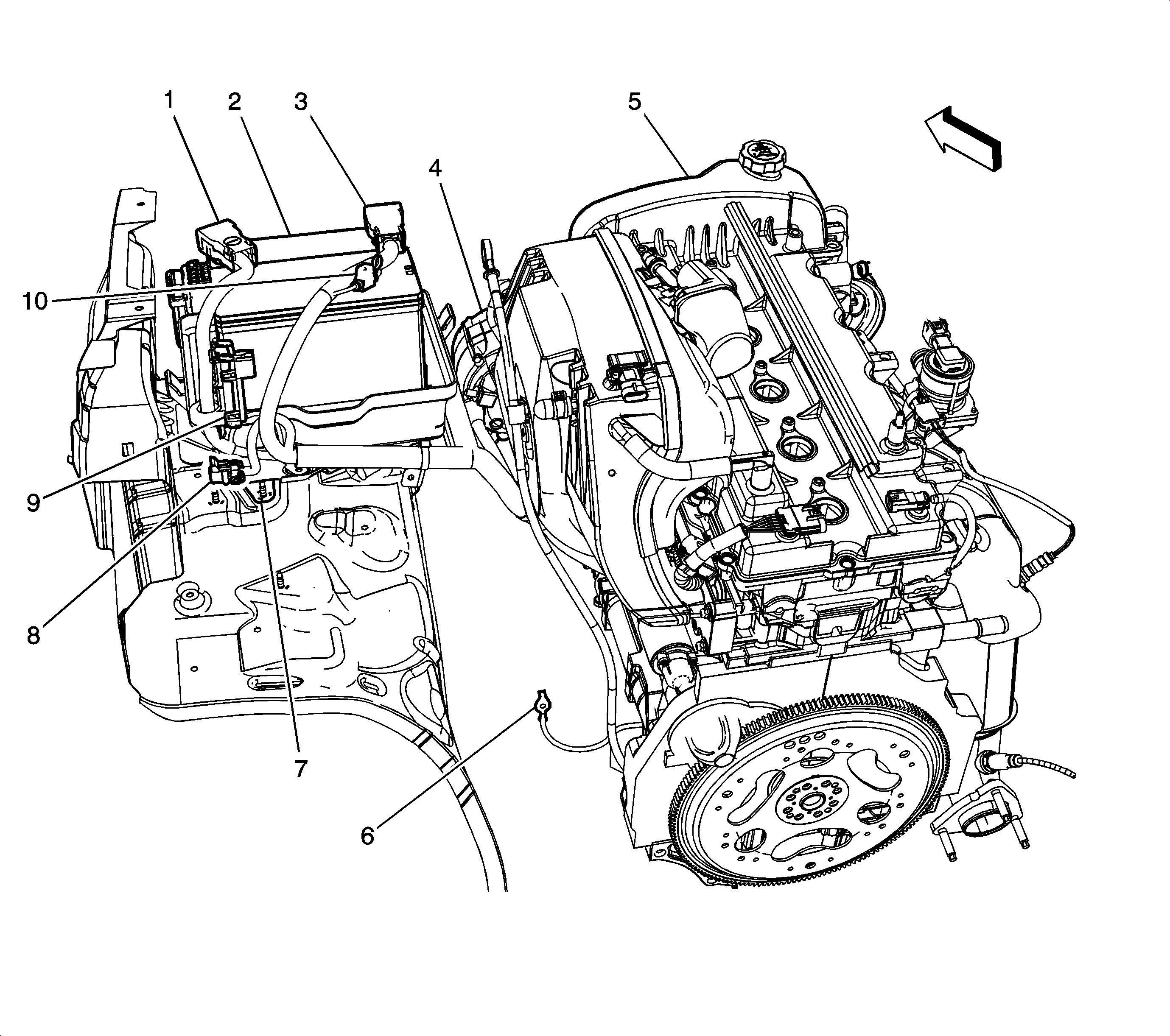

Figure 6:

Left Side of the Engine Compartment Components


(1)	Negative Battery Cable
(2)	Battery
(3)	Positive Battery Cable
(4)	Generator
(5)	Engine (LLR)
(6)	G120
(7)	G100
(8)	X130 (UE1)
(9)	Generator Battery Control Module
(10)	Onstar Fuse (UE1)

Figure 7:

Rear of the Engine Compartment Components


(1)	Inflatable Restraint Vehicle Rollover Sensor (ASF)
(2)	Yaw and Lateral Accelerometer Sensor
(3)	Brake Fluid Reservoir
(4)	Electronic Brake Control Module (EBCM) X2
(5)	Electronic Brake Control Module (EBCM)
(6)	Electronic Brake Control Module (EBCM) X1
(7)	Brake Fluid Level Switch
