Rear Seat Cup Holder Replacement. HUMMER H3 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 Seats 🢒 Seat Hardware, Trim, and Upholstery 🢒 Rear Seat Cup Holder Replacement

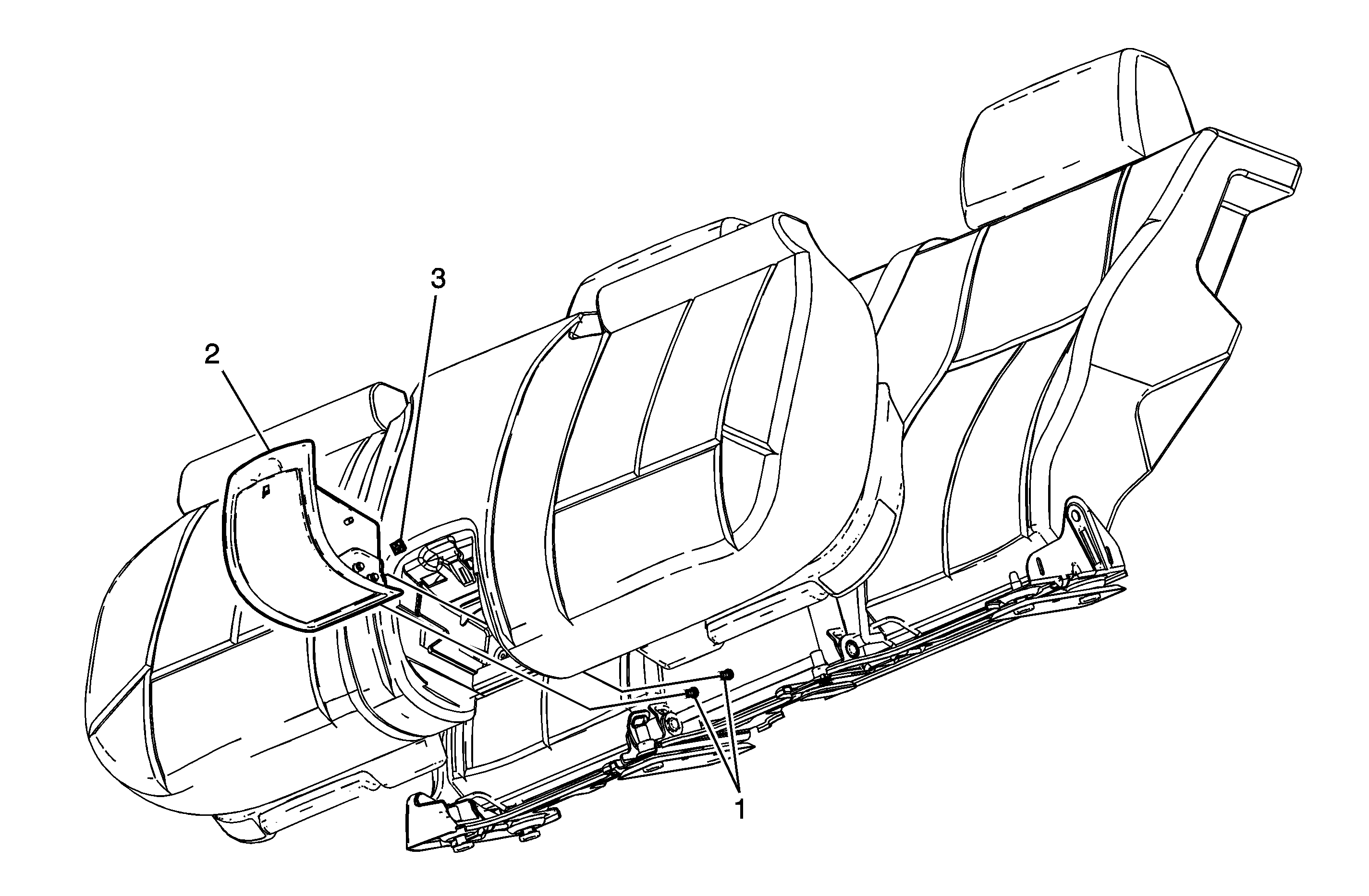

Rear Seat Cup Holder Replacement without H3T

Callout	Component Name
1	Rear Seat Cup Holder Screw (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Tip Fold the rear seat cushion forward to gain access to the screws. Tighten 2 N·m (18 lb in)
2	Rear Seat Cup Holder
3	Rear Seat Cup Holder Retaining Clip

Callout

Component Name

Rear Seat Cup Holder Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tip
Fold the rear seat cushion forward to gain access to the screws.

Tighten
2 N·m (18 lb in)

Rear Seat Cup Holder

Rear Seat Cup Holder Retaining Clip

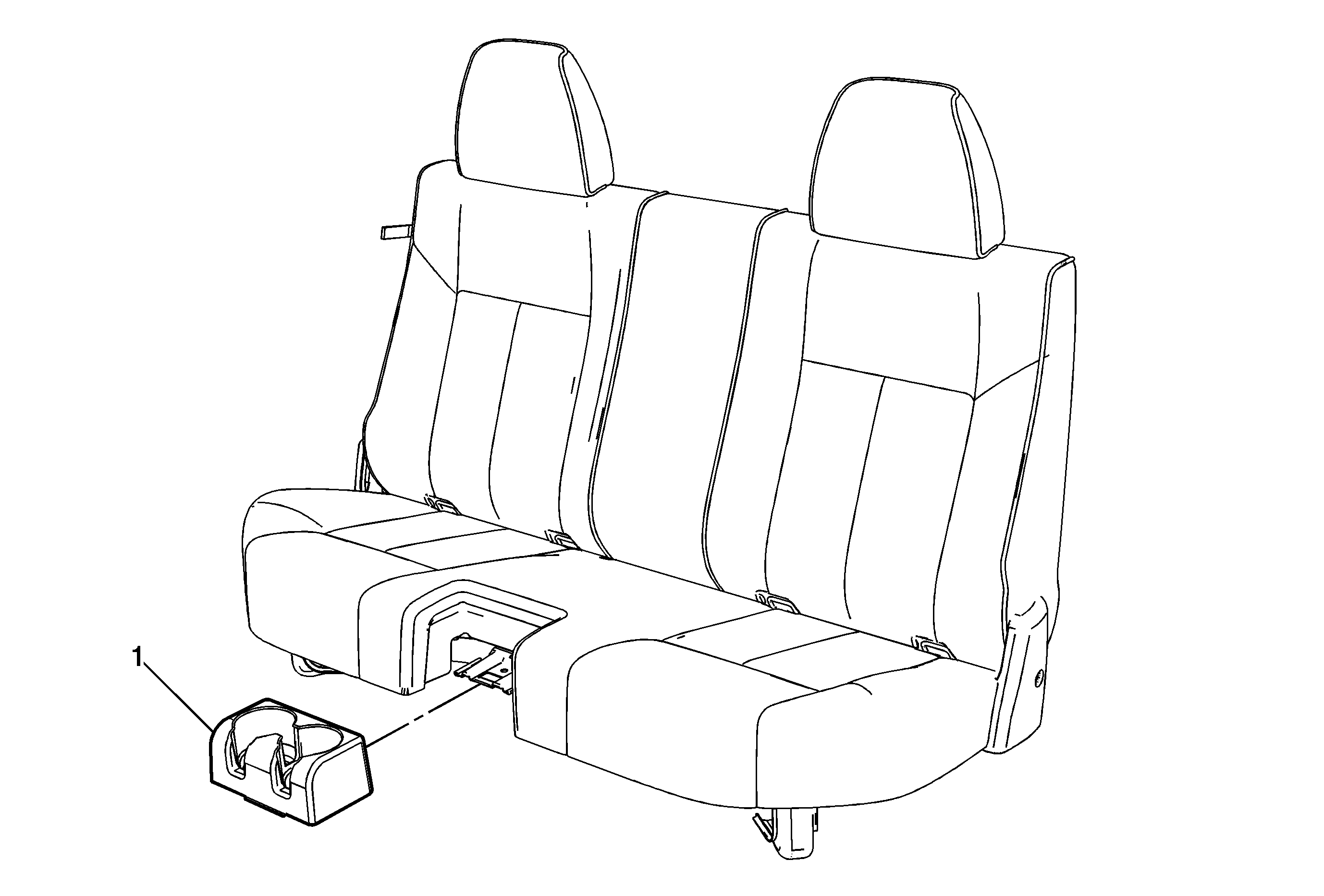

Callout	Component Name
1	Rear Seat Cup Holder Tip Release the tab underneath the cup holder to remove.
