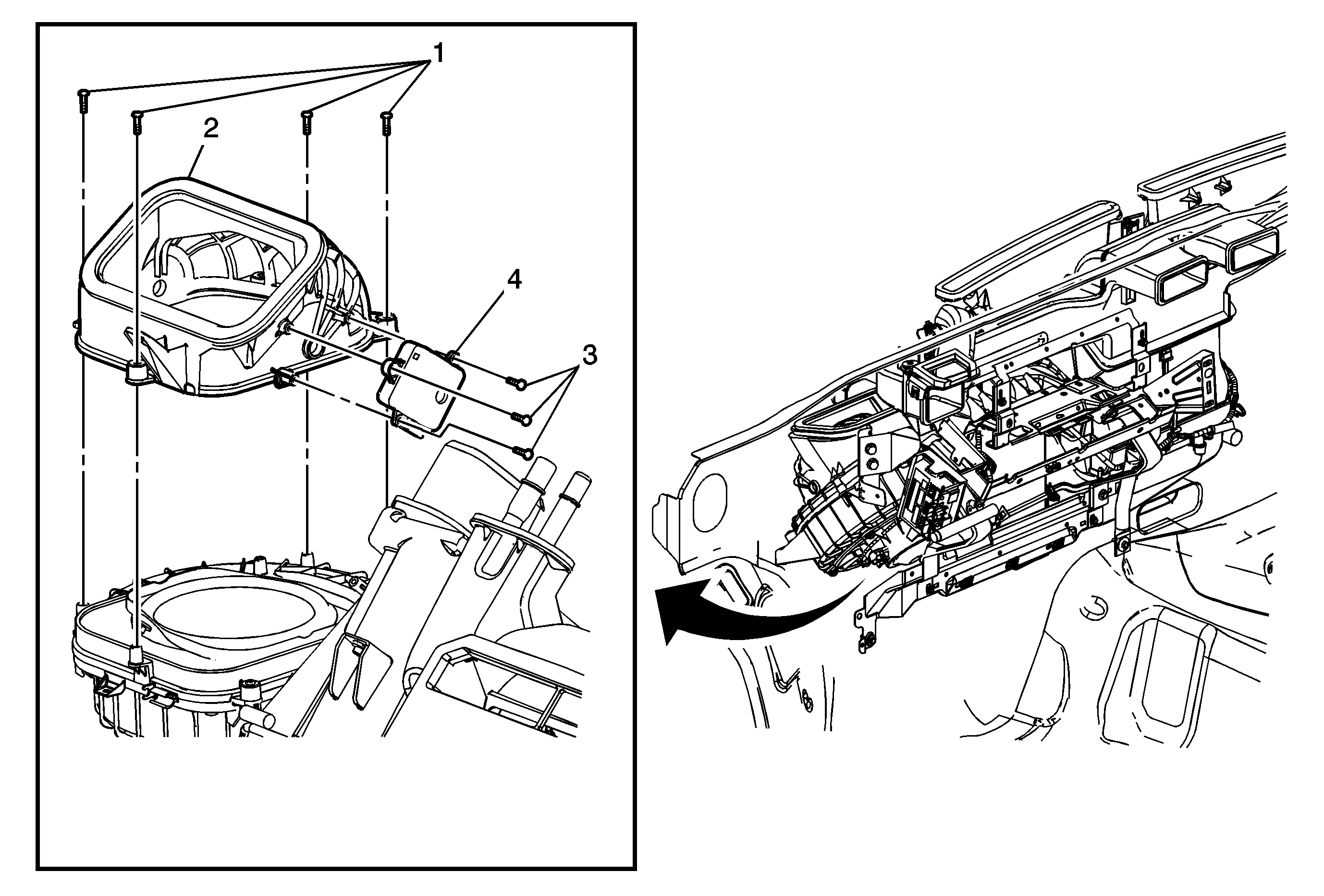

Air Inlet Assembly Replacement Right Hand Drive


Object Number: 1890517 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement.
  2. Disconnect the recirculation actuator electrical connector.

1

Recirculation Housing Screw (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.5 N·m (14 lb in)

2

Recirculation Housing

3

Recirculation Actuator Screw (Qty: 3)

Tighten
1.5 N·m (13 lb in)

4

Recirculation Actuator

Air Inlet Assembly Replacement Left Hand Drive


Object Number: 1559936 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement.
  2. Disconnect the recirculation actuator electrical connector.

1

Recirculation Housing Screw (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.5 N·m (14 lb in)

2

Recirculation Housing

3

Recirculation Actuator Screw (Qty: 3)

Tighten
1.5 N·m (13 lb in)

4

Recirculation Actuator
