Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 HVAC 🢒 Heating, Ventilation, and Air Conditioning 🢒 Air Distributor Duct Replacement

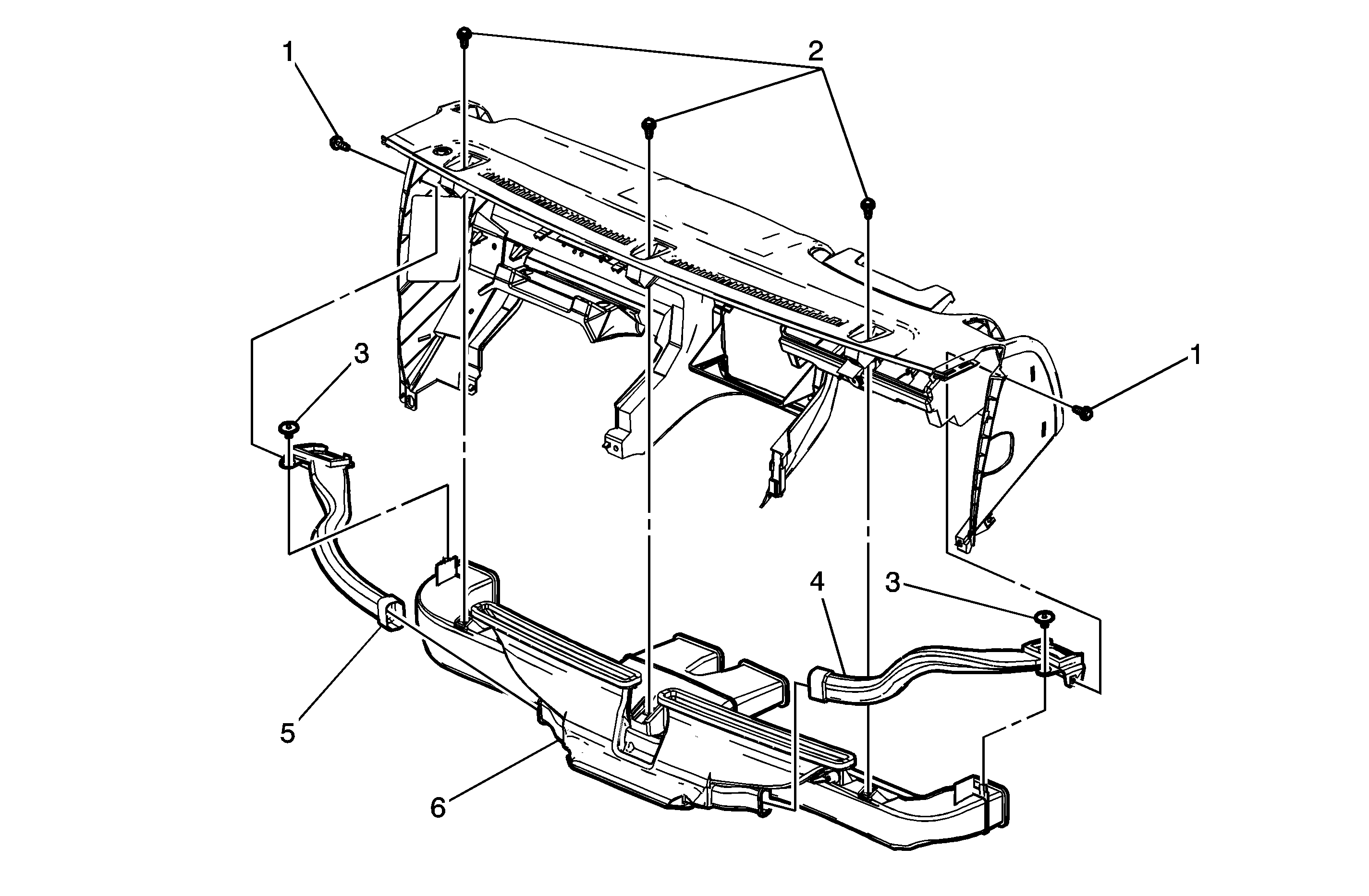

Air Distributor Duct Replacement Left Hand Drive


Object Number: 1570396 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement.

1

Duct Assembly Bolt - Air Distributor Center

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.6 N·m (14 lb in)

2

Duct Assembly Bolt - Air Distributor Center

Tighten
1.6 N·m (14 lb in)

3

Air Defogger Duct Bolt - Side Window

Tighten
1.6 N·m (14 lb in)

4

Air Defogger Side Window Duct - Left

5

Air Defogger Side Window Duct - Right

6

Duct Assembly - Air Distributor Center

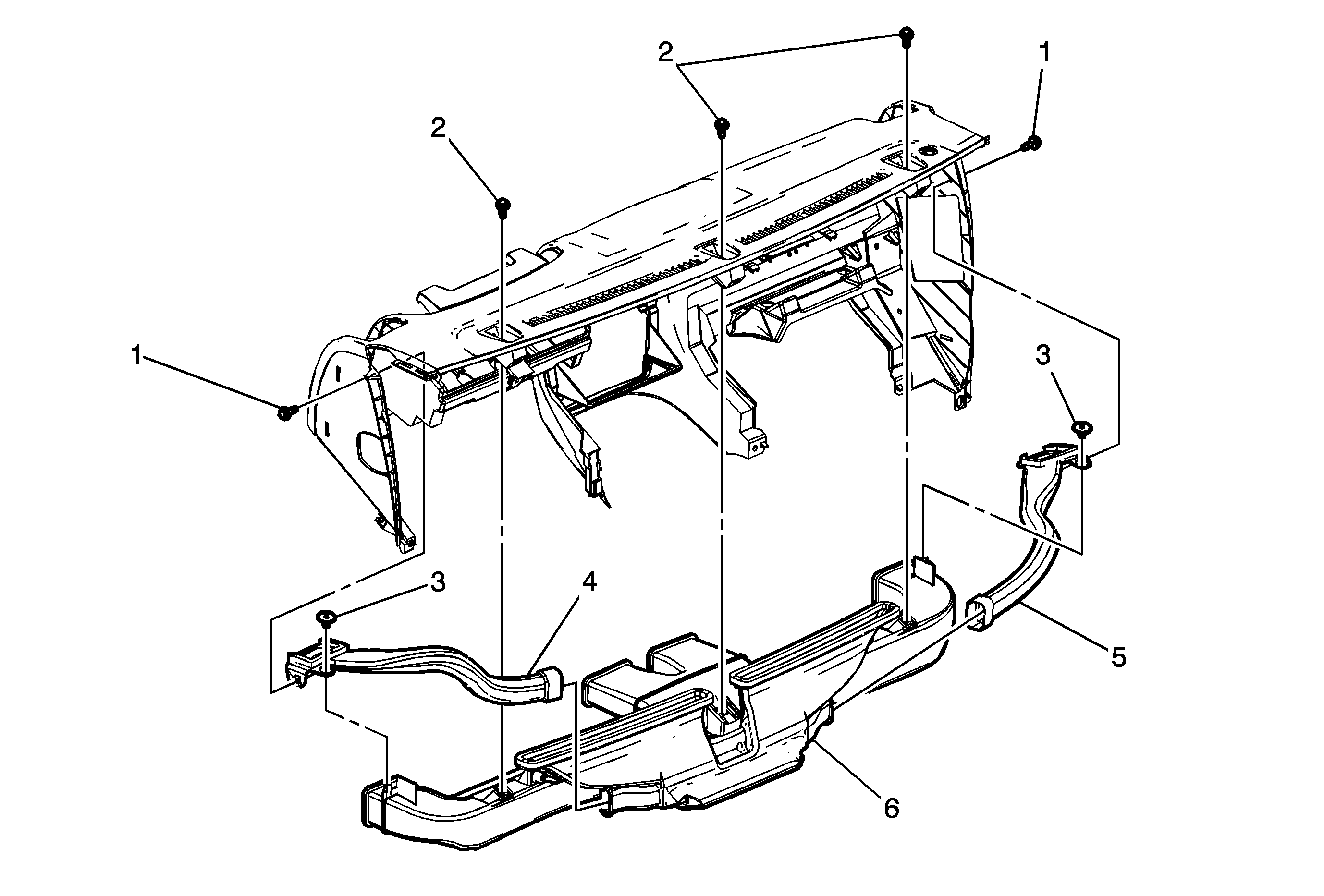

Air Distributor Duct Replacement Right Hand Drive


Object Number: 1890563 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement.

1

Air Distributor Center Duct Assembly Bolt

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.6 N·m (14 lb in)

2

Air Distributor Center Duct Assembly Bolt

Tighten
1.6 N·m (14 lb in)

3

Side Window Air Defogger Duct Bolt

Tighten
1.6 N·m (14 lb in)

4

Right Air Defogger Side Window Duct

5

Left Air Defogger Side Window Duct

6

Air Distributor Center Duct Assembly
