Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 HVAC 🢒 Heating, Ventilation, and Air Conditioning 🢒 Blower Motor Replacement

Blower Motor Replacement Left Hand Drive


Object Number: 1559937 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement.
  2. Remove I/P compartment door. Refer to Instrument Panel Compartment Door Replacement.
  3. Remove I/P outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side.
  4. Remove right side courtesy lamp.
  5. Remove relay.

    6. Tip
    Reposition right corner of I/P to gain clearance to blower motor for removal.

1

Blower Motor Resistor Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.5 N·m (13 lb in)

2

Blower Motor Resistor

3

Blower Motor Screw (Qty: 3)

Tighten
1.5 N·m (13 lb in)

4

Blower Motor Assembly

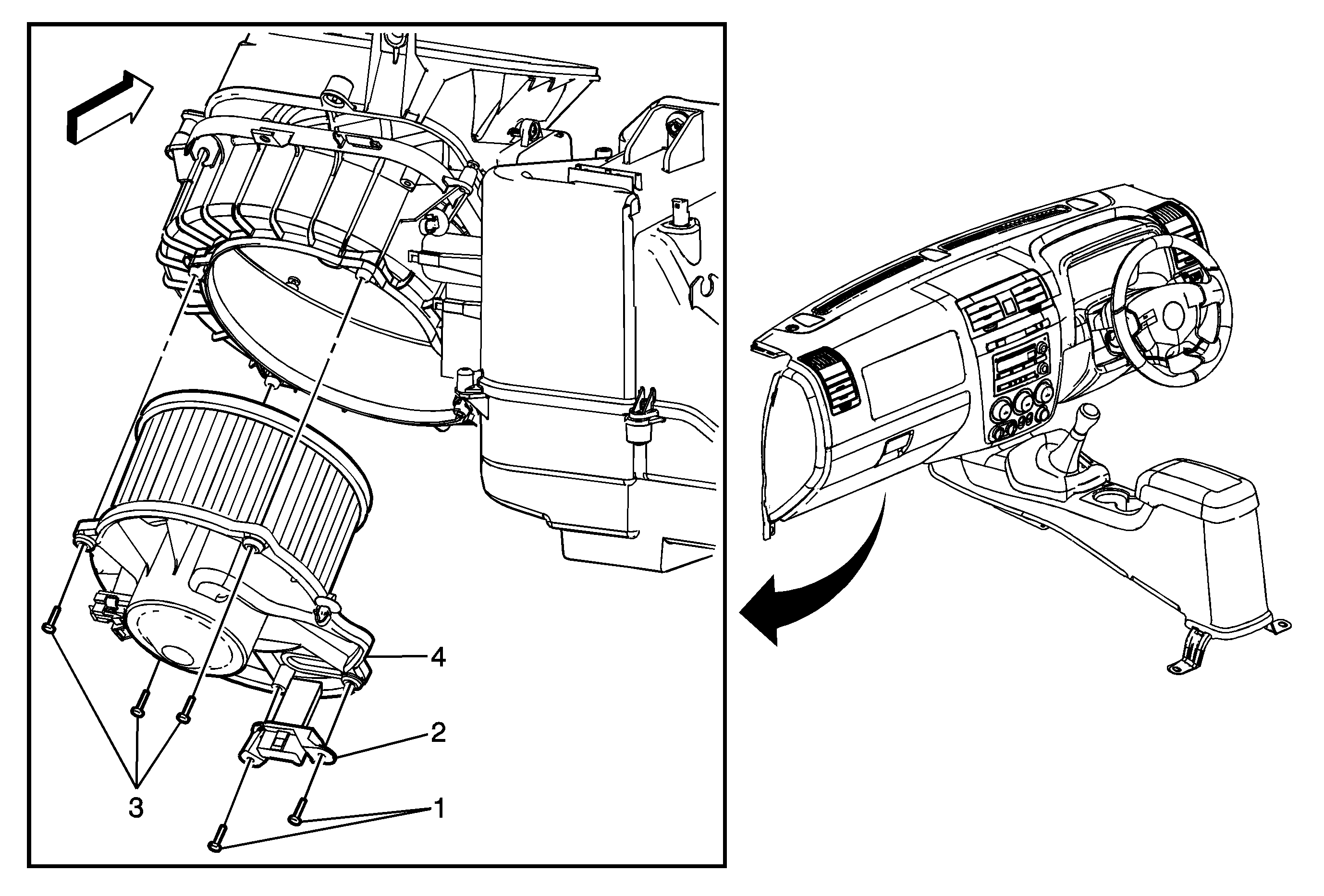

Blower Motor Replacement Right Hand Drive


Object Number: 1890552 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement.
  2. Remove I/P compartment door. Refer to Instrument Panel Compartment Door Replacement.
  3. Remove I/P outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side.
  4. Remove left side courtesy lamp.
  5. Remove relay.

    6. Tip
    Reposition right corner of I/P to gain clearance to blower motor for removal.

1

Blower Motor Resistor Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.5 N·m (13 lb in)

2

Blower Motor Resistor

3

Blower Motor Screw (Qty: 3)

Tighten
1.5 N·m (13 lb in)

4

Blower Motor Assembly
