Side Window Defogger Outlet Duct Replacement - Left Side Left Side Drive

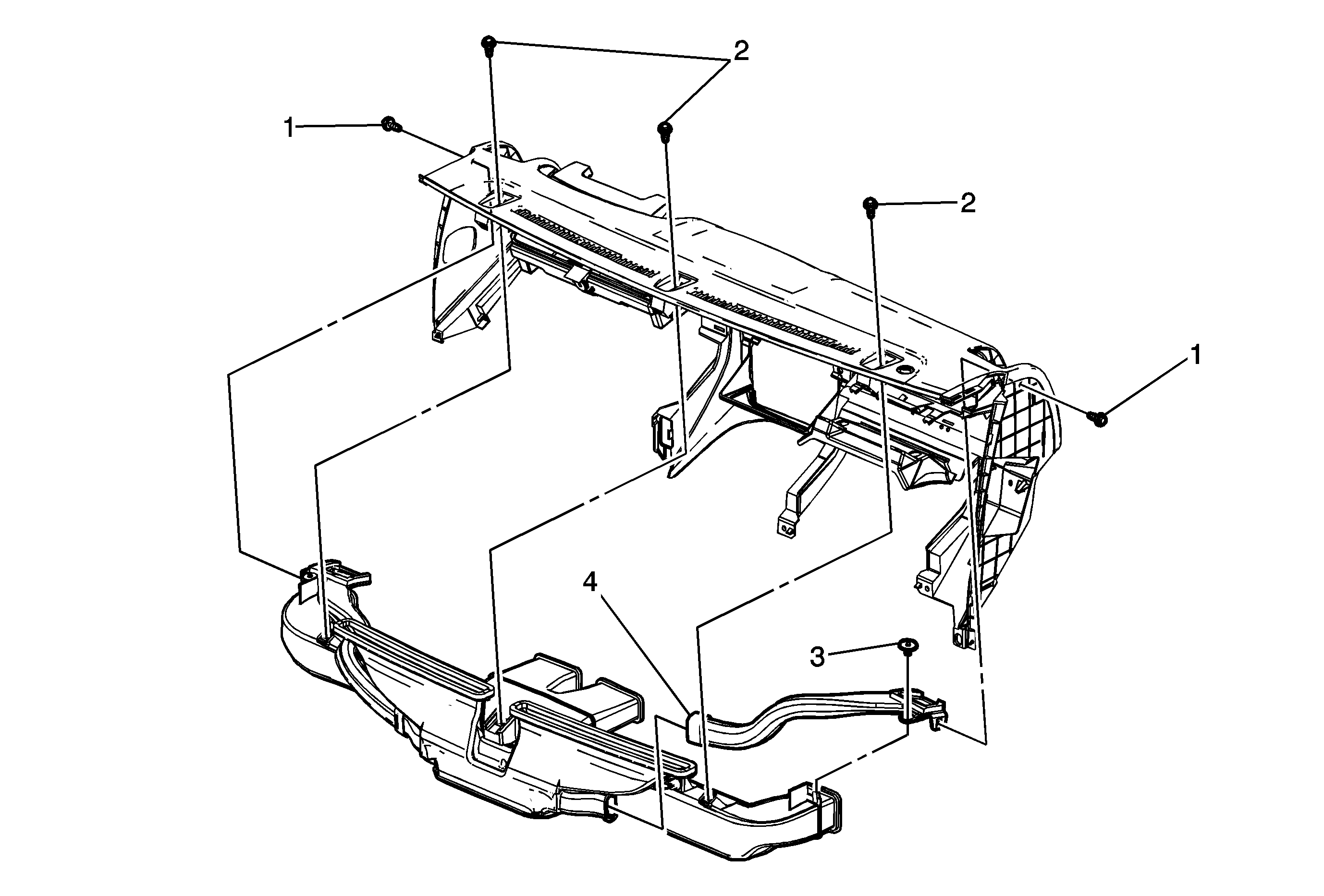

Object Number: 1890649 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement

1

Air Distributor Center Duct Assembly Bolt

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.6 N·m (14 lb in)

2

Air Distributor Center Duct Assembly Bolt

Tighten
1.6 N·m (14 lb in)

3

Left Side Window Air Defogger Duct Bolt

Tighten
1.6 N·m (14 lb in)

4

Left Side Window Air Defogger Duct

Side Window Defogger Outlet Duct Replacement - Left Side Right Hand Side

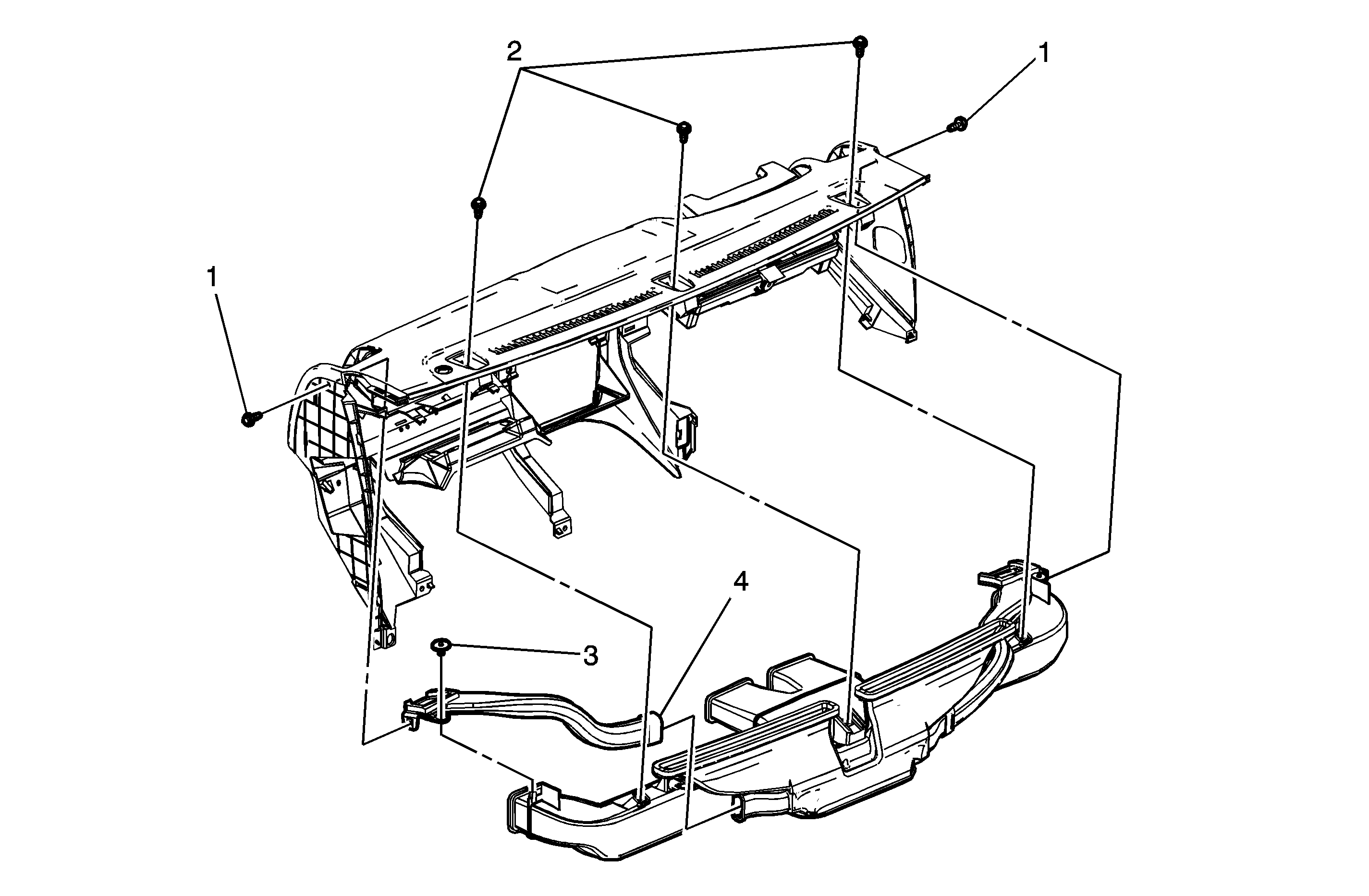

Object Number: 1570398 Size: MF

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement.

1

Duct Assembly Bolt - Air Distributor Center

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.6 N·m (14 lb in)

2

Duct Assembly Bolt - Air Distributor Center

Tighten
1.6 N·m (14 lb in)

3

Air Defogger Duct Bolt - Side Window - Right

Tighten
1.6 N·m (14 lb in)

4

Air Defogger Side Window Duct - Right
