Blower Motor Resistor Assembly Replacement. HUMMER H3 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 HVAC 🢒 Heating, Ventilation, and Air Conditioning 🢒 Blower Motor Resistor Assembly Replacement

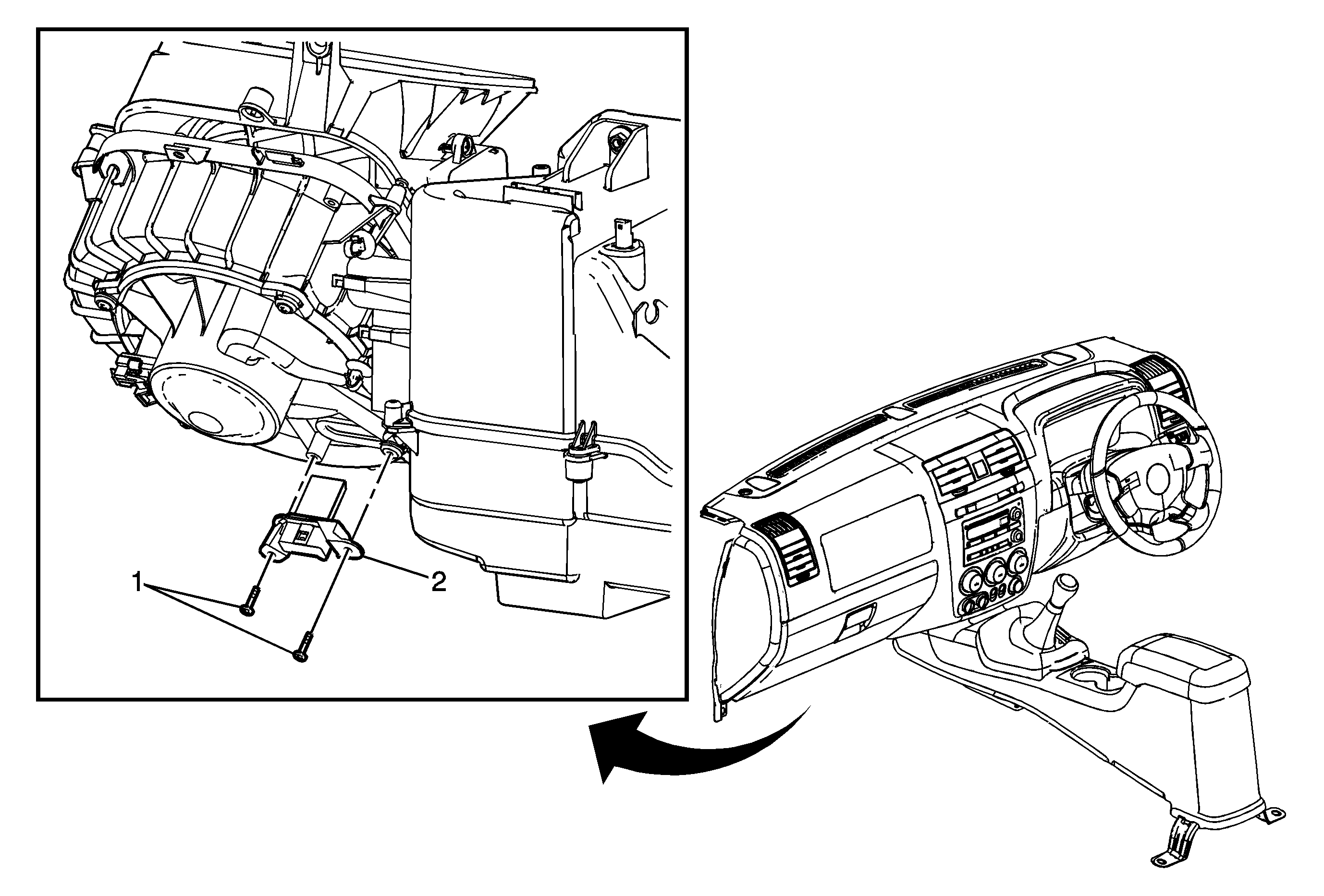

Blower Motor Resistor Assembly Replacement Right Hand Drive

Callout	Component Name
Preliminary Procedure Disconnect the blower motor resister electrical connector.
1	Blower Motor Resistor Screw (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Tighten 1.5 N·m (13 lb in)
2	Blower Motor Resistor

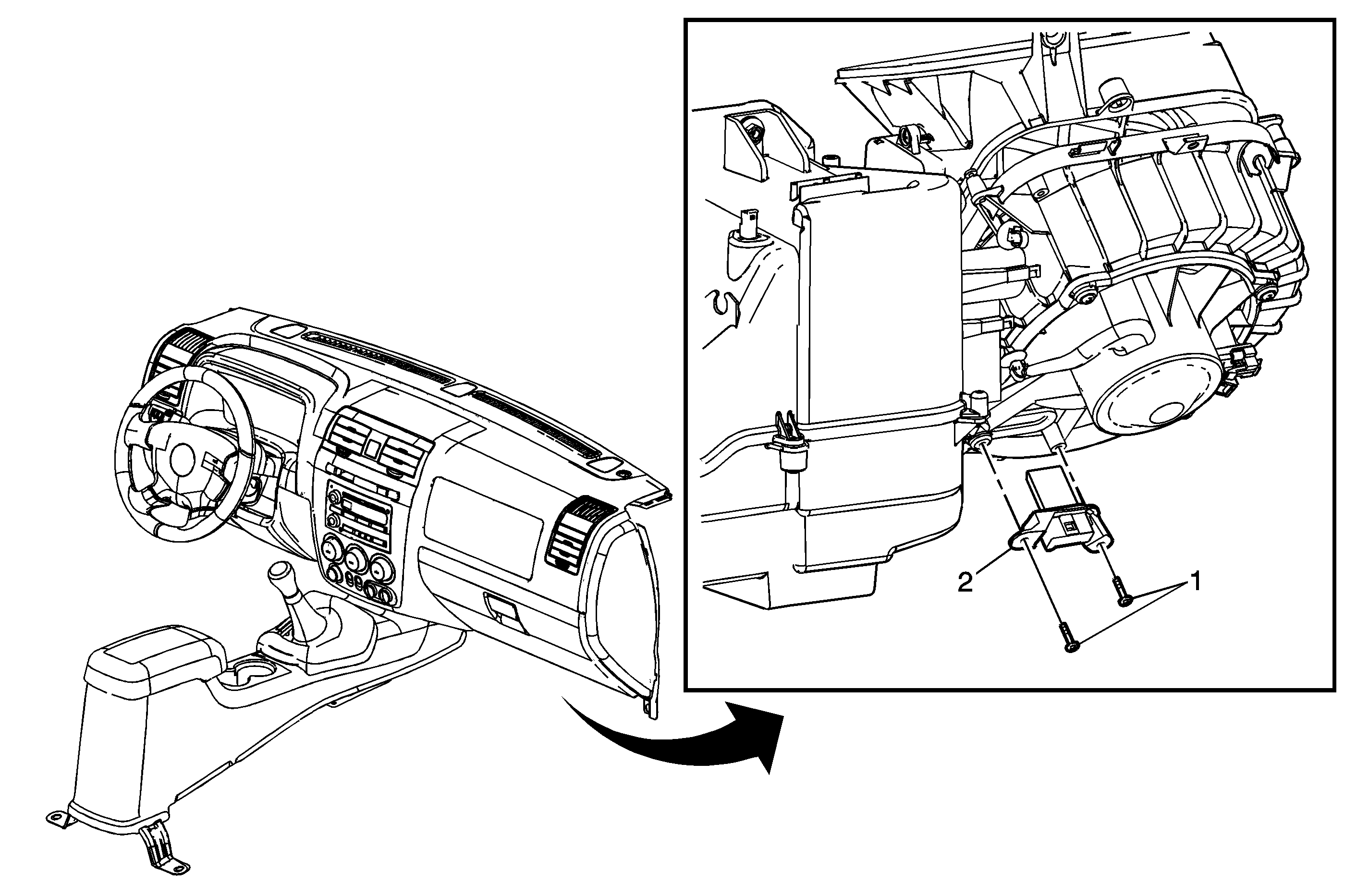

Callout

Component Name

Disconnect the blower motor resister electrical connector.

Blower Motor Resistor Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
1.5 N·m (13 lb in)

Blower Motor Resistor
