Instrument Panel Center Air Outlet Replacement. HUMMER H3 2009

For 1990-2009 cars only

Makes 🢒 HUMMER 🢒 2009 🢒 H3 🢒 HVAC 🢒 Heating, Ventilation, and Air Conditioning 🢒 Instrument Panel Center Air Outlet Replacement

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the center instrument panel trim plate. Refer to Instrument Panel Center Trim Panel Replacement .

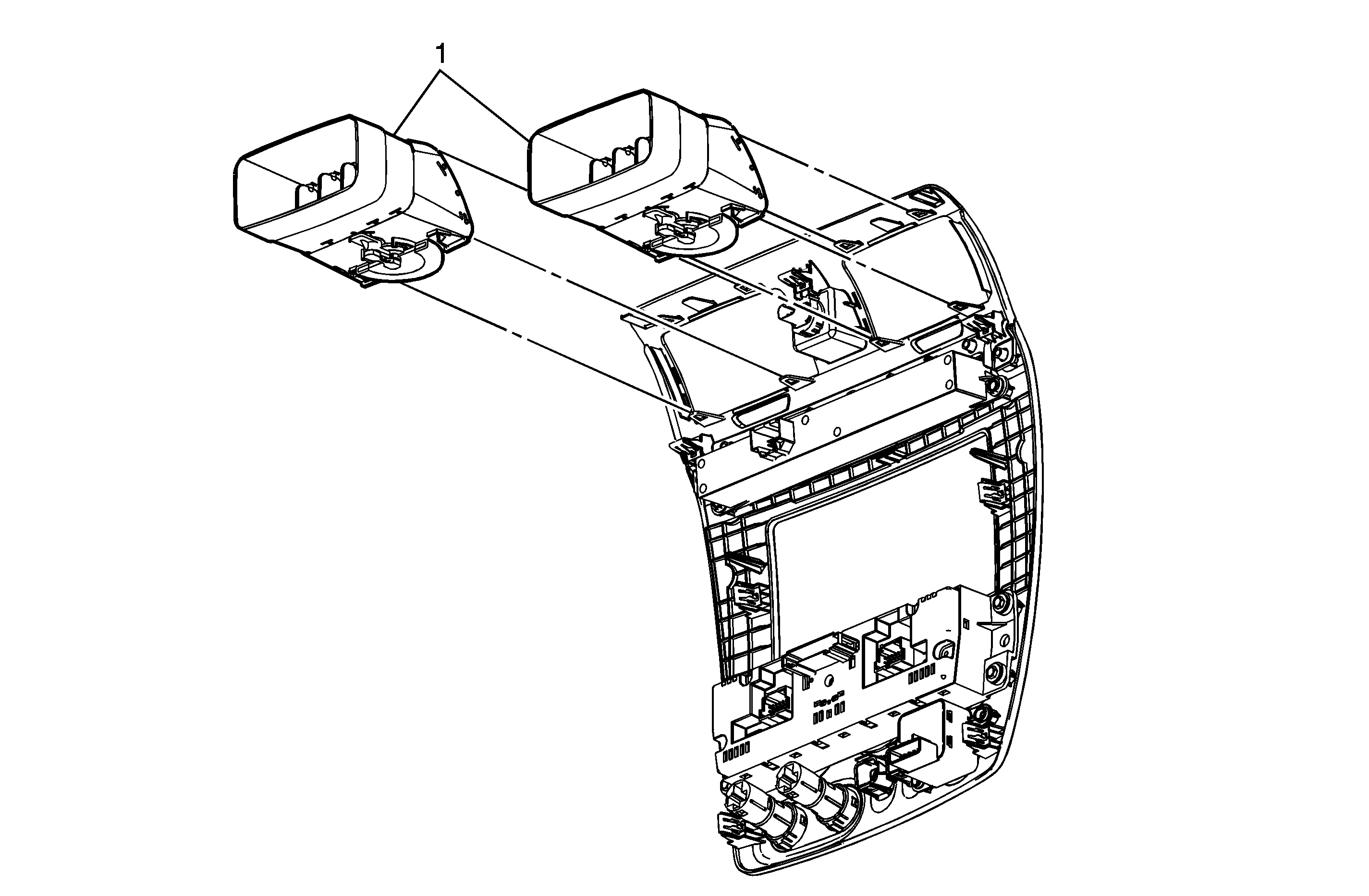

1	Air Center Grille Outlet Tip Depress the tab and pull the air outlet grille from the center instrument panel trim plate.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Remove the center instrument panel trim plate. Refer to Instrument Panel Center Trim Panel Replacement .

Air Center Grille Outlet

Tip
Depress the tab and pull the air outlet grille from the center instrument panel trim plate.
