Front View Camera Image Display Module Replacement H3T

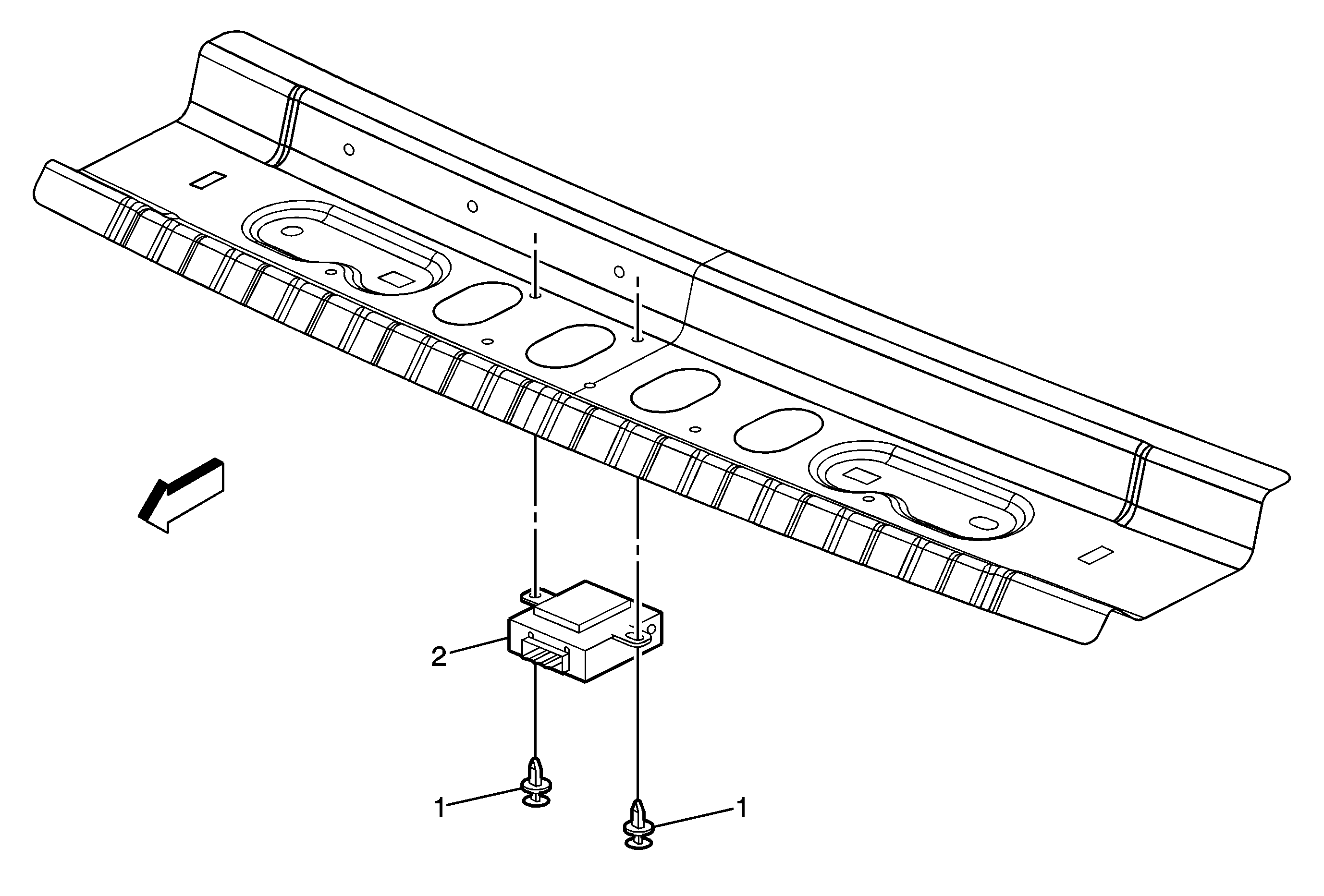

Object Number: 2178116 Size: MF

Callout

Component Name

Preliminary Procedures

Remove the windshield frame header front panel. Refer to Windshield Frame Header Front Panel Replacement.

1

Rearview Camera Image Display Module Bolt (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
9 N·m (80 lb in)

2

Rearview Camera Image Display Module Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Reprogram the module if replacing the unit. Refer to Control Module References.
