Preliminary Procedure

1. Remove the rear seat back. Refer to Rear Seat Back Replacement.
2. Remove the rear body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side or Body Side Trim Panel Replacement - Right Side.

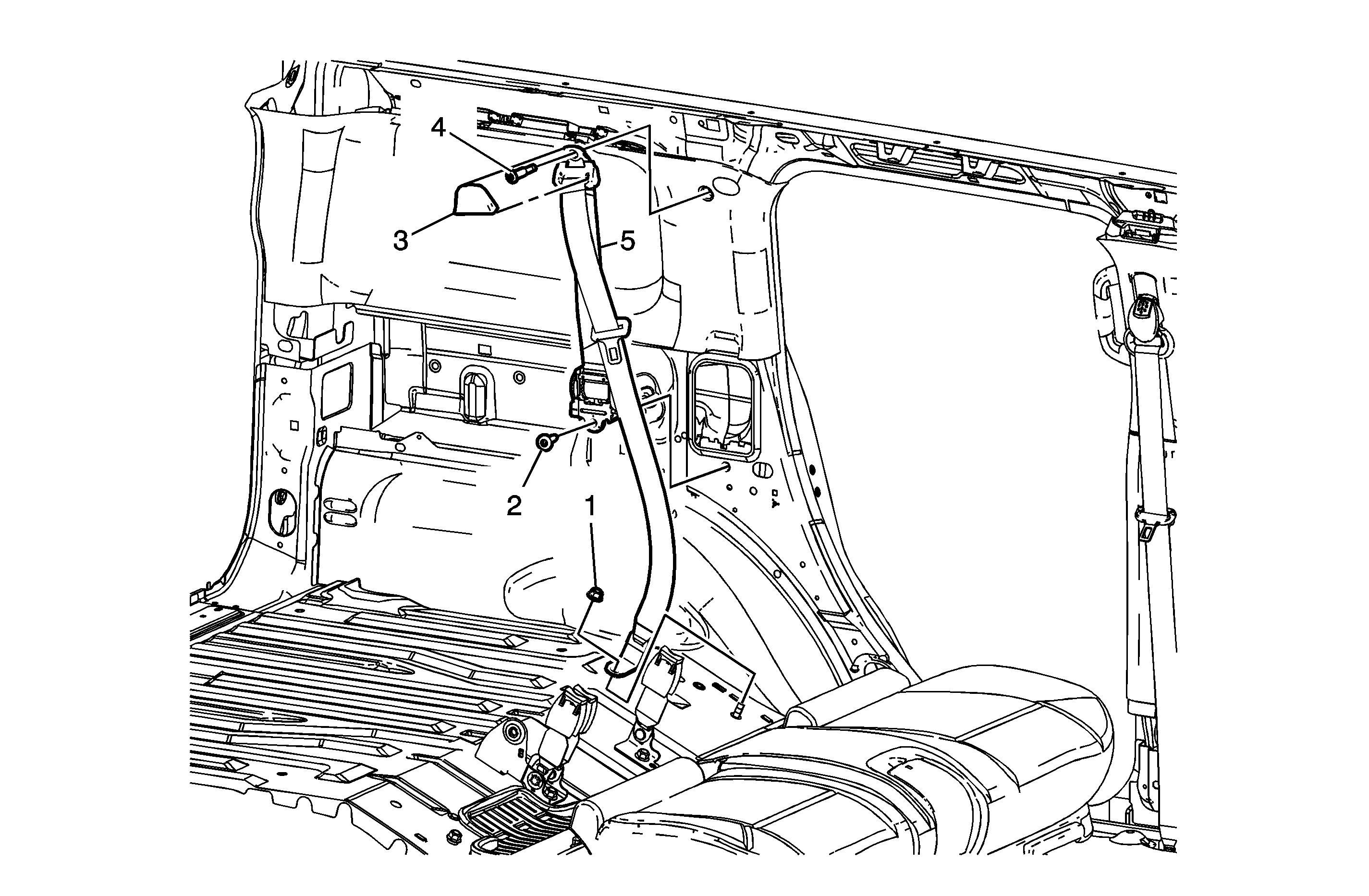

1

Rear Seat Shoulder Belt Nut

Caution: Refer to Fastener Caution in the Preface section.

Tighten
52 N·m (38 lb ft)

2

Rear Seat Shoulder Belt Retractor Bolt

Tighten
52 N·m (38 lb ft)

3

Rear Shoulder Belt Guide Opening Bezel

4

Rear Seat Shoulder Belt Guide Bolt

Tighten
52 N·m (38 lb ft)

5

Rear Seat Belt Retractor Belt Assembly
