Ground Distribution Schematics. Isuzu Ascender

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 2004 🢒 Ascender - 4WD 🢒 Brakes 🢒 Hydraulic Brakes 🢒 Ground Distribution Schematics

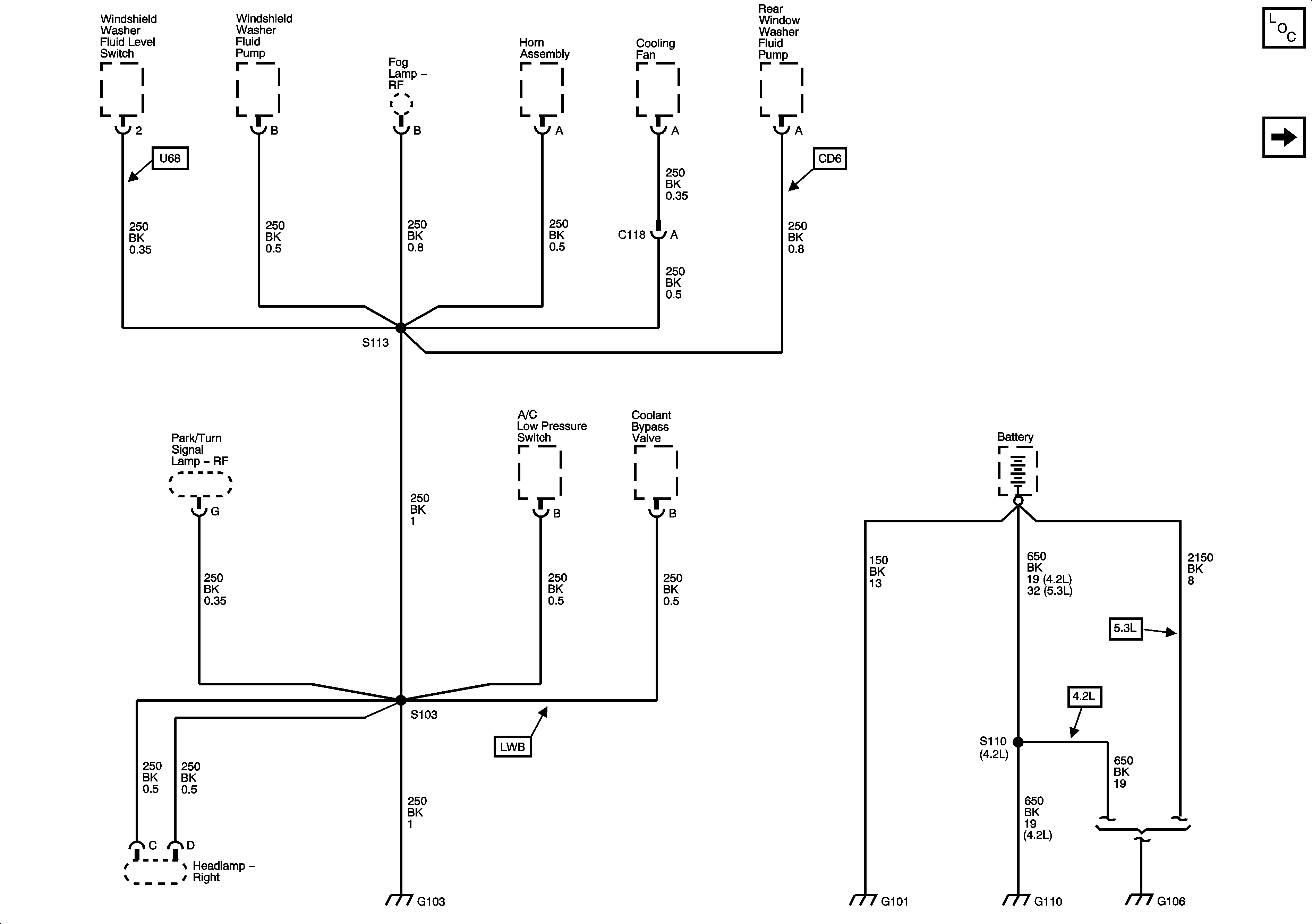

Figure 1:	G101, G103, G106, and G110 Master Electrical Component List G102

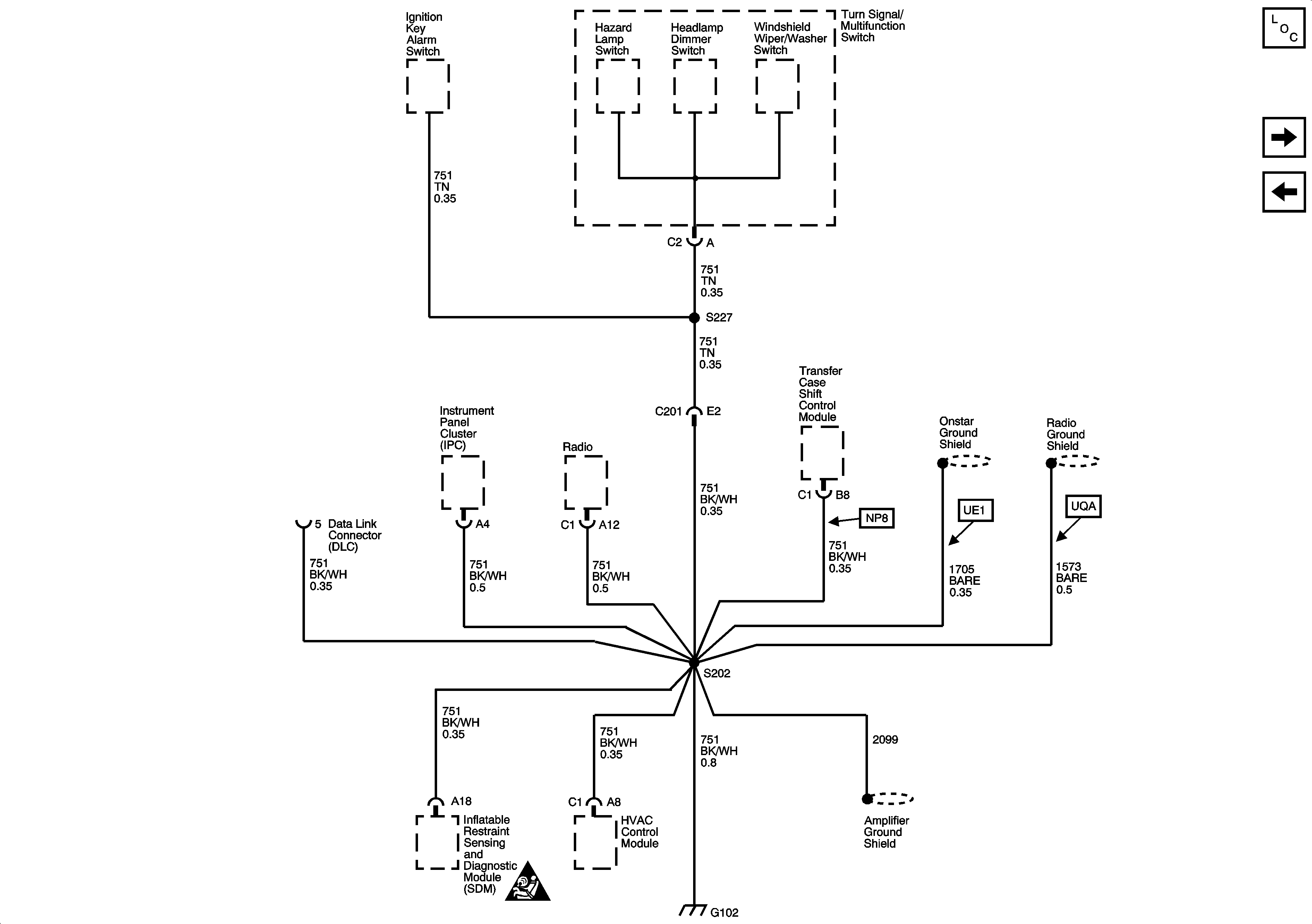

Figure 2:	G102 Master Electrical Component List G104, G105, and G107 G101, G103, G106, and G110 SIR Caution for Zoning

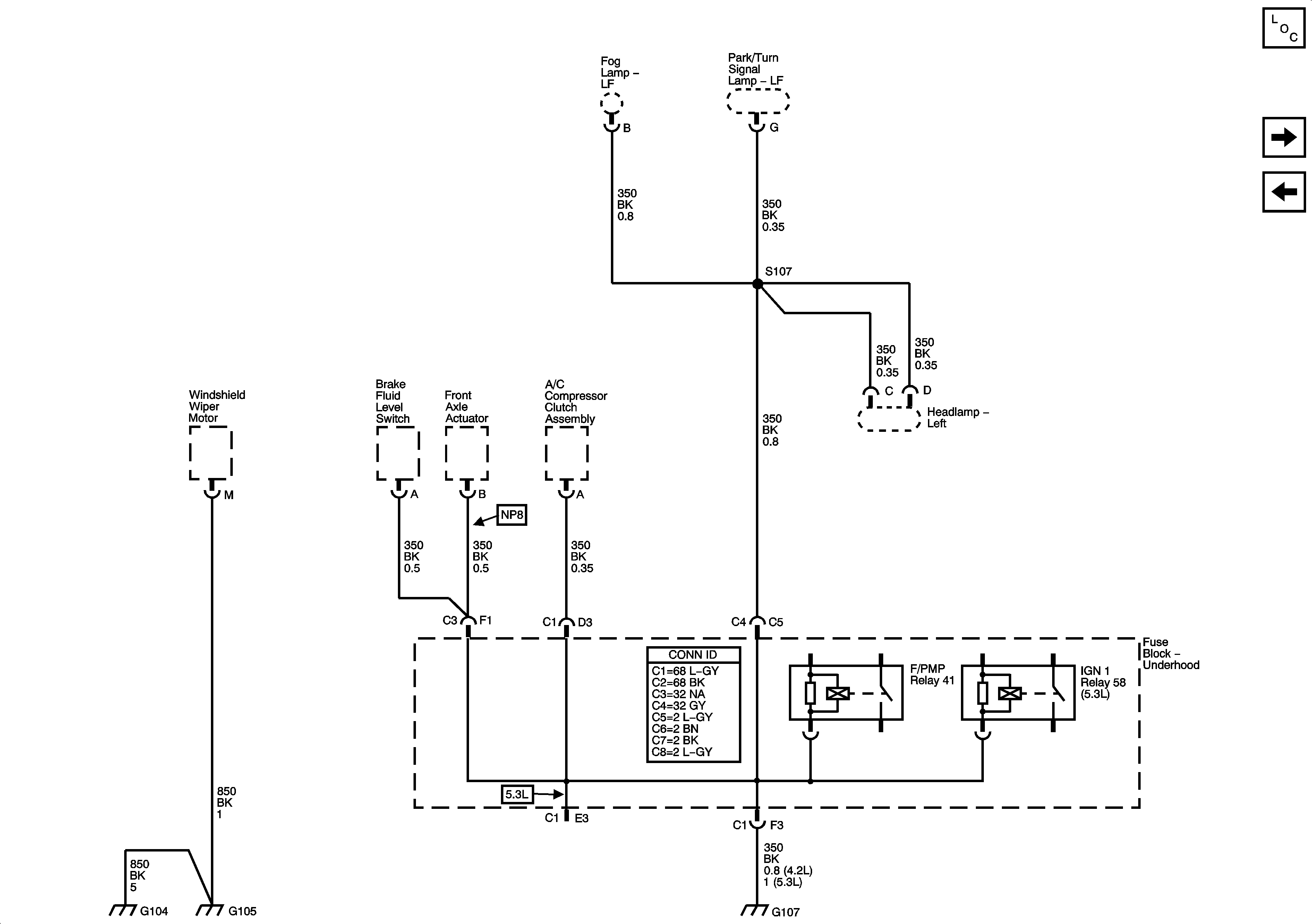

Figure 3:	G104, G105, and G107 Master Electrical Component List G108 G102
Figure 4:	G108 Master Electrical Component List G109 G104, G105, and G107

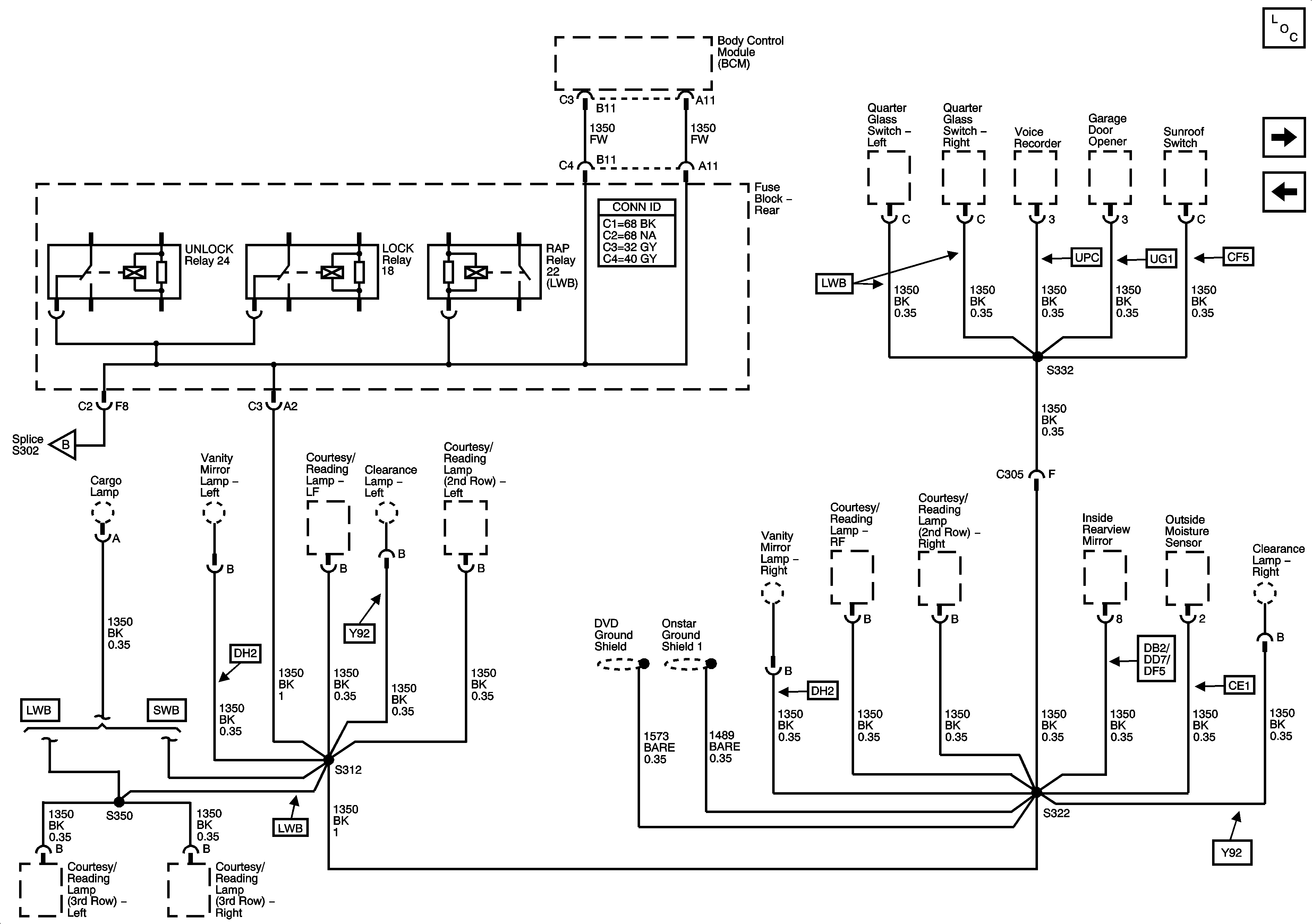

Figure 5:	G109 Master Electrical Component List G201 - 1 of 2 G108

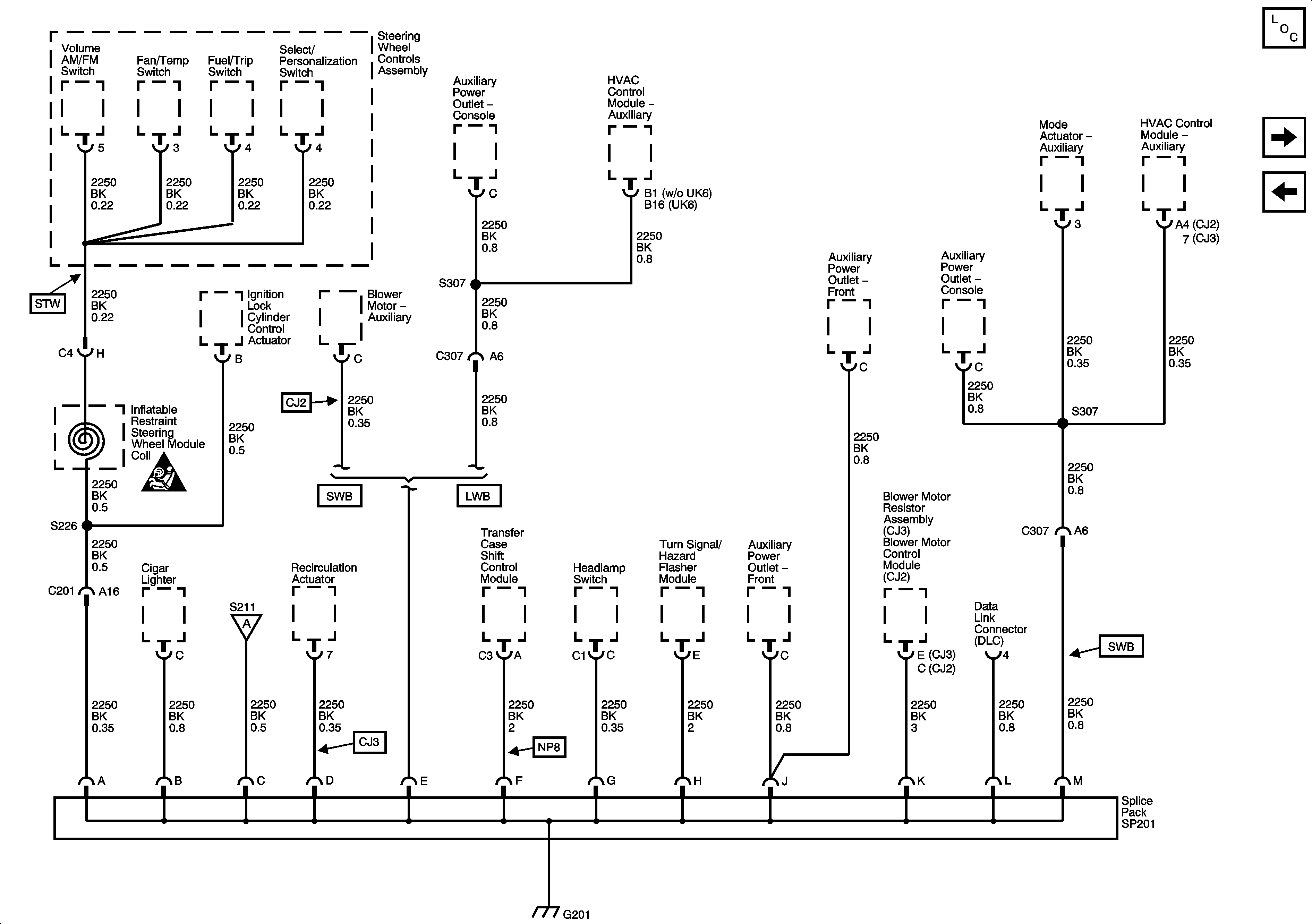

Figure 6:	G201 - 1 of 2 Master Electrical Component List G201 - 2 of 2, G305, and G306 G109 SIR Caution for Zoning G201 - 2 of 2, G305, and G306

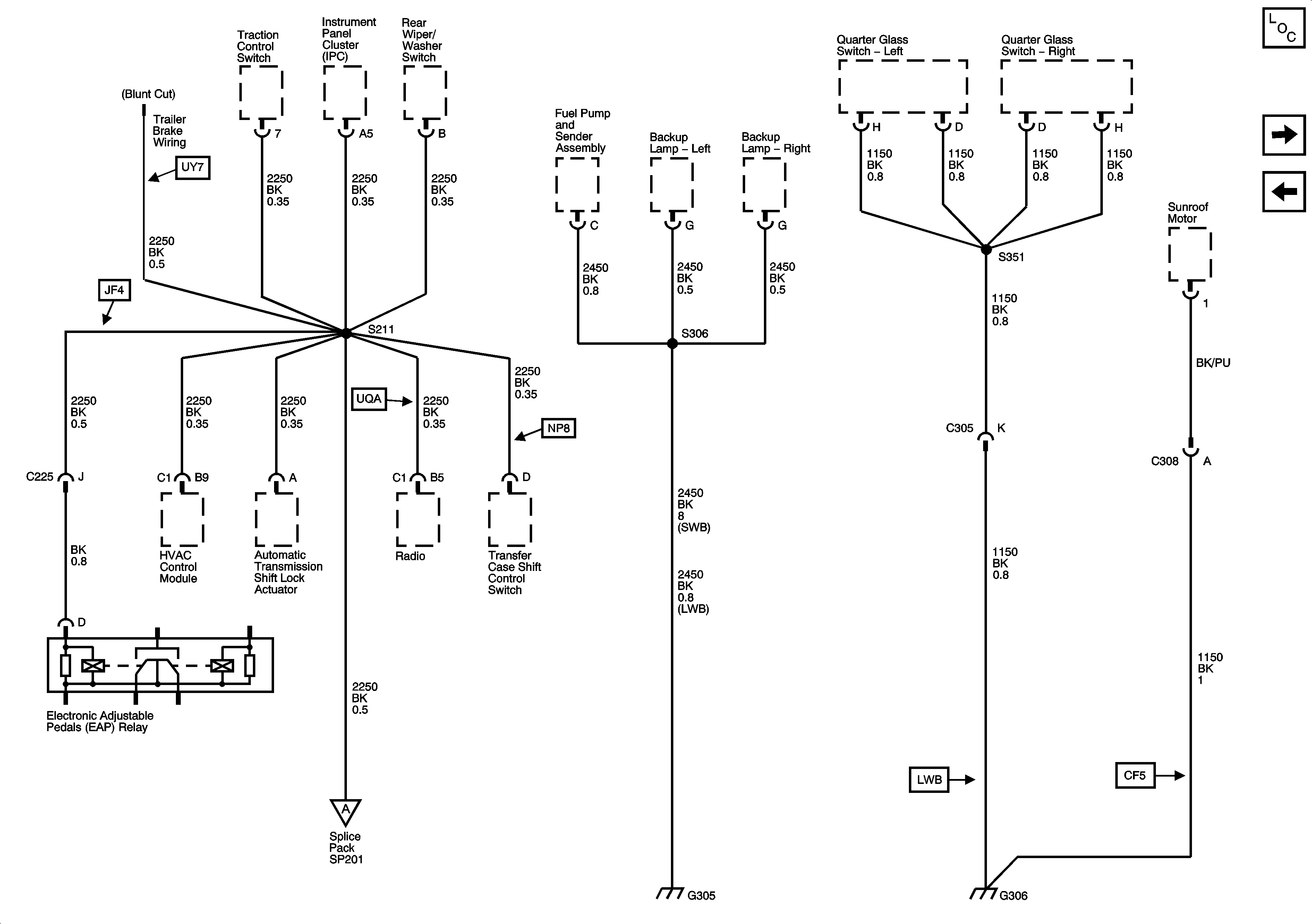

Figure 7:	G201 - 2 of 2, G305, and G306 Master Electrical Component List G302 - 1 of 2, G303, and G304 G201 - 1 of 2 G201 - 1 of 2
Figure 8:	G302 - 1 of 2, G303, and G304 Master Electrical Component List G302 - 2 of 2 G201 - 2 of 2, G305, and G306 G302 - 2 of 2
Figure 9:	G302 - 2 of 2 Master Electrical Component List G401, G402, and G403 G302 - 1 of 2, G303, and G304 G302 - 1 of 2, G303, and G304

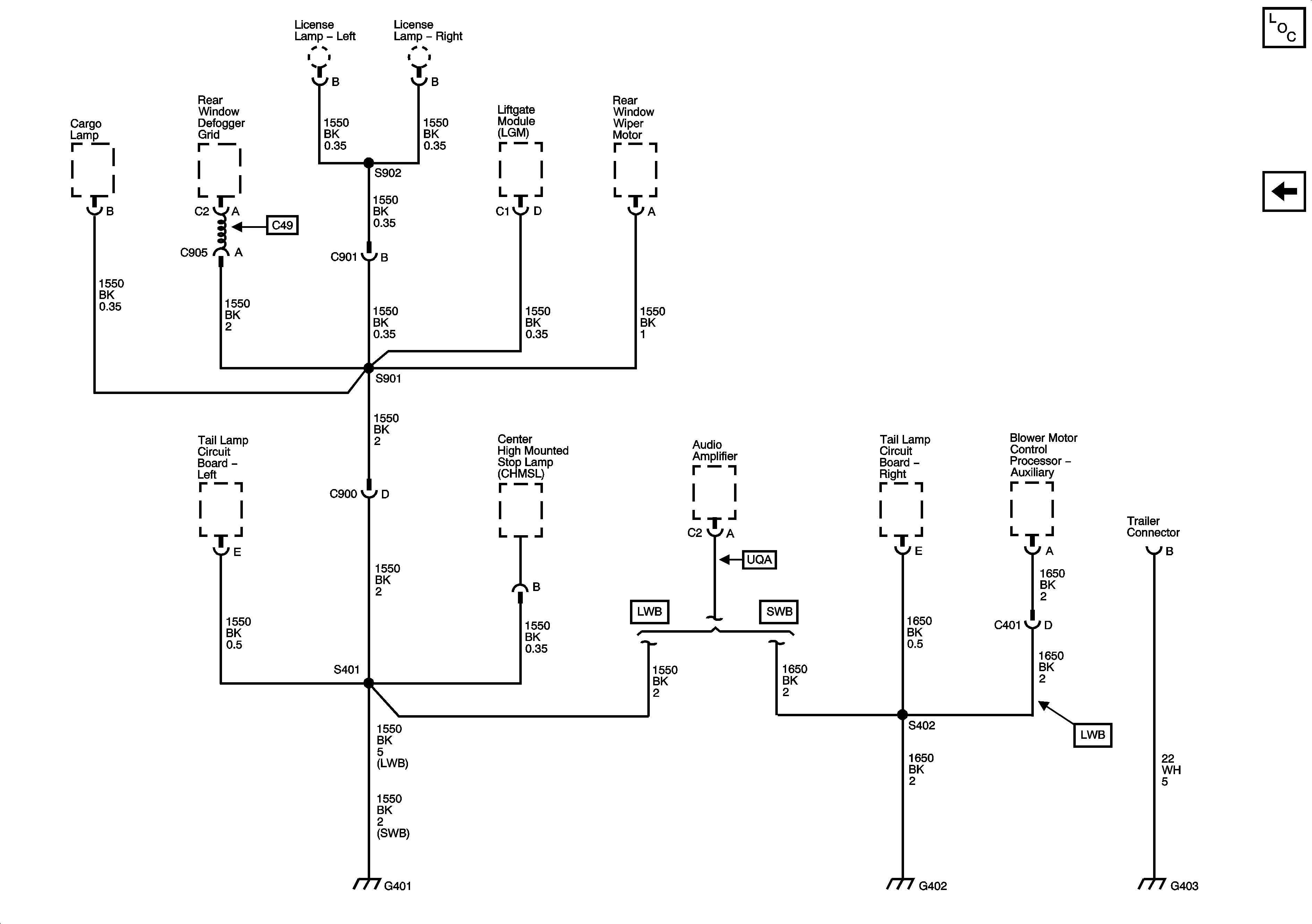

Figure 10:	G401, G402, and G403 Master Electrical Component List G302 - 2 of 2
