Engine Controls Schematics. Isuzu Isuzu MD F-Series 2004

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 2004 🢒 Isuzu MD F-Series 🢒 Engine 🢒 Engine Controls - 7.8L 🢒 Engine Controls Schematics

Engine Controls Schematics w/o CTF

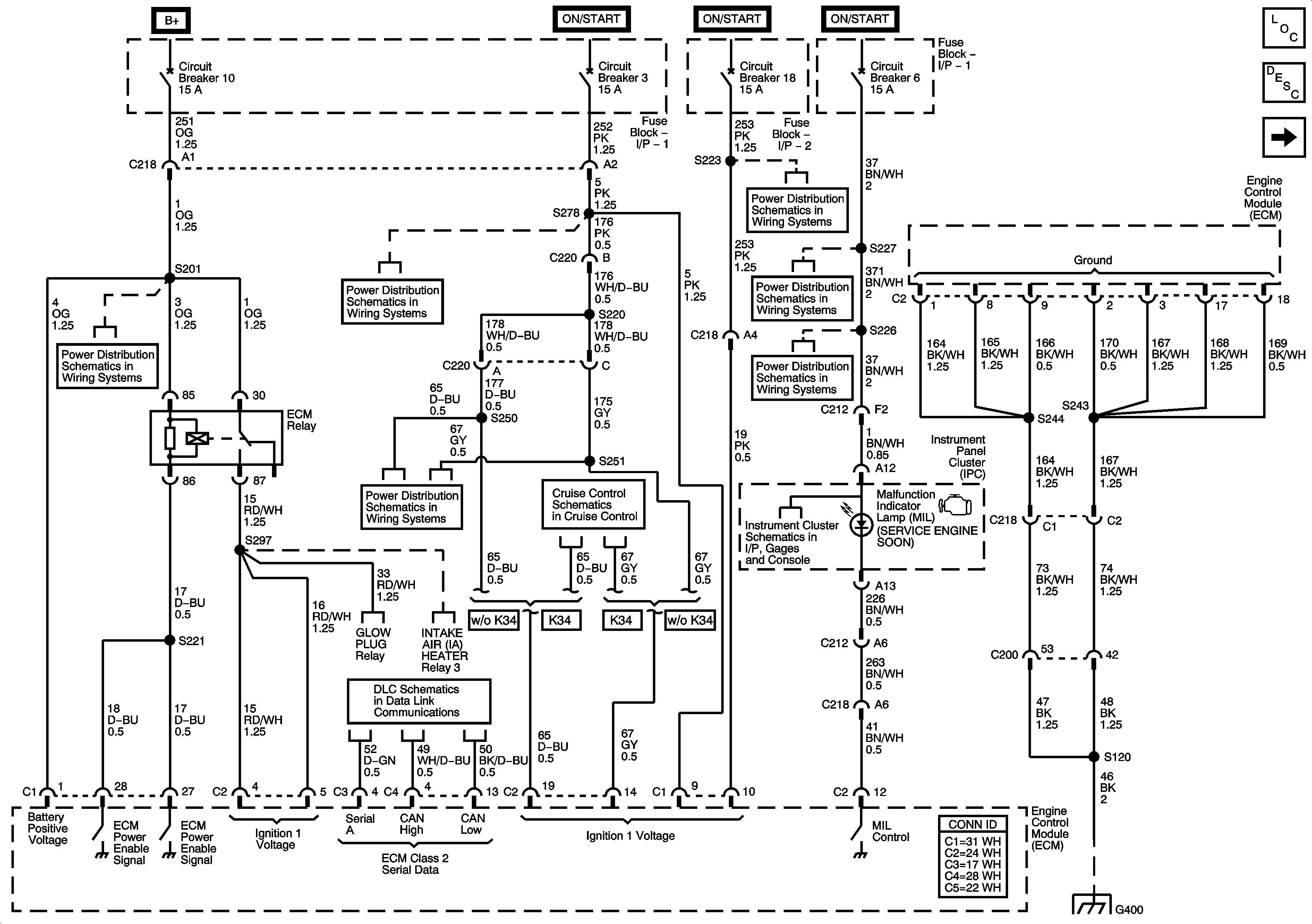

Figure 1:	Module Power, Ground, Serial Data and MIL Master Electrical Component List Engine Control Component Description (Without RPO CTF) Engine Data Sensors - 5 volt and Low Reference

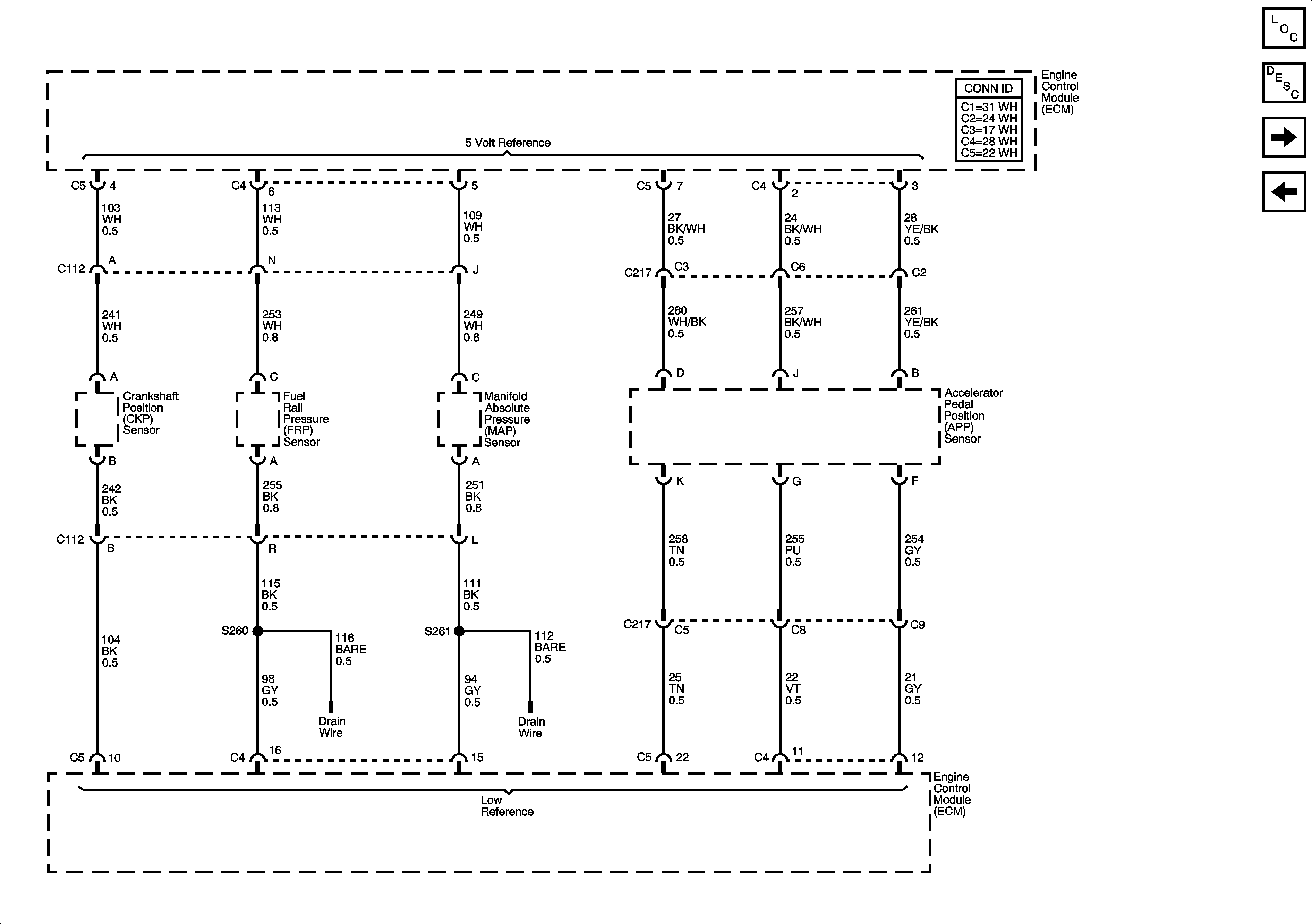

Figure 2:	Engine Data Sensors - 5 Volt and Low Reference Master Electrical Component List Engine Control Component Description (Without RPO CTF) Engine Data Sensors - Pressure and Temperature Module Power, Ground, Serial Data and MIL
Figure 3:	Engine Data Sensors - Pressure and Temperature Master Electrical Component List Engine Control Component Description (Without RPO CTF) Engine Data Sensors - Pedal Position Sensor Engine Data Sensors - 5 volt and Low Reference Engine Controls Schematic Icons
Figure 4:	Engine Data Sensors - Pedal Position Master Electrical Component List Engine Control Component Description (Without RPO CTF) Engine Data Sensors - Speed Sensors Engine Data Sensors - Pressure and Temperature
Figure 5:	Engine Data Sensors - Speed Sensors Master Electrical Component List Engine Control Component Description (Without RPO CTF) Engine Data Sensors - Glow Plug Controls Engine Data Sensors - Pedal Position Sensor Engine Controls Schematic Icons

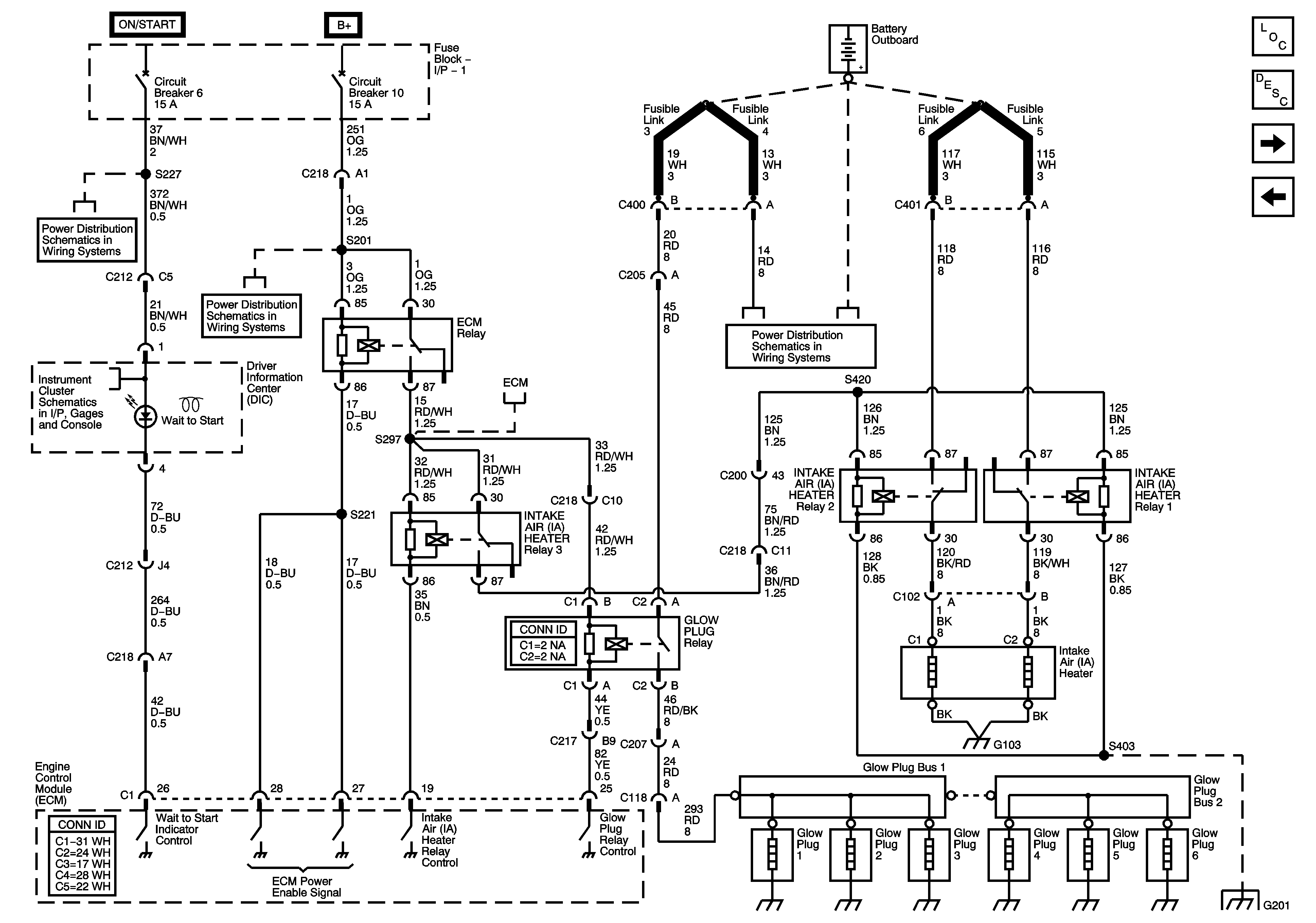

Figure 6:	Engine Data Sensors - Glow Plug Controls Master Electrical Component List Engine Control Component Description (Without RPO CTF) Fuel Controls - Fuel Injectors Engine Data Sensors - Speed Sensors

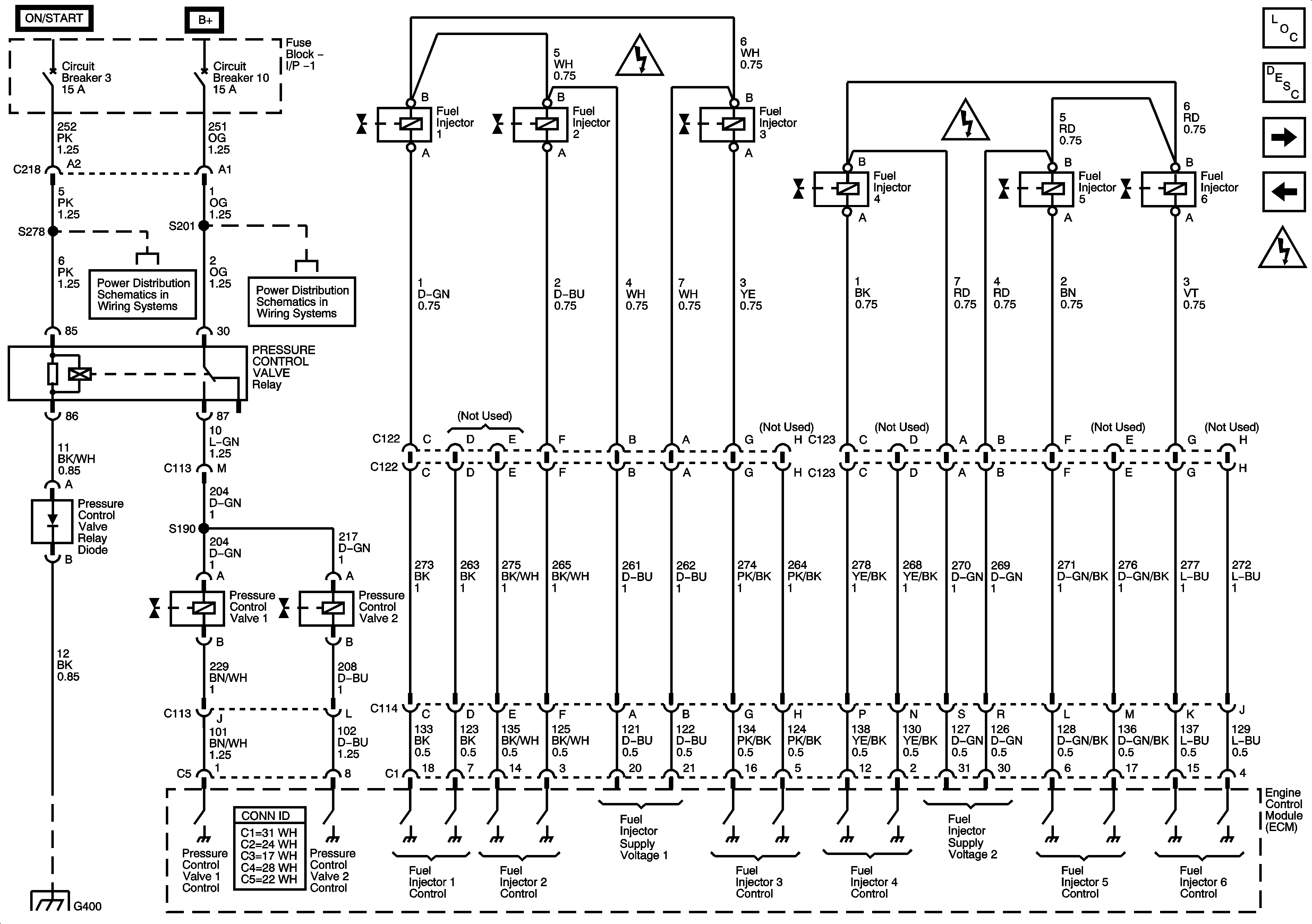

Figure 7:	Fuel Controls - Fuel Injectors Master Electrical Component List Engine Control Component Description (Without RPO CTF) Controlled/Monitored Subsystem References Engine Data Sensors - Glow Plug Controls

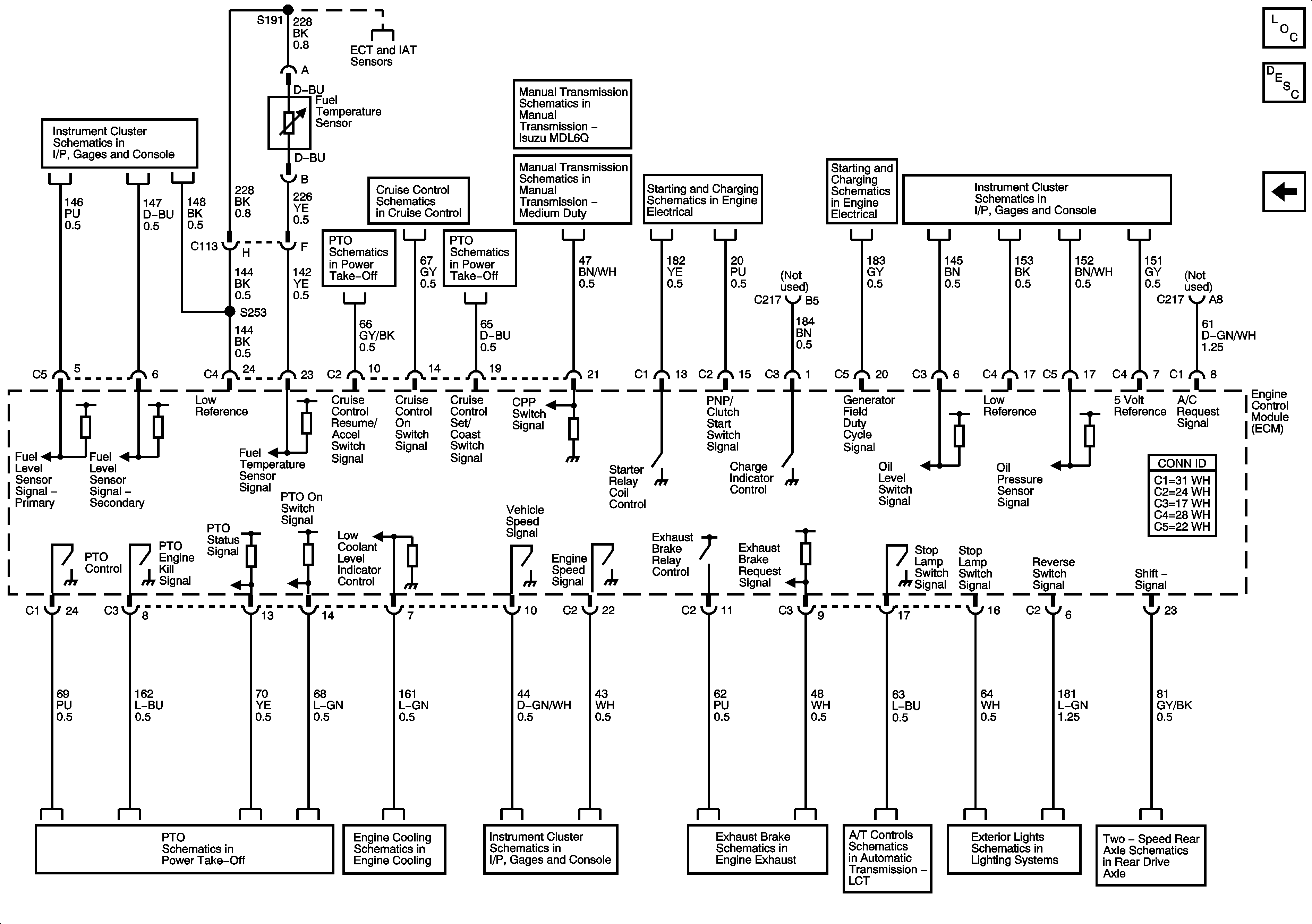

Figure 8:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Component Description (Without RPO CTF) Fuel Controls - Fuel Injectors

Engine Controls Schematics CTF

Figure 1:	Module Power, Ground, Serial Data and MIL Master Electrical Component List Engine Control Component Description (with RPO CTF) Engine Data Sensors - 5 Volt and Low Reference
Figure 2:	Engine Data Sensors - 5 Volt and Low Reference Master Electrical Component List Engine Control Component Description (with RPO CTF) Engine Data Sensors - Pressure and Temperature page 1 of 2 Module Power, Ground, Serial Data and MIL

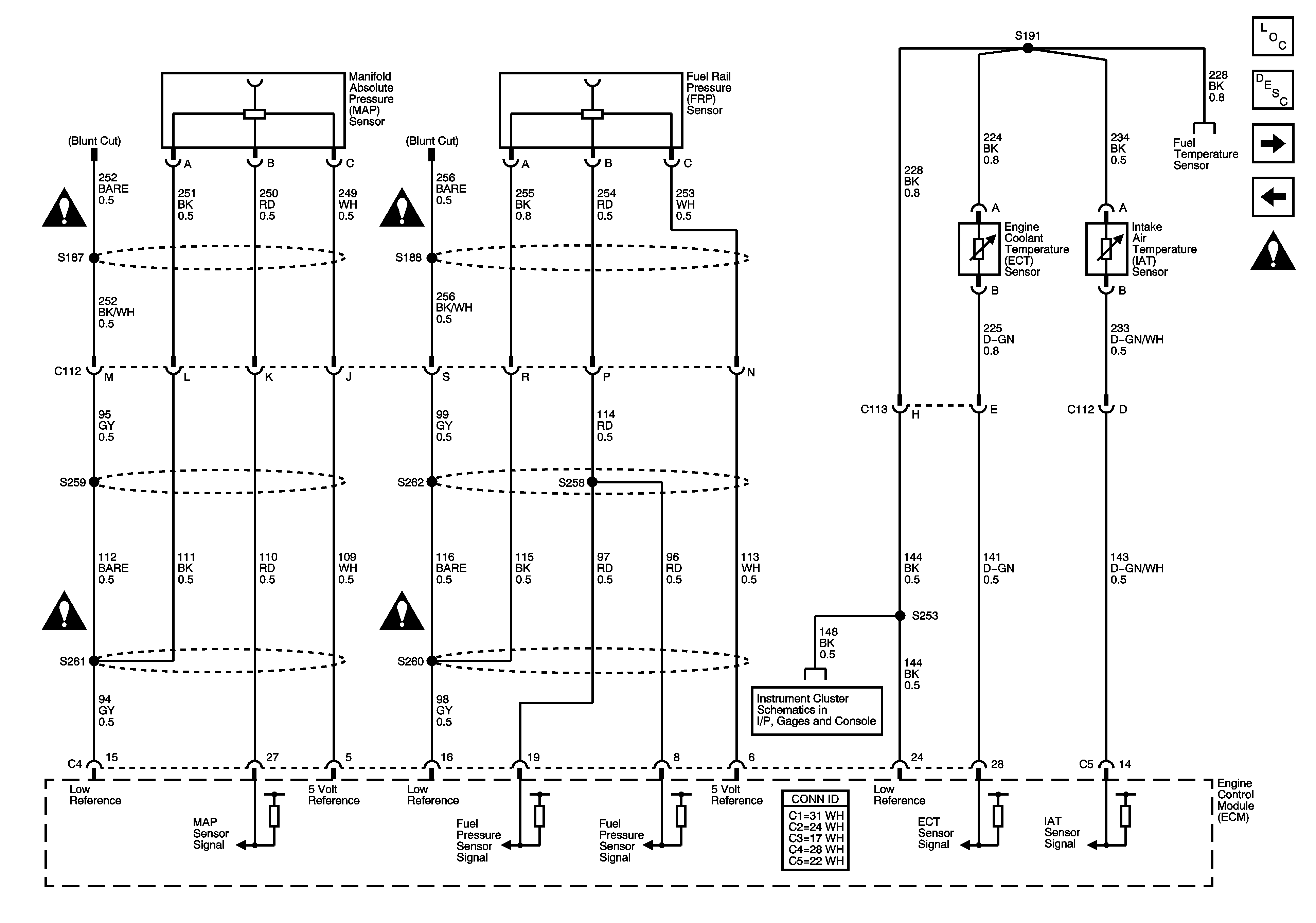

Figure 3:	Engine Data Sensors - Pressure and Temperature 1 of 2 Master Electrical Component List Engine Control Component Description (with RPO CTF) Engine Data Sensors - Pressure and Temperature page 2 of 2 Engine Data Sensors - 5 Volt and Low Reference Engine Controls Schematic Icons
Figure 4:	Engine Data Sensors - Pressure and Temperature - 2 of 2 Master Electrical Component List Engine Control Component Description (with RPO CTF) Engine Data Sensors - Pedal Position Engine Data Sensors - Pressure and Temperature page 1 of 2

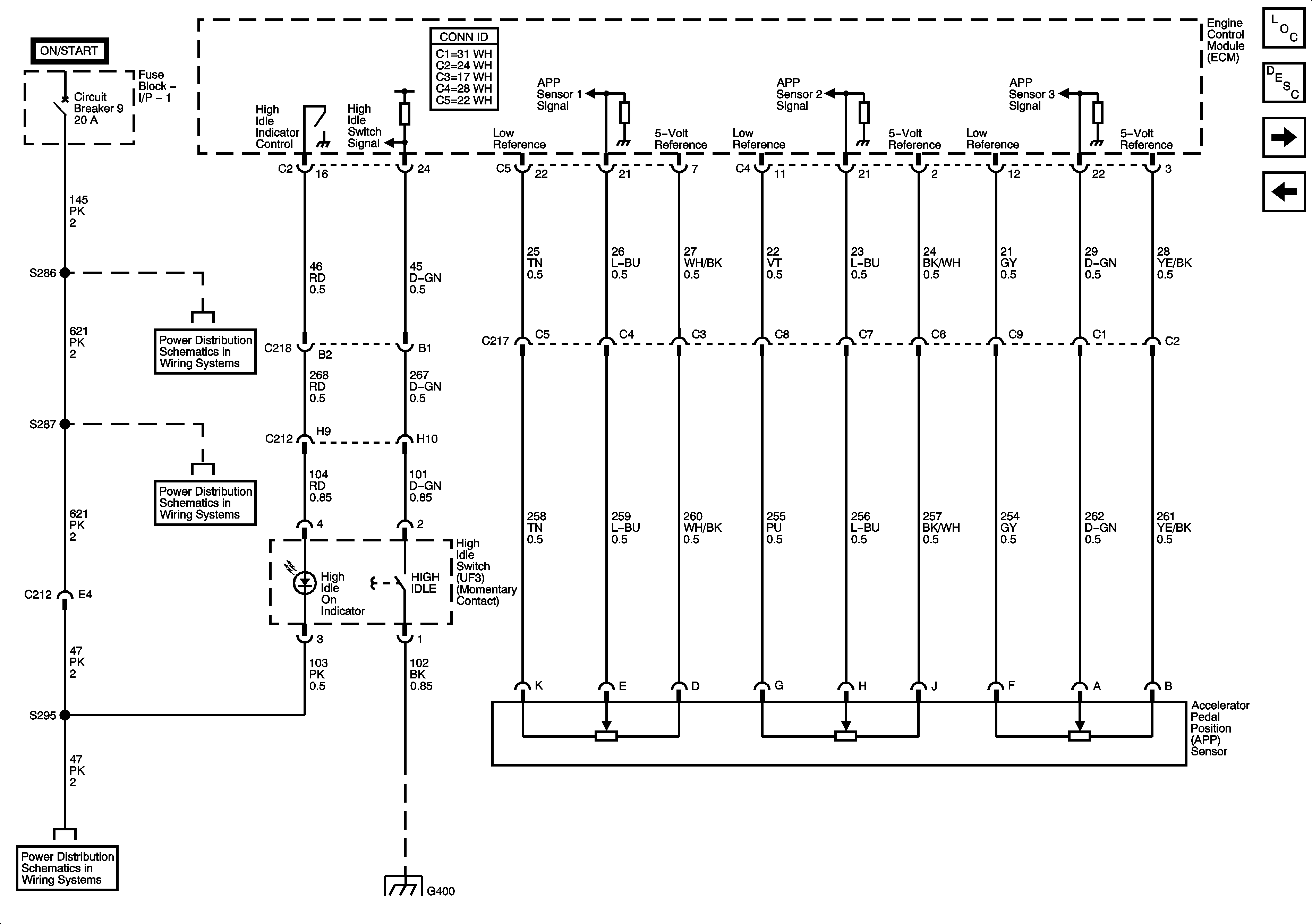

Figure 5:	Engine Data Sensors - Pedal Position Master Electrical Component List Engine Control Component Description (with RPO CTF) Engine Data Sensors - Speed Sensors Engine Data Sensors - Pressure and Temperature page 2 of 2

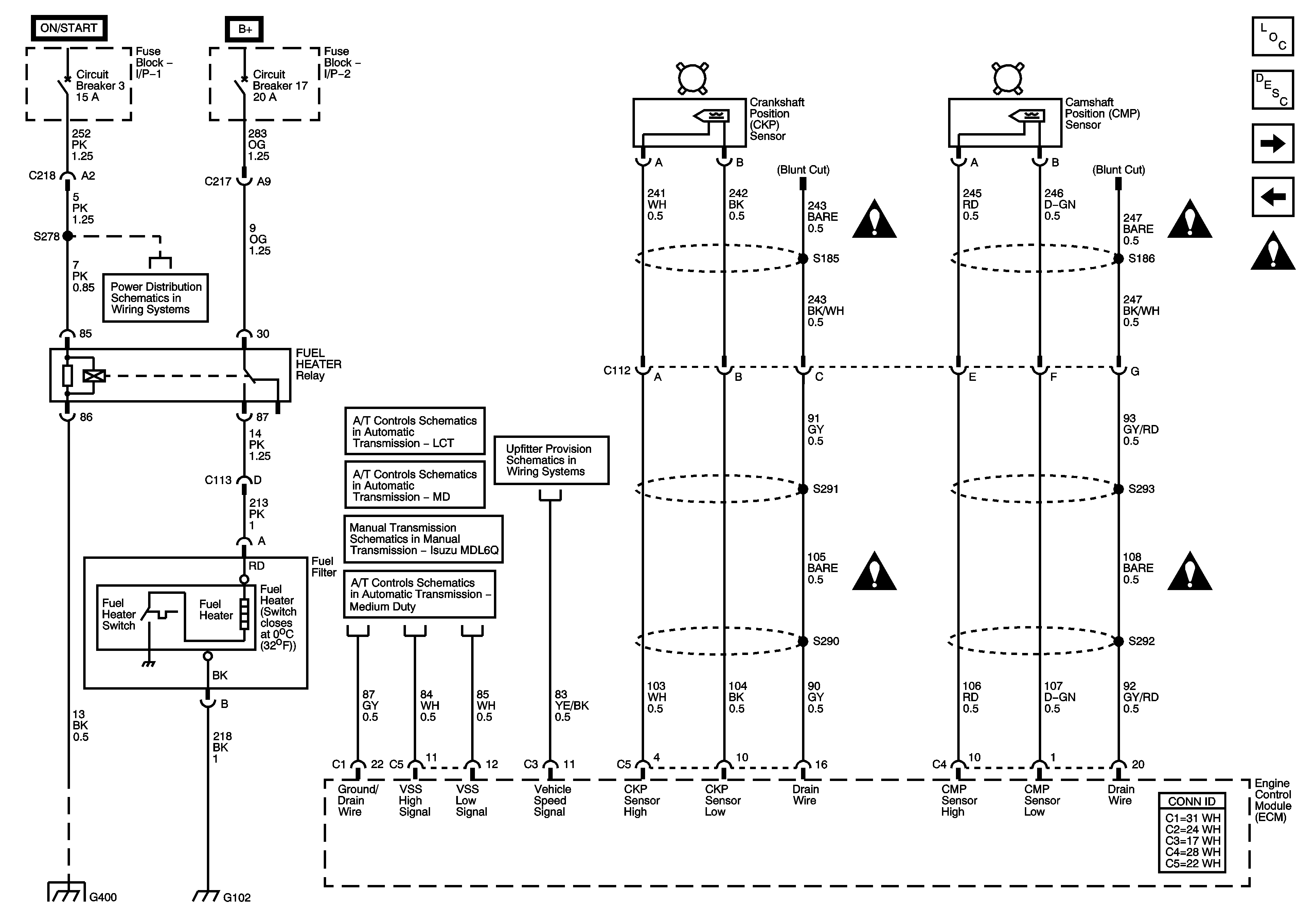

Figure 6:	Engine Data Sensors - Speed Sensors Master Electrical Component List Engine Control Component Description (with RPO CTF) Engine Data Sensors - Exhaust Gas Recirculation (EGR) Valve and Glow Plug Controls Engine Data Sensors - Pedal Position Engine Controls Schematic Icons
Figure 7:	Engine Data Sensors - Exhaust Gas Recirculation (EGR) Valve and Glow Plug Controls Master Electrical Component List Engine Control Component Description (with RPO CTF) Fuel Controls - Suction Control Valve, Water in Fuel and Fuel Temperature Sensors and Fuel Heater Engine Data Sensors - Speed Sensors
Figure 8:	Fuel Controls - Suction Control Valve, Water in Fuel and Temperature Sensors and Fuel Heater Master Electrical Component List Engine Control Component Description (with RPO CTF) Fuel Controls - Fuel Injectors and Fuel Rail Pressure (FRP) Sensor Engine Data Sensors - Exhaust Gas Recirculation (EGR) Valve and Glow Plug Controls
Figure 9:	Fuel Controls - Fuel Injectors and Fuel Rail Pressure (FRP) Sensor Master Electrical Component List Engine Control Component Description (with RPO CTF) Controlled/Monitored Subsystem References Fuel Controls - Suction Control Valve, Water in Fuel and Fuel Temperature Sensors and Fuel Heater Engine Controls Schematic Icons
Figure 10:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Component Description (with RPO CTF) Fuel Controls - Fuel Injectors and Fuel Rail Pressure (FRP) Sensor
