Makes 🢒 Isuzu 🢒 2004 🢒 Isuzu MD F-Series 🢒 Accessories 🢒 Power Outlets 🢒 Cigar Lighter Housing Replacement

Removal Procedure

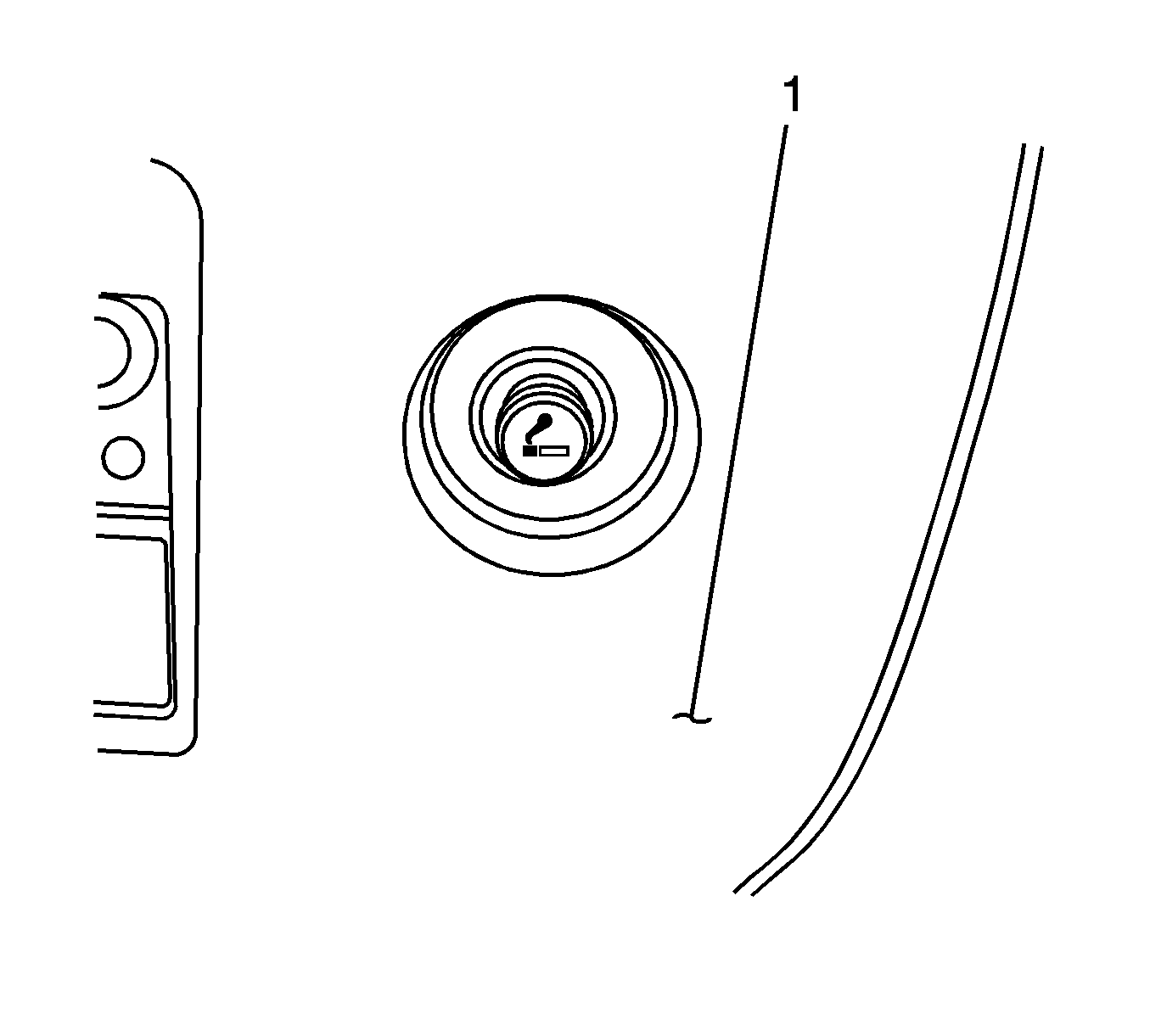

    Object Number: 1409353 Size: SH
  1. Remove the accessory panel (1) by gently pulling to release retaining clips.

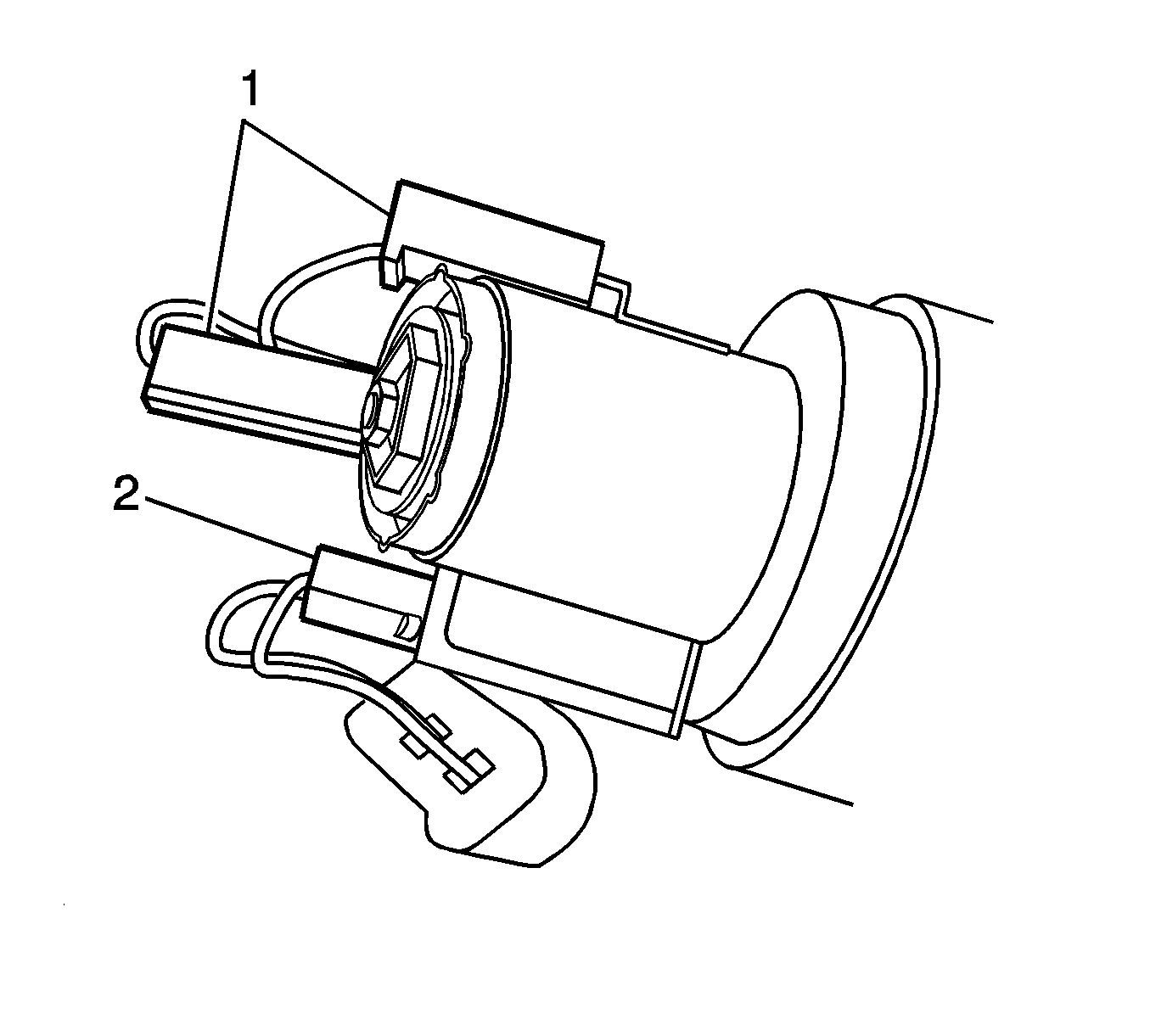

    2. Object Number: 1409359 Size: SH
  2. Disconnect the electrical connectors (1).
  3. Disconnect the bulb (2) by turning a quarter turn counter clockwise.

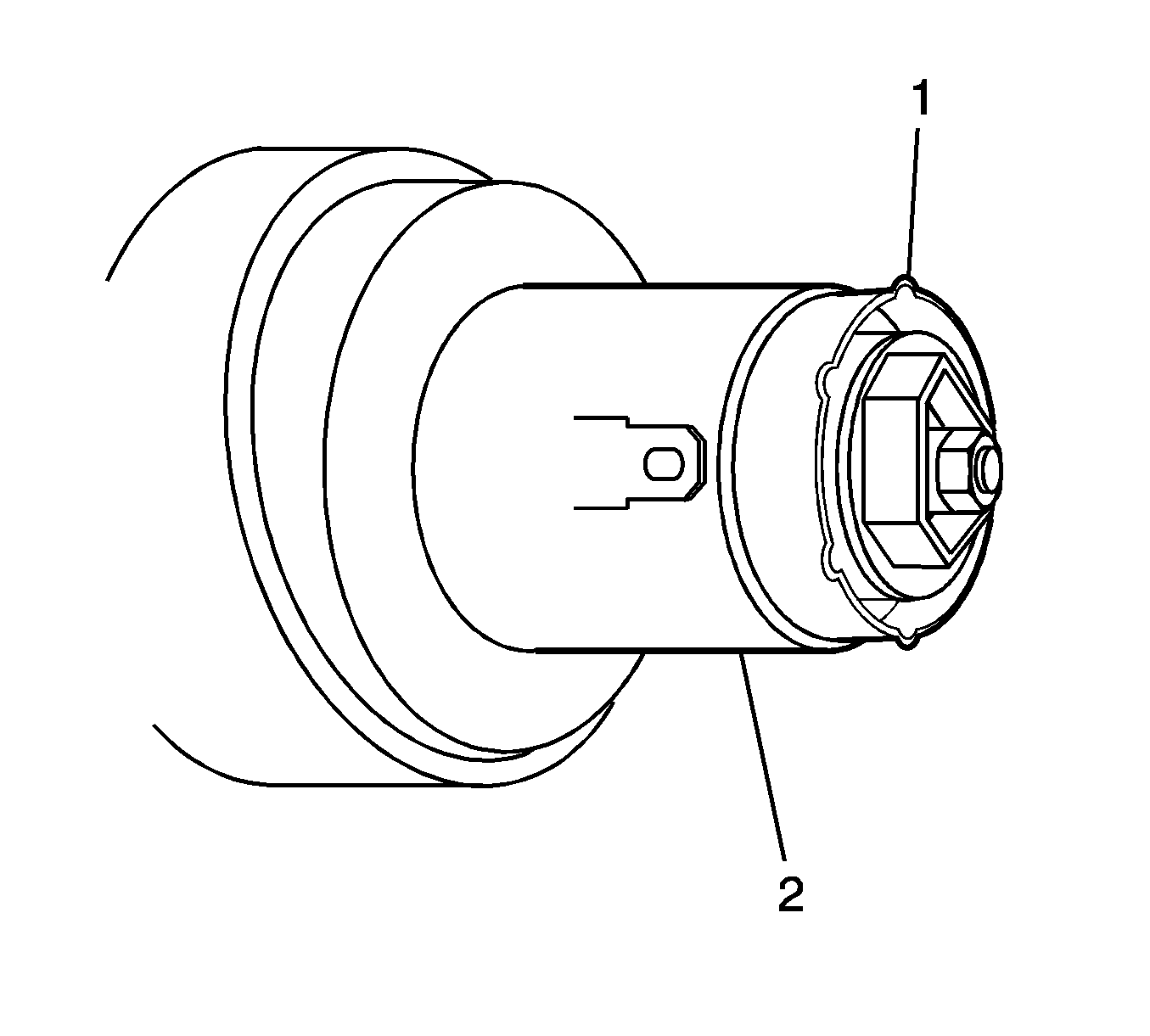

    4. Object Number: 1409361 Size: SH
  4. Remove the cigar lighter housing jamnut (1).
  5. Remove the housing retainer (2).
  6. Release the retaining tabs and pull lighter housing toward rear of vehicle.

Installation Procedure
  1. Install the cigar lighter housing.
  2. Install the housing retainer.
  3. Attach the housing jamnut.
  4. Connect the bulb by turning a quarter turn clockwise.
  5. Connect the electrical connectors.
  6. Replace the accessory trim panel.
