Heater Blower Controls Schematics. Isuzu Isuzu MD Steel Tilt (F Model) 1998

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 1998 🢒 Isuzu MD Steel Tilt (F Model) 🢒 HVAC 🢒 Heating, Ventilation and Air Conditioning 🢒 Heater Blower Controls Schematics

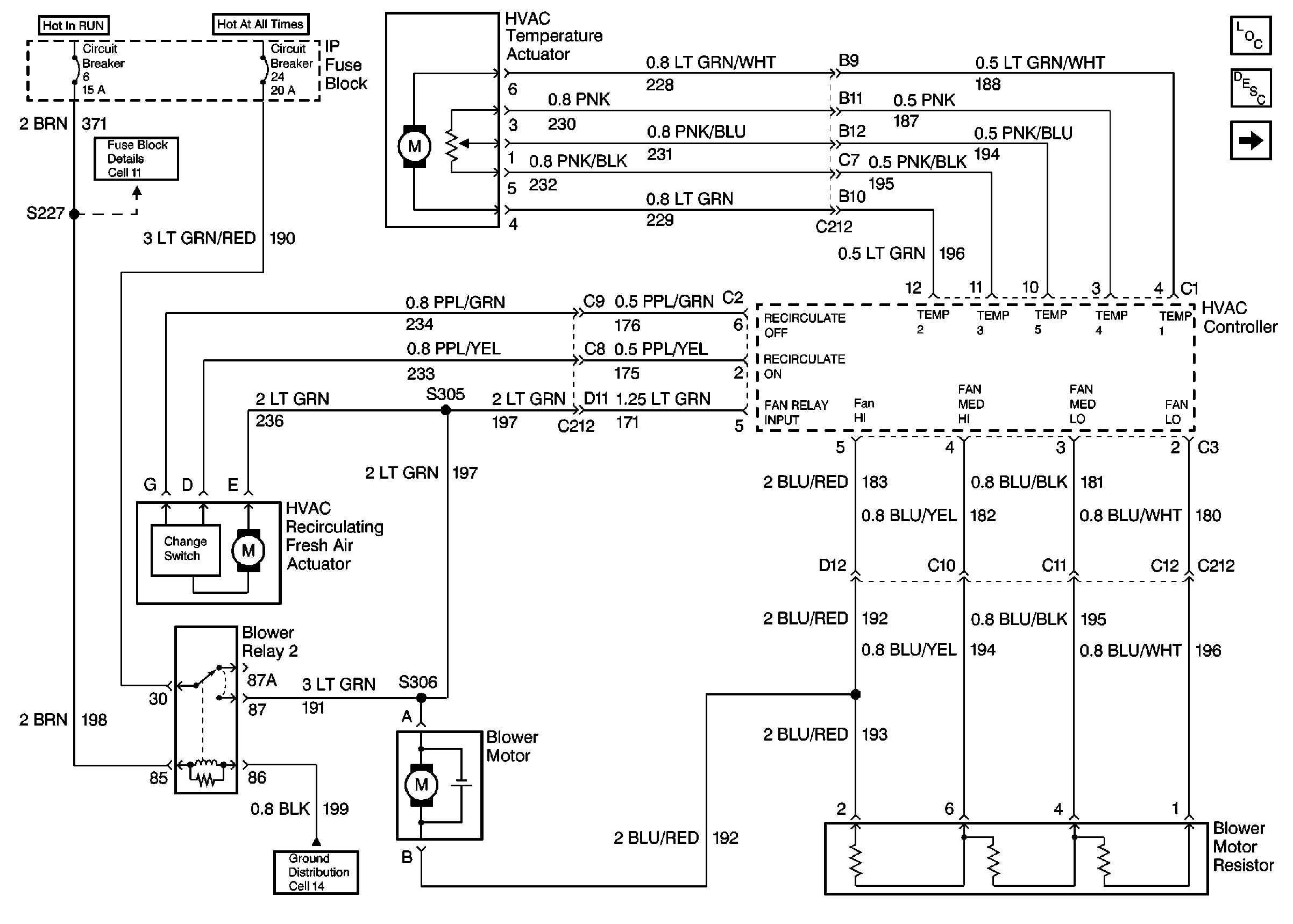

Figure 1:	Cell 60: HVAC Temperature Actuator Heater Blower Controls Components Heater Blower Controls Circuit Description Cell 60: HVAC Mode Actuator

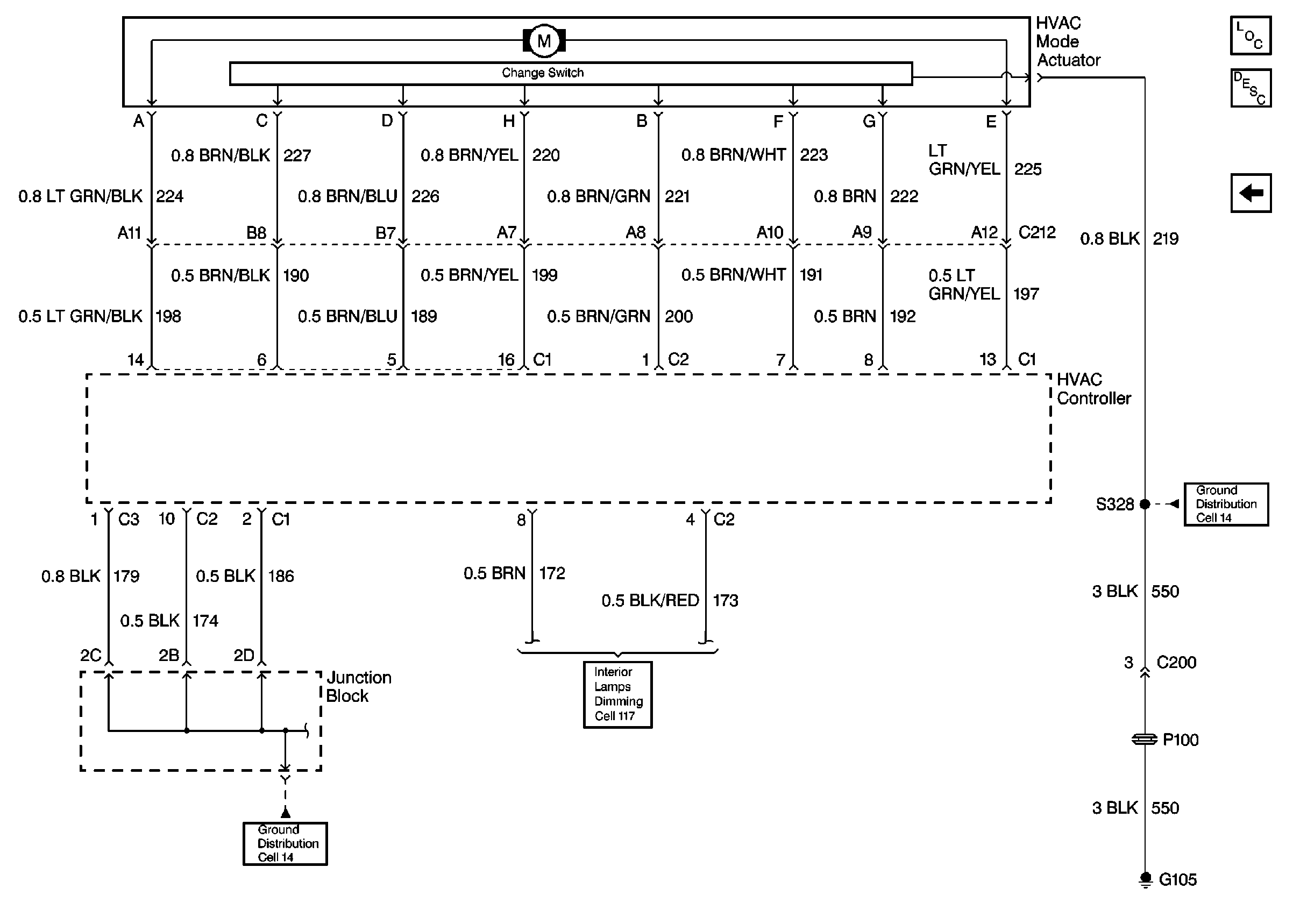

Figure 2:	Cell 60: HVAC Mode Actuator Heater Blower Controls Components Heater Blower Controls Circuit Description Cell 60: HVAC Temperature Actuator
