Initial Setup
Refer to the manufacturer's instructions for all initial setup procedures.
Operational Setup
| | Caution: Always wear goggles and gloves when doing work that involves opening
the refrigerant system. If liquid refrigerant comes into contact with the
skin or eyes, injury may result.
|
| | Caution: Use only authorized 23-kg (50-lb.) refillable tanks (J 39500-50).
Use of other tanks could cause personal injury and void the warranty.
|
| | Notice: Refrigerant-134a systems have special fittings (per SAE specifications)
to avoid cross-contamination with Refrigerant-12 systems. Do not attempt to
adapt this unit to Refrigerant-12 systems as severe system failure
will result.
|

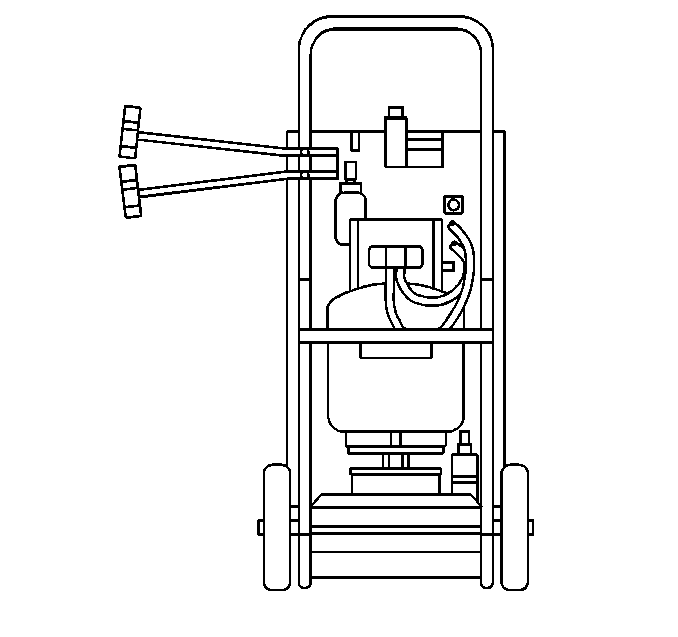

| • | Connect the following hoses to the ACR4 unit: |
| • | The high side (Red) hose |
| • | The low side (Blue) hose |
| • | Route the hoses through the hose reel bracket grommets. |
