HVAC Component Views. Isuzu Isuzu MD Steel Tilt (F Model) 1999

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 1999 🢒 Isuzu MD Steel Tilt (F Model) 🢒 Body and Accessories 🢒 Instrument Panel, Gauges, and Console 🢒 HVAC Component Views

Figure 1:


(1)	Engine Harness
(2)	Generator Fuse
(3)	Generator
(4)	A/C Compressor Clutch
(5)	A/C Compressor
(6)	Engine Oil Pressure Gage Sensor

Figure 2:


(1)	Relay Block 2

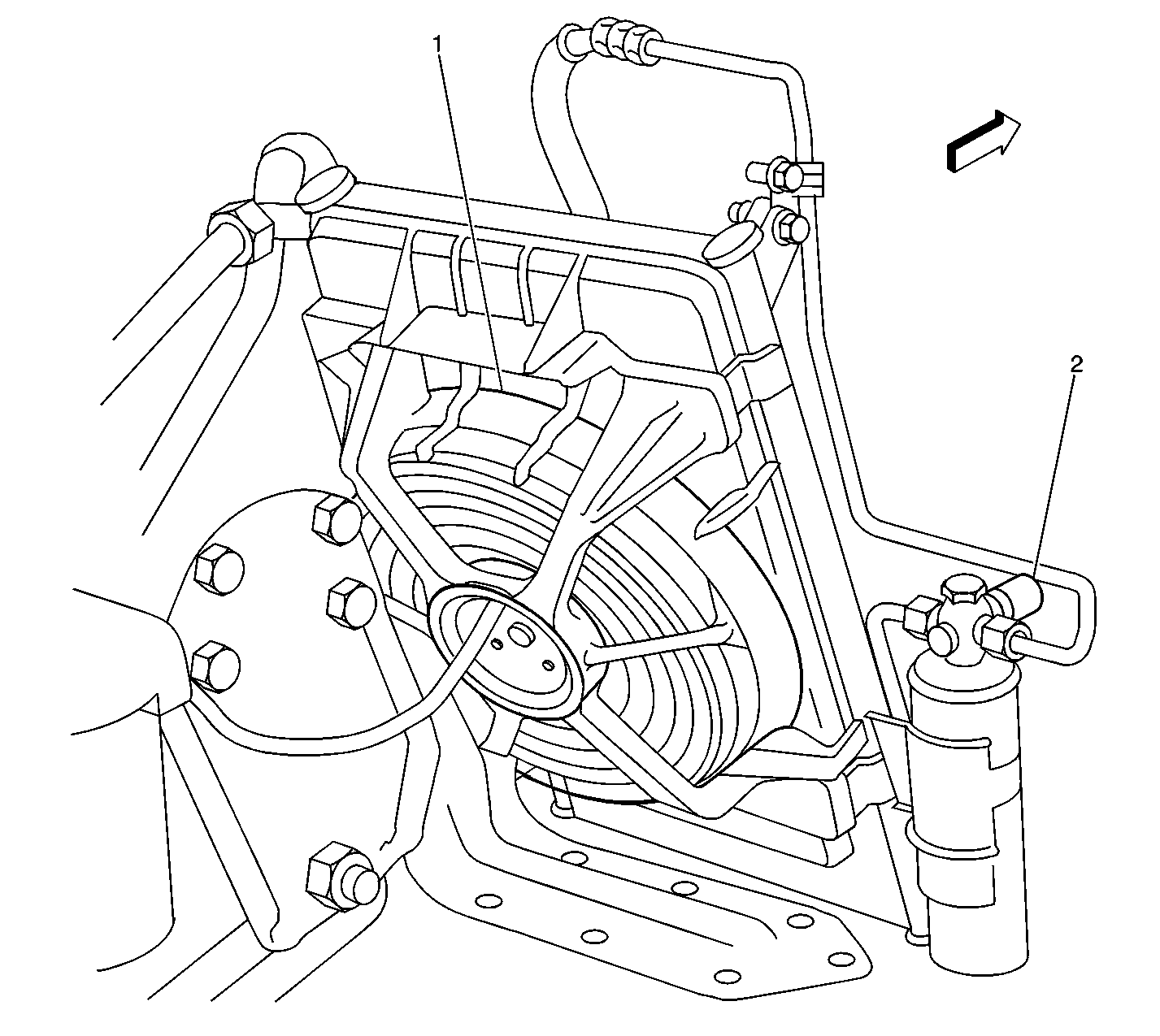

Figure 3:


(1)	A/C Condenser Fan Motor
(2)	A/C Pressure Cutoff Switch

Figure 4:


(1)	HVAC Controller
(2)	Radio
(3)	Cigar Lighter Lamp
(4)	Cigar Lighter
(5)	Park Brake Control (JE4)
(6)	Trailer Brake Control (JE4)
(7)	Blower Switch - Part of HVAC Controller

Figure 5:


(1)	Blower Motor Resistor
(2)	HVAC Recirculating/Fresh Air Actuator
(3)	Blower Motor

Figure 6:


(1)	HVAC Mode Door Actuator
(2)	HVAC Air Temperature Actuator
