Automatic Transmission Controls Schematics. Isuzu S/T Isuzu - 2WD 1999

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 1999 🢒 S/T Isuzu - 2WD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L60-E 🢒 Automatic Transmission Controls Schematics

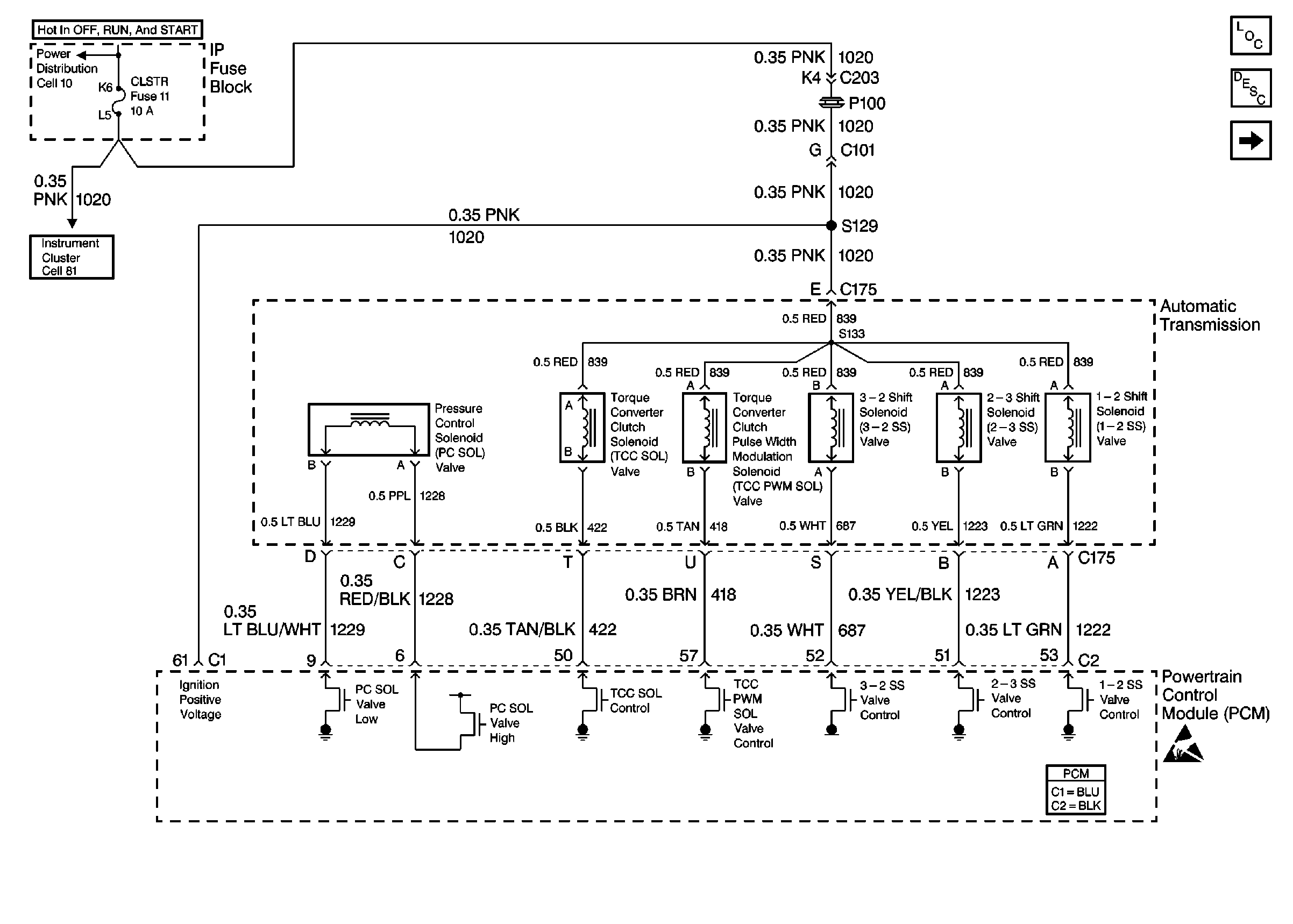

Figure 1:	Cell 39: Valve Controls (2.2L) Cell 10: CRANK and CLSTR Fuses Cell 81: Power Automatic Transmission Components Electronic Component Description Cell 39: Switch Inputs (2.2L) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice

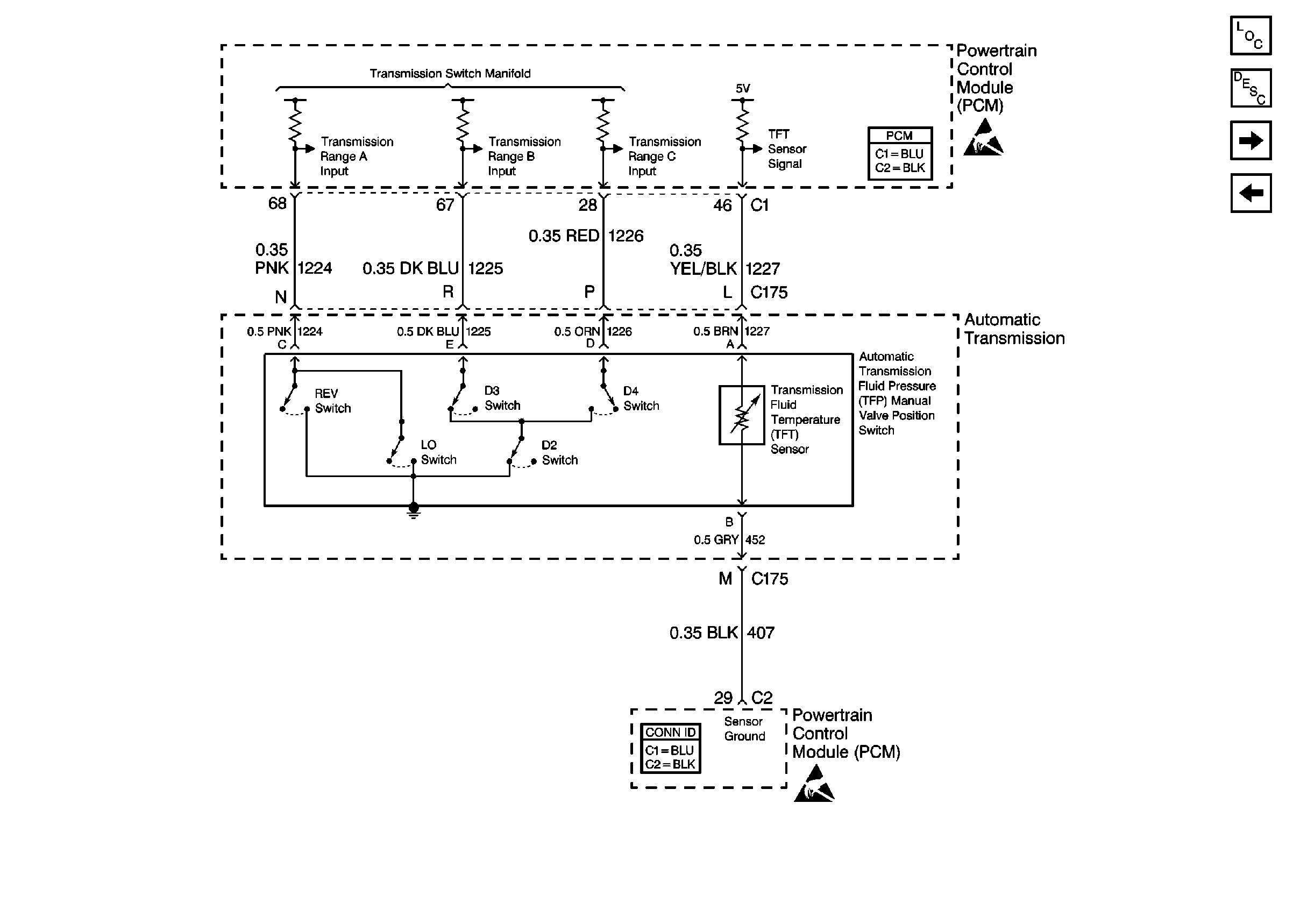

Figure 2:	Cell 39: Switch Inputs (2.2L) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Automatic Transmission Components Electronic Component Description Cell 39: Brake Switch, VSS Inputs (2.2L) Cell 39: Valve Controls (2.2L) Handling ESD Sensitive Parts Notice Powertrain Control Module Connector End Views

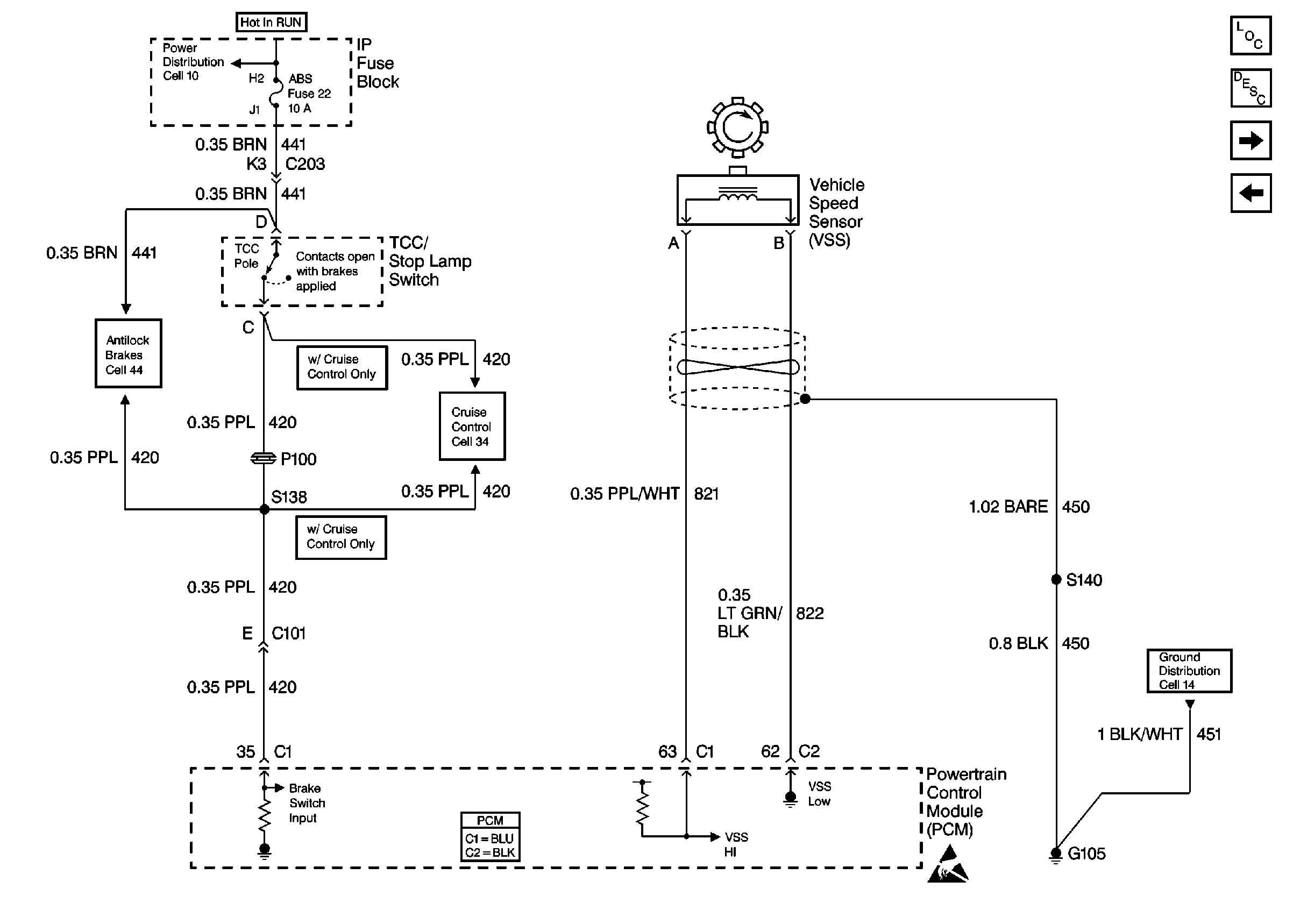

Figure 3:	Cell 39: Brake Switch, VSS Inputs (2.2L) Cell 10: STUD 2, ABS and TBC Fuses Cell 44: Power and Ground Cell 34: Clutch Pedal Position Switch and TCC/Stop Lamp Switch Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 14: G103 and G105 (2.2L) Automatic Transmission Components Electronic Component Description Cell 39: Valve Controls (4.3L) Cell 39: Switch Inputs (2.2L)

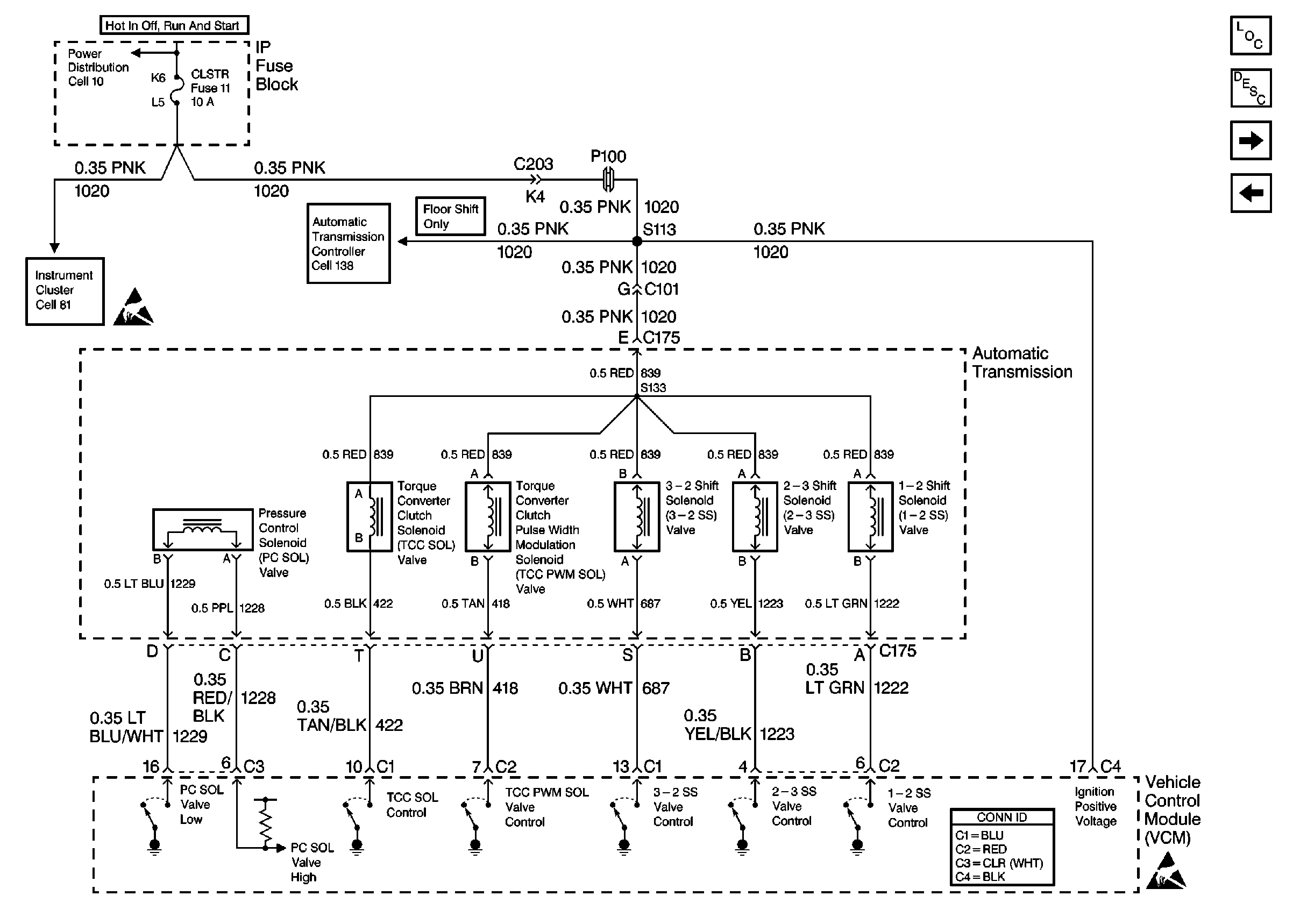

Figure 4:	Cell 39: Valve Controls (4.3L) Cell 10: CRANK and CLSTR Fuses Cell 81: Power Handling ESD Sensitive Parts Notice Cell 138 VCM Connector End Views Handling ESD Sensitive Parts Notice Automatic Transmission Components Electronic Component Description Cell 39: Switch Inputs, 2WD VSS (4.3L) Cell 39: Brake Switch, VSS Inputs (2.2L)

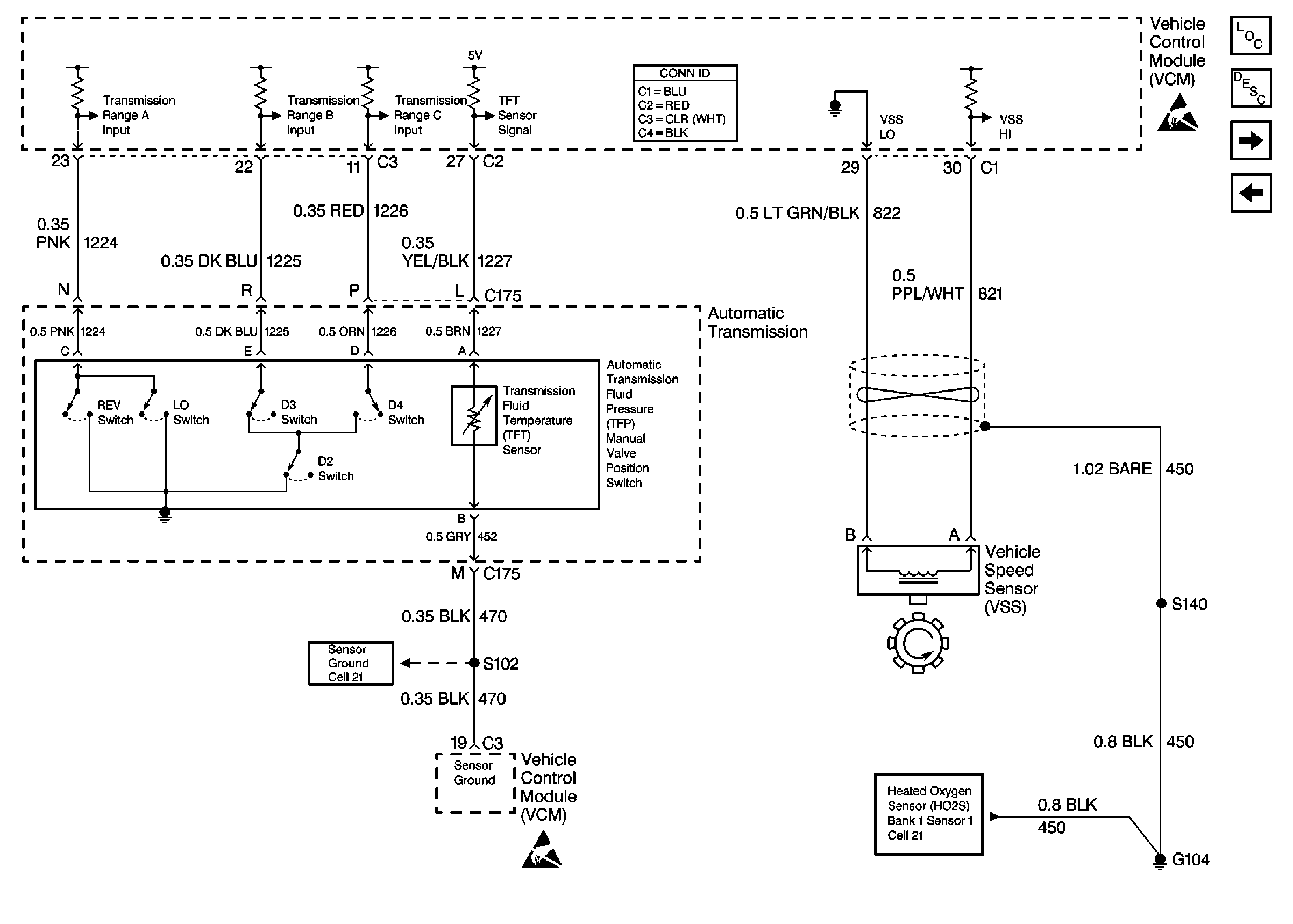

Figure 5:	Cell 39: Switch Inputs, 2WD VSS (4.3L) VCM Connector End Views Handling ESD Sensitive Parts Notice Automatic Transmission Components Electronic Component Description Cell 39: 4WD VSS (4.3L) Cell 39: Valve Controls (4.3L) Cell 21: Heated Oxygen Sensors Cell 21: MAP, IAT, ECT, TP and Fuel Tank Pressure Sensors Handling ESD Sensitive Parts Notice

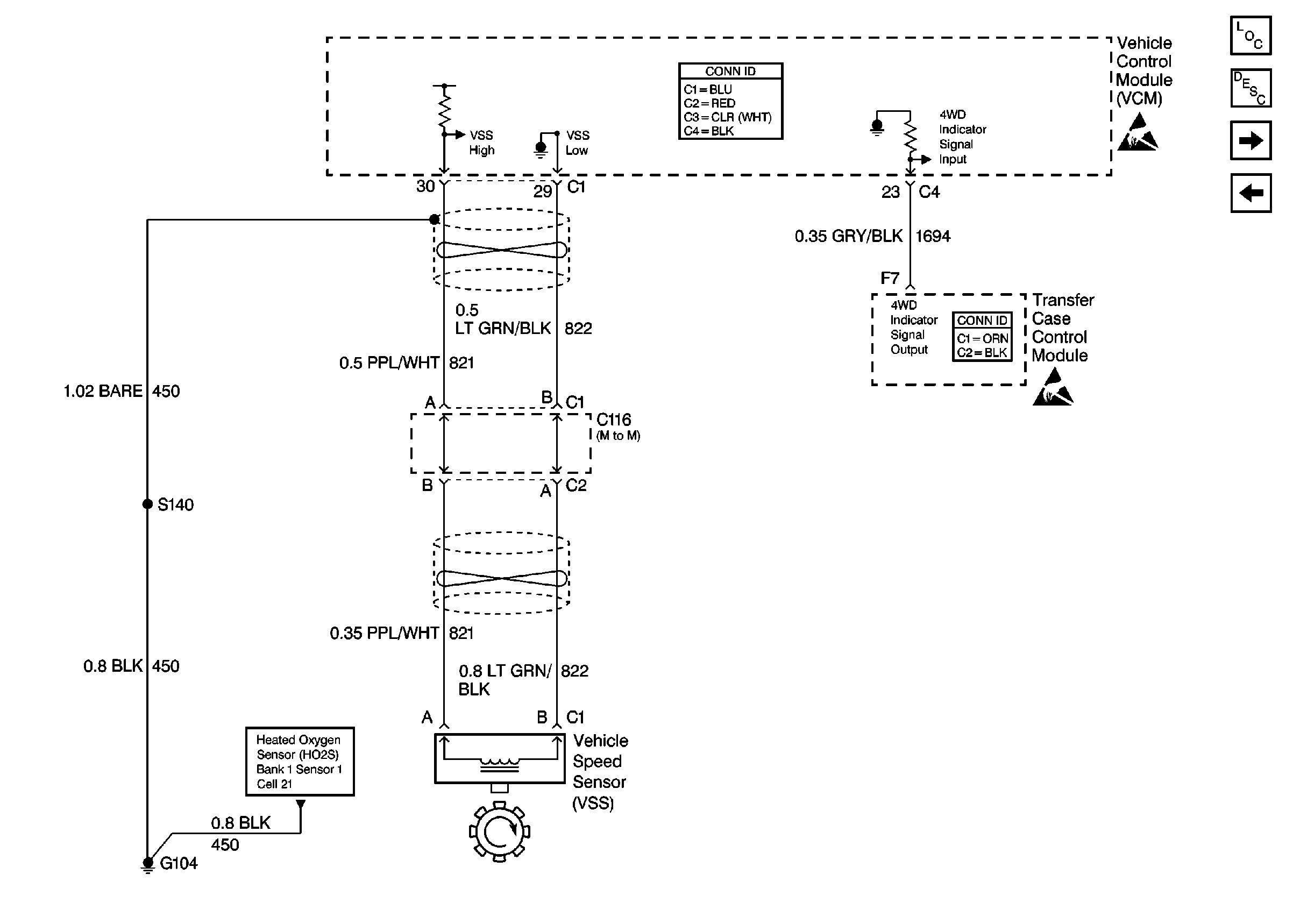

Figure 6:	Cell 39: 4WD VSS (4.3L) VCM Connector End Views Handling ESD Sensitive Parts Notice Automatic Transmission Components Electronic Component Description Cell 39: Brake Switch Inputs (4.3L) Cell 39: Switch Inputs, 2WD VSS (4.3L) Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice Cell 21: Heated Oxygen Sensors

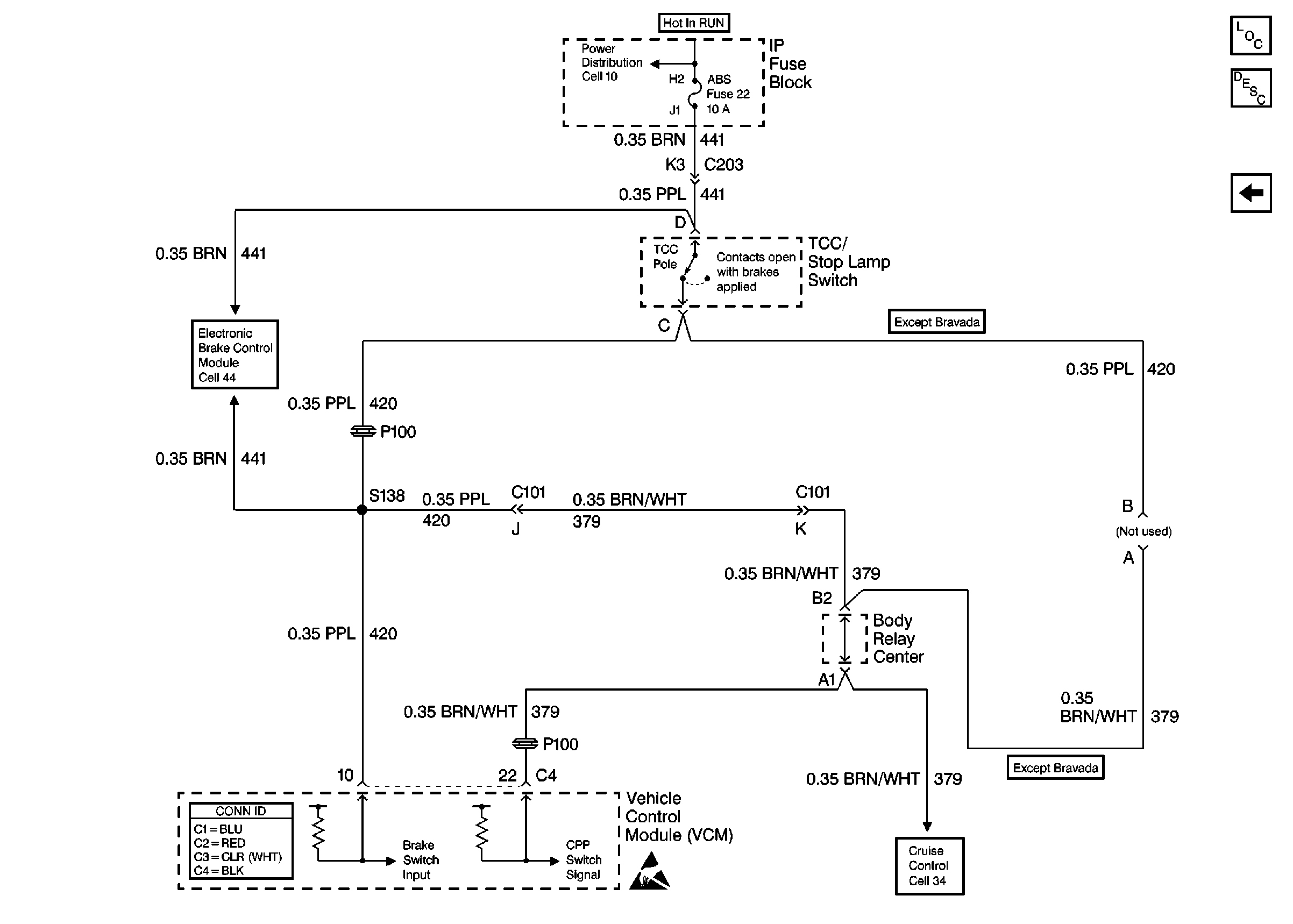

Figure 7:	Cell 39: Brake Switch Inputs (4.3L) Cell 44: Power and Ground VCM Connector End Views Handling ESD Sensitive Parts Notice Cell 34: Clutch Pedal Position Switch and TCC/Stop Lamp Switch Cell 10: STUD 2, ABS and TBC Fuses Automatic Transmission Components Electronic Component Description Cell 39: 4WD VSS (4.3L)
