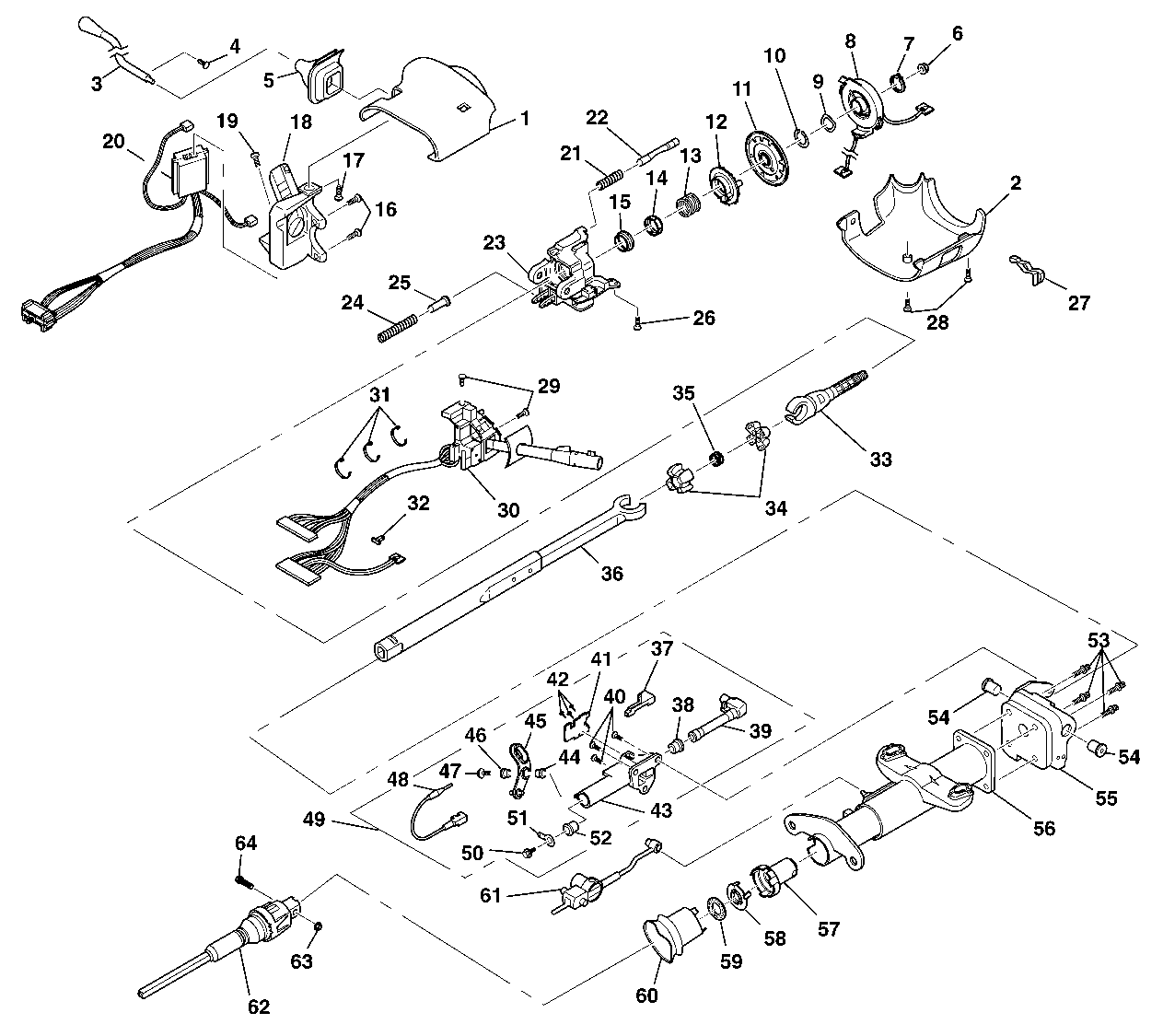

| (1) | Upper Shroud |
| (2) | Lower Shroud |
| (3) | Shift Lever Assembly |
| (4) | Shift Lever Screw |
| (5) | Shift Lever Seal |
| (6) | Flanged Prevailing Torque Nut |
| (7) | Snap Ring |
| (8) | SRS Coil Assembly |
| (9) | Wave Washer |
| (10) | Bearing Retainer |
| (11) | Shaft Lock Shield Assembly |
| (12) | Turn Signal Cancel Cam Assembly |
| (13) | Upper
Bearing Spring |
| (14) | Upper Bearing Inner Race Seat |
| (15) | Inner Race Assembly |
| (16) | Pan Head Tapping
Screws |
| (17) | TORX® Head Screw |
| (18) | Lock Module Assembly |
| (19) | Pan Head Tapping Screw |
| (20) | Ignition and
Key Alarm Switch Assembly |
| (21) | Lock Bolt Spring |
| (22) | Lock Bolt Assembly |
| (23) | Steering Column
Tilt Head Assembly |
| (24) | Tilt Spring |
| (25) | Spring Guide |
| (26) | TORX® Head Screw |
| (27) | Tilt Lever
Assembly |
| (28) | Pan Head Tapping Screws |
| (29) | Pan Head Tapping Screws |
| (30) | Turn
Signal and Multi-Function Switch Assembly |
| (31) | Wire Harness Straps |
| (32) | Axial Position
Assurance Connector |
| (33) | Race and Upper Shaft Assembly |
| (34) | Centering Spheres |
| (35) | Joint Preload
Spring |
| (36) | Lower Steering Shaft Assembly |
| (37) | Shift Lever Clevis |
| (38) | Cam Bushing |
| (39) | Linear Shift Shaft Assembly |
| (40) | Flat Head Tapping Screw |
| (41) | Shift
Lever Gate |
| (42) | Oval Head 6-Lobed Socket Tapping Screw |
| (43) | Gear Shift Lever Support Bracket |
| (44) | Actuator Bushing |
| (45) | Cable Shift Cam Assembly |
| (46) | Actuator Bushing |
| (47) | Hexagon Flange
Head Bolt |
| (48) | Park Lock Cable Assembly |
| (49) | Linear Shift Assembly |
| (50) | Hexagon Flange Head Bolt |
| (51) | Ball and Actuator Assembly |
| (52) | Actuator
Bushing |
| (53) | TORX® Head Screws |
| (54) | Pivot Pin |
| (54) | Pivot Pin |
| (55) | Steering Column Support Assembly |
| (56) | Steering Column Jacket Assembly |
| (57) | Adapter and Bearing Assembly |
| (58) | Shaft Seal Retainer |
| (59) | Steering Shaft Seal |
| (60) | Inner Boot Seal |
| (61) | Electrical
(BTSI) Actuator |
| (62) | Coupling and Steering Shaft Assembly |
| (63) | Large Flange
Hexagon Nut |
| (64) | Round Head Locking Bolt |
