Ground Distribution Schematics. Isuzu S/T Isuzu

For 1990-2009 cars only

Makes 🢒 Isuzu 🢒 1999 🢒 S/T Isuzu - 4WD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

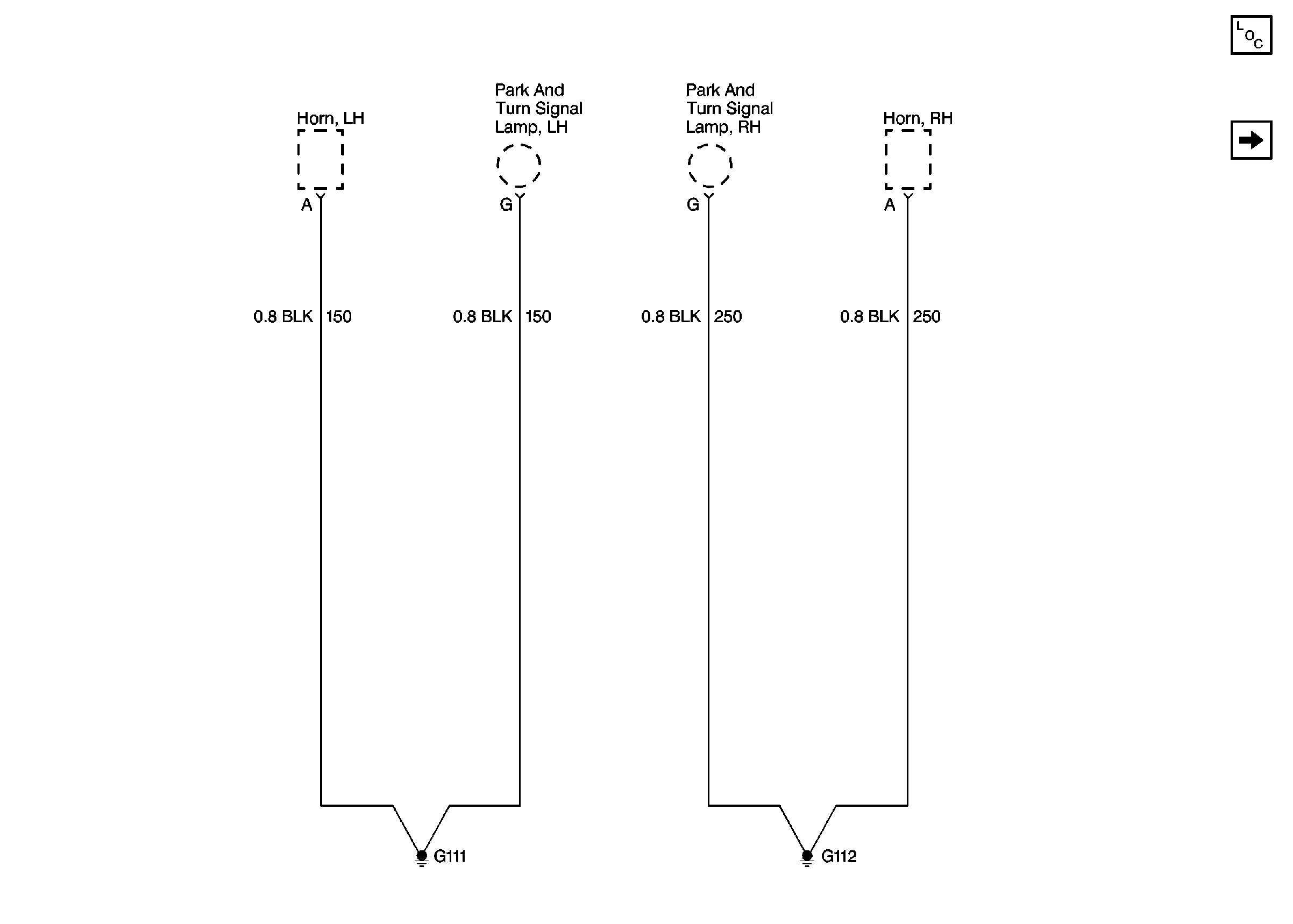

Figure 1:	Cell 14: G111 and G112 Power and Grounding Components Cell 14: G106, G107, G108, G110 and G118

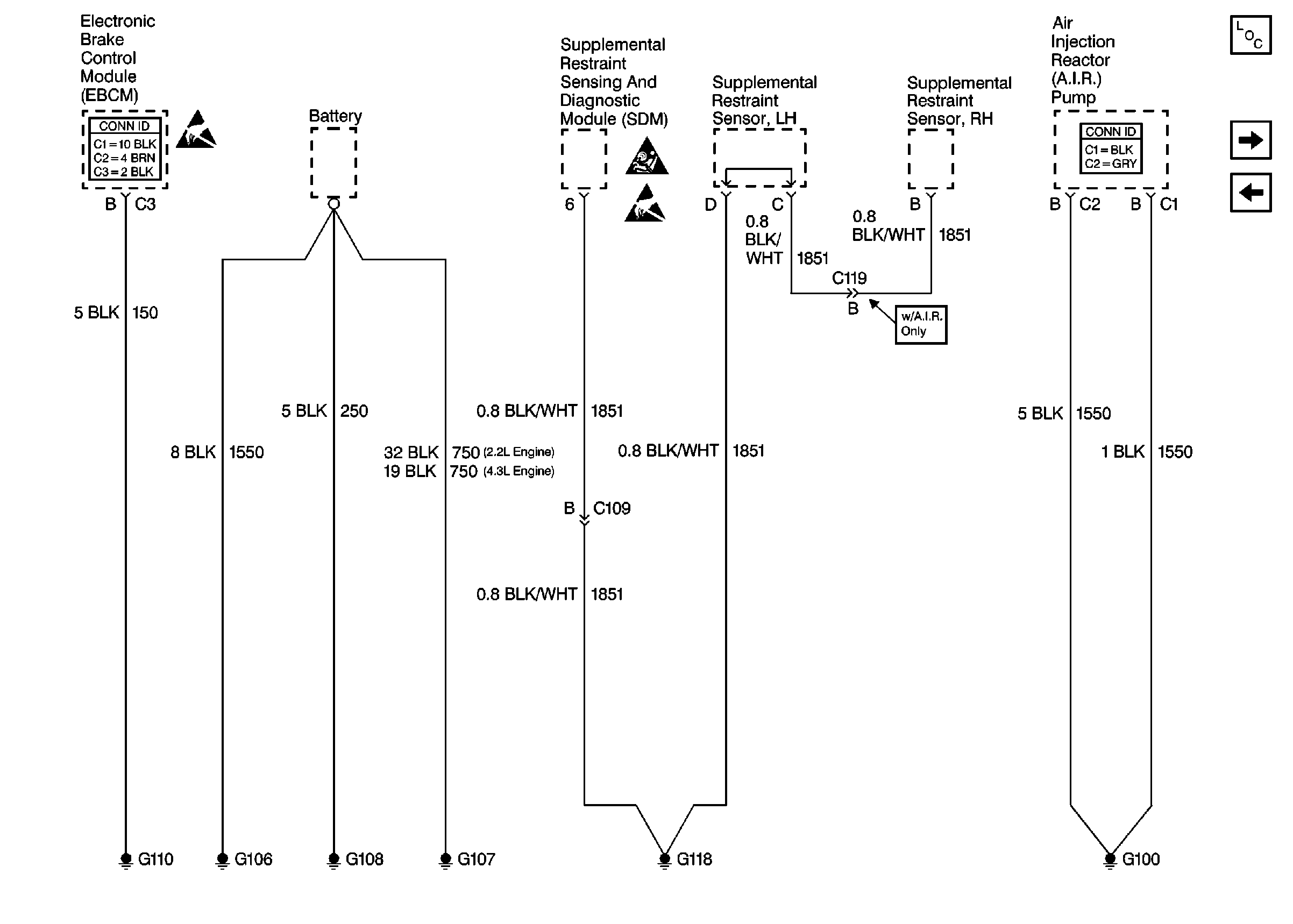

Figure 2:	Cell 14: G106, G107, G108, G110 and G118 Antilock Brake System Connector End Views Handling ESD Sensitive Parts Notice SRS Service Precautions Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: Underhood Grounds Cell 14: G111 and G112

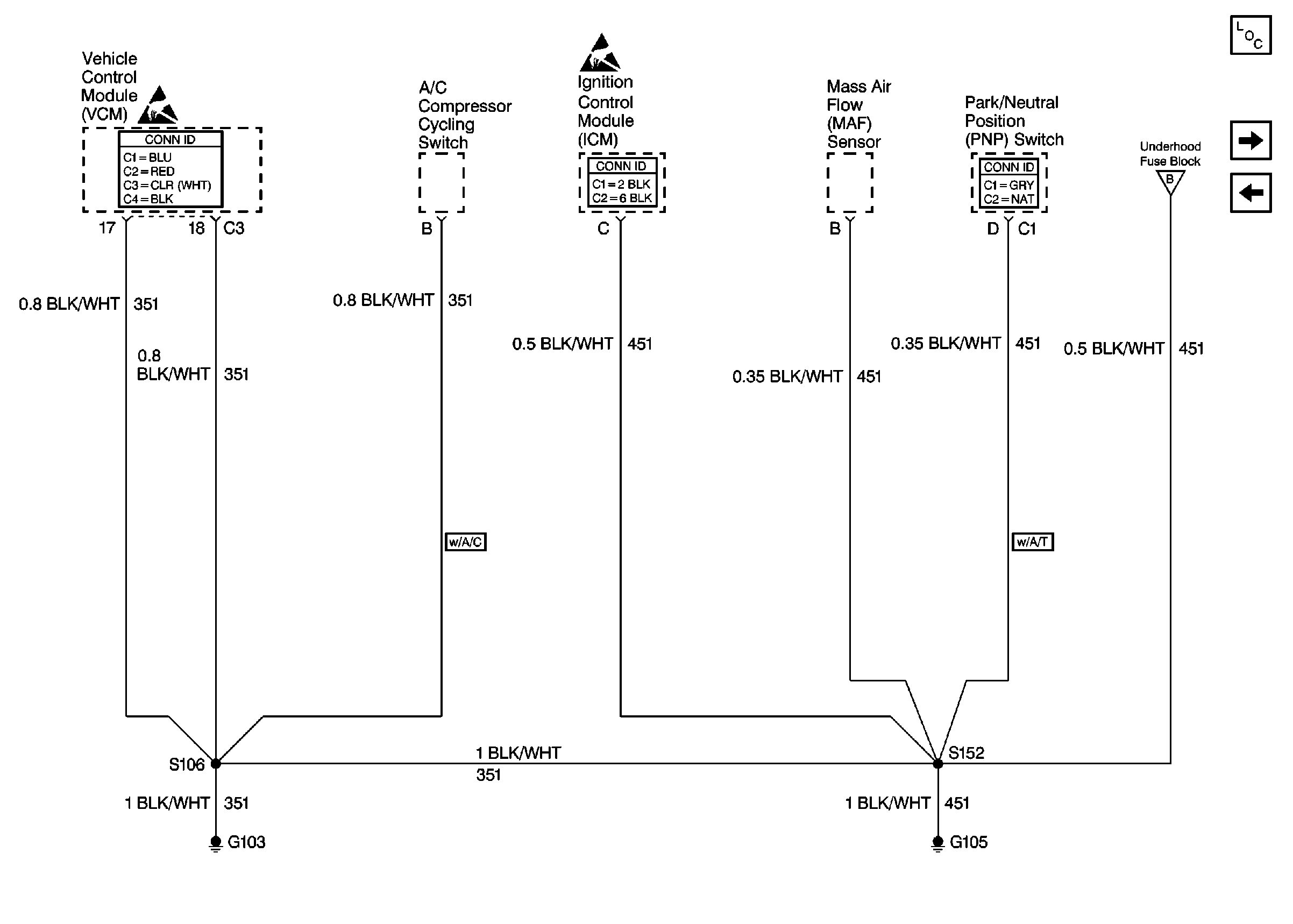

Figure 3:	Cell 14: Underhood Grounds Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Antilock Brake System Connector End Views Power and Grounding Components Cell 14: G102 Cell 14: G106, G107, G108, G110 and G118 Power and Grounding Connector End Views Cell 14: G103 and G105 (2.2L) Cell 14: G103 and G105 (4.3L)

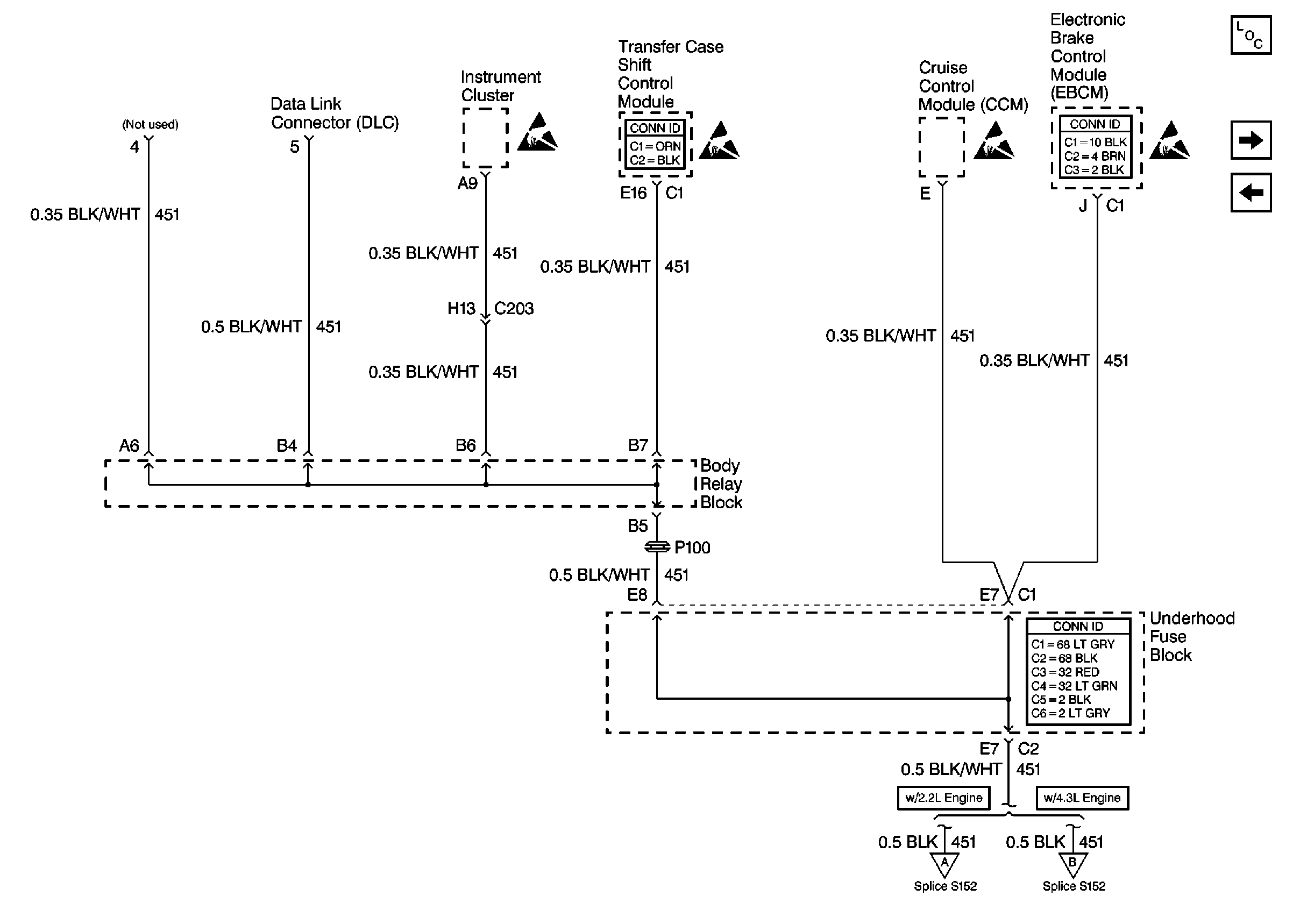

Figure 4:	Cell 14: G102 Power and Grounding Components Cell 14: G103 and G105 (4.3L) Cell 14: Underhood Grounds Power and Grounding Connector End Views
Figure 5:	Cell 14: G103 and G105 (4.3L) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice VCM Connector End Views Engine Controls Connector End Views Tilt Wheel/Column Connector End Views Cell 14: Underhood Grounds Power and Grounding Components Cell 14: G104 and G117 Cell 14: G102

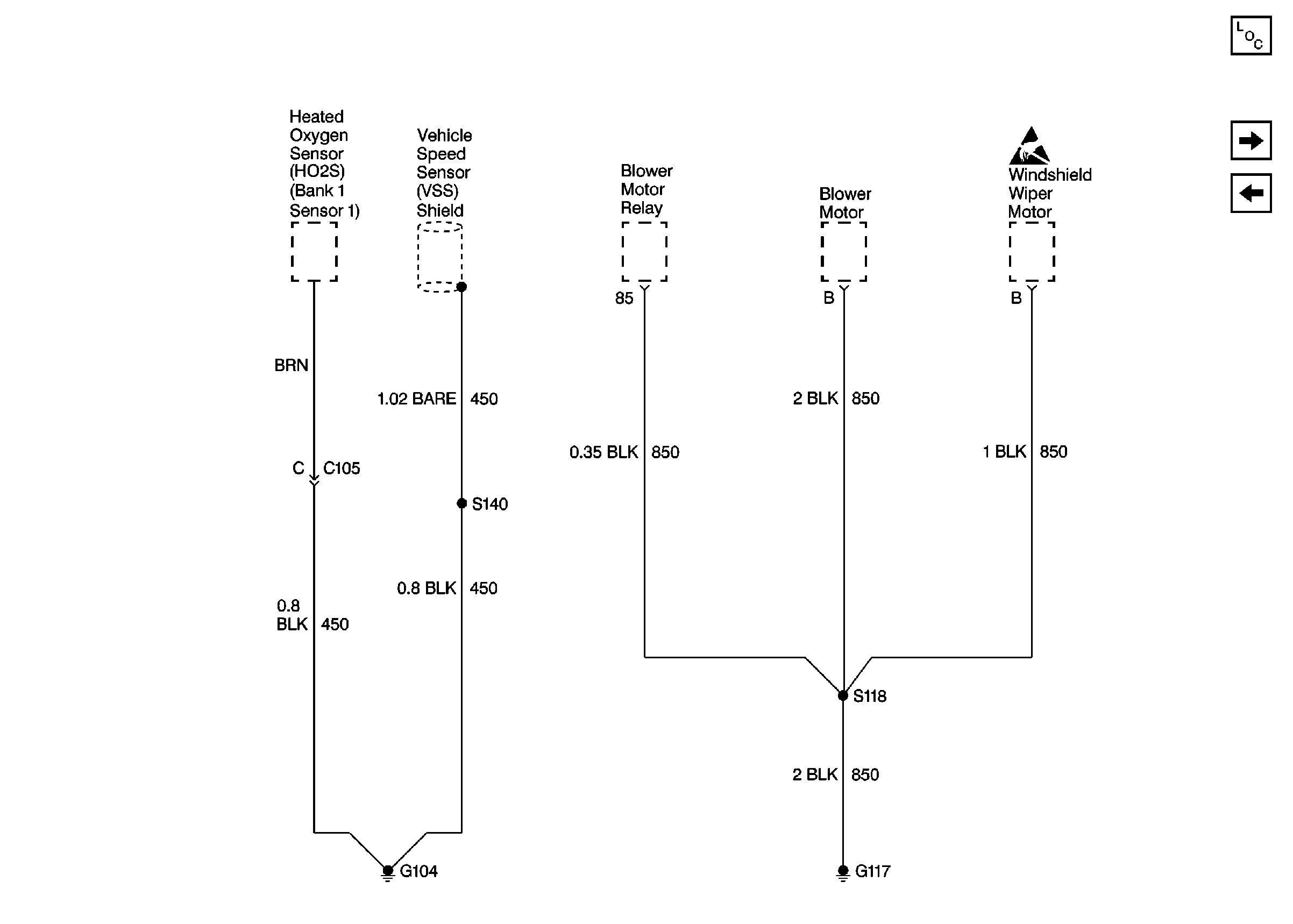

Figure 6:	Cell 14: G104 and G117 Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G200, G201 and G207 Cell 14: G103 and G105 (4.3L)

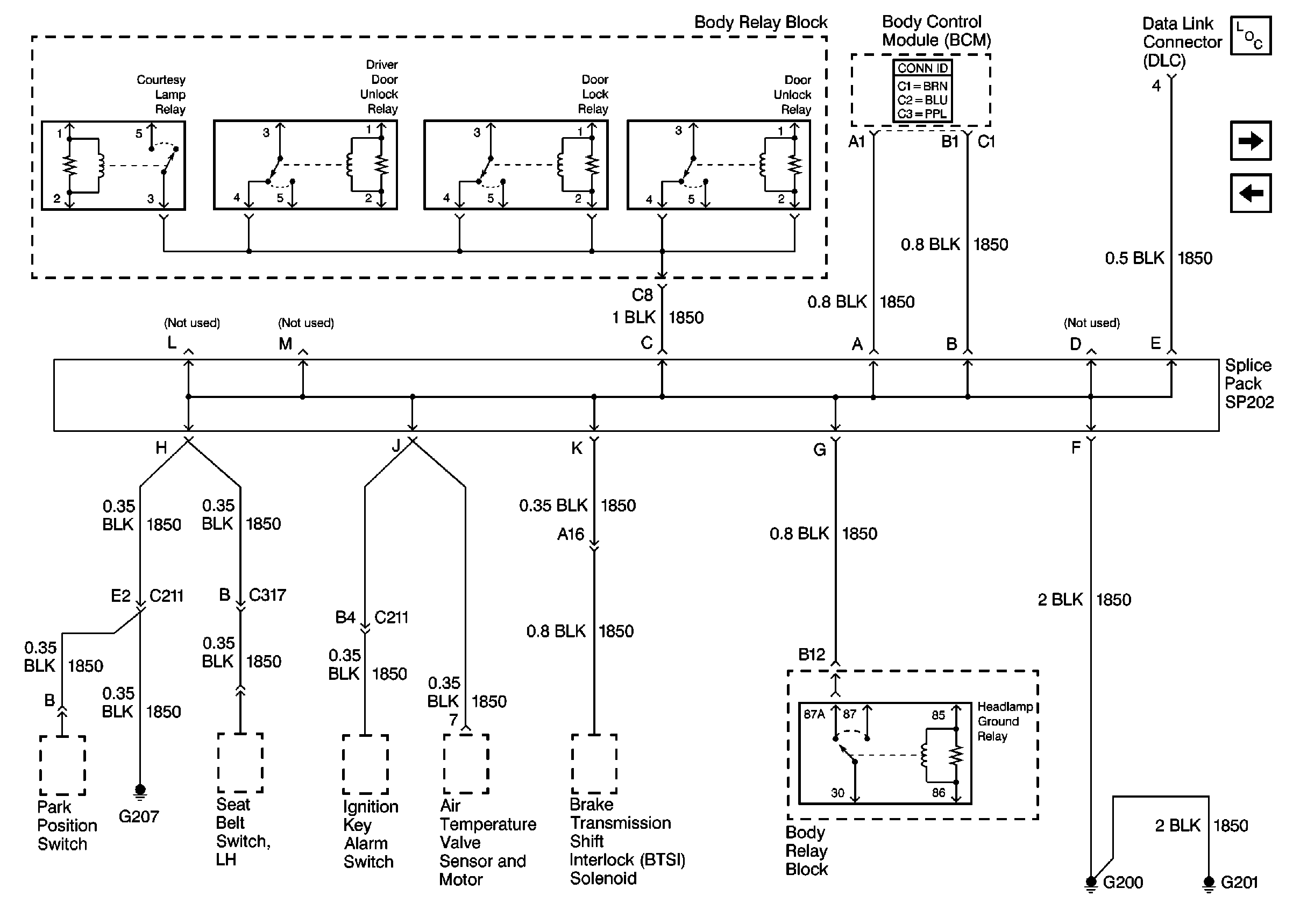

Figure 7:	Cell 14: G200, G201 and G207 Body Control System Connector End Views Power and Grounding Components Cell 14: G202 Cell 14: G104 and G117

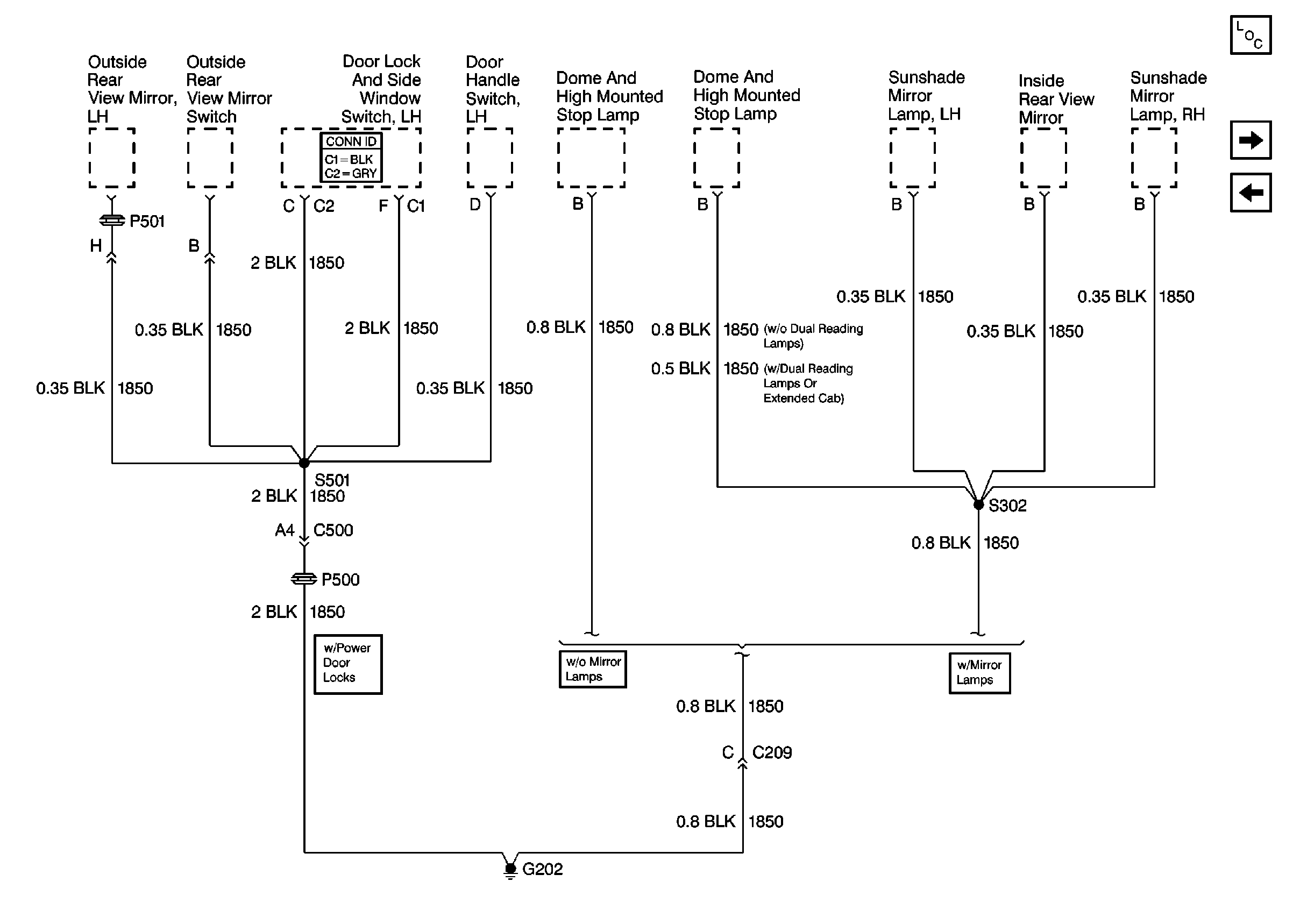

Figure 8:	Cell 14: G202 Power Door Systems Connector End Views Power and Grounding Components Cell 14: G103 and G105 (2.2L) Cell 14: G200, G201 and G207

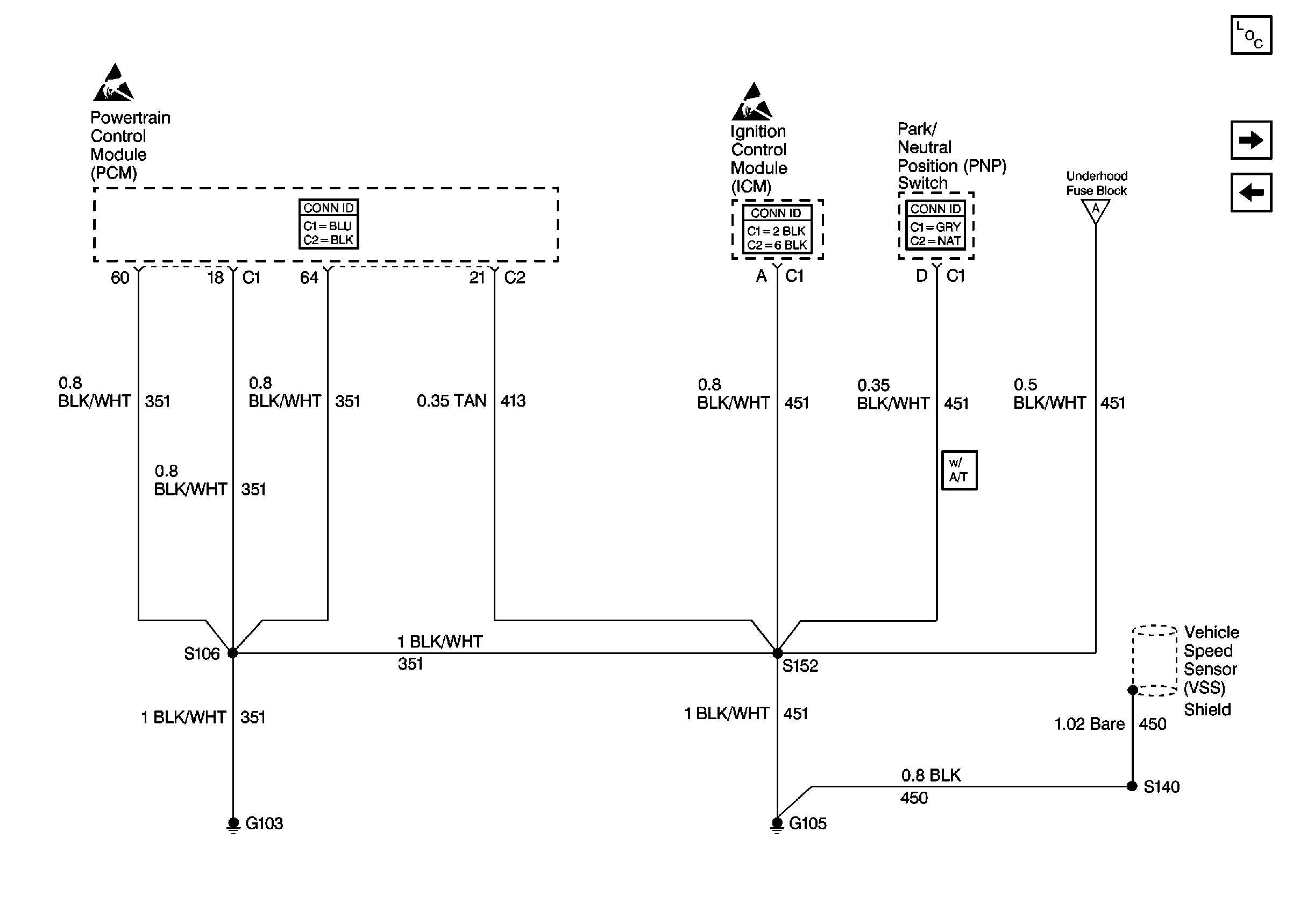

Figure 9:	Cell 14: G103 and G105 (2.2L) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice VCM Connector End Views Tilt Wheel/Column Connector End Views Powertrain Control Module Connector End Views Cell 14: Underhood Grounds Power and Grounding Components Cell 14: G203 and G204 Cell 14: G202

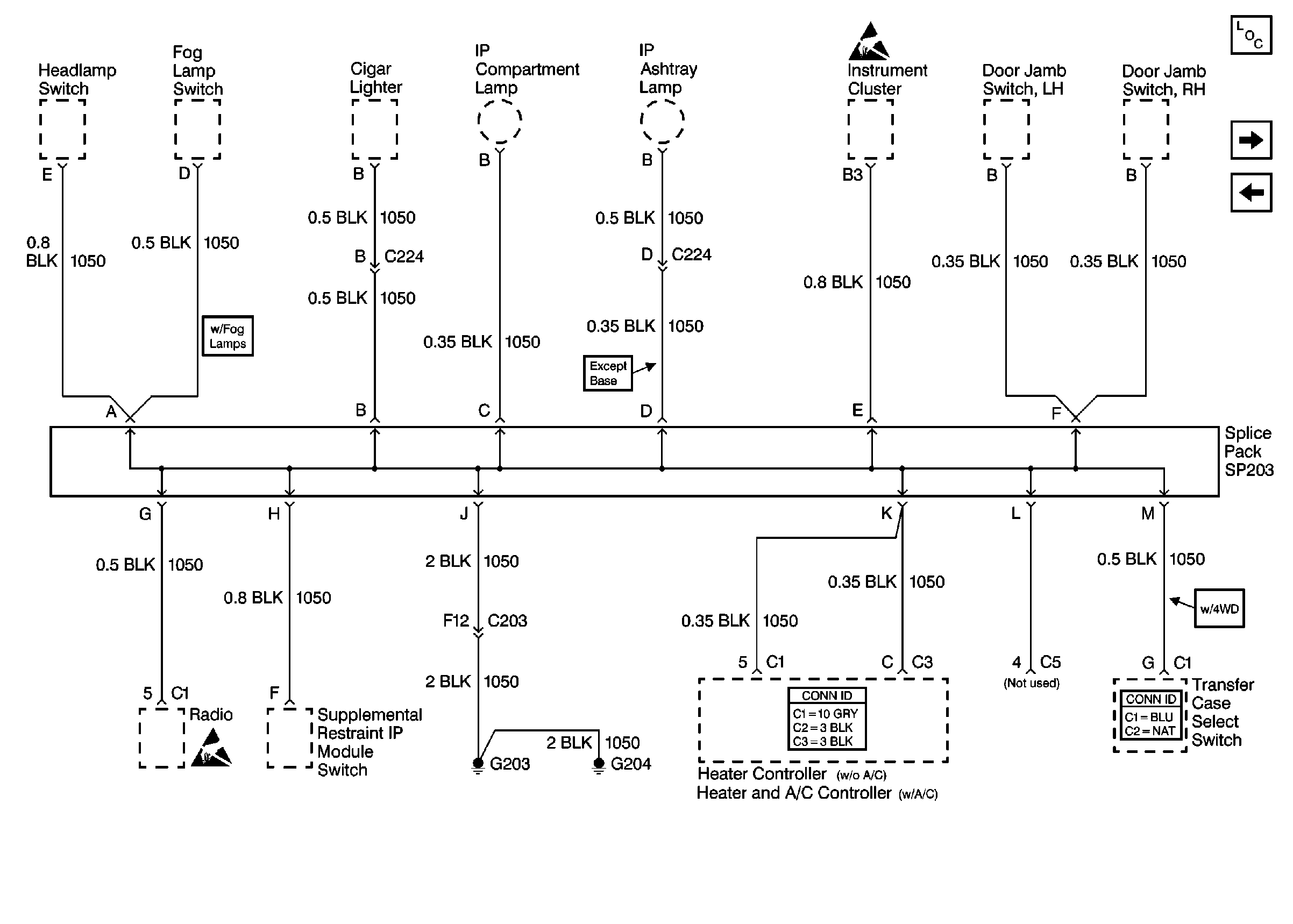

Figure 10:	Cell 14: G203 and G204 Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G205 and G206 Cell 14: G103 and G105 (2.2L) Handling ESD Sensitive Parts Notice Transfer Case Control Connector End Views

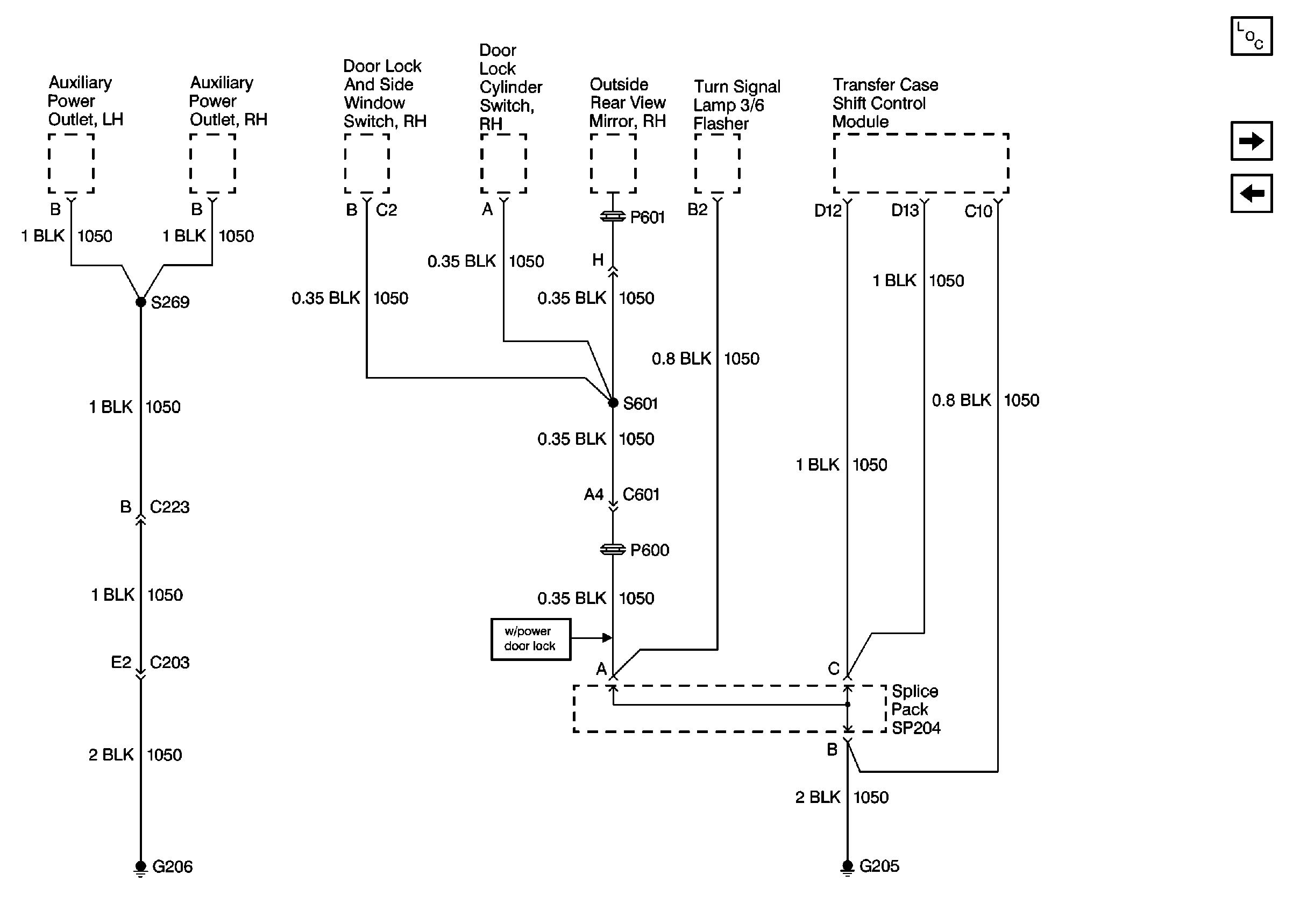

Figure 11:	Cell 14: G205 and G206 Power and Grounding Components Cell 14: G203 and G204 Cell 14: G402, G422 and G475

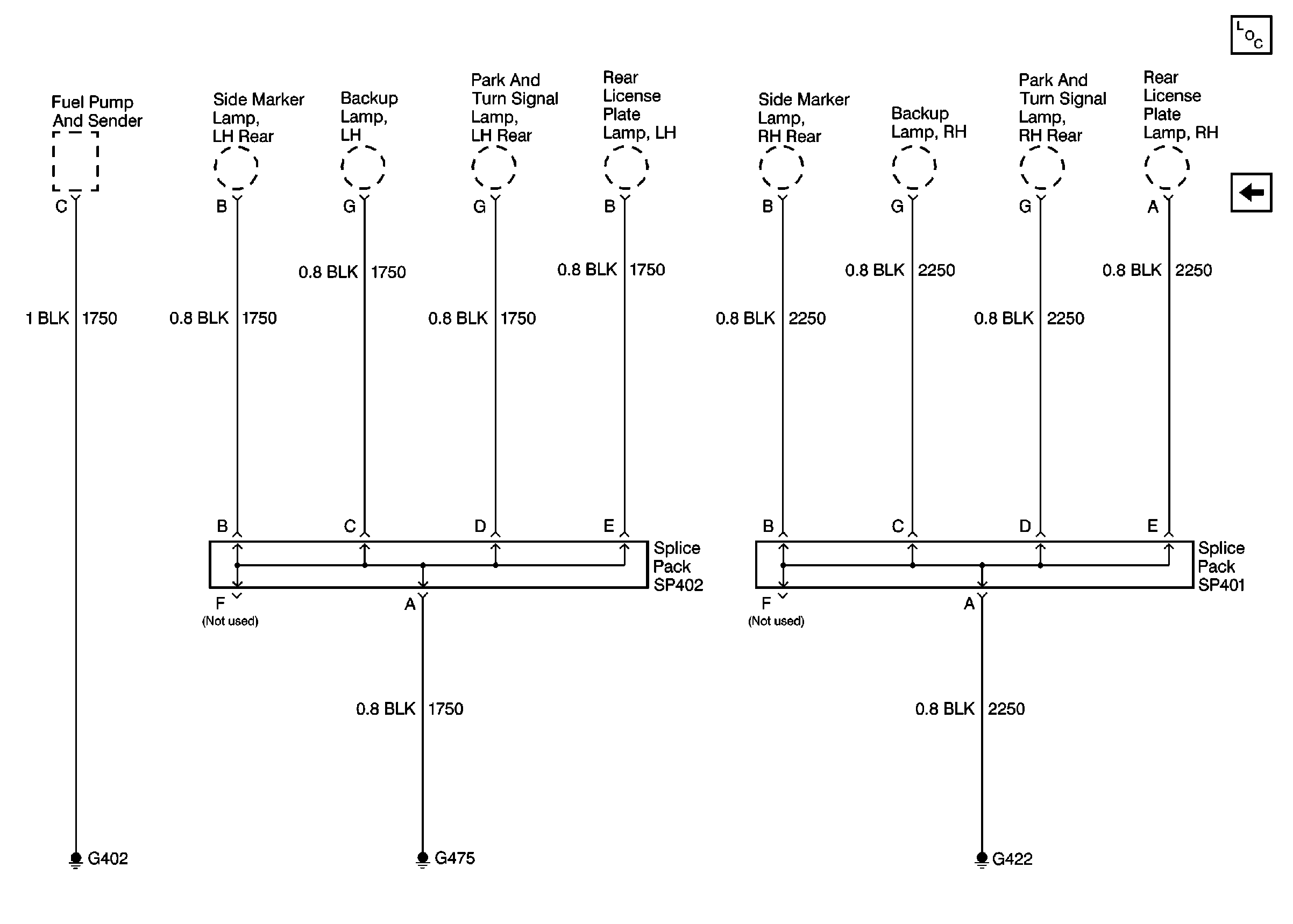

Figure 12:	Cell 14: G402, G422 and G475 Power and Grounding Components Cell 14: G205 and G206
