Power and Grounding Component Views. Oldsmobile Achieva 1998

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 1998 🢒 Achieva 🢒 Brakes 🢒 Antilock Brake System 🢒 Power and Grounding Component Views

Figure 1:


(1)	Steering Column Wiring Branch
(2)	DLC Cover
(3)	Screw
(4)	DLC
(5)	Rear Defogger Relay
(6)	Fuse Block

Figure 2:


(1)	S112
(1)	S112
(1)	S112
(2)	Brake Fluid Level Switch
(3)	ABS Solenoid Lead
(4)	S417
(5)	S102
(6)	Engine Harness
(6)	Engine Harness
(7)	ABS Motor Pack Connector
(8)	Electronic Brake Control Relay
(9)	S174
(10)	ABS Motor Pack Connector Retainer
(11)	Engine Wiring Harness Clip
(12)	Air Cleaner Support

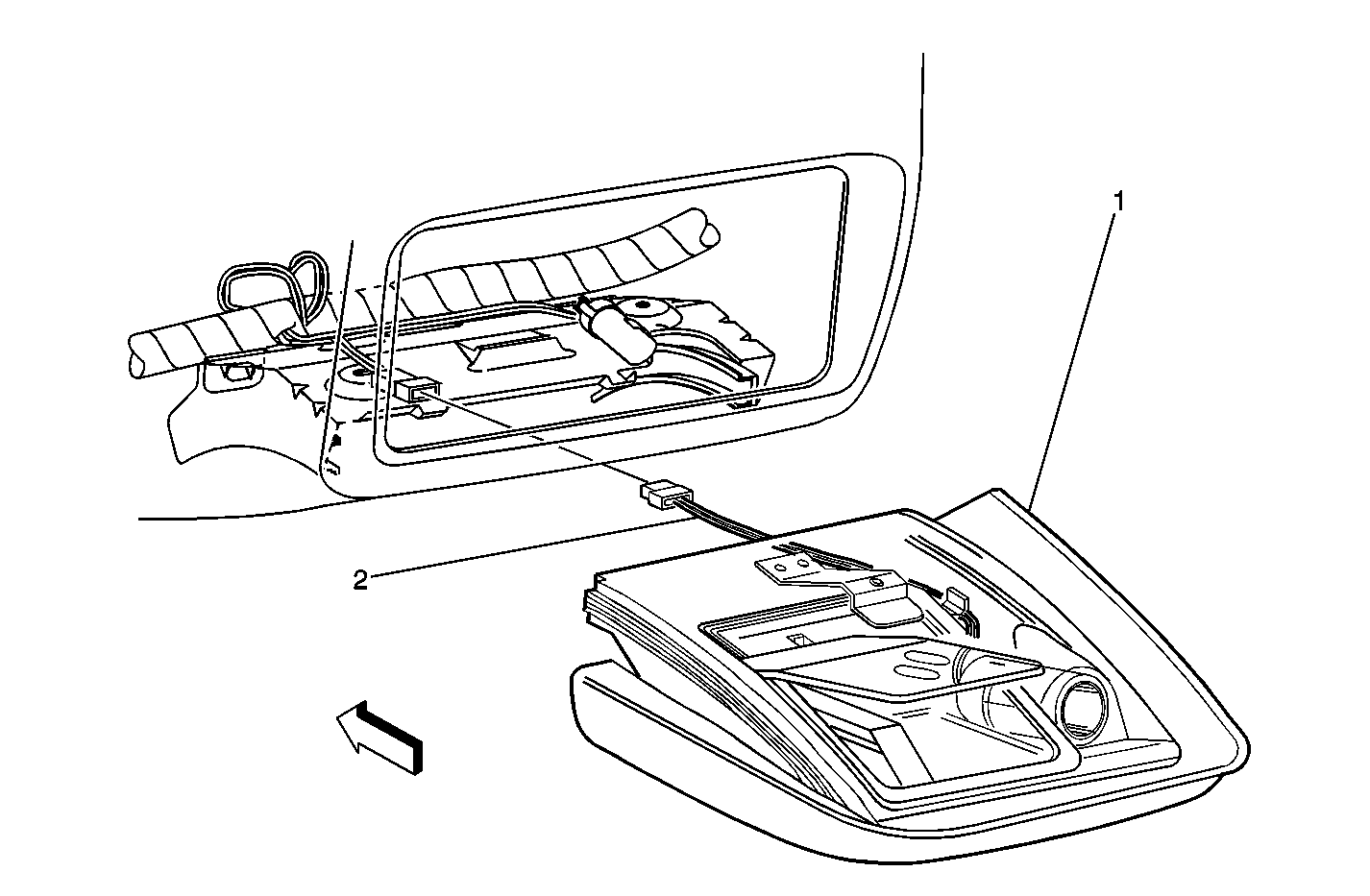

Figure 3:


(1)	Ashtray
(2)	Cigar Lighter Lead

Figure 4:

Figure 5:


(1)	S119
(2)	S195
(3)	S414
(4)	S106
(5)	S170
(6)	S173
(7)	Blower Motor Resistor Connector
(8)	Wire Harness Installed Channel
(9)	Electric Brake Control Module Connector
(10)	Blower Motor
(11)	Blower Motor Feed Connector
(12)	Auxiliary Discriminating Sensor Harness
(13)	Blower Motor Ground
(14)	Blower Motor Relay
(15)	A/C Clutch Relay
(16)	Fuel Pump Relay
(17)	Coolant Fan Relay
(18)	A/C Transducer Low Coolant Lead
(19)	S415
(20)	S171

Figure 6:


(1)	Ground Lead
(2)	Transaxle Range Switch
(3)	Trans Shift Cable Bracket
(4)	Engine Wiring Harness
(4)	Engine Wiring Harness
(5)	Engine Harness To Rear Lead
(6)	S111, A/C Diode, S110
(7)	Coolant Fan
(8)	Automatic Transaxle Connector

Figure 7:

Figure 8:

Figure 9:

Figure 10:


(1)	G301
(2)	Sensing Diagnostic Module Connector
(3)	Sensing Diagnostic Module
(4)	S301
(5)	S419
(6)	S331

Figure 11:

Figure 12:


(1)	Multifunction Alarm Module
(2)	G200
(3)	S206
(4)	S321
(5)	S101, S435
(6)	S207
(7)	Lamp Dimmer Module Connector
(8)	S232
(9)	S216
(10)	S201
(11)	Convenience Center-to-MICAM Connector
(12)	MICAM Connector

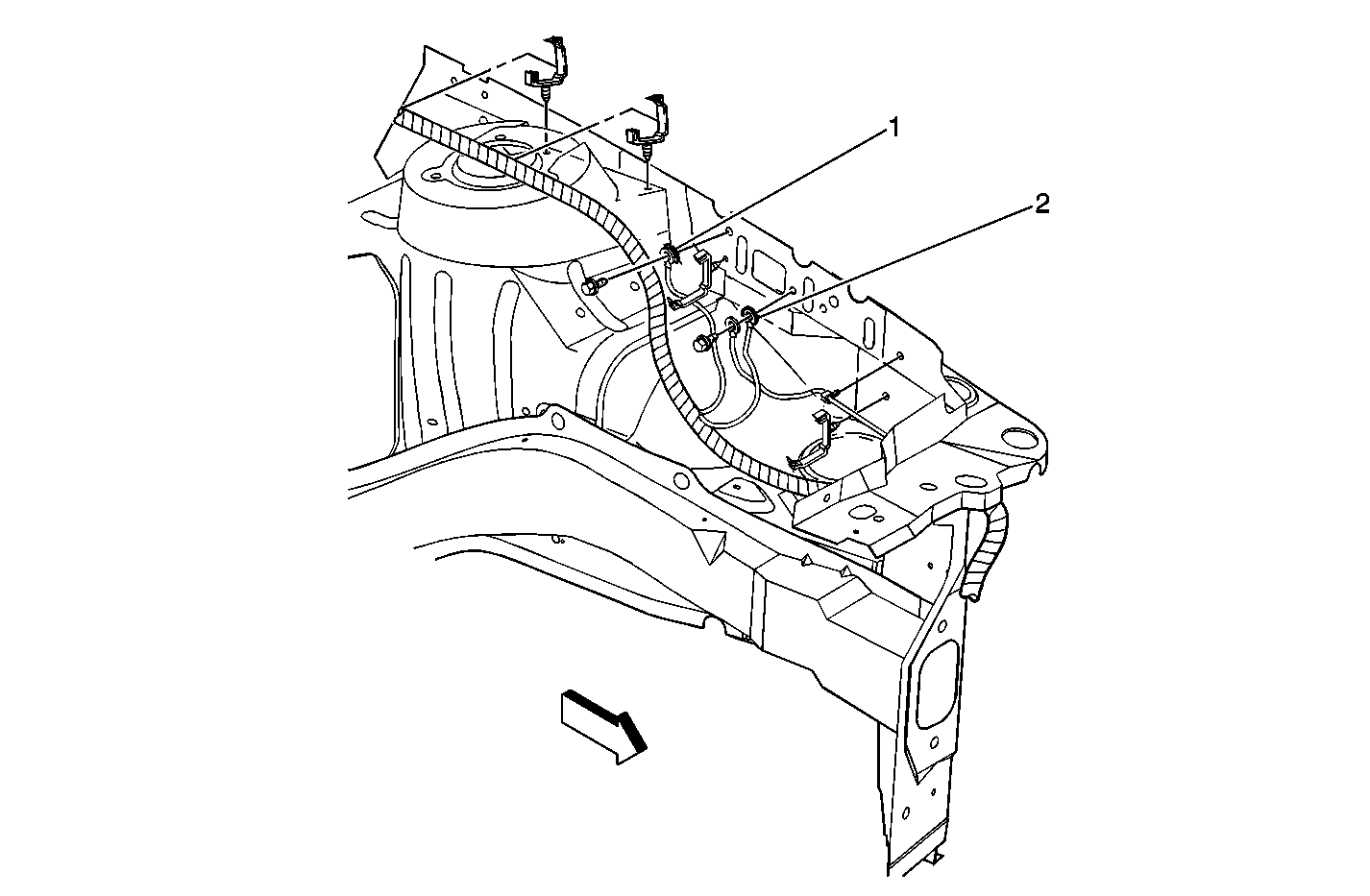

Figure 13:


(1)	G102
(2)	G101

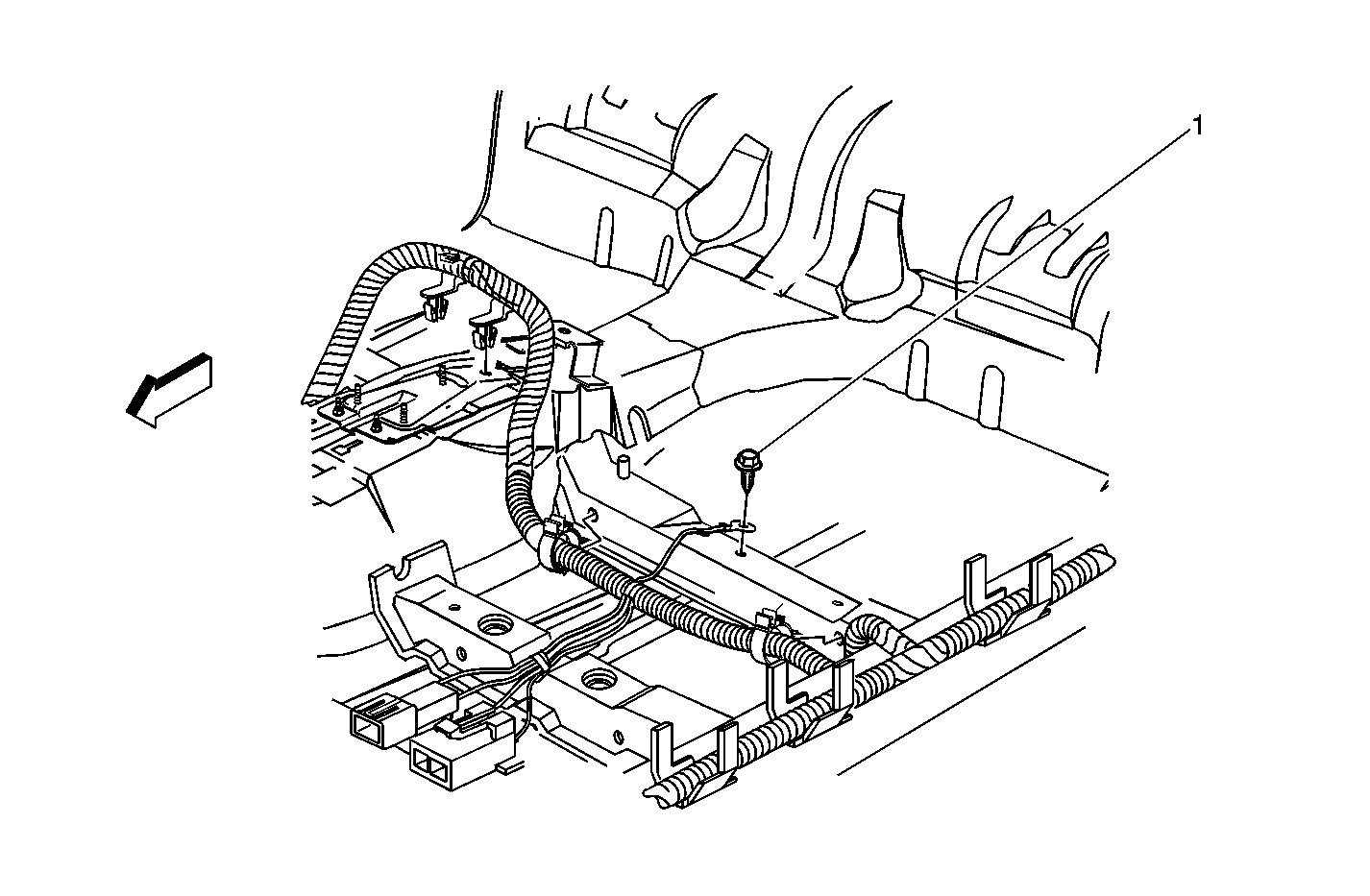

Figure 14:


(1)	G303
