Fuse Block Schematics. Oldsmobile Achieva 1998

For 1990-2009 cars only

Makes 🢒 Oldsmobile 🢒 1998 🢒 Achieva 🢒 Body and Accessories 🢒 Entertainment 🢒 Fuse Block Schematics

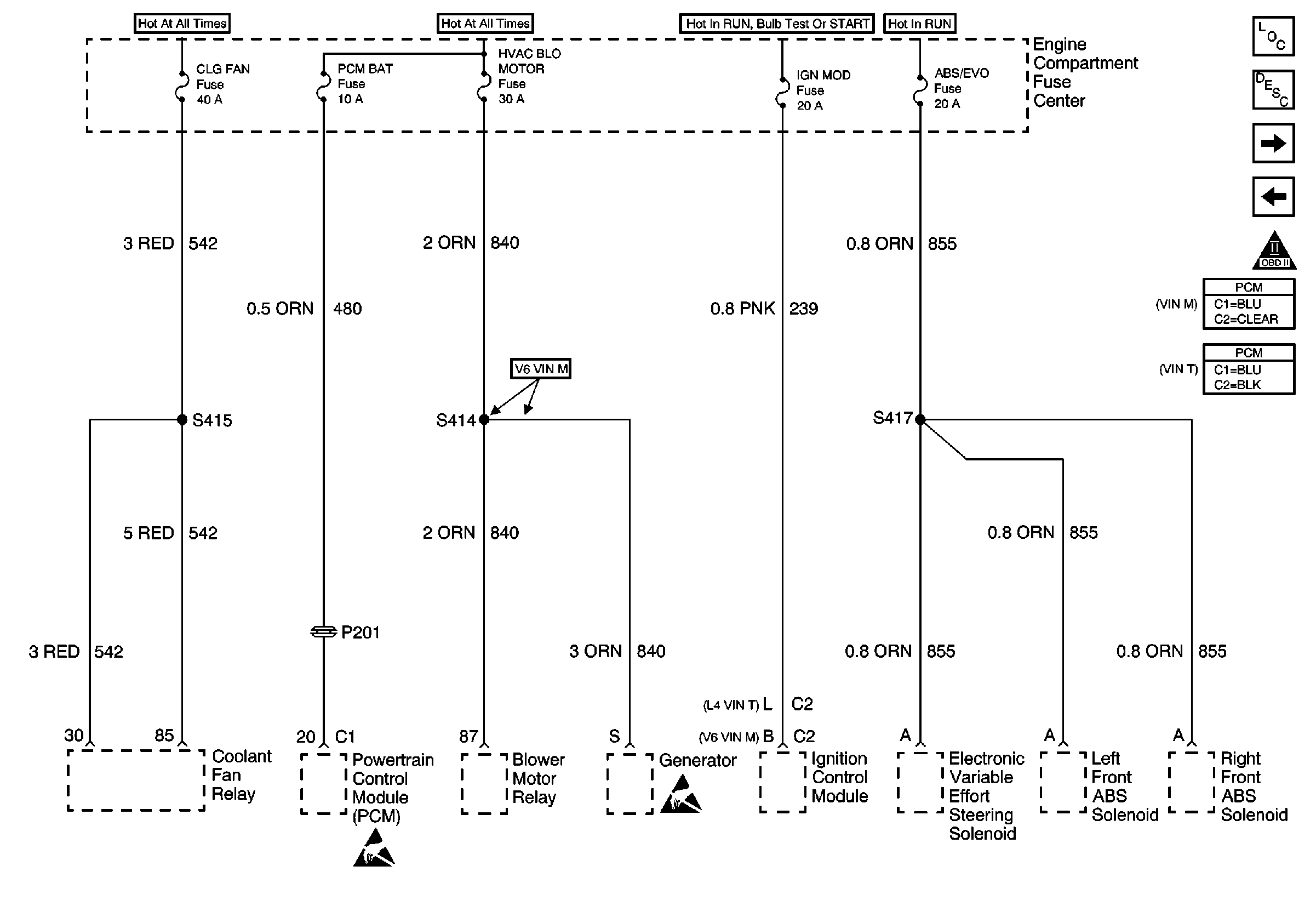

Figure 1:	Cell 11: Fan, PCM Bat, HVAC BLO MOT, and ABS/EVO Fuse Power and Grounding Component Views Cell 11: ERLS and ABS Fuse OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

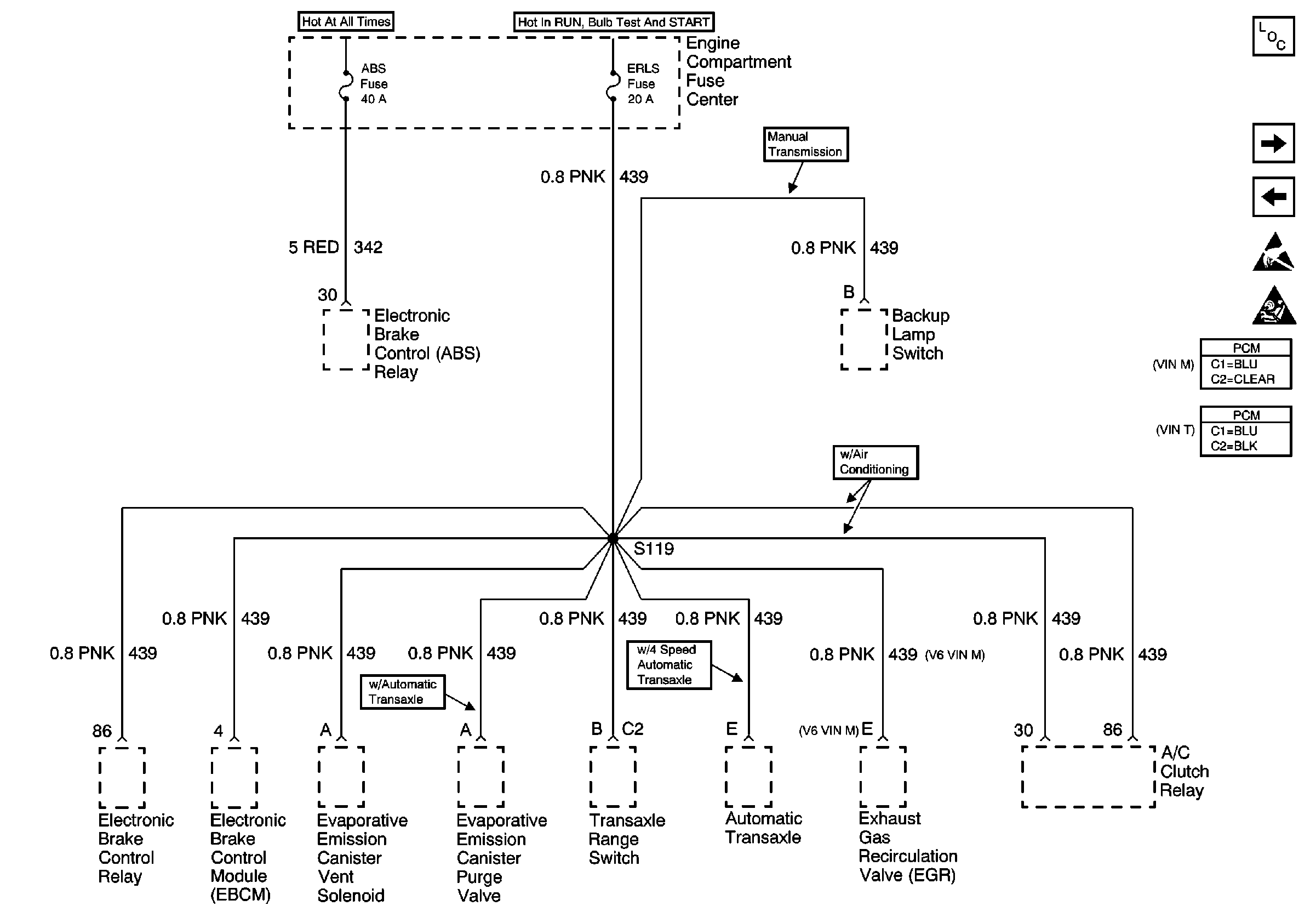

Figure 2:	Cell 11: ERLS and ABS Fuse Power and Grounding Component Views Cell 11: F/R INJR Fuse Cell 11: Fan, PCM Bat, HVAC BLO MOT, and ABS/EVO Fuse Handling ESD Sensitive Parts Notice SIR Caution

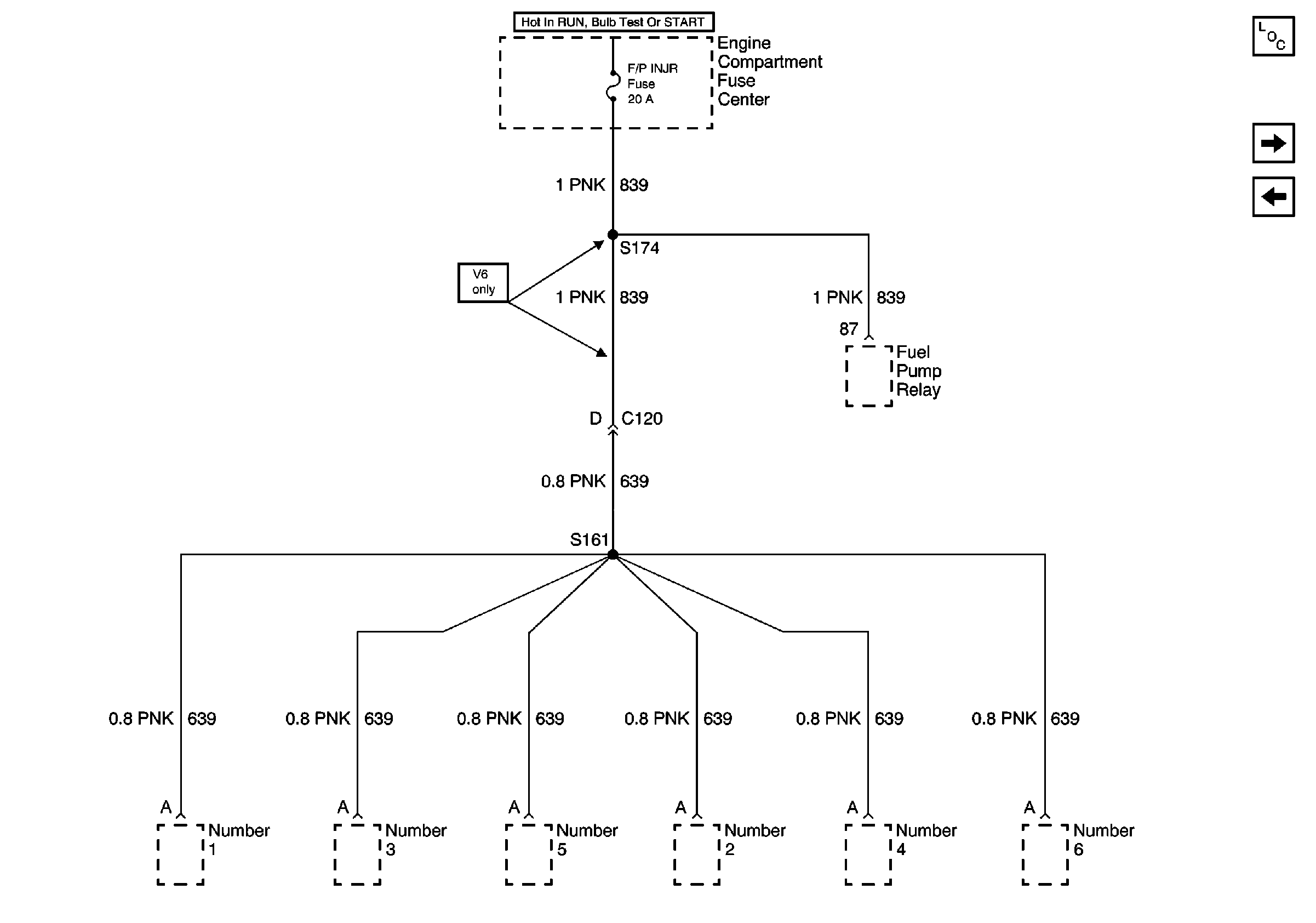

Figure 3:	Cell 11: F/R INJR Fuse Cell 11: Horn, DR LK 1 and Tail LPS Fuse Cell 11: ERLS and ABS Fuse Power and Grounding Component Views

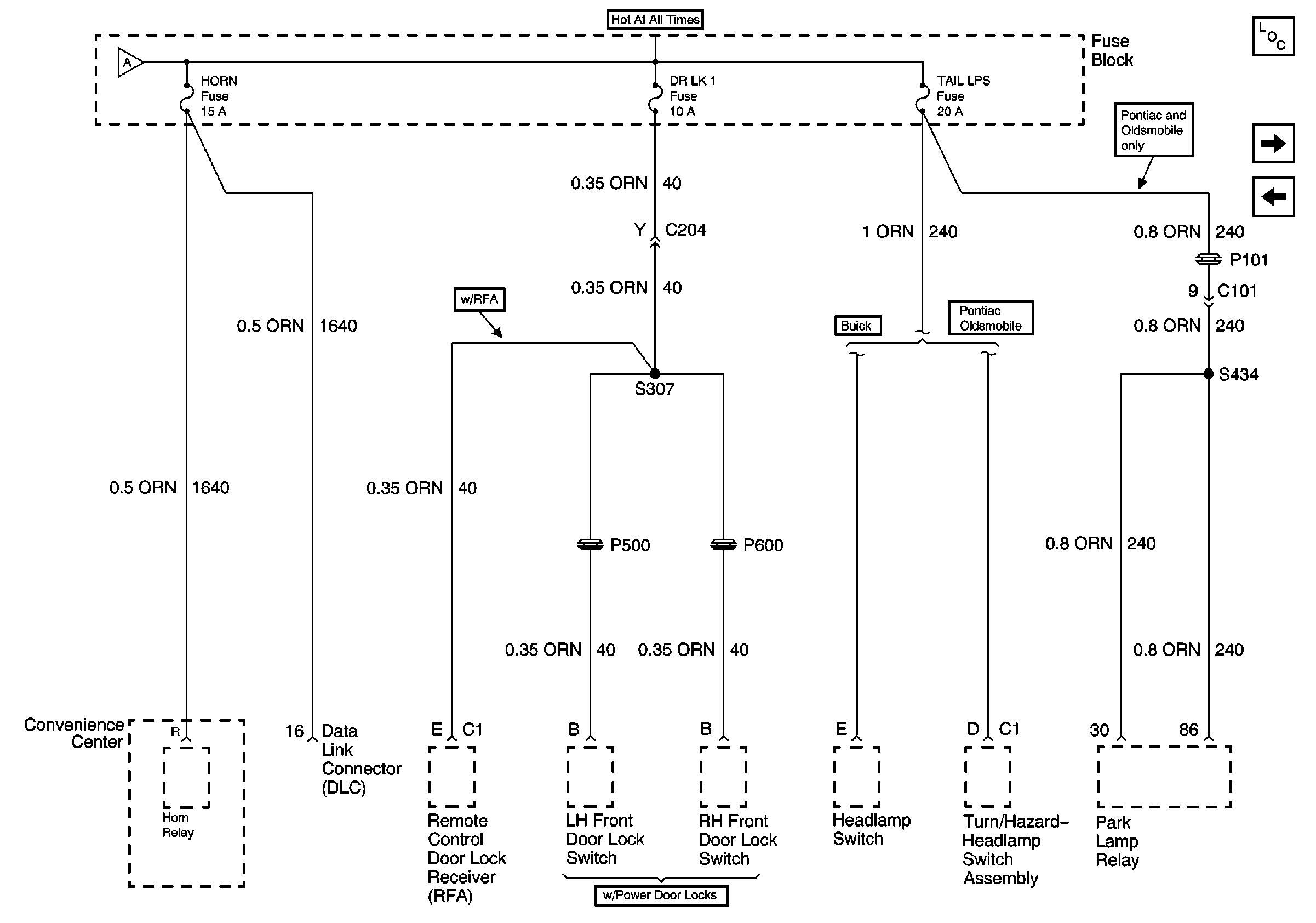

Figure 4:	Cell 11: Horn, DR LK 1 and Tail LPS Fuse Power and Grounding Component Views Cell 11: FTP/FOG and INT LPS Fuse and HDLP Circuit Breaker Cell 11: F/R INJR Fuse

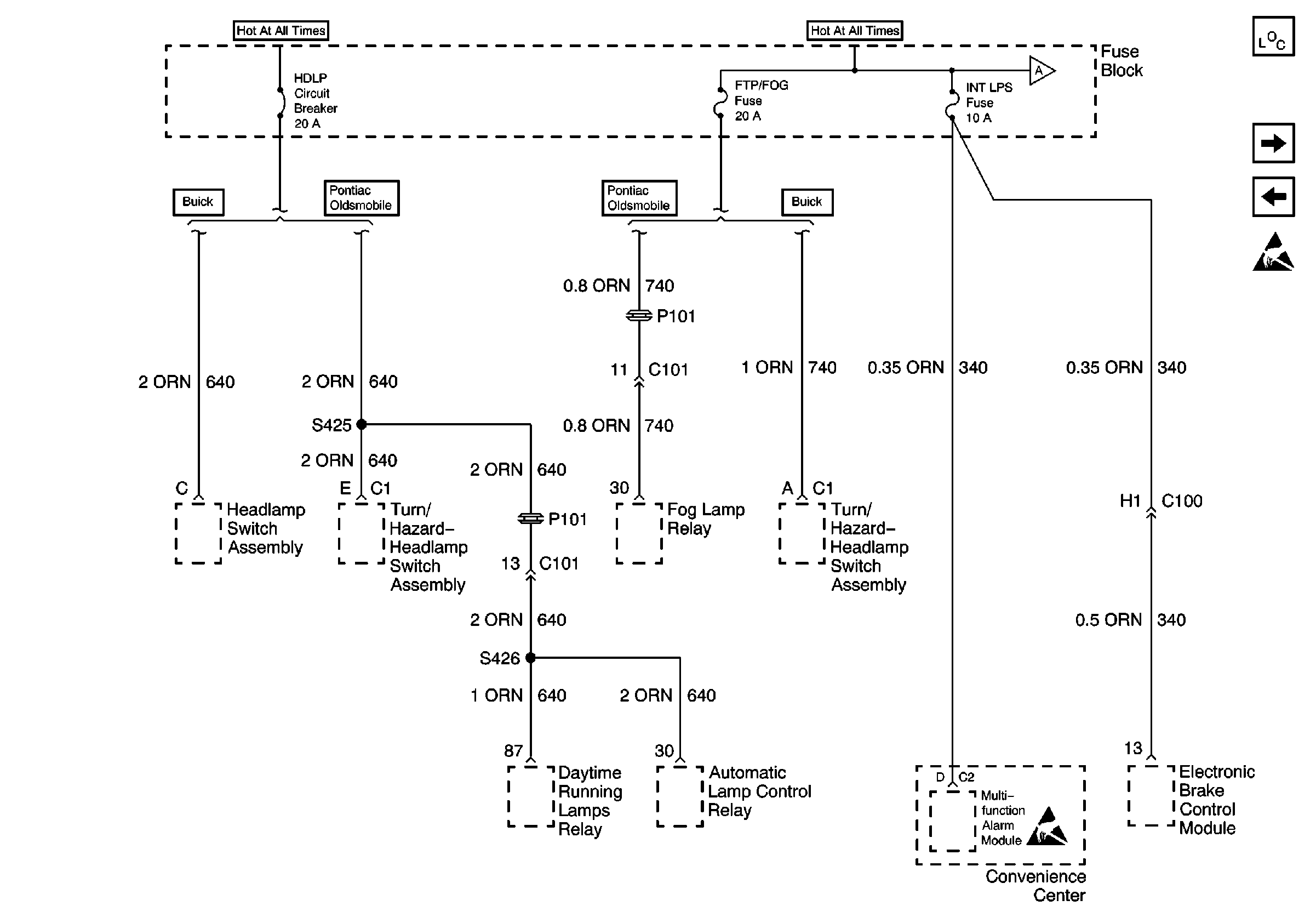

Figure 5:	Cell 11: FTP/FOG and INT LPS Fuse and HDLP Circuit Breaker Power and Grounding Component Views Cell 11: PRNDL Fuse Cell 11: Horn, DR LK 1 and Tail LPS Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

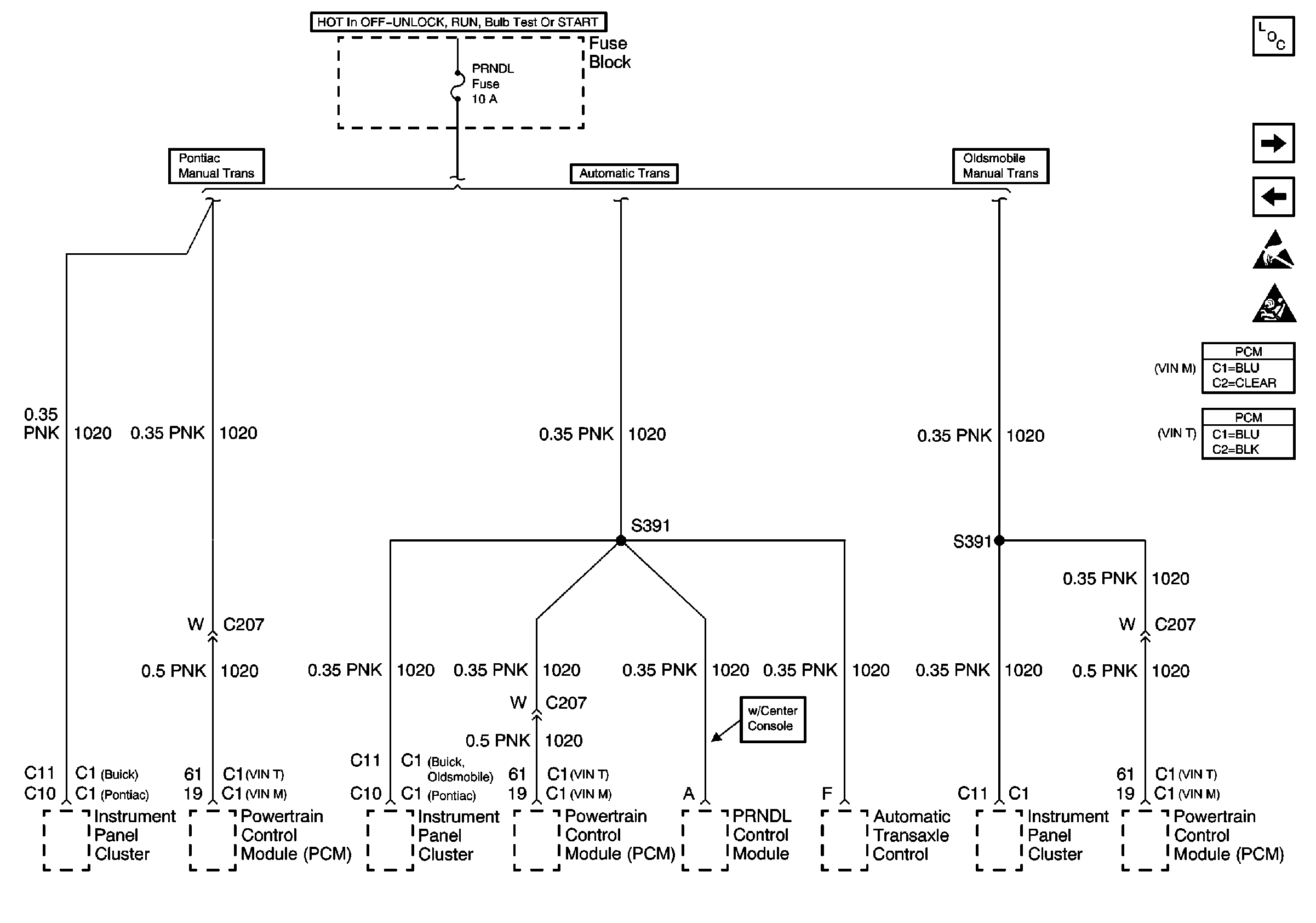

Figure 6:	Cell 11: PRNDL Fuse Power and Grounding Component Views Cell 11: Air Bag and Cruise Fuse Cell 11: FTP/FOG and INT LPS Fuse and HDLP Circuit Breaker Handling ESD Sensitive Parts Notice SIR Caution

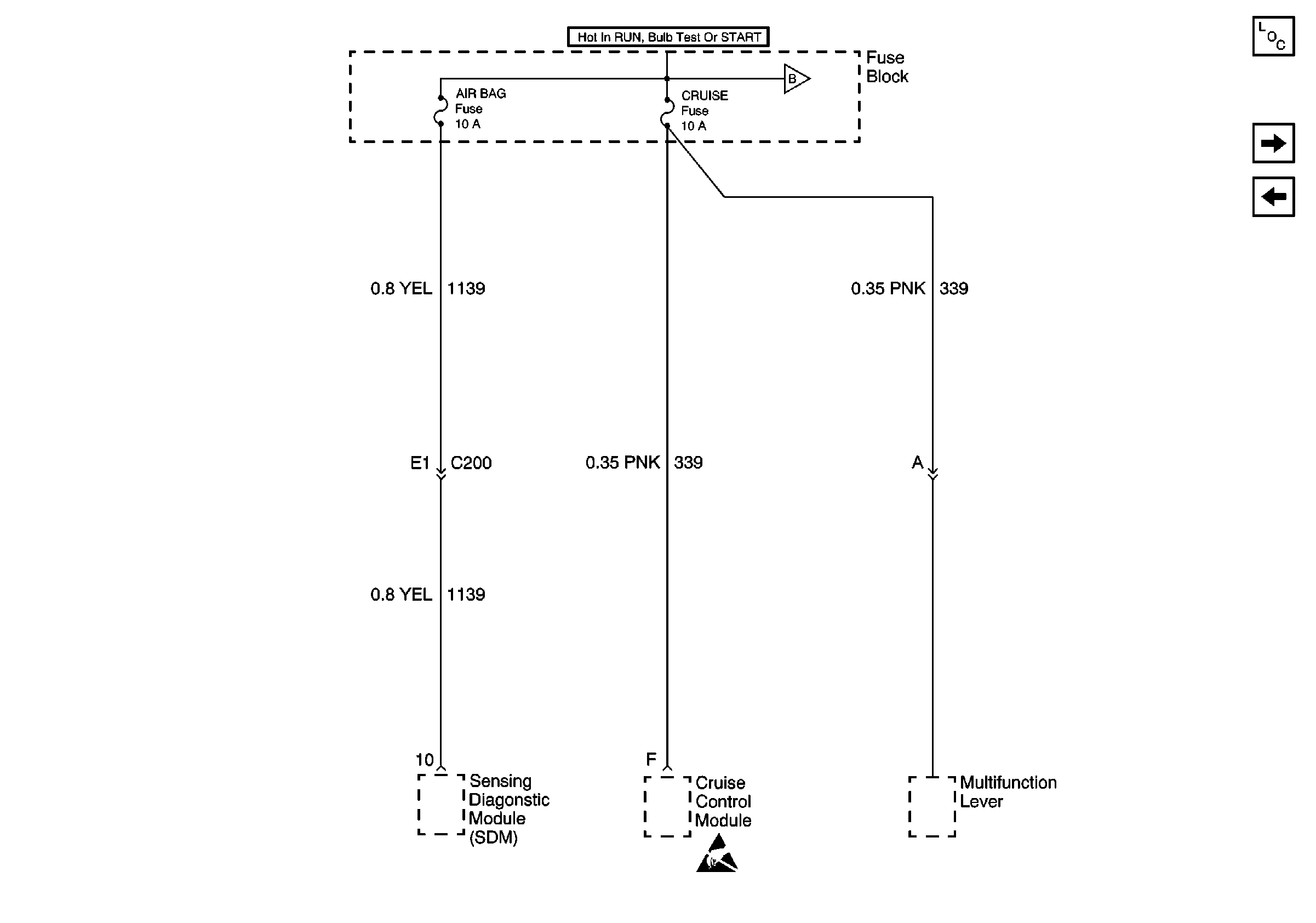

Figure 7:	Cell 11: Air Bag and Cruise Fuse Power and Grounding Component Views Cell 11: Alarm Fuse Cell 11: PRNDL Fuse Handling ESD Sensitive Parts Notice

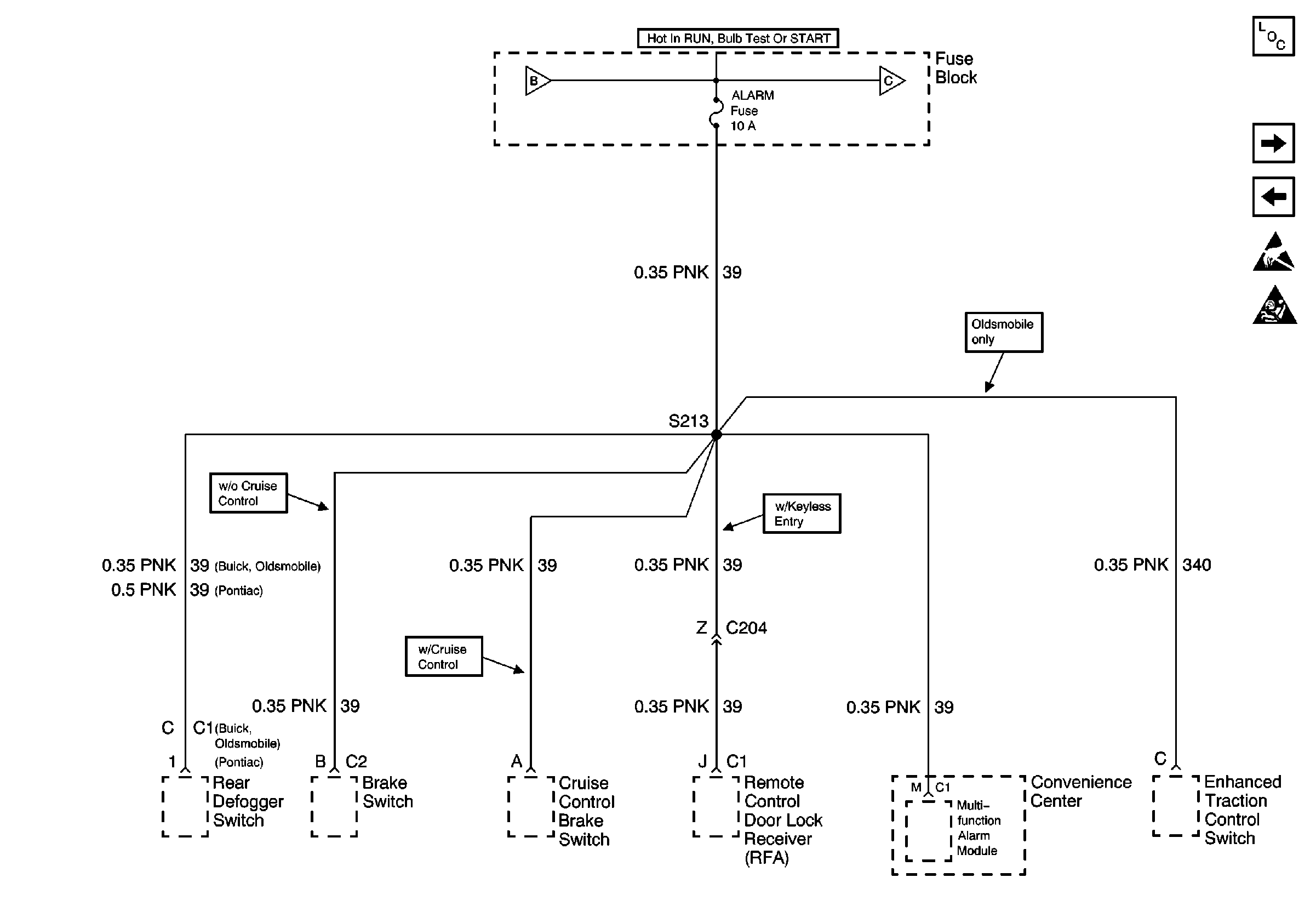

Figure 8:	Cell 11: Alarm Fuse Power and Grounding Component Views Cell 11: Turn and RR Defogger Fuse Cell 11: Air Bag and Cruise Fuse Handling ESD Sensitive Parts Notice SIR Caution

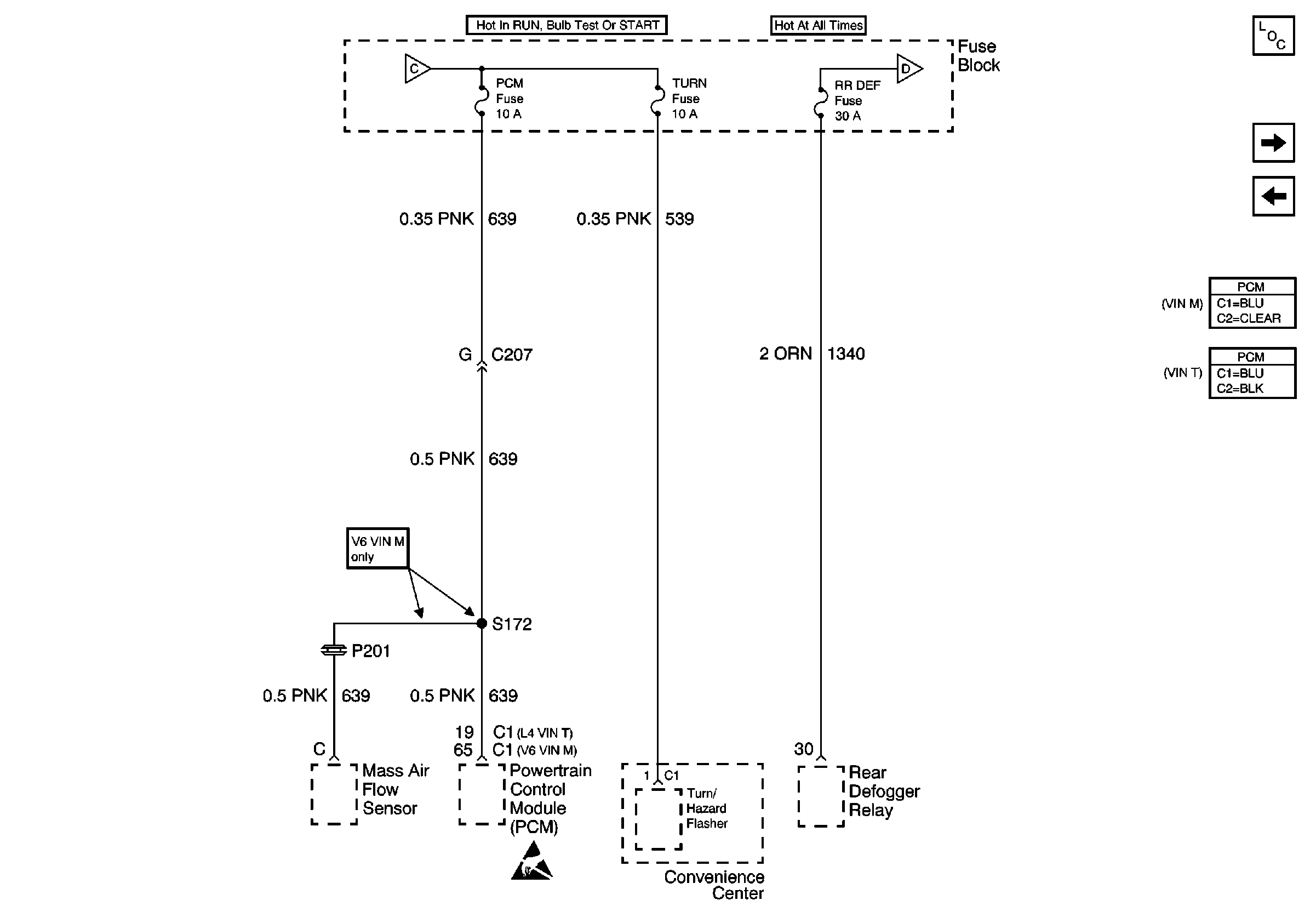

Figure 9:	Cell 11: Turn and RR Defogger Fuse Power and Grounding Component Views Cell 11: Stop Hazard, LTR, PWR ST and DR LK 2 Fuse Cell 11: Alarm Fuse Handling ESD Sensitive Parts Notice

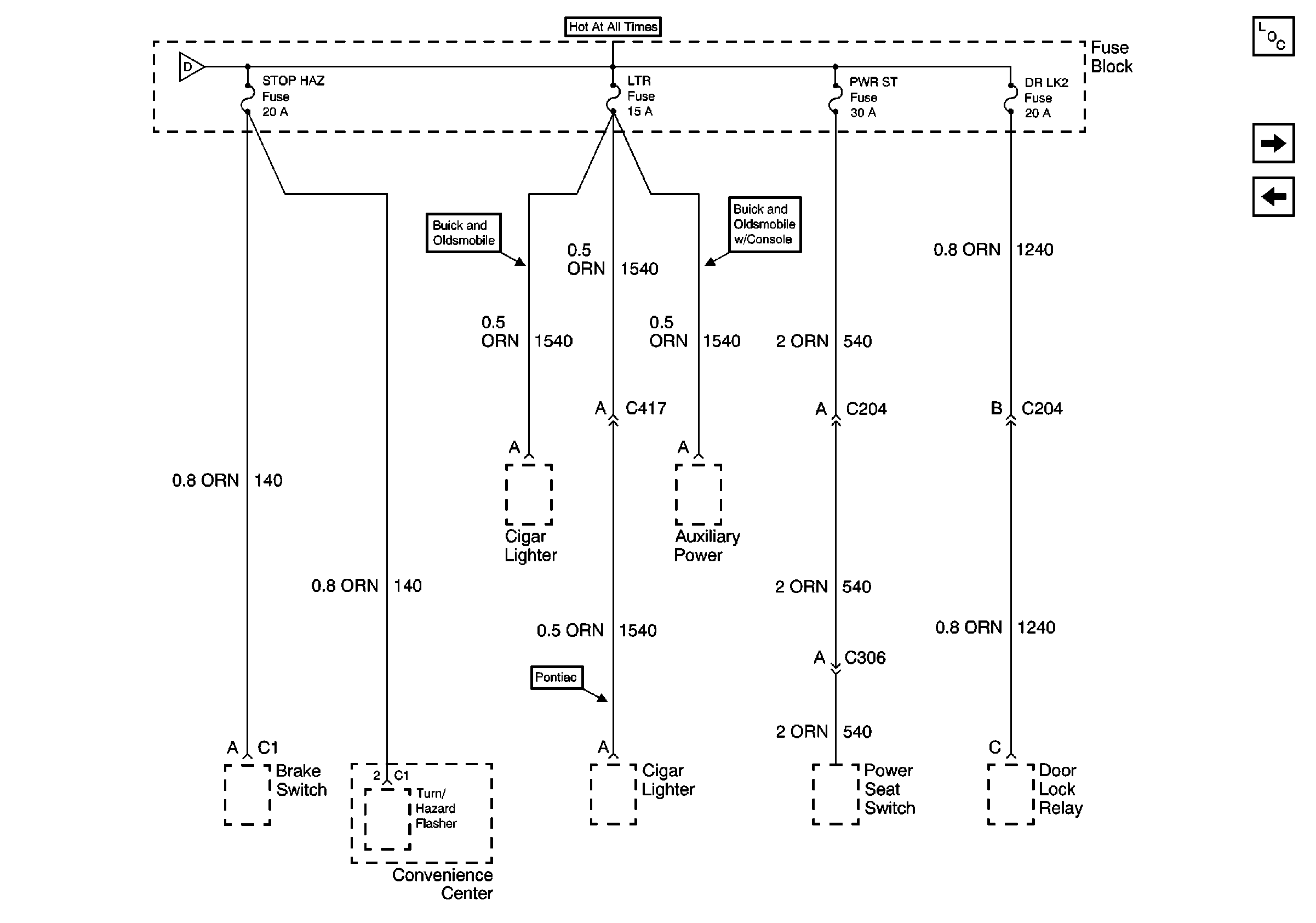

Figure 10:	Cell 11: Stop Hazard, LTR, PWR ST and DR LK 2 Fuse Power and Grounding Component Views Cell 11: A/C and O2 Fuse Cell 11: Turn and RR Defogger Fuse

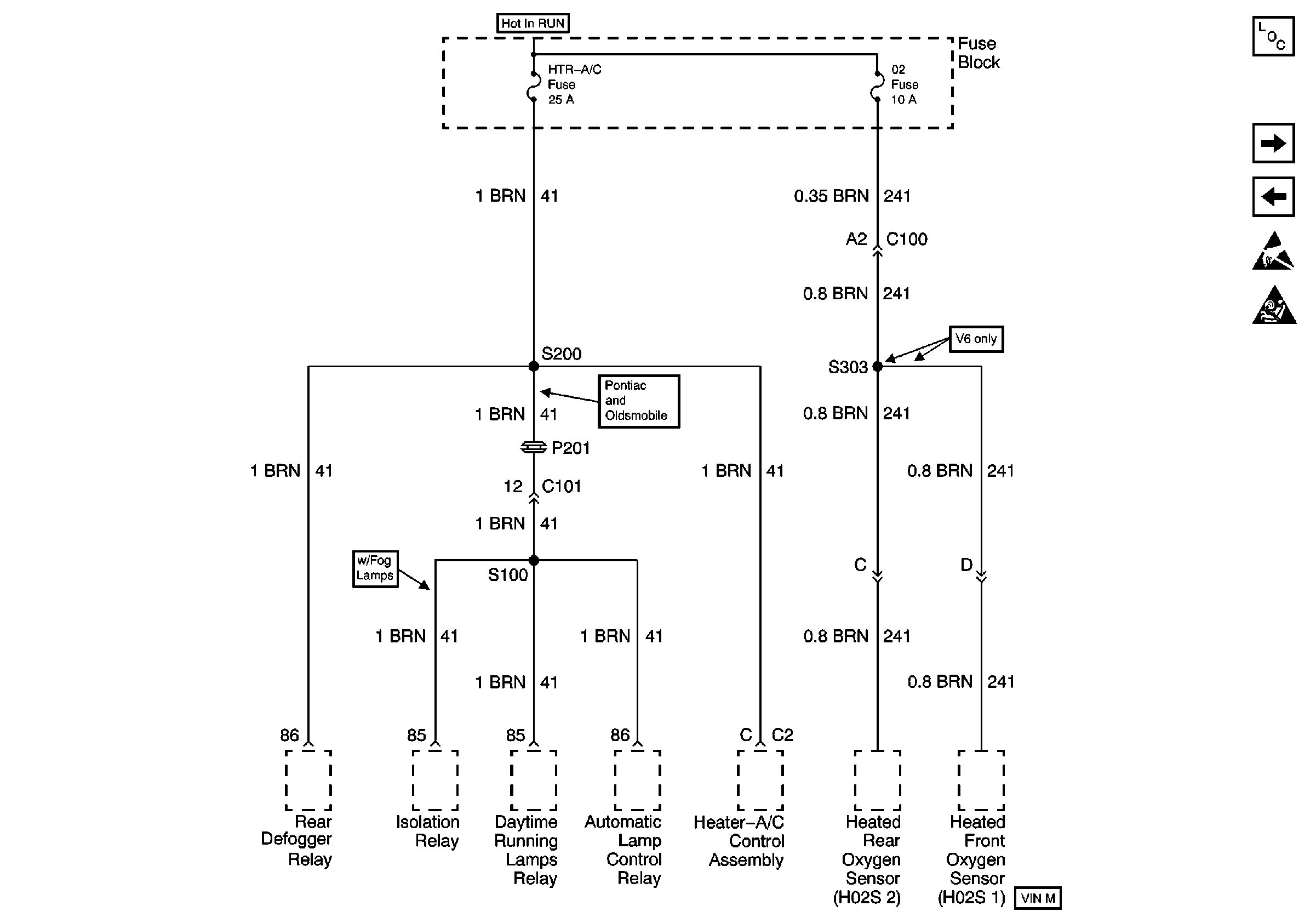

Figure 11:	Cell 11: A/C and O2 Fuse Power and Grounding Component Views Cell 11: DR UNLK, INST LPS Fuse Cell 11: Stop Hazard, LTR, PWR ST and DR LK 2 Fuse Handling ESD Sensitive Parts Notice SIR Caution

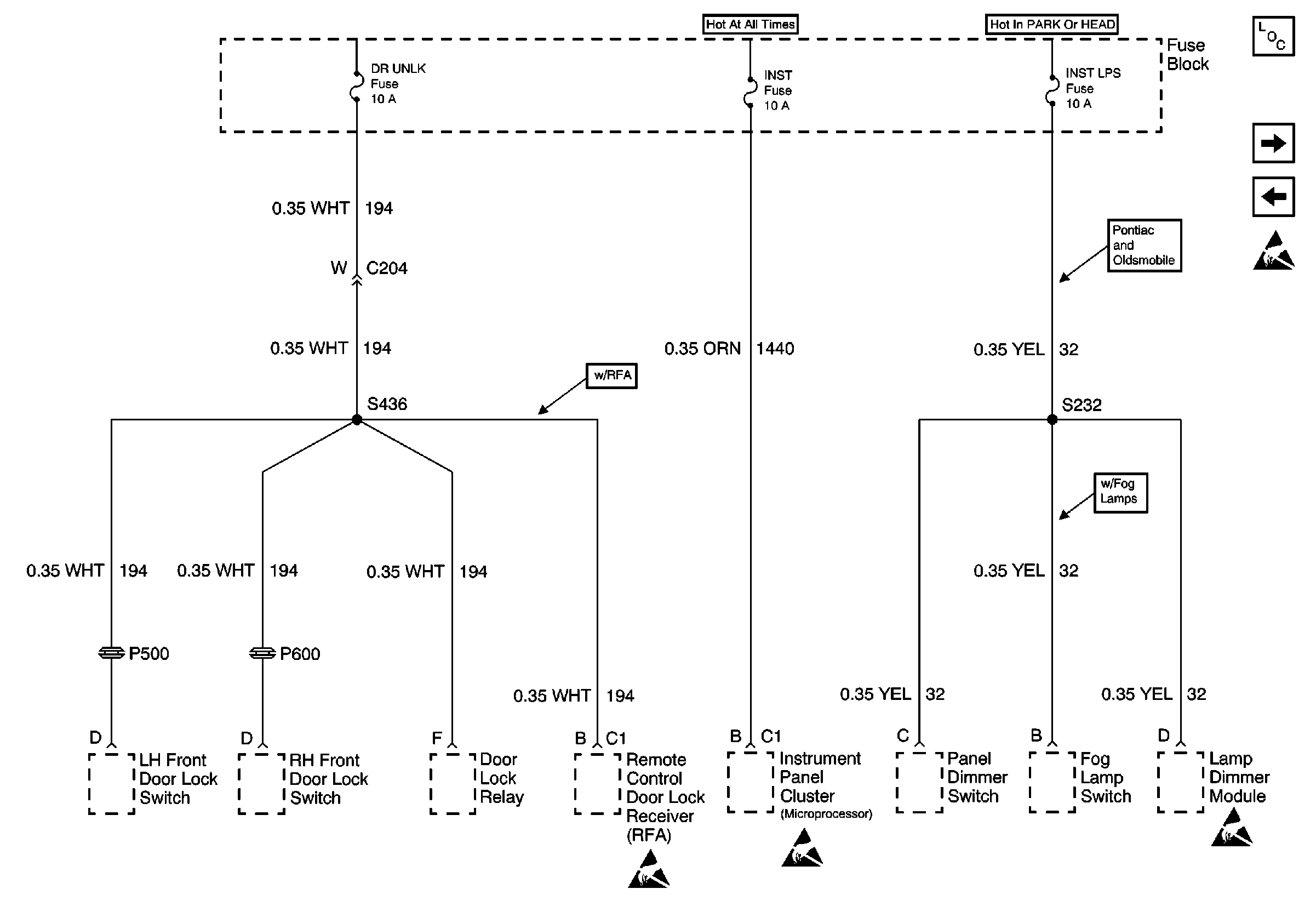

Figure 12:	Cell 11: DR UNLK, INST LPS Fuse Power and Grounding Component Views Cell 11: INST LPS, Wiper, and RDO IGN Fuse Cell 11: A/C and O2 Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

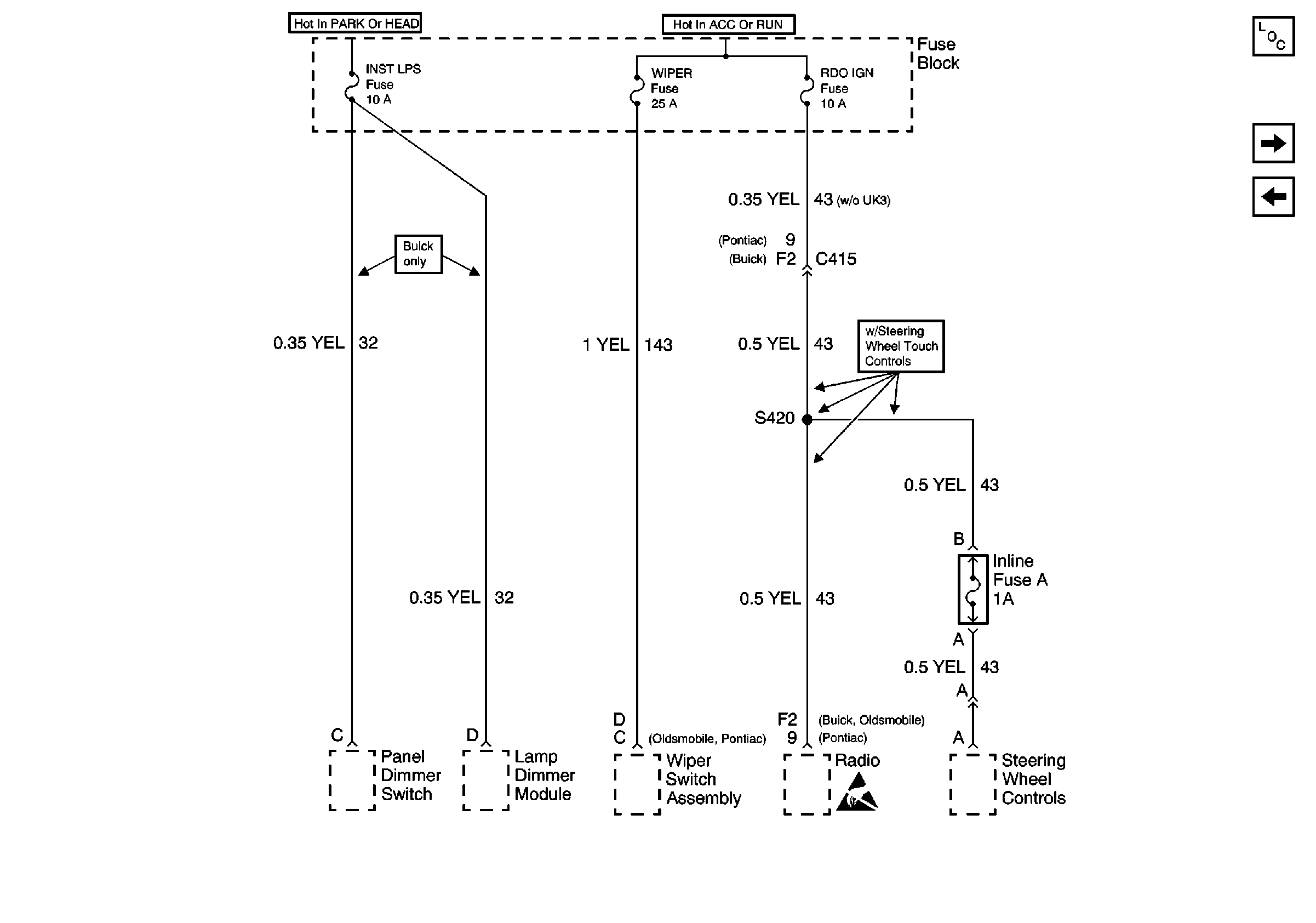

Figure 13:	Cell 11: INST LPS, Wiper, and RDO IGN Fuse Power and Grounding Component Views Cell 11: DR UNLK, INST LPS Fuse Cell 11: PWR WDO Circuit Breaker Handling ESD Sensitive Parts Notice

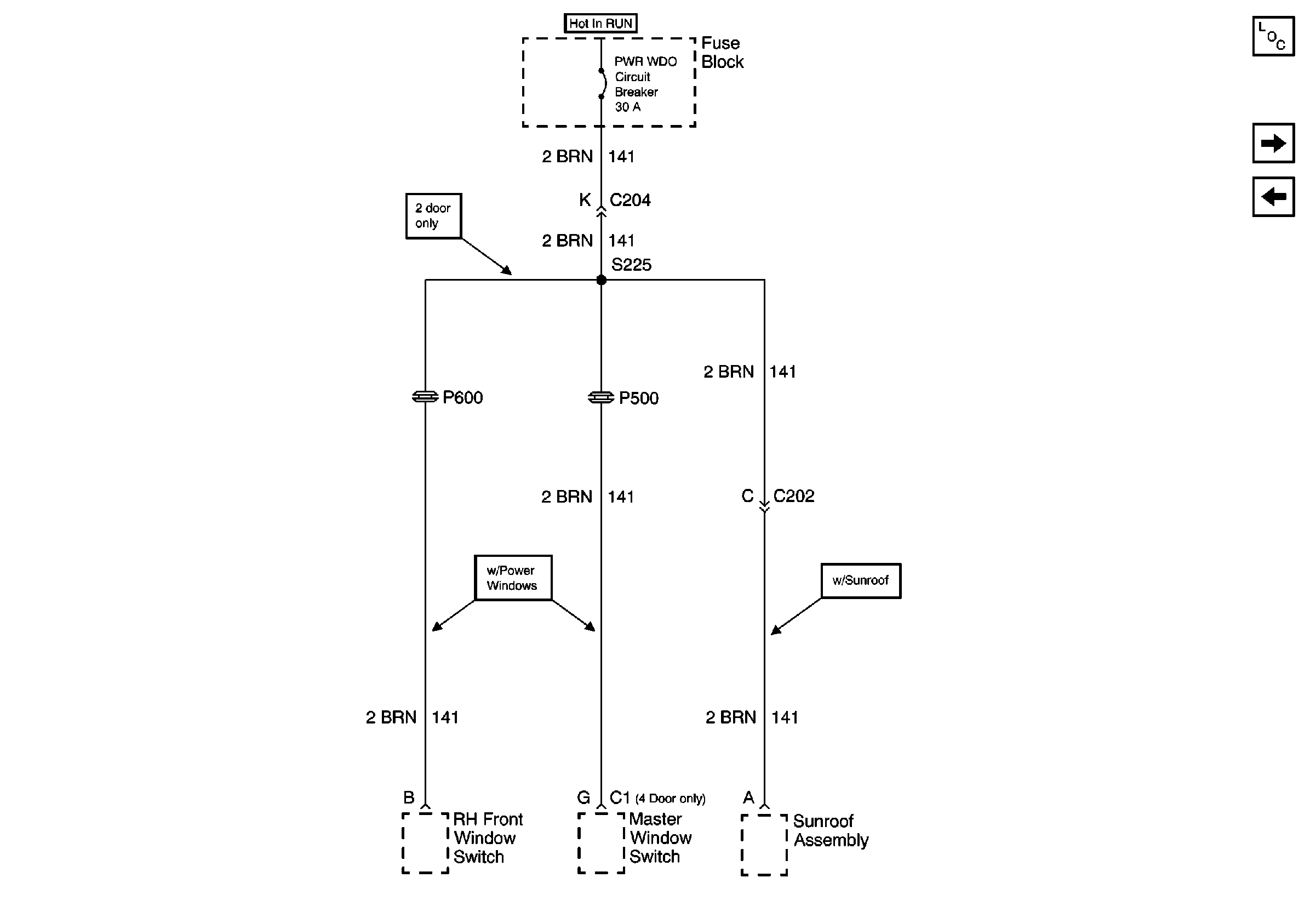

Figure 14:	Cell 11: PWR WDO Circuit Breaker Power and Grounding Component Views Cell 11: INST LPS, Wiper, and RDO IGN Fuse
