| Table 1: | A/C Compressor Clutch |
| Table 2: | A/C Orifice Relay |
| Table 3: | A/C Refrigerant Low Temperature Sensor |
| Table 4: | A/C Refrigerant Pressure Sensor (w/LX5) |
| Table 5: | A/C Refrigerant Pressure Sensor (w/L47) |
| Table 6: | Air Temperature Actuator - Left |
| Table 7: | Air Temperature Actuator - Right |
| Table 8: | Air Temperature Sensor - Inside |
| Table 9: | Air Temperature Sensor - Lower Right |
| Table 10: | Air Temperature Sensor - Ambient |
| Table 11: | Air Temperature Sensor - Upper Left |
| Table 12: | Air Temperature Sensor - Upper Right |
| Table 13: | Air Temperature Switch Assembly - Right |
| Table 14: | Blower Motor Control Processor |
| Table 15: | Blower Motor |
| Table 16: | HVAC Control Module (w/CJ2) |
| Table 17: | Mode Actuator |
| Table 18: | Recirculation Actuator |
| Table 19: | Sunload Sensor Assembly |

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | DK GRN  | 59  | A/C Compressor Clutch Supply Voltage  | ||||
B  | BLK  | 1150  | Ground  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK/BLK  | 2262  | A/C Orifice Relay Control Circuit  | ||||
B  | BLK  | 250  | Ground  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK/WHT  | 2261  | Low Reference  | ||||
B  | GRY  | 731  | A/C Refrigerant Low Temperature Sensor Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 808  | Low Reference  | ||||
B  | GRY  | 474  | 5 Volt Reference  | ||||
C  | RED/BLK  | 380  | A/C Refrigerant Pressure Sensor Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 808  | Low Reference  | ||||
B  | GRY  | 2700  | 5 Volt Reference  | ||||
C  | RED/BLK  | 380  | A/C Refrigerant Pressure Sensor Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
5  | BRN  | 141  | Ignition 3 Voltage  | ||||
6  | DK BLU  | 1199  | Air Temperature Door Control  | ||||
7  | YEL  | 1791  | Low Reference  | ||||
8  | --  | --  | Not Used  | ||||
9  | LT BLU  | 733  | Air Temperature Door Position Signal  | ||||
10  | GRY  | 705  | 5 Volt Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
5  | BRN  | 141  | Ignition 3 Voltage  | ||||
6  | WHT/BLK  | 1236  | Air Temperature Door Control - Right  | ||||
7  | YEL  | 1791  | Low Reference  | ||||
8  | --  | --  | Not Used  | ||||
9  | DK BLU  | 1646  | Air Temperature Door Position Signal - Right  | ||||
10  | GRY  | 705  | 5 Volt Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | DK GRN  | 734  | Inside Air Temperature Sensor Signal  | ||||
B  | YEL  | 61  | Low Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 520  | Lower Right Air Temperature Sensor Signal  | ||||
B  | YEL  | 61  | Low Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT GRN/BLK  | 735  | Ambient Air Temperature Sensor Signal  | ||||
B  | YEL  | 61  | Low Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 516  | Upper Left Air Temperature Sensor Signal  | ||||
B  | YEL  | 61  | Low Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | TAN  | 517  | Air Temperature Sensor Signal Upper Right  | ||||
B  | YEL  | 61  | Low Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK  | 2145  | Warmer/Cooler Passenger Switch Supply Voltage  | ||||
B  | PPL  | 2146  | Passenger HVAC Switch Signal  | ||||
C  | YEL  | 1491  | Backlight Lamps Control  | ||||
D  | BLK/WHT  | 451  | Ground  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 450  | Ground  | ||||
B  | ORN  | 1340  | Battery Positive Voltage  | ||||
C  | GRY  | 754  | Blower Motor Speed Control  | ||||
D  | --  | --  | Not Used  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | --  | Speed Control  | ||||
B  | PPL  | --  | Blower Motor Positive Voltage  | ||||
C  | BRN  | --  | Blower Motor Flange Ground  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||

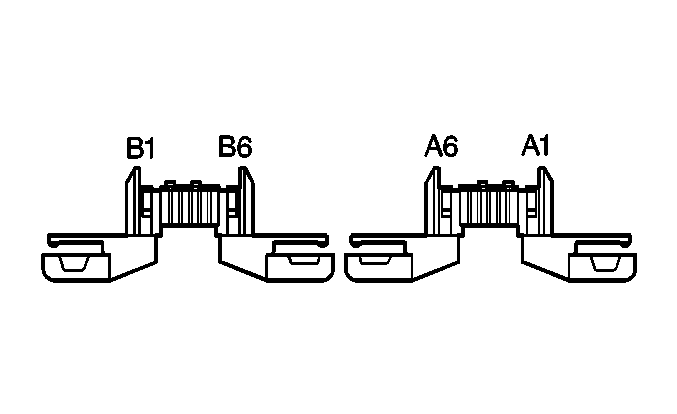

Pin*  | Wire Color  | Circuit No.  | Function  | ||||
A1  | FW  | 451  | Ground  | ||||
A2  | FW  | 41  | Ignition 3 Voltage  | ||||
A3-A4  | --  | --  | Not Used  | ||||
A5  | FW  | 450  | Ground  | ||||
A6  | --  | --  | Not Used  | ||||
B1  | FW  | 1491  | Backlight Lamps Control  | ||||
B2-B4  | --  | --  | Not Used  | ||||
B5  | FW  | 1881  | HVAC Control Module Clock Signal  | ||||
B6  | FW  | 1880  | HVAC Control Module Data Signal  | ||||
* A Pins= Top B Pins= Bottom  | |||||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
5  | BRN  | 141  | Ignition 3 Voltage  | ||||
6  | YEL  | 1318  | Mode Door Control  | ||||
7  | YEL  | 1791  | Low Reference  | ||||
8  | --  | --  | Not Used  | ||||
9  | YEL/BLK  | 1814  | Lower Mode Door Position Signal  | ||||
10  | GRY  | 705  | 5 Volt Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
5  | BRN  | 141  | Ignition 3 Voltage  | ||||
6  | DK GRN  | 1614  | Recirculation Door Control  | ||||
7  | YEL  | 1791  | Low Reference  | ||||
8  | --  | --  | Not Used  | ||||
9  | PPL  | 1838  | Recirculation Door Position Signal  | ||||
10  | GRY  | 705  | 5 Volt Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT BLU/BLK  | 590  | Driver Solar Sensor Signal  | ||||
B  | GRY  | 1548  | Passenger Solar Sensor Signal  | ||||
C  | YEL  | 61  | Low Reference  | ||||
D  | WHT  | 278  | Ambient Light Sensor Signal  | ||||
